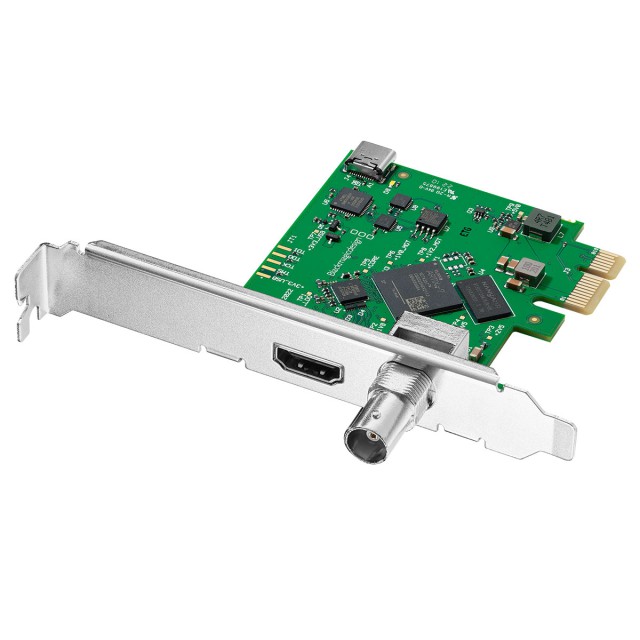

Blackmagic Design DeckLink Mini Recorder HD
SKU: BDLKMINIREC3G
The Blackmagic DeckLink Mini Recorder HD is a PCI Express input card for capturing video to a computer from cameras, recorders and production outputs via 3G-SDI and HDMI 2.0. It captures SD and HD formats up to 1080p60 and via SDI also 2K DCI up to 2Kp60, works with OBS, vMix, Wirecast or DaVinci Resolve, and thanks to two brackets it fits both standard and…
Promotion: -2%
146.41 €
143.39 € with VAT
118.5 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for Blackmagic Design DeckLink Mini Recorder HD
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
vMix Software Pro
vMix is a PC-only (Windows) software overhead that uses SDI and HDMI input/output
1 329 €
To be sent 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

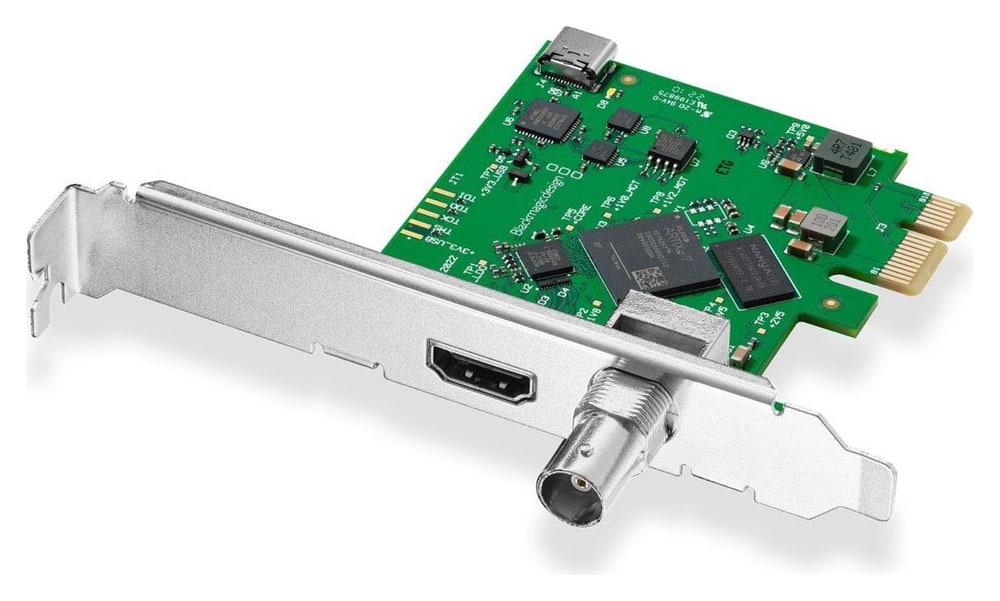

The Blackmagic DeckLink Mini Recorder HD is a PCI Express input card for capturing video to a computer from cameras, recorders and production outputs via 3G-SDI and HDMI 2.0. It captures SD and HD formats up to 1080p60 and via SDI also 2K DCI up to 2Kp60, works with OBS, vMix, Wirecast or DaVinci Resolve, and thanks to two brackets it fits both standard and low profile computers.
SD and HD capture from SDI and HDMI
The inputs detect the format of the connected source automatically and the card passes it to streaming, editing or capture software – for live broadcasts, ingest and outside broadcast trucks.
3G-SDI inputHDMI 2.0 inputUp to 1080p602K DCI via SDIPCIe x1
Low power, easy installation
A power draw of just 3 W and the PCI Express x1 generation 2 interface make installation easy in regular workstations, low profile computers and rack servers.
Live streaming
A camera or production output straight into OBS, vMix or Wirecast.
Ingest and post production
Capture from cameras and recorders into editing applications.
Education and presentations
Lectures and conferences into a computer without extra equipment.
Custom solutions
Free Desktop Video SDK for macOS, Windows and Linux.
One SDI input, one HDMI input
The card has a 3G-SDI input on a BNC connector and an HDMI 2.0 type A input; you select the active input in software to match the source. It takes up to 16 channels of embedded audio from SDI and 8 channels from HDMI. The HDMI input cannot capture copy protected content.
Formats up to 2Kp60 DCI
The card captures SD and HD up to 1080p60 including 1080PsF, and via SDI also 2K DCI up to 2Kp60. It works with 12-bit RGB 4:4:4 up to 1080p30 and 10-bit YUV 4:2:2 in all formats, with Rec. 601, 709 and 2020 color spaces. The SDI interface complies with SMPTE 259M, 274M, 296M, 424M and 425M level A and B.

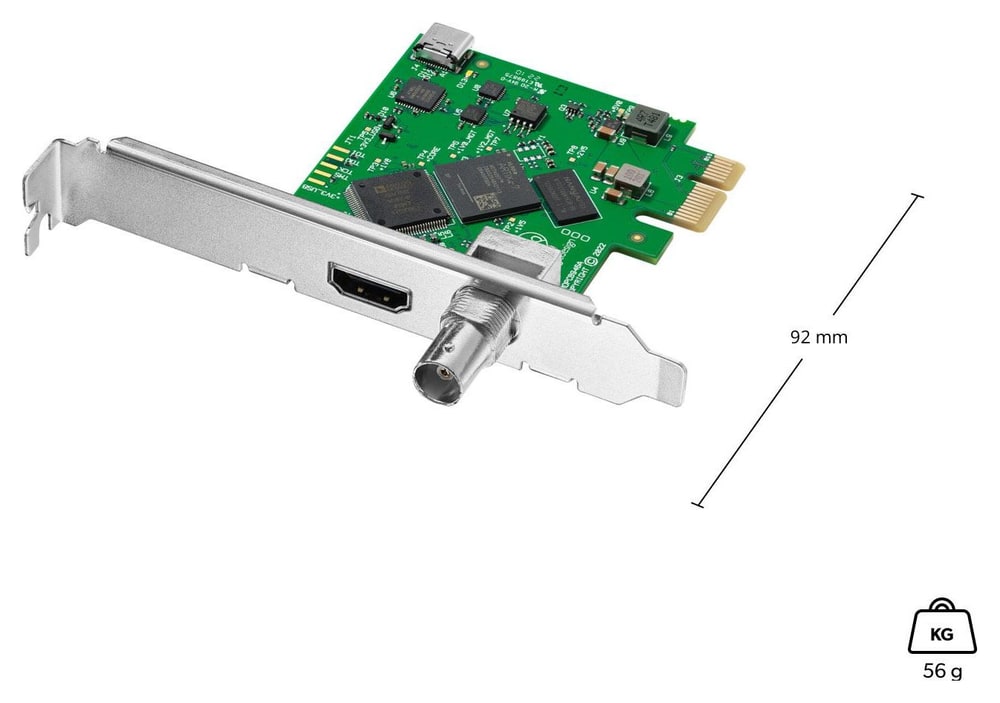

Low profile, two brackets
The card is 92 mm long and besides the fitted full-height bracket the box includes a low profile bracket, so it fits a standard workstation, a compact computer or a rack server. The PCI Express x1 generation 2 interface works in x1, x4, x8 and x16 slots.
Software included
Desktop Video software includes Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. The card works with OBS, vMix and Wirecast as well as applications such as Cinegy Capture Pro, Softron MovieRecorder or Zoom, and with the Desktop Video SDK you can develop your own capture solution.

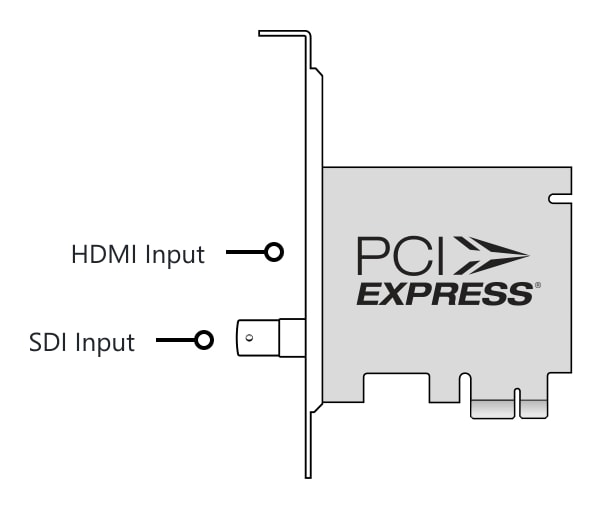

Connectors
The bracket carries the HDMI type A input with the 3G-SDI input on a BNC connector below it.
More information
Details for HD capture
The DeckLink Mini Recorder HD is a compact PCIe card for capturing SD and HD video from professional SDI and HDMI sources. It suits editing workstations, streaming, presentations, education and custom broadcast workflows.
Input selection in software
One 3G-SDI and one HDMI 2.0 input let you connect a camera, recorder, player or production output. The active input can be selected directly in compatible software.
Supported formats
The card handles SD and HD up to 1080p60 and via SDI also 2K DCI up to 60 frames per second. It carries embedded audio and integrates with supported editing and streaming applications.
Low profile design
The PCI Express 2.0 x1 interface and 3 W power draw make installation easy in regular workstations and compact computers.
PACKAGE CONTENT
- DeckLink Mini Recorder HD card with full-height bracket
- Low profile bracket
SPECIFICATIONS
- Function: Capture (input only)
- SDI input: 1 x 10-bit SD/HD, rates 270 Mb/s, 1.5G, 3G (BNC)
- HDMI input: 1 x HDMI 2.0 type A
- Audio: SDI: 16 embedded channels, HDMI: 8 embedded channels; 48 kHz, 24-bit
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K DCI formats (SDI): 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- HDMI formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- SDI sampling and color precision: 4:2:2, 4:4:4; 8/10/12-bit RGB 4:4:4 up to 1080p30, 8/10-bit YUV 4:2:2 in all formats
- HDMI sampling and color precision: 4:2:2, 4:4:4; 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all formats
- Color space: Rec. 601, Rec. 709, Rec. 2020
- Compliance: SMPTE 259M, 274M, 296M, 424M, 425M A/B
- SDI metadata: RP 188/SMPTE 12M-2, closed captioning
- Copy protection: The HDMI input cannot capture copy protected sources
- Processing: Hardware based real time color space conversion
- Computer interface: PCI Express x1 (generation 2, compatible with x1, x4, x8, x16 slots)
- Form factor: Low profile card, full-height and low profile brackets
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
- Software included: macOS and Windows: Media Express, Disk Speed Test, LiveKey, Desktop Video Utility, driver; Linux: Media Express, Desktop Video Utility, driver
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
- Power consumption: 3 W
- Card length: 92 mm
- Weight: 56 g
- Operating temperature: 5–40 °C
- Storage temperature: −20–45 °C
- Relative humidity: 0–90 % non-condensing
- Warranty: 3 years (limited manufacturer’s warranty)
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | HD · 1920×1080 @ 60 fps · 2048×1080 @ 60 fps |
| Inputs | HDMI · SDI · 3G SDI · HDMI 2.0 |
| Interface type | PCI Express x1 · PCI Express x1 Gen 2 |
Other parameters
| Other | Multiple inputs |
