Blackmagic Design DeckLink Micro Recorder

SKU: BDLKMICROREC

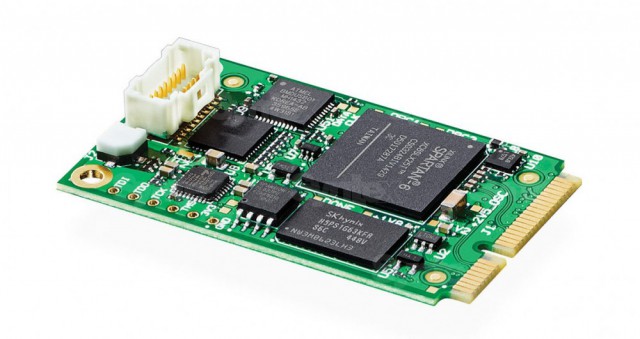

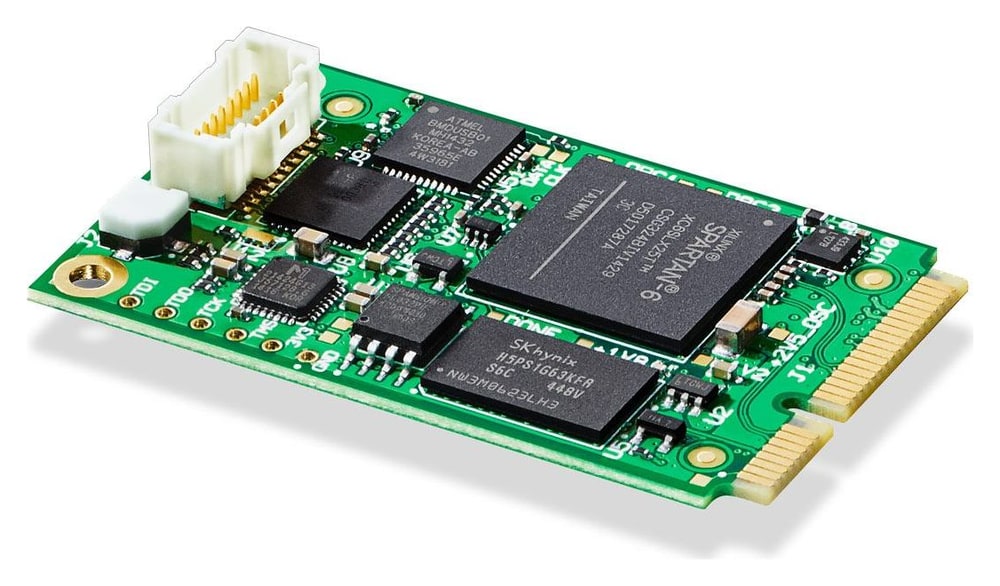

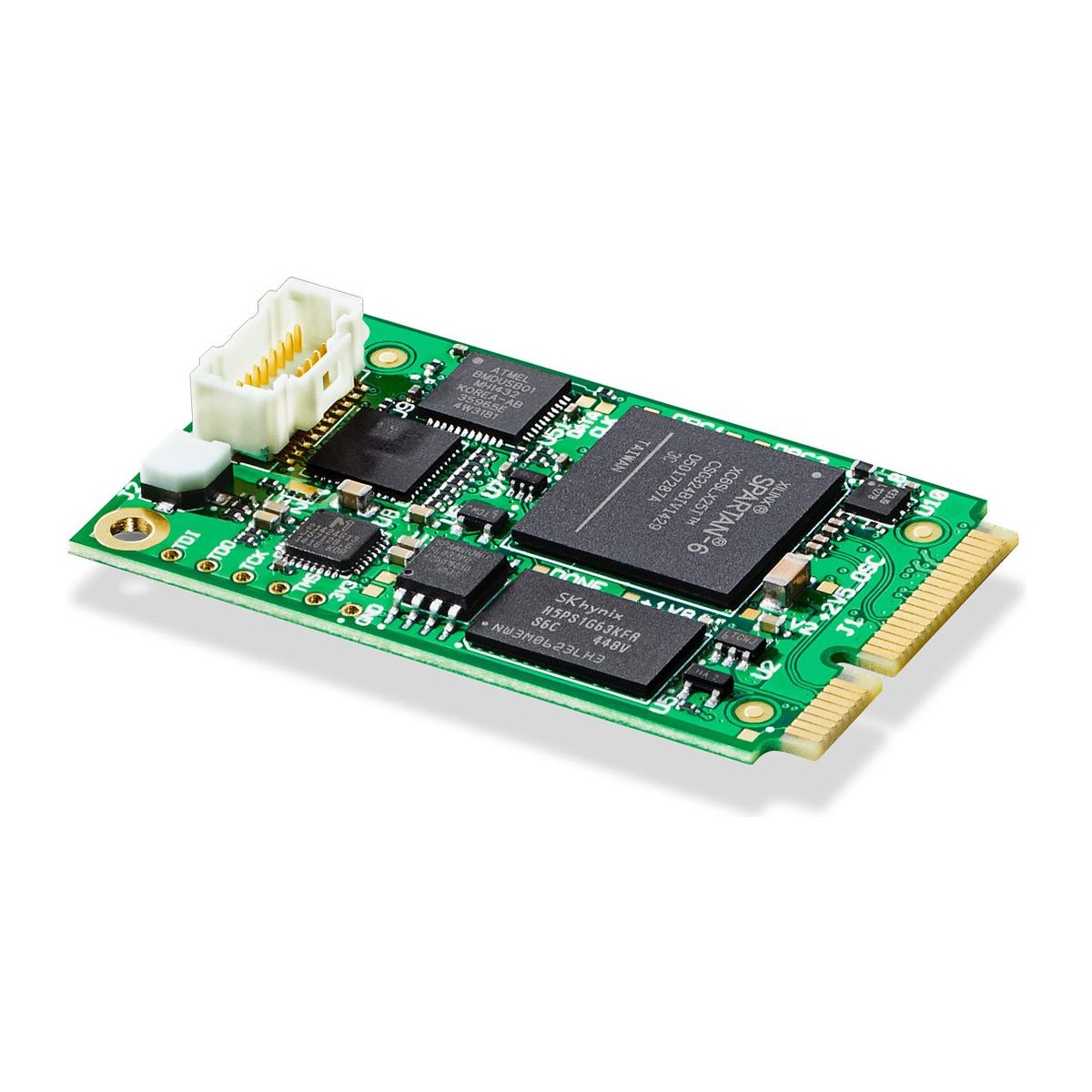

The Blackmagic DeckLink Micro Recorder is a miniature low-latency mini PCI Express capture card for SD and HD video up to 1080p30. An SDI or HDMI input is added through the built-in Hirose and Molex connectors and separately sold cables, so the card suits compact and embedded computers running macOS, Windows or Linux.

More information

172 € with VAT 142.15 € without VAT
Add to Compare Price history
Availability
on request
SKU:
BDLKMICROREC
Add to Compare Price history

Blackmagic Design DeckLink SDI Micro

167 €without VAT 138.02 €

Top accessories for Blackmagic Design DeckLink Micro Recorder

Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

Blackmagic Design DeckLink Micro Recorder HDMI Cable

HDMI cable for Blackmagic Design DeckLink Micro Recorder cards. The 192 mm CABLE-BDLKMIR/HDMI
19 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Blackmagic DeckLink Micro Recorder is a miniature low-latency mini PCI Express capture card for SD and HD video up to 1080p30. An SDI or HDMI input is added through the built-in Hirose and Molex connectors and separately sold cables, so the card suits compact and embedded computers running macOS, Windows or Linux.

HD capture for miniature computers

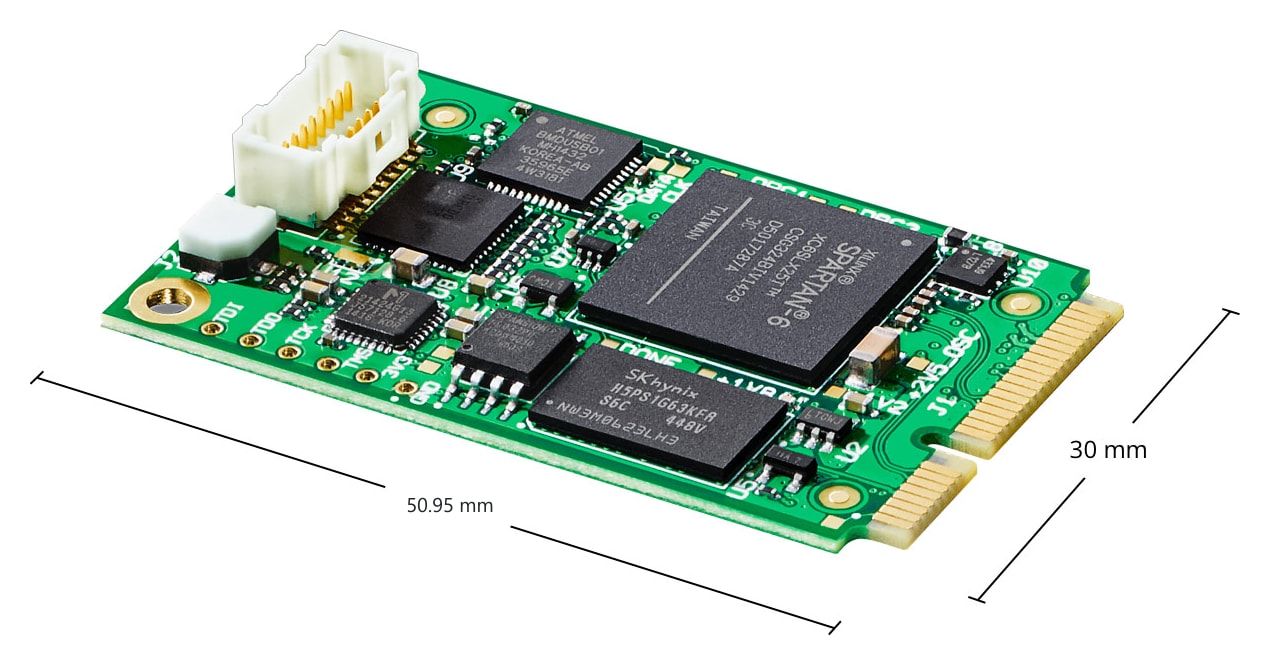

Measuring 50.95 × 30 mm, the card adds an SDI or HDMI input for single channel video capture to a computer with a mini PCI Express slot – where a regular PCIe card will not fit.

Mini PCIe x1HD-SDI inputHDMI inputUp to 1080p30Max. 3 W

Cables as needed

The SDI and HDMI connectors are brought out with the CABLE-BDLKMIR/SDI and CABLE-BDLKMIR/HDMI cables, sold separately; their ends with BNC and HDMI connectors mount in the case panel.

Embedded systems

Video capture in compact industrial and embedded computers.

Low latency

For live applications and monitoring systems.

Wide temperature range

Operation from −25 to 55 °C.

Developers

Desktop Video SDK for macOS, Windows and Linux.

SD and HD formats

The card captures NTSC and PAL, 720p up to 60 frames per second and 1080p, 1080i and 1080PsF up to 30 frames per second in 8-bit or 10-bit YUV 4:2:2. It complies with SMPTE 259M, 292M and 296M and the HDMI specification.

DeckLink Micro Recorder – SD and HD formats

Mini PCI Express

The card follows the PCI Express Mini Card electromechanical specification with one generation 1 lane. The HDMI connector, however, is 8 mm high and exceeds the 3 mm height of the specification – check that there is room above the slot in the computer before installing.

Cables and connectors

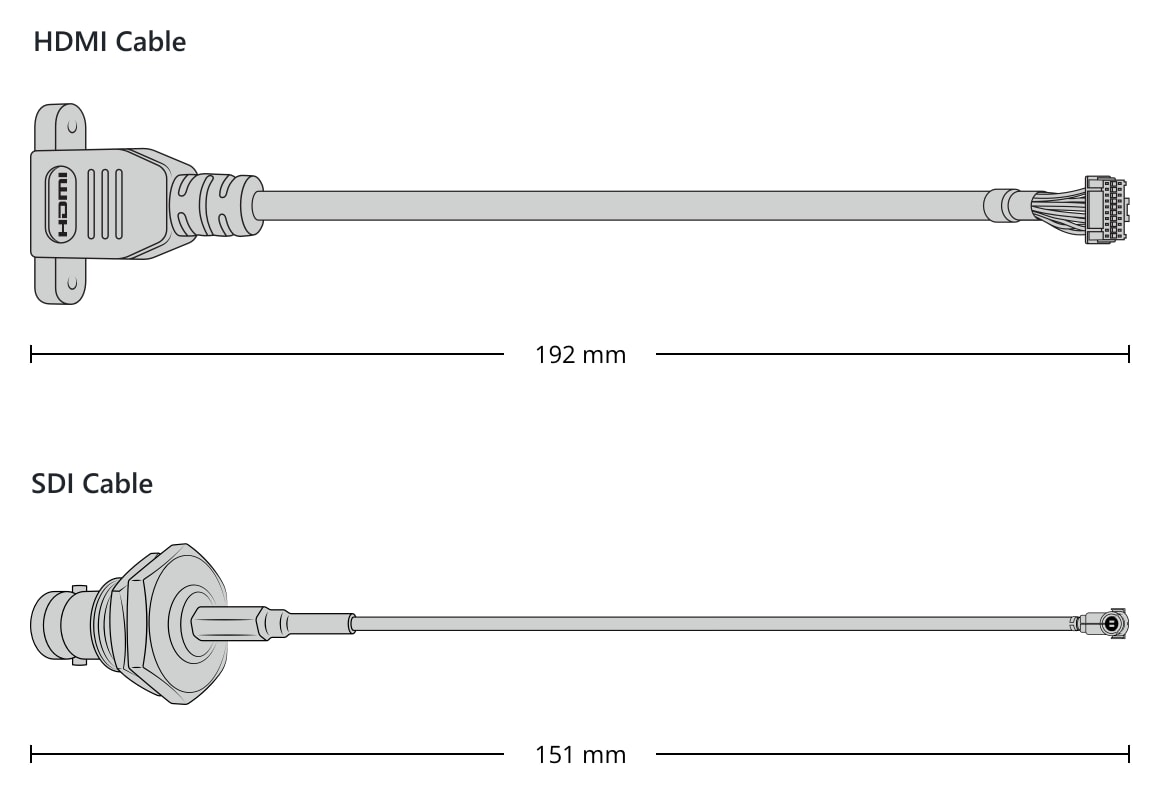

The SDI cable is 151 mm long and ends in a BNC connector with a nut, the HDMI cable is 192 mm long and has an HDMI connector with mounting ears. They attach to the card with miniature connectors.

DeckLink Micro Recorder – Cables and connectors

More information

DeckLink Micro Recorder card details

Miniature mini PCIe x1 card with HD-SDI and HDMI connections (requires optional cables) for capturing video in all SD/HD formats up to 1080p30. Power consumption 3 W max. For macOS, Windows and Linux.

The DeckLink Micro Recorder is a low-latency PCIe card for capturing SD and HD video up to 1080p30. It is compatible with mini PCIe x1 slots and provides an SDI or HDMI video input via Hirose and Molex connectors (cables are sold separately).

Desktop Video 12.0
The Desktop Video 12.0 update added support for Apple M1 processors and macOS Big Sur on DeckLink 4K and 8K, Intensity Pro 4K and UltraStudio Thunderbolt 3 models.

Installation on Mac computers with Apple M1
Blackmagic Design published a PDF document describing the installation of Desktop Video for UltraStudio and DeckLink cards on Mac computers with M1 processors.

PACKAGE CONTENT

  • DeckLink Micro Recorder card
  • SDI and HDMI cables are not included

SPECIFICATIONS

  • Function: Capture (input only), single channel
  • Inputs: HD-SDI or HDMI
  • Connectors: Built-in Hirose and Molex connectors for separate SDI and HDMI cables
  • SD formats: 525i/59.94 NTSC, 625i/50 PAL
  • HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • Sampling and color precision: 4:2:2; 8/10-bit YUV 4:2:2
  • Compliance: SMPTE 259M, 292M, 296M, HDMI
  • Computer interface: Mini PCI Express (PCI Express Mini Card), 1 lane generation 1; the 8 mm high HDMI connector exceeds the 3 mm height of the specification
  • Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
  • Power consumption: 3 W (max.)
  • Dimensions: 50.95 × 30 mm
  • Operating temperature: −25–55 °C
  • Storage temperature: −40–75 °C
  • Relative humidity: 0–90 % non-condensing
  • Order code: BDLKMICROREC
  • Optional accessories: HDMI cable CABLE-BDLKMIR/HDMI, SDI cable CABLE-BDLKMIR/SDI
  • Warranty: 3 years (limited manufacturer’s warranty)
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Capture cards internal

Main parameters

Maximum resolutionHD
InputsHDMI · SDI
Interface typePCI Express Mini

Other parameters

OtherMultiple inputs
