Blackmagic Design DeckLink SDI Micro

Name: Blackmagic Design DeckLink SDI Micro
Brand: Blackmagic Design
SKU: BDLKMICROSDI
Price: 167 EUR
Availability: OutOfStock

SKU: BDLKMICROSDI

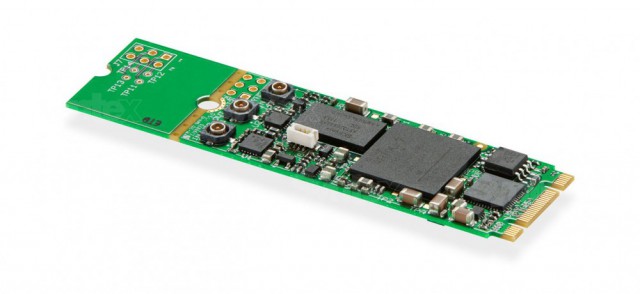

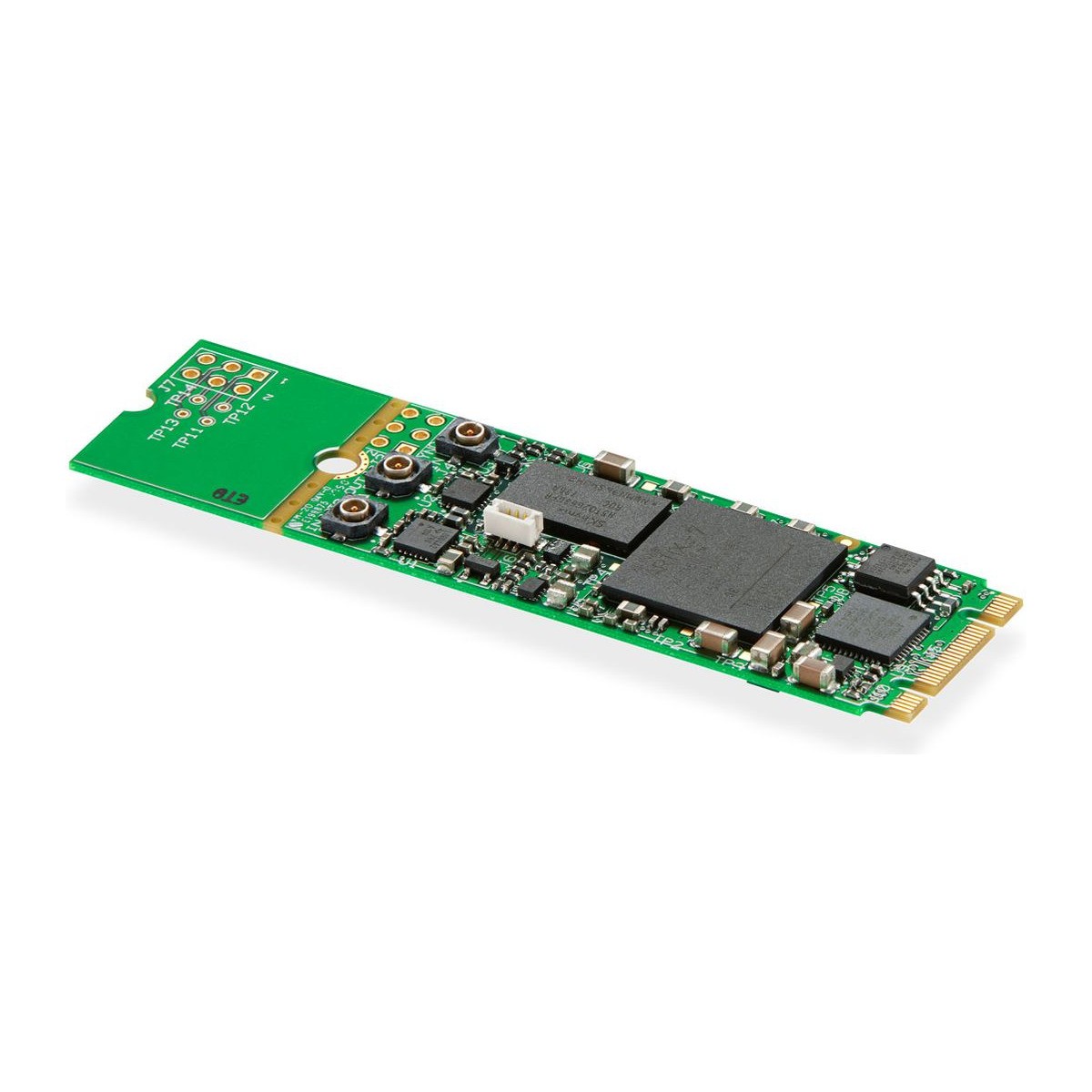

The Blackmagic DeckLink SDI Micro is a miniature M.2 PCI Express card with 3G-SDI for simultaneous capture and playback of SD and HD video up to 1080p60. It has a Black Burst and Tri-Sync reference input, fits M.2 slots with B and M keys in 2260 and 2280 sizes, and suits compact and portable computer systems.

More information

167 € with VAT 138.02 € without VAT

Price history

Availability

on request

SKU:
BDLKMICROSDI

Price history

Top accessories for Blackmagic Design DeckLink SDI Micro

Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI

23 €

In stock > 5 pcs

Blackmagic Design Fusion Studio

Fusion Studio is professional node based software for visual effects, 3D and motion

313 €

on request

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

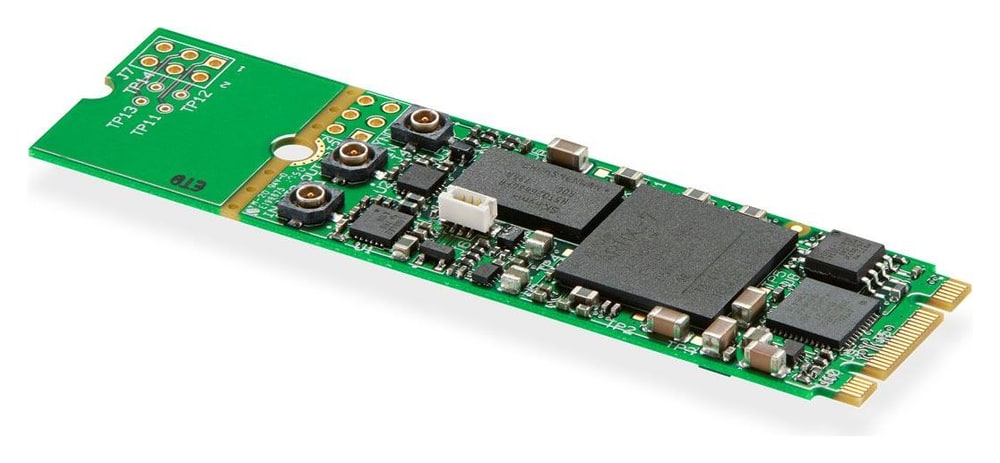

3G-SDI on an M.2 card

SDI video capture and playback in a computer without a free PCIe slot – all it takes is an M.2 slot and a card measuring 80 × 22 mm.

M.2 PCIe x1 Gen 33G-SDICapture and playbackUp to 1080p60Black Burst / Tri-Sync

Fan and heat sink included

The card comes with a fan and heat sink assembly to remove heat in a compact case. It draws at most 4.03 W and operates at 0 to 50 °C.

Portable systems

SDI capture and playback in compact and portable computers.

Synchronization

Black Burst and Tri-Sync reference input for control room operation.

Broadcast quality

12-bit RGB 4:4:4 up to 1080p30, 10-bit YUV 4:2:2 in all formats.

Developers

Desktop Video SDK for macOS, Windows and Linux.

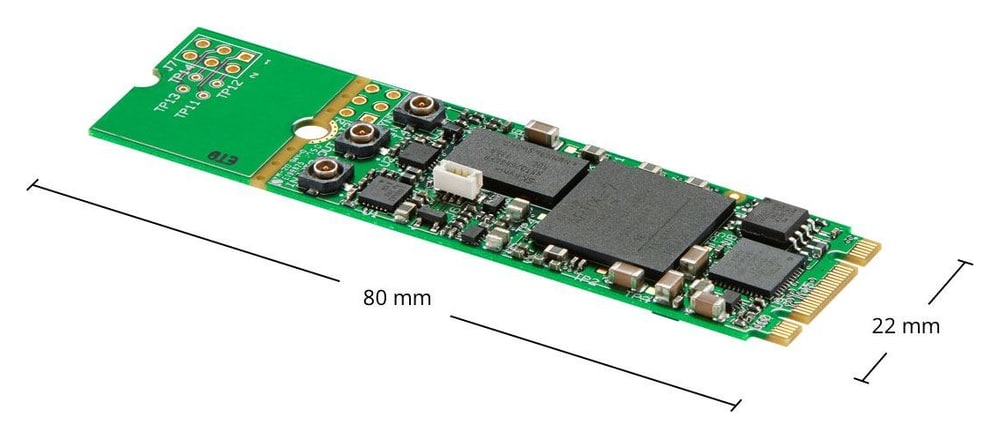

M.2 2260 and 2280 format

The card uses one PCI Express generation 3 lane and fits M.2 slots with B and M keys in 2260 and 2280 lengths. It measures 80 × 22 mm.

Formats and standards

It supports NTSC, PAL, 720p, 1080i, 1080PsF and 1080p up to 60 frames per second with 4:2:2 and 4:4:4 sampling. The SDI interface complies with SMPTE 259M, 292M, 296M, 424M and 425M level A and B and with ITU-R BT.656 and BT.601.

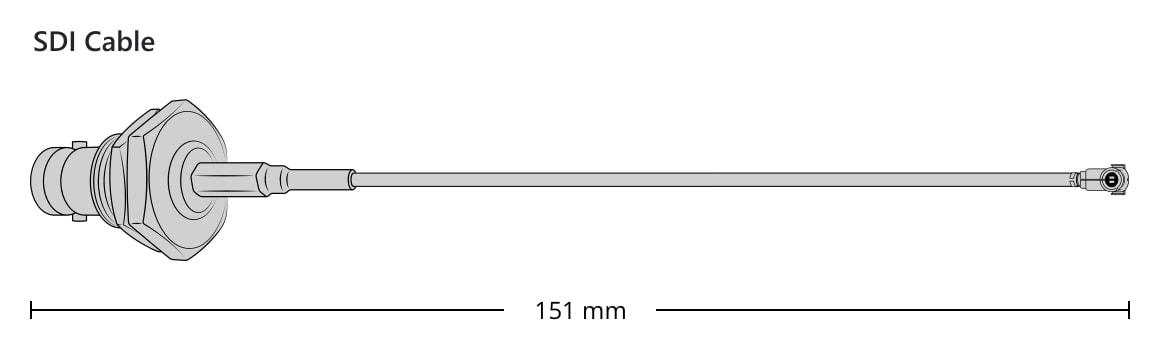

SDI cable

The SDI connectors on the card are miniature; the signal is brought out with the 151 mm CABLE-BDLKMIR/SDI cable with a BNC connector, sold separately.

DeckLink SDI Micro – SDI cable

More information

DeckLink SDI Micro card details

The DeckLink Micro range of miniature cards includes compact models for SD and HD video processing on portable computers and systems where low power consumption matters.

The DeckLink SDI Micro is a miniature M.2 PCI Express card (B/M key, 2260/2280 size) with a 3G-SDI interface (Hirose) for simultaneous capture and playback of SD and HD video up to 1080p60. The model also has a sync input (Black Burst, Tri-Sync) and is designed for very compact portable systems.

Desktop Video 12.0
The Desktop Video 12.0 update added support for Apple M1 processors and macOS Big Sur on DeckLink 4K and 8K, Intensity Pro 4K and UltraStudio Thunderbolt 3 models.

Installation on Mac computers with Apple M1
Blackmagic Design published a PDF document describing the installation of Desktop Video for UltraStudio and DeckLink cards on Mac computers with M1 processors.

PACKAGE CONTENT

DeckLink SDI Micro card
Fan and heat sink assembly
SDI cables are not included

SPECIFICATIONS

Function: Simultaneous capture and playback
SDI: 3G-SDI SD/HD
Connectors: Miniature 3G-SDI connectors for separate SDI cables
Reference input: Black Burst and Tri-Sync
SD formats: 525i59.94 NTSC, 625i50 PAL
HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Sampling and color precision: 4:2:2, 4:4:4; 8/10/12-bit RGB 4:4:4 up to 1080p30, 8/10-bit YUV 4:2:2 in all formats
Compliance: SMPTE 259M, 292M, 296M, 424M, 425M A/B, ITU-R BT.656, ITU-R BT.601
Computer interface: M.2 PCI Express, 1 lane generation 3, B and M key, 2260 and 2280 size
Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
Power consumption: 4.03 W (max.)
Dimensions: 80 × 22 mm
Operating temperature: 0–50 °C
Storage temperature: −40–75 °C
Relative humidity: 0–90 % non-condensing
Order code: BDLKMICROSDI
Optional accessories: SDI cable CABLE-BDLKMIR/SDI
Warranty: 3 years (limited manufacturer’s warranty)
