CineTreak CT-PT31K 3G NDI
SKU: CT-PT31K 3G NDI
CineTreak CT-PT31K 3G NDI is a professional 4K PTZ camera for live broadcasting, conferencing, education and remote production. Its 1/1.8-inch 8.42MP Sony CMOS sensor and 31x optical zoom deliver up to UHD 4K60 over HDMI and IP/NDI HX3, while 3G-SDI provides reliable HD output up to 1080p60. AI human tracking, 255 presets, tally, PoE, local microSD recording…
1 649 € with VAT
1 362.81 € without VAT
Availability
on request
Top accessories for CineTreak CT-PT31K 3G NDI
CineTreak Mixer Plus
CineTreak Mixer Plus is a compact four-input HDMI video switcher with a built-in
307 €
In stock 5 pcs
CineTreak CAP20S
CineTreak CAP20S converts professional SD, HD and 3G-SDI signals into a standard
142 €
In stock 2 pcs
CineTreak Stream Master SDI
CineTreak Stream Master SDI is a ten-inch hybrid switcher with 4× HDMI and 4× 3G-SDI,
929 €
In stock 1 pcs
CineTreak Cinelive C2S
CineTreak Cinelive C2S is a compact hybrid production switcher with four HDMI and
769 €
on request
CineTreak Mixer Plus SDI
The CineTreak Mixer Plus SDI is a compact, four-input 3G-SDI video switcher with
384 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
CineTreak CT-PT31K 3G NDI is a professional 4K PTZ camera for live broadcasting, conferencing, education and remote production. Its 1/1.8-inch 8.42MP Sony CMOS sensor and 31x optical zoom deliver up to UHD 4K60 over HDMI and IP/NDI HX3, while 3G-SDI provides reliable HD output up to 1080p60. AI human tracking, 255 presets, tally, PoE, local microSD recording and VISCA, serial and IP control simplify automated multi-camera workflows.
Broadcast PTZ · 3G-SDI · NDI HX3
4K60 imaging, 31x zoom and intelligent tracking
The CT-PT31K 3G NDI combines a 1/1.8-inch Sony CMOS sensor, long optical zoom and a quiet, precise PTZ mechanism for professional studios, venues, education, conferencing and streaming production.
UHD 4K6031x optical zoomNDI HX33G-SDIAI tracking
Detailed images from a wide establishing shot to a distant close-up
The 1/1.8-inch Sony CMOS sensor with 8.42 effective megapixels delivers sharp, color-accurate video up to 3840 × 2160 at 60 fps. The 6.91–214.64mm lens provides 31x optical and 8x digital zoom, a 60° to 1.98° horizontal field of view, f/1.35–4.6 aperture and fast autofocus. Minimum illumination of 0.5 lux, a signal-to-noise ratio above 50 dB and 3D noise reduction help retain clarity in challenging light.
UHD 4K up to 60 fpsHDMI 2.0 and IP/NDI workflows can use smooth 4K video, while 3G-SDI provides professional HD output up to 1080p60.
31x optical zoomThe 6.91–214.64mm range covers a wide venue shot and a tight speaker close-up without moving the camera.
AI human trackingFace and body recognition keep the presenter framed, while face-assisted focus supports fast and accurate focusing.
Production automation
Smooth, quiet and precisely repeatable movement
Advanced AI tracking automatically detects and follows people, keeping a presenter, lecturer or performer correctly framed without continuous operator input.
The PTZ mechanism covers ±170° pan and −90° to +120° tilt. Speed is adjustable from 0.1–120°/s for pan and 0.1–60°/s for tilt, while up to 255 presets recall prepared compositions quickly. Three IR receivers improve command reception, and sleep mode reduces consumption to below 400 mW between productions.
255presets
±170°pan
−90/+120°tilt
18 mmax AI range
Professional connectivity
Simultaneous outputs and flexible control

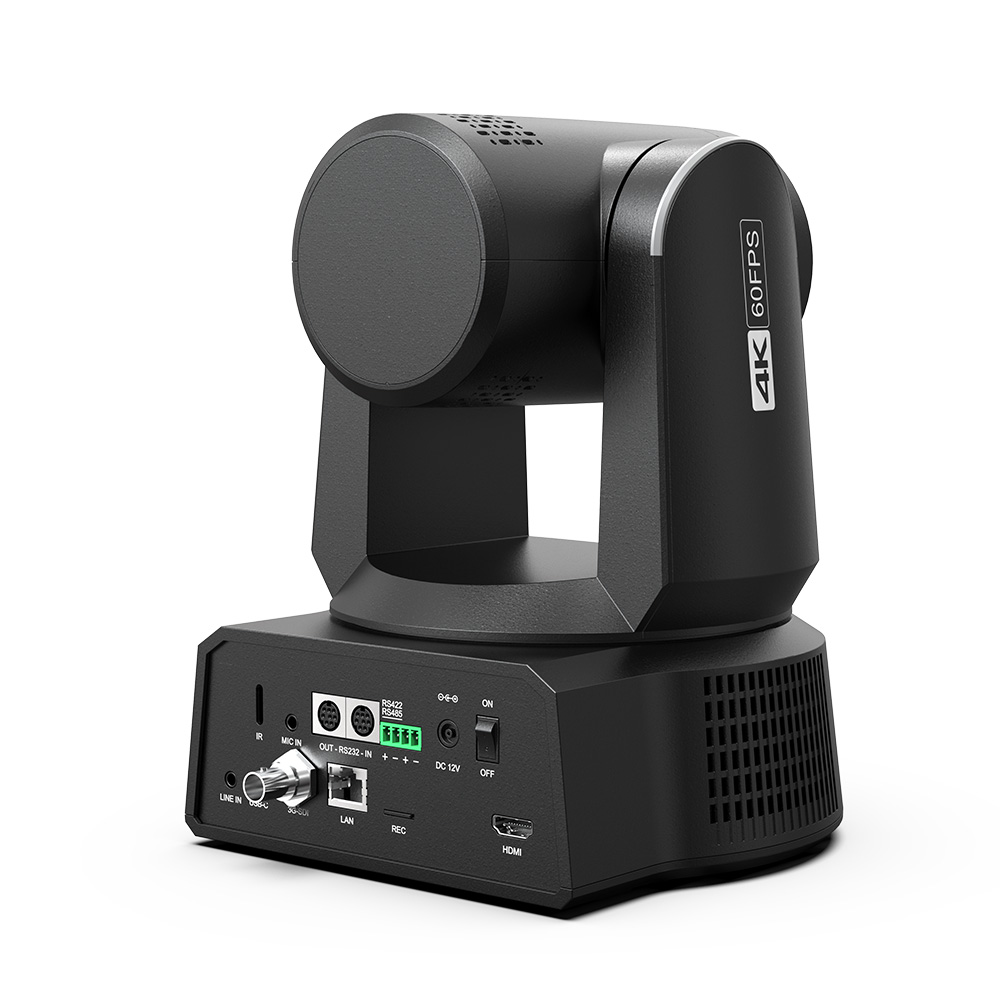

HDMI 2.0, 3G-SDI up to 1080p60, USB-B and NDI HX3/IP operate simultaneously. H.264/H.265 plus RTMP/RTMPS, RTSP/RTP, SRT and ONVIF support IP and hybrid production.
- VISCA and VISCA over IP, Pelco-D/P, RS-232, RS-422 and RS-485
- 3.5mm stereo input, embedded audio and tally for multi-camera production
- 12V DC or PoE 802.3af; MP4/TS recording to microSD cards up to 2TB
Built for broadcast, remote production and education
High-resolution imaging, intelligent automation and professional connectivity suit studios, live streams, conference rooms, lecture halls, houses of worship and other one- or multi-camera installations. Simultaneous outputs can feed local switching, recording and IP distribution at the same time.
Single-cable installationPoE can carry power over the same network used for video and control, while a standard 12V DC adapter remains available.
Audio and recordingAAC supports 16/32/44.1/48kHz sampling. The internal microSD slot records locally in MP4 or TS format.
Operational confidenceA −10 to +50°C operating range at 20–80% relative humidity suits fixed indoor installations.
PACKAGE CONTENT
- CineTreak CT-PT31K 3G NDI 4K PTZ camera
- 12V / 2A power adapter
- Mounting kit
- User manual
SPECIFICATIONS
- Sensor: 1/1.8-inch Sony CMOS, 8.42MP, 16:9
- Maximum: UHD 4K 3840 × 2160 up to 60 fps
- Codecs: H.264, H.265
- Optical zoom: 31x
- Digital zoom: 8x
- Focal length: 6.91–214.64mm
- Aperture: f/1.35–4.6
- Horizontal field of view: 60° to 1.98°
- Minimum illumination: 0.5 lux at f/1.35
- Signal-to-noise ratio: >50 dB
- White balance: 2400–7100K
- Video outputs: HDMI 2.0, 3G-SDI, USB-B, RJ45/IP/NDI
- Streaming protocols: NDI HX3, RTMP/RTMPS, RTSP/RTP, SRT, ONVIF
- Control: VISCA, VISCA over IP, Pelco-D/P, RS-232/422/485
- Presets: 255 (10 via remote control)
- Pan: −170° to +170°, 0.1–120°/s
- Tilt: −90° to +120°, 0.1–60°/s
- AI tracking: face/body, up to 18m range
- Audio: 3.5mm stereo input, AAC 16/32/44.1/48kHz
- Recording: microSD up to 2TB, MP4/TS
- Tally: yes
- Noise reduction: 2D/3D DNR
- Power: 12V DC / 2A or PoE 802.3af
- Consumption: up to 18W; sleep below 400mW
- Operating: −10 to +50°C, 20–80% RH
- Storage: −10 to +70°C, 20–95% RH
- Dimensions (W × H × D): 164 × 236 × 188mm
- Weight: approximately 2kg (body only)
- Use: indoor
Parameters
Parameters
| Manufacturer: | CineTreak |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/1.8" Sony CMOS |
| Resolution | 8.42MP |
| Zoom | 31x |
| Velikost snímače | 1/1.8 palce |
| Maximální rozlišení videa | 4K |
| Optický zoom | 31× |
| Video výstupy | HDMI · USB · NDI / Ethernet / IP · 3G-SDI |
| Síťové protokoly | SRT · RTMP / RTMPS · RTSP / RTP · FreeD · NDI|HX3 · ONVIF |
| Recording media | microSD karta |
Other parameters
| FPS | 4K 60fps · UHD 60fps · 1080P 60fps |
| Min. focal length | 6.9mm |
| Max. focal length | 214.6mm |
| Battery type | PoE (802.3af) or 12V DC |
| Other features | PTZ · Streaming · Tally · PoE · FreeD · SRT · NDI® · AI tracking |
| Control protocol | RS-422 · ONVIF, VISCA, VISCA over IP, Pelco-D, Pelco-P, RS-232, RS-485 |
