CineTreak CT-PT31K 12G NDI

  • Free transport
SKU: CT-PT31K 12G NDI

CineTreak CT-PT31K 12G NDI is a professional broadcast PTZ camera for live production, streaming, conferencing, education and remote workflows. Its 1/1.8-inch 8.42MP Sony CMOS sensor and 31x optical zoom deliver UHD 4K at up to 60 fps, with simultaneous HDMI 2.0, 12G-SDI, USB and IP/NDI HX3 output. AI human tracking, 255 presets, tally, PoE…

More information

2 639 € with VAT 2 180.99 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CT-PT31K 12G NDI
Add to Compare Price history

CineTreak CT-PT31K 12G

2 419 €without VAT 1 999.17 €

CineTreak CT-PT31K 3G

1 429 €without VAT 1 180.99 €

CineTreak CT-PT31K 3G NDI

1 649 €without VAT 1 362.81 €

Top accessories for CineTreak CT-PT31K 12G NDI

RØDE HDMI Cable 3 m (Black)

  • LAST PIECE
RØDE HDMI Cable is a premium HDMI-A to HDMI-A cable with Ethernet measuring 3 m.
19 €
In stock 1 pcs

RØDE HDMI Cable 1.5 m (Black)

  • LAST PIECE
RØDE HDMI Cable is a premium HDMI-A to HDMI-A cable with Ethernet measuring 1.5 m.
14 €
In stock 1 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 10 m

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
53 €
on request

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 3 m

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
27 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

CineTreak CT-PT31K 12G NDI is a professional broadcast PTZ camera for live production, streaming, conferencing, education and remote workflows. Its 1/1.8-inch 8.42MP Sony CMOS sensor and 31x optical zoom deliver UHD 4K at up to 60 fps, with simultaneous HDMI 2.0, 12G-SDI, USB and IP/NDI HX3 output. AI human tracking, 255 presets, tally, PoE and broad streaming and control protocol support make it easy to integrate into modern multi-camera systems.

Broadcast PTZ · 12G-SDI · NDI HX3

4K60 imaging, 31x zoom and intelligent tracking

The CT-PT31K 12G NDI combines a 1/1.8-inch Sony CMOS sensor, long optical zoom and a quiet, precise PTZ mechanism for professional studios, venues, education, conferencing and streaming production.

UHD 4K6031x optical zoomNDI HX312G-SDIAI tracking

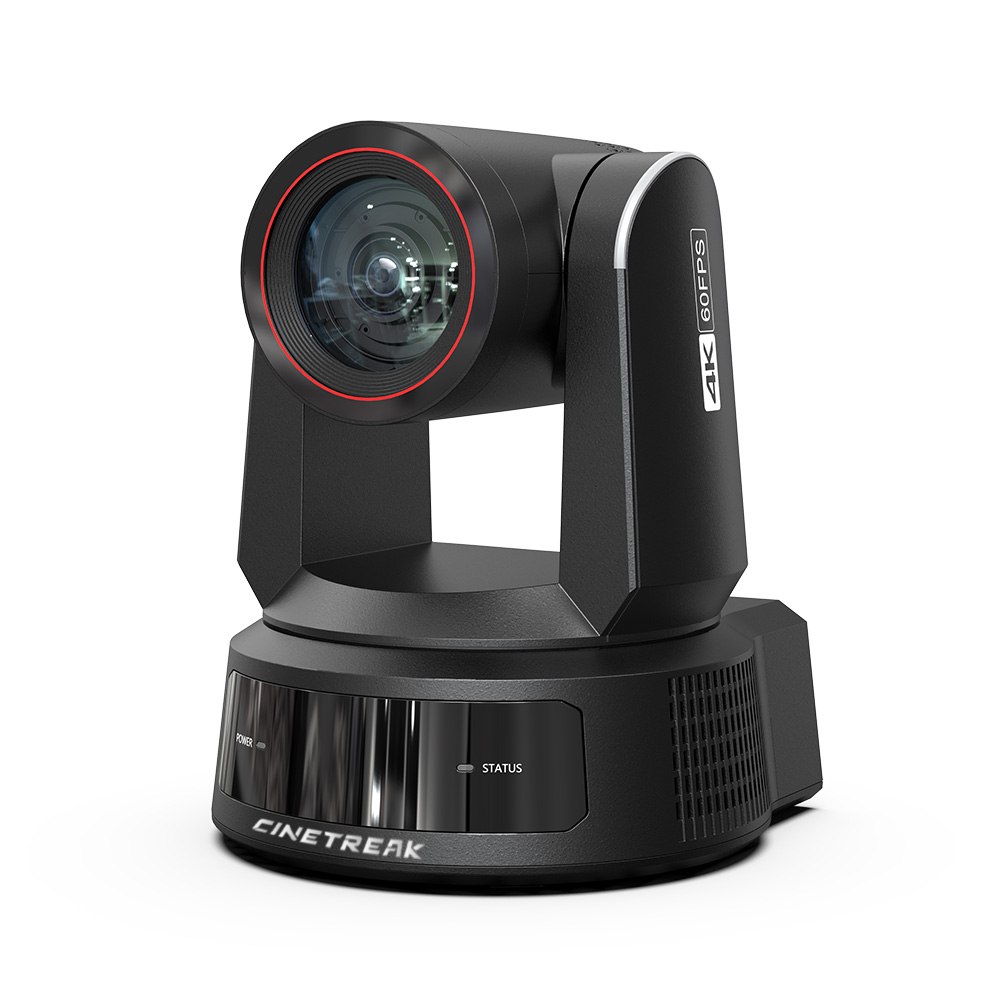

CineTreak CT-PT31K 12G NDI front view

Detailed images from a wide establishing shot to a distant close-up

The 1/1.8-inch Sony CMOS sensor with 8.42 effective megapixels delivers sharp, color-accurate video up to 3840 × 2160 at 60 fps. The 6.91–214.64mm lens provides 31x optical and 8x digital zoom, a 60° to 1.98° horizontal field of view, f/1.35–4.6 aperture and fast autofocus. Minimum illumination of 0.5 lux, a signal-to-noise ratio above 50 dB and 3D noise reduction help retain clarity in challenging light.

UHD 4K up to 60 fpsHDMI 2.0, 12G-SDI and IP workflows can use smooth 4K video, with common 1080p and 720p formats also supported.
31x optical zoomThe 6.91–214.64mm range covers a wide venue shot and a tight speaker close-up without moving the camera.
AI human trackingFace and body recognition keep the presenter framed, while face-assisted focus supports fast and accurate focusing.

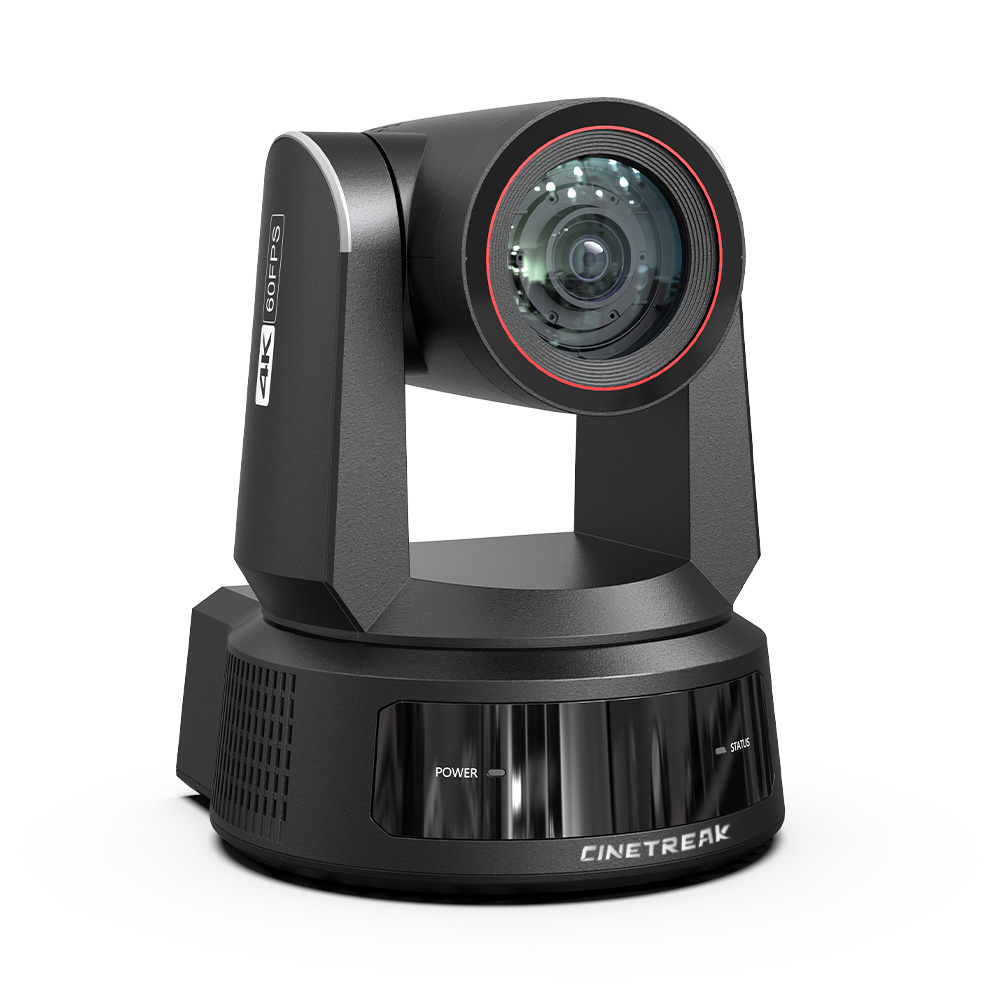

CineTreak CT-PT31K 12G NDI side view
Production automation

Smooth, quiet and precisely repeatable movement

Advanced AI tracking automatically detects and follows people, keeping a presenter, lecturer or performer correctly framed without continuous operator input.

The PTZ mechanism covers ±170° pan and −90° to +120° tilt. Speed is adjustable from 0.1–120°/s for pan and 0.1–60°/s for tilt, while up to 255 presets recall prepared compositions quickly. Three IR receivers improve command reception, and sleep mode reduces consumption to below 400 mW between productions.

255presets
±170°pan
−90/+120°tilt
18 mmax AI range
Professional connectivity

Simultaneous outputs and flexible control

The camera provides simultaneous HDMI 2.0, 12G-SDI, USB-B and RJ45 output. NDI HX3 plus RTMP/RTMPS, RTSP/RTP, SRT and ONVIF integrate it into IP and hybrid productions, with H.264 and H.265 video compression.

  • VISCA and VISCA over IP, Pelco-D/P, RS-232, RS-422 and RS-485 control
  • 3.5mm stereo input and embedded audio over HDMI, SDI, IP and NDI
  • Tally indication for clear camera status in multi-camera control rooms
  • 12V DC or PoE 802.3af power, with up to 18W consumption
  • MP4/TS recording to a microSD card up to 2TB

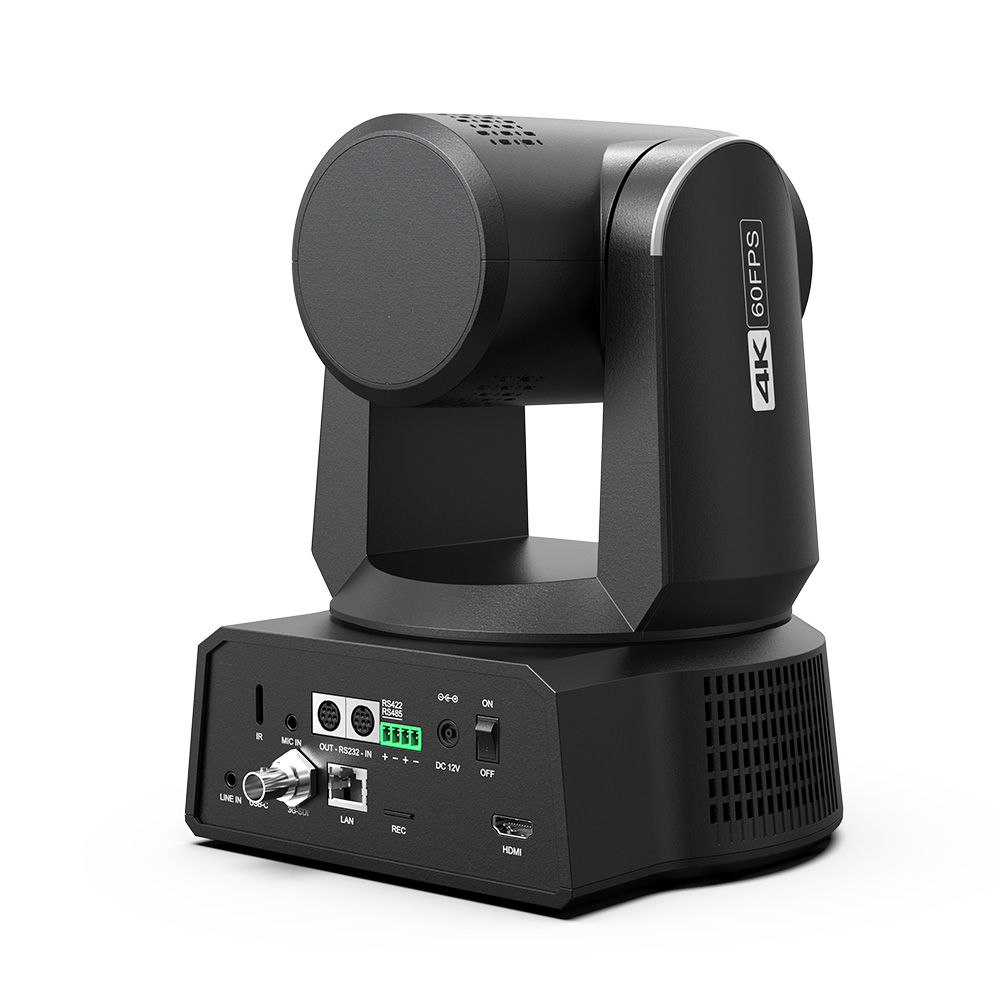

CineTreak CT-PT31K 12G NDI rear connections

Built for broadcast, remote production and education

High-resolution imaging, intelligent automation and professional connectivity suit studios, live streams, conference rooms, lecture halls, houses of worship and other one- or multi-camera installations. Simultaneous outputs can feed local switching, recording and IP distribution at the same time.

Single-cable installationPoE can carry power over the same network used for video and control, while a standard 12V DC adapter remains available.
Audio and recordingAAC supports 16/32/44.1/48kHz sampling. The internal microSD slot records locally in MP4 or TS format.
Operational confidenceA −10 to +50°C operating range at 20–80% relative humidity suits fixed indoor installations.

PACKAGE CONTENT

  • CineTreak CT-PT31K 12G NDI 4K PTZ camera
  • 12V / 2A power adapter
  • Mounting kit
  • User manual

Package contents follow the manufacturer information; minor accessories may vary by production batch.

SPECIFICATIONS

  • Sensor: 1/1.8-inch Sony CMOS, 8.42MP, 16:9
  • Maximum: UHD 4K 3840 × 2160 up to 60 fps
  • Codecs: H.264, H.265
  • Optical zoom: 31x
  • Digital zoom: 8x
  • Focal length: 6.91–214.64mm
  • Aperture: f/1.35–4.6
  • Horizontal field of view: 60° to 1.98°
  • Minimum illumination: 0.5 lux at f/1.35
  • Signal-to-noise ratio: >50 dB
  • White balance: 2400–7100K
  • Video outputs: HDMI 2.0, 12G-SDI, USB-B, RJ45/IP/NDI
  • Streaming protocols: NDI HX3, RTMP/RTMPS, RTSP/RTP, SRT, ONVIF
  • Control: VISCA, VISCA over IP, Pelco-D/P, RS-232/422/485
  • Presets: 255 (10 via remote control)
  • Pan: −170° to +170°, 0.1–120°/s
  • Tilt: −90° to +120°, 0.1–60°/s
  • AI tracking: face/body, up to 18m range
  • Audio: 3.5mm stereo input, AAC 16/32/44.1/48kHz
  • Recording: microSD up to 2TB, MP4/TS
  • Tally: yes
  • Noise reduction: 2D/3D DNR
  • Power: 12V DC / 2A or PoE 802.3af
  • Consumption: up to 18W; sleep below 400mW
  • Operating: −10 to +50°C, 20–80% RH
  • Storage: −10 to +70°C, 20–95% RH
  • Dimensions (W × H × D): 164 × 236 × 188mm
  • Weight: approximately 2kg (body only)
  • Use: indoor
Parameters

Parameters

Manufacturer: CineTreak
Category: PTZ

Main parameters

Camera Sensor size1/1.8" Sony CMOS
Resolution4K UltraHD (3840 × 2160) @ 50/60 fps
Zoom31x
OutputNDI HX3 · HDMI 2.0 · USB 2.0 · Ethernet / IP · 12G-SDI
Velikost snímače1/1.8 palce
Maximální rozlišení videa4K
Optický zoom31×
Video výstupyHDMI · USB · Ethernet / IP · 12G-SDI
Síťové protokolySRT · RTMP / RTMPS · RTSP / RTP · NDI|HX3 · ONVIF
Recording mediamicroSD karta

Other parameters

FPSUHD 60fps
Min. focal length6.9mm
Max. focal length214.6mm
Media typeMicro SD · HDMI / SDI / USB / IP
Battery typePoE (802.3af) or 12V DC
Other featuresPTZ · Streaming · Tally · PoE · NDI / NDI HX · AI tracking
Control protocolRS-422 · ONVIF, VISCA, VISCA over IP, Pelco-D, Pelco-P, RS-232, RS-485
