CineTreak Mixer Plus

+4
SKU: Mixer Plus

CineTreak Mixer Plus is a compact video switcher with four HDMI inputs, a built-in 4-inch screen with Multi View, PGM and AUX outputs and a USB UVC output for uncompressed HD streaming to a computer. It controls up to four PTZ cameras via VISCA over IP and offers chroma key, luma key, PIP, DSK, logo, 30 transition effects, two microphone inputs and a headphone…

More information

318 € with VAT 262.81 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
SKU:
Mixer Plus
Add to Compare Price history

CineTreak Mixer Plus SDI

384 €without VAT 317.36 €

Top accessories for CineTreak Mixer Plus

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

RØDE HDMI Cable 3 m (Black)

RØDE HDMI Cable is a premium HDMI-A to HDMI-A cable with Ethernet measuring 3 m.
28 €
In stock 3 pcs

RODE Wireless GO Gen 3 Black

Third-generation dual-channel Wireless GO system in black with 32-bit float on-board
156 €
In stock 2 pcs

RØDE HDMI Cable 1.5 m (Black)

RØDE HDMI Cable is a premium HDMI-A to HDMI-A cable with Ethernet measuring 1.5 m.
14 €
In stock 3 pcs

Sennheiser HD 280 Pro

  • LAST PIECE
HD 280 PRO are closed, circumaural wired headphones designed for professional monitoring.
117 €
In stock 1 pcs

PremiumCord CAT6 UTP patch cable RJ45-RJ45, 10 m, green

  • New
  • LAST PIECE
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
5.5 €
In stock 1 pcs

CineTreak CT-PT12

The CineTreak CT-PT12 is a professional PTZ camera delivering Full HD 1080p60 video,
599 €
on request

CineTreak CT-PT20 NDI

CineTreak CT-PT20 NDI is a professional Full HD PTZ camera for live events, education,
729 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

CineTreak Mixer Plus is a compact video switcher with four HDMI inputs, a built-in 4-inch screen with Multi View, PGM and AUX outputs and a USB UVC output for uncompressed HD streaming to a computer. It controls up to four PTZ cameras via VISCA over IP and offers chroma key, luma key, PIP, DSK, logo, 30 transition effects, two microphone inputs and a headphone output. Ideal for live streaming, teaching and hybrid events.

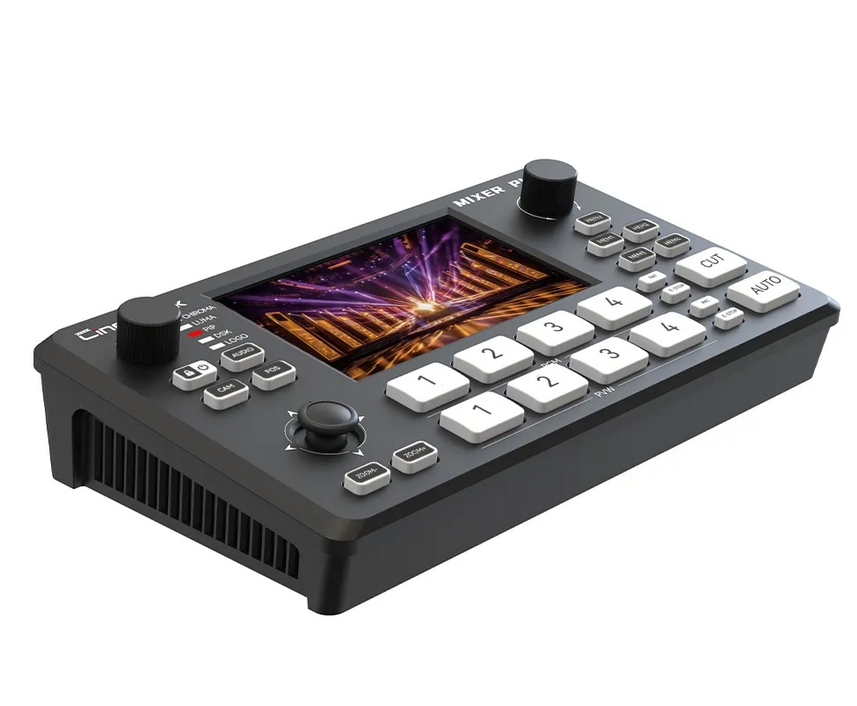

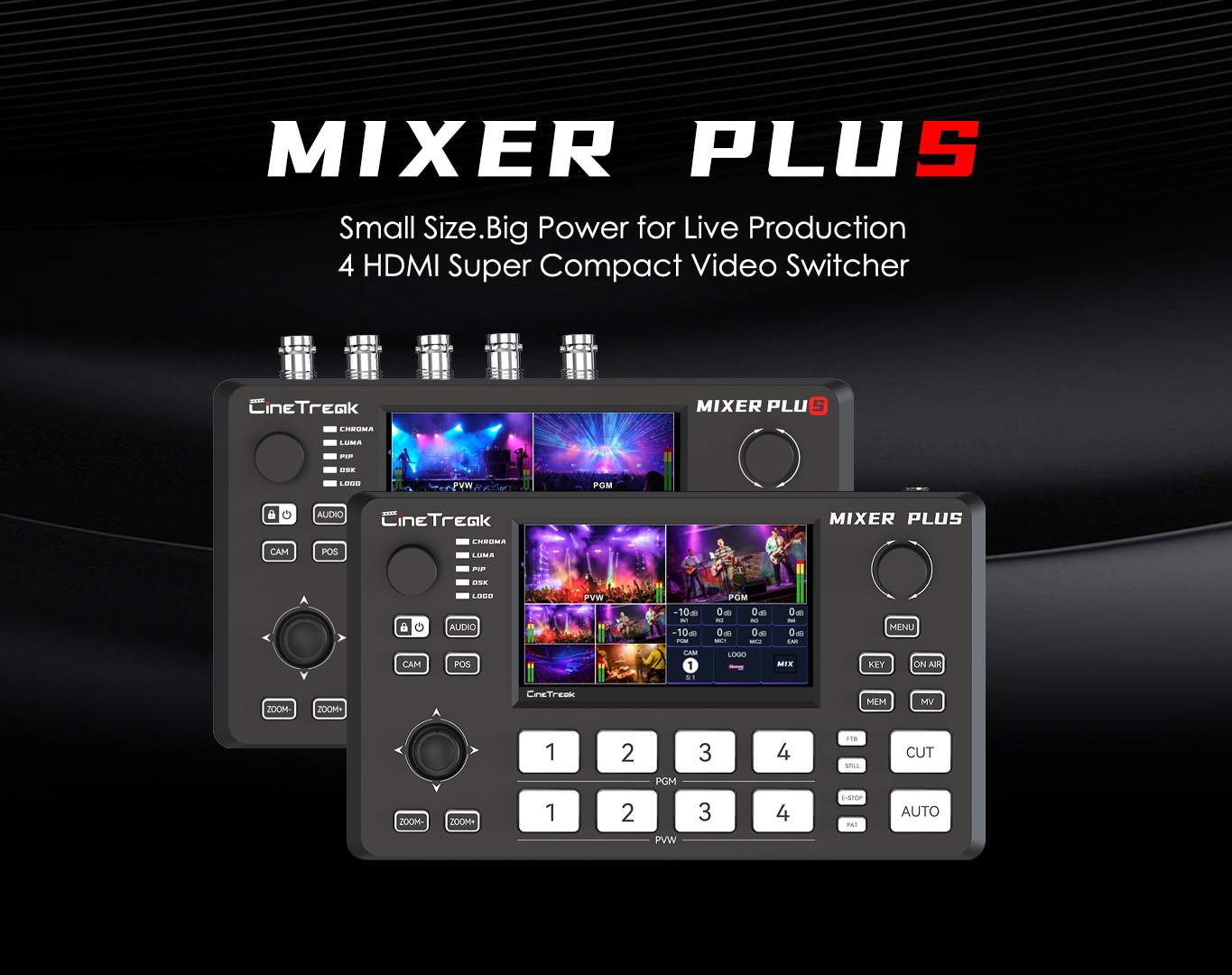

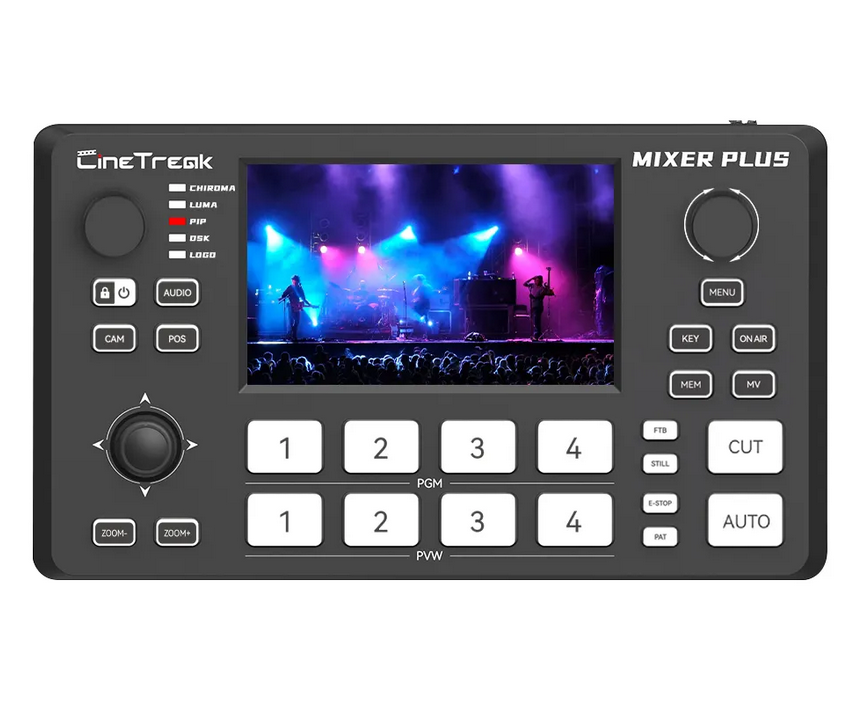

Small size, big power for live production

A super-compact video switcher with four HDMI inputs, a built-in 4-inch screen and PTZ camera control. At 189 × 49 × 109 mm and 393 g it moves easily between studio, classroom and hall.

4× HDMI input4-inch screenMulti ViewUSB UVC 1080p60PTZ via VISCA over IPLandscape and portrait

Up to six layers in the program

Upstream keyers luma key, chroma key and PIP plus downstream keyers DSK and LOGO build the program from up to six layers. A PNG logo with transparency (alpha channel) can be placed anywhere in the picture.

Landscape and portrait

Mixer Plus supports both landscape and portrait mode, so it can also produce vertical live streams for social networks.

Control from a computer

Over LAN the video switcher connects to the official CineTreak control software for PC, which gives access to all functions of the device.

Transitions and effects

Besides the CUT and the automatic AUTO transition, the video switcher offers WIPE with multiple patterns, MIX, DIP, the STILL freeze frame and the FTB fade to black.

Media library and logos

The media library contains several built-in backgrounds and logos; your own BMP images at 1920 × 1080 and PNG logos with an alpha channel are loaded from a FAT32 USB drive.

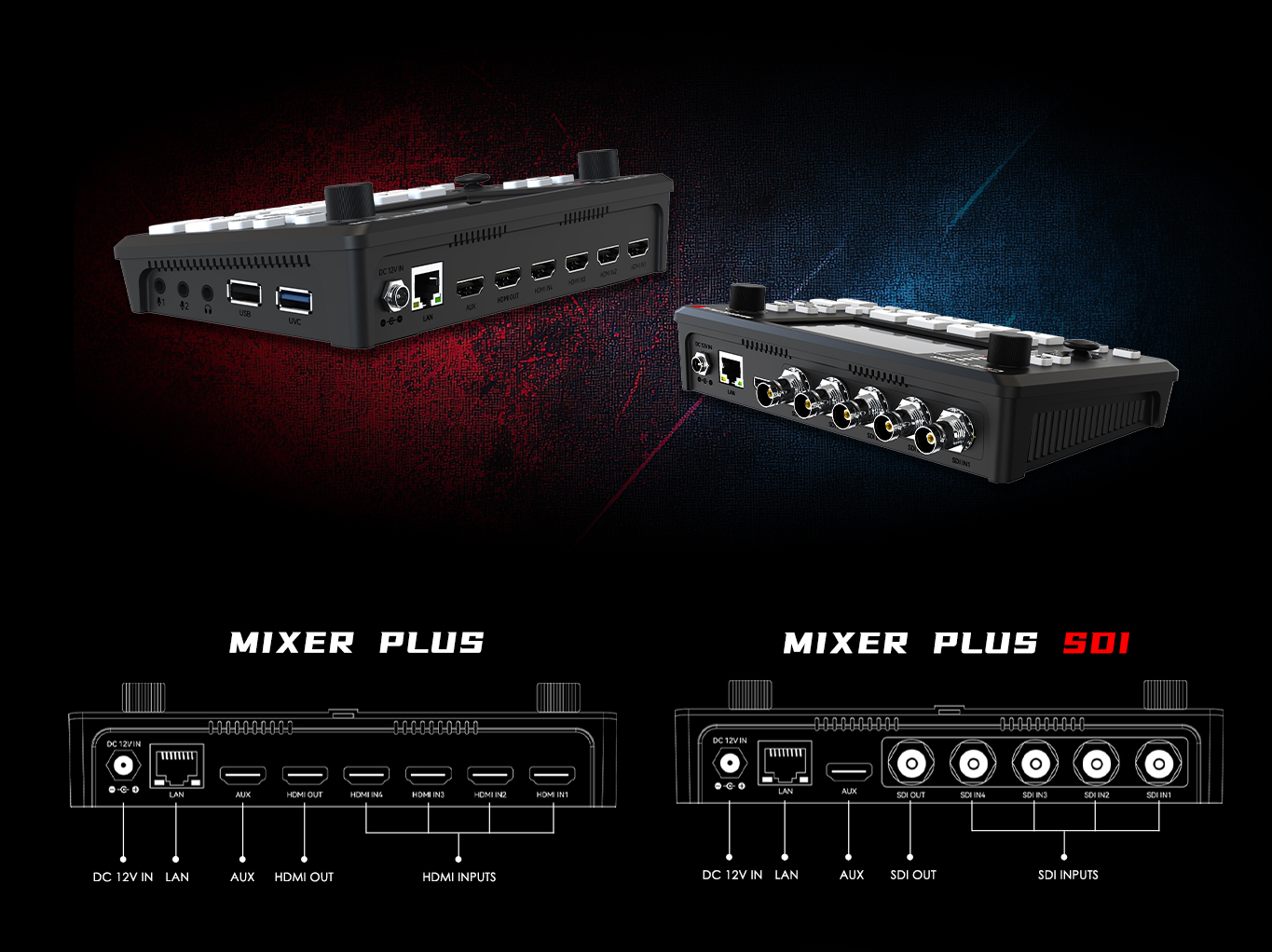

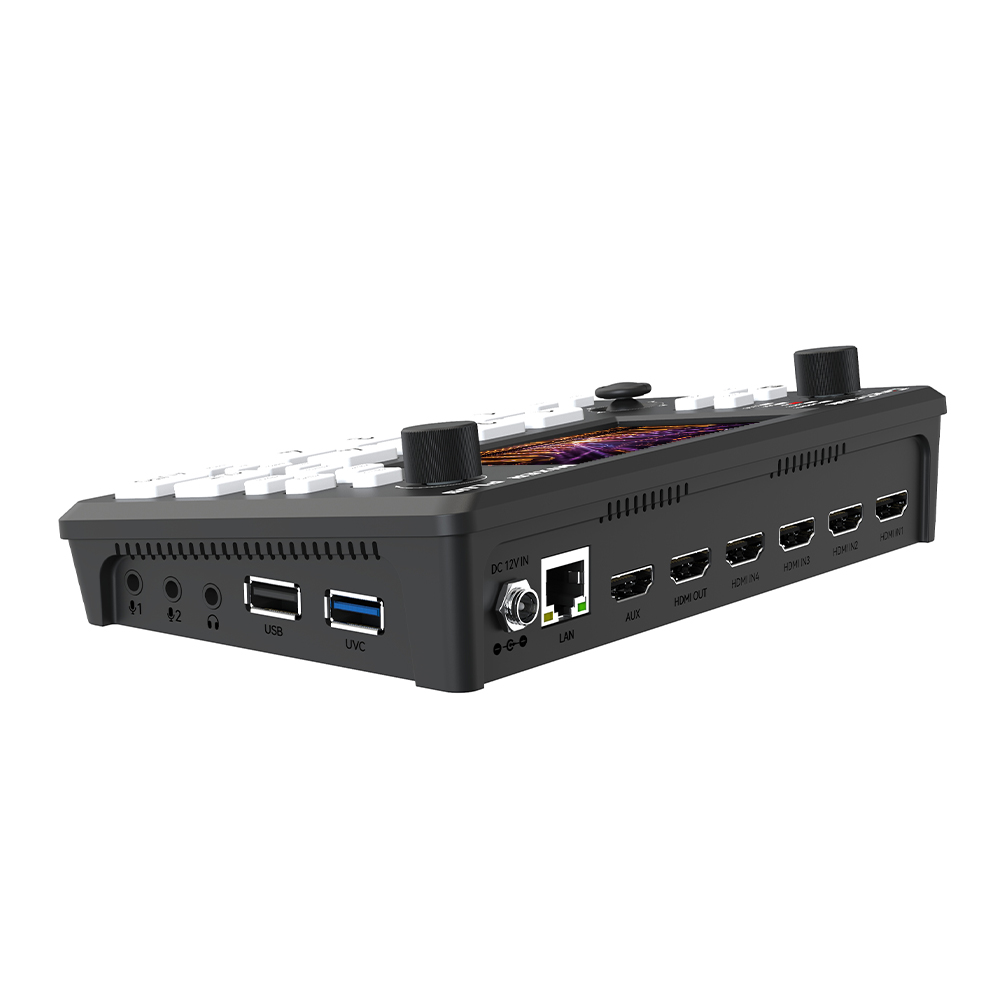

Four HDMI inputs and all connectors at hand

The four HDMI inputs accept cameras, a computer or a player and the video switcher changes between them seamlessly. There is one PGM output and one AUX output, a LAN port for PTZ camera control and the control software, two microphone inputs with a headphone output, a USB 2.0 port for media and a USB UVC port for the computer.

CineTreak Mixer Plus – Four HDMI inputs and all connectors at hand

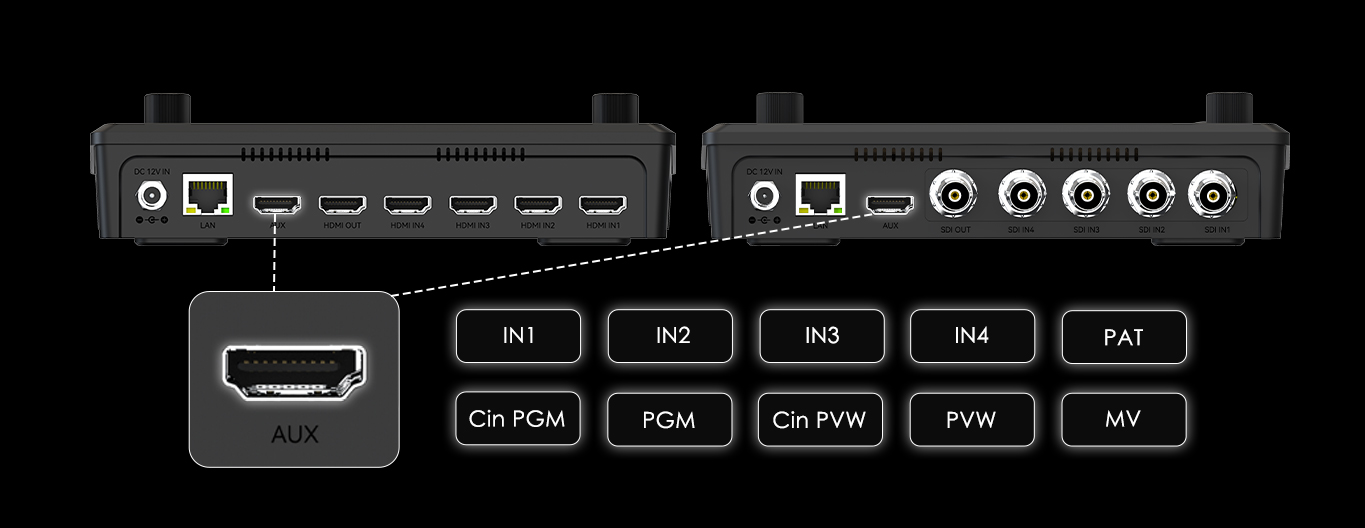

AUX output to suit your needs

The AUX output can carry any of the inputs IN1 to IN4, the program (PGM), a clean program without graphics (Clean PGM), the preview (PVW), a clean preview (Clean PVW), a test pattern (PAT) or Multi View.

CineTreak Mixer Plus – AUX output to suit your needs

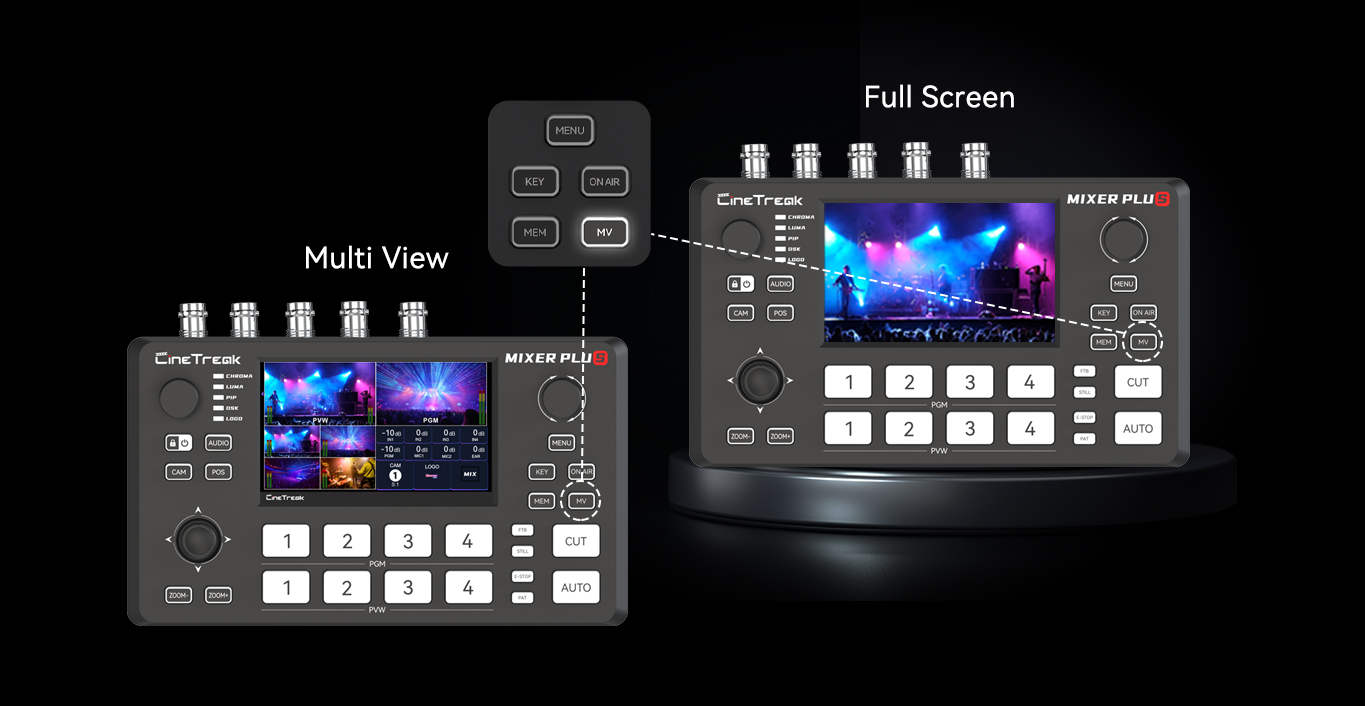

Multi View on the built-in screen

In Multi View mode the 4-inch screen shows all inputs at once together with the program (PGM) and preview (PVW) windows, resolution indicators and audio level meters. The MV button switches the screen to a full-screen view.

CineTreak Mixer Plus – Multi View on the built-in screen

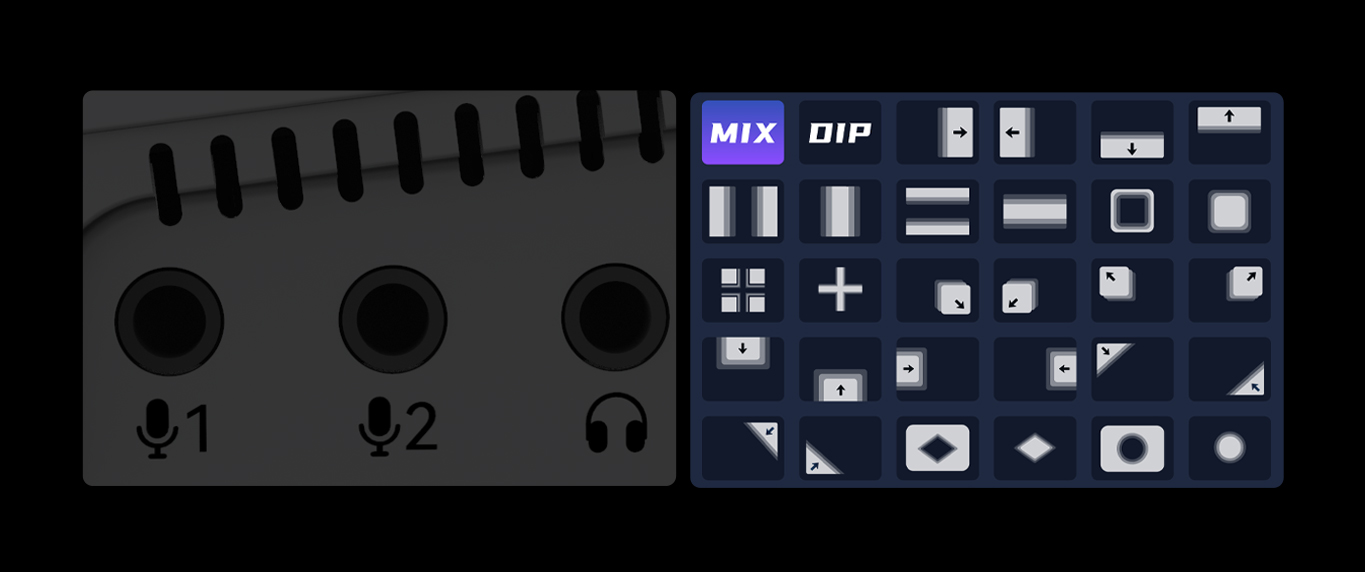

Two microphones, headphones and 30 transitions

The two 3.5 mm microphone inputs accept a microphone or a line signal, and the headphone output provides real-time monitoring. HDMI audio can be delayed by −30 to 500 ms, the microphones by 0 to 500 ms. For transitions there are 30 effects including MIX and DIP with adjustable duration.

CineTreak Mixer Plus – Two microphones, headphones and 30 transitions

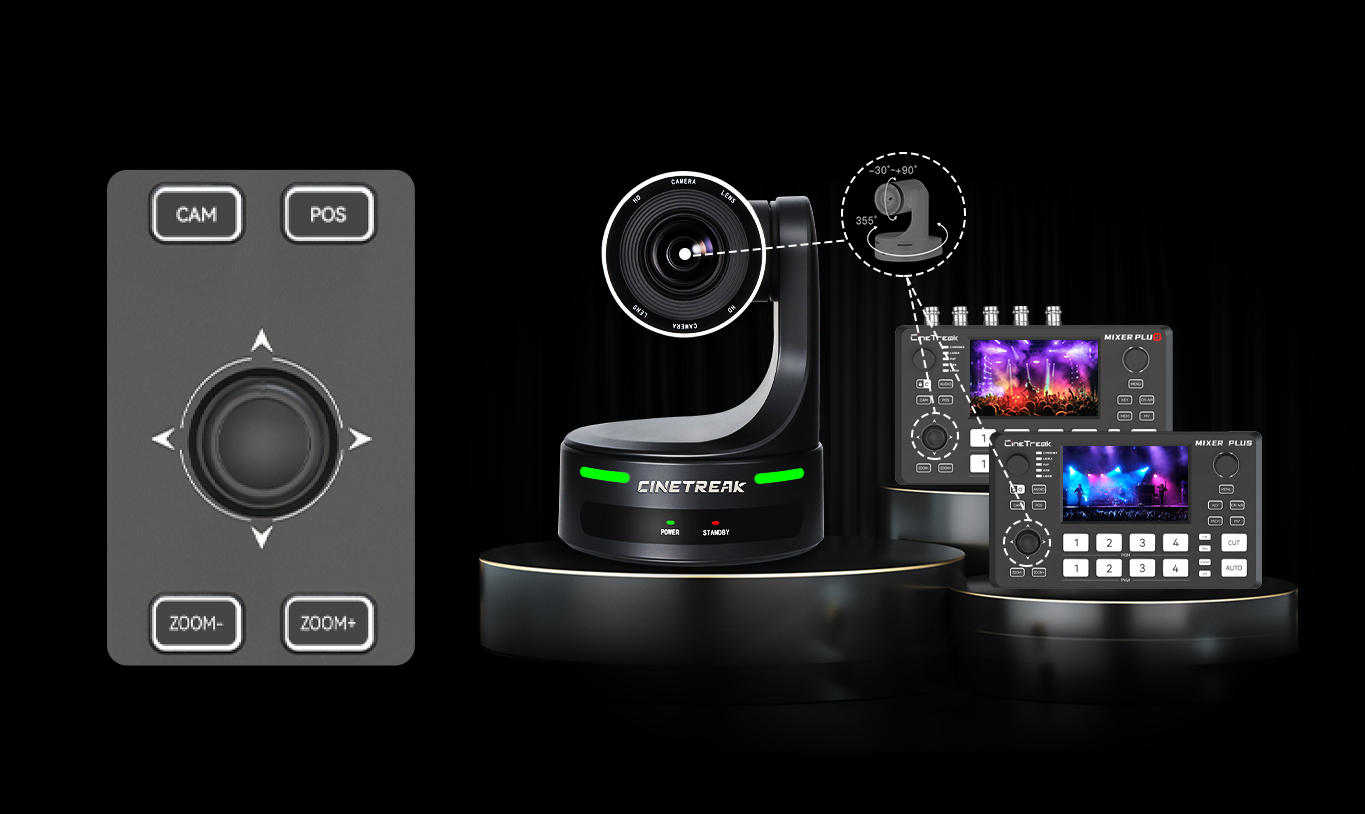

PTZ camera control via VISCA over IP

With the joystick and the CAM, POS and ZOOM buttons you control up to four PTZ cameras using the VISCA over IP protocol. Each camera has four position presets, so you can jump between prepared shots with a single press during the broadcast.

CineTreak Mixer Plus – PTZ camera control via VISCA over IP

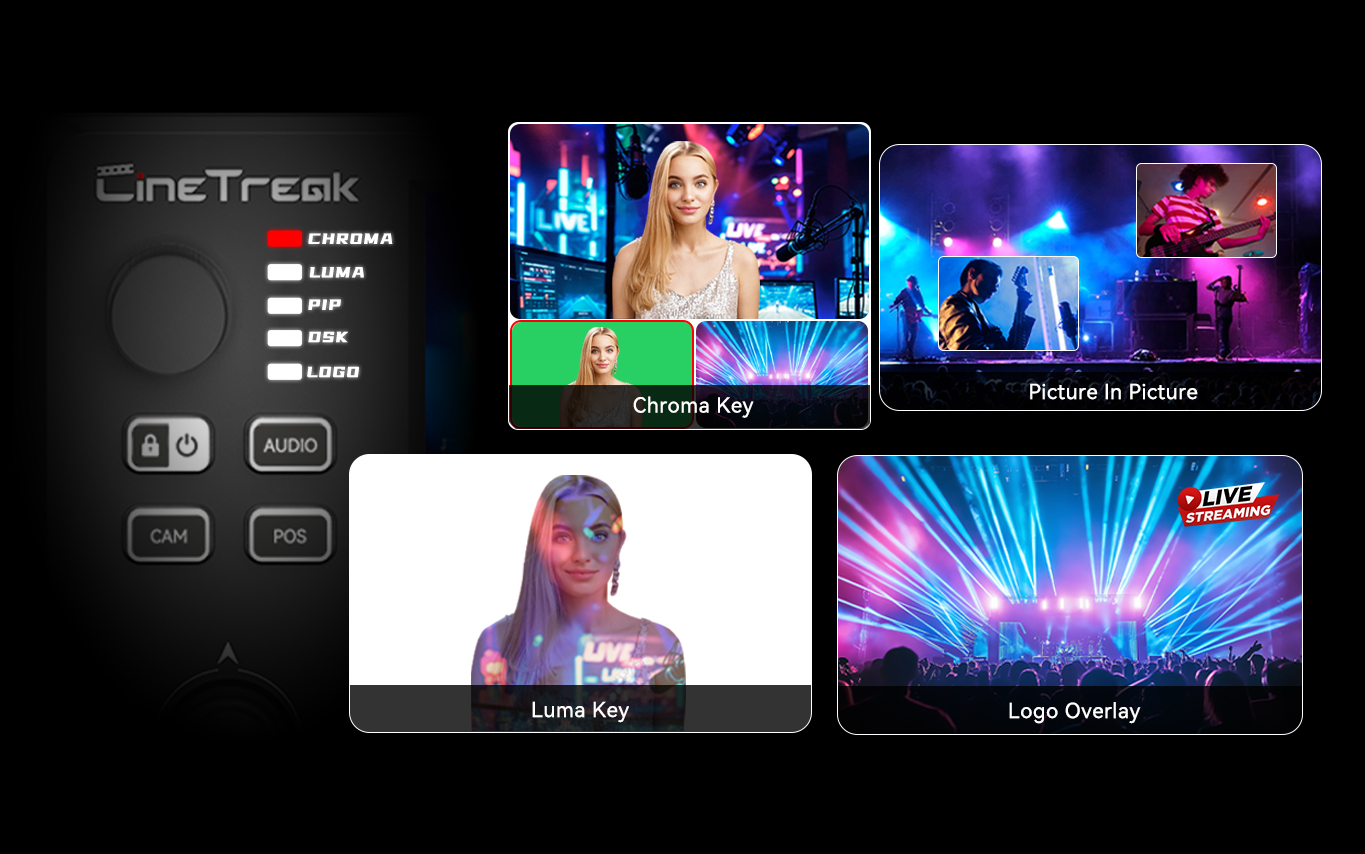

Five layers at your fingertips

CHROMA removes a green or blue background, LUMA performs keying by brightness (lower thirds, white logos on black), PIP places a second source in a movable window, DSK adds graphics after the main mix and LOGO shows a pre-loaded logo. Each layer has its own status indicator.

CineTreak Mixer Plus – Five layers at your fingertips

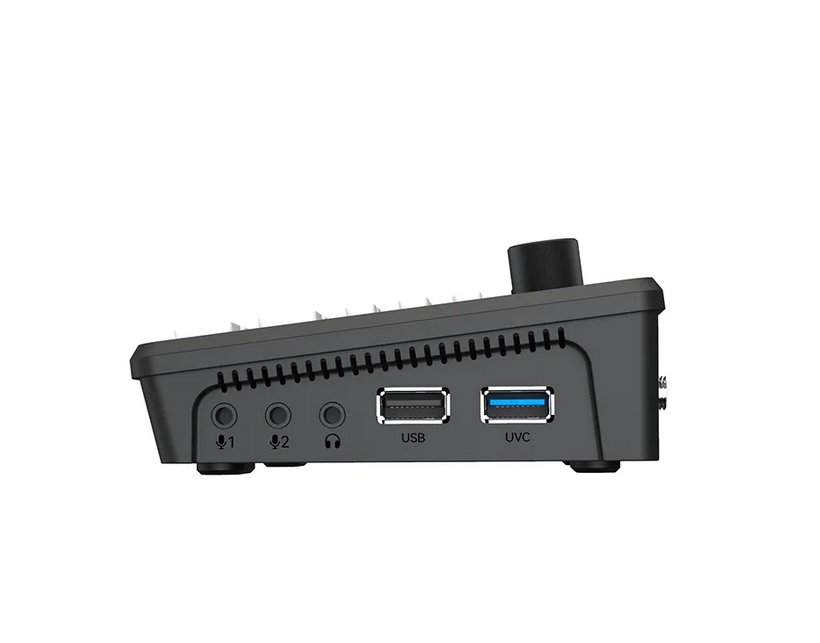

To the computer via USB UVC

The UVC port delivers an uncompressed picture up to 1080p60 (YUY2) straight into OBS and other streaming applications, with no extra capture card. The neighbouring USB 2.0 port loads logos, backgrounds and still images from a FAT32 drive.

CineTreak Mixer Plus – To the computer via USB UVC

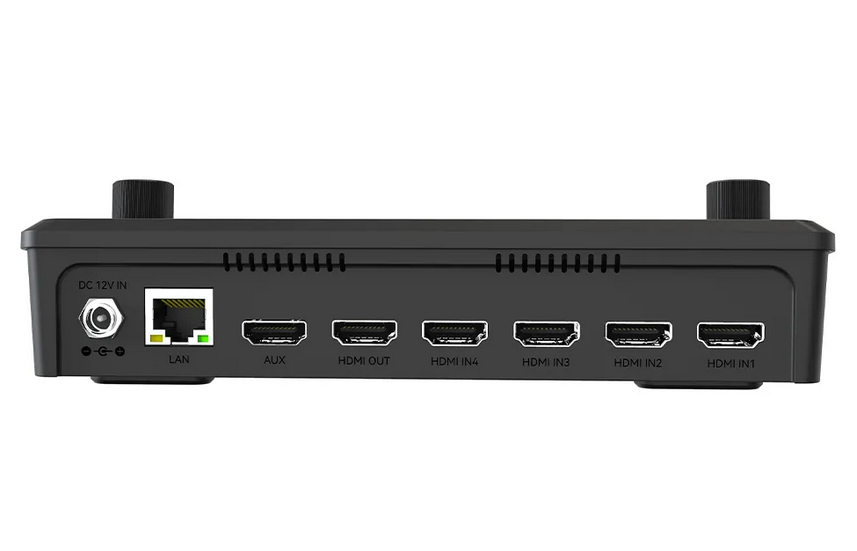

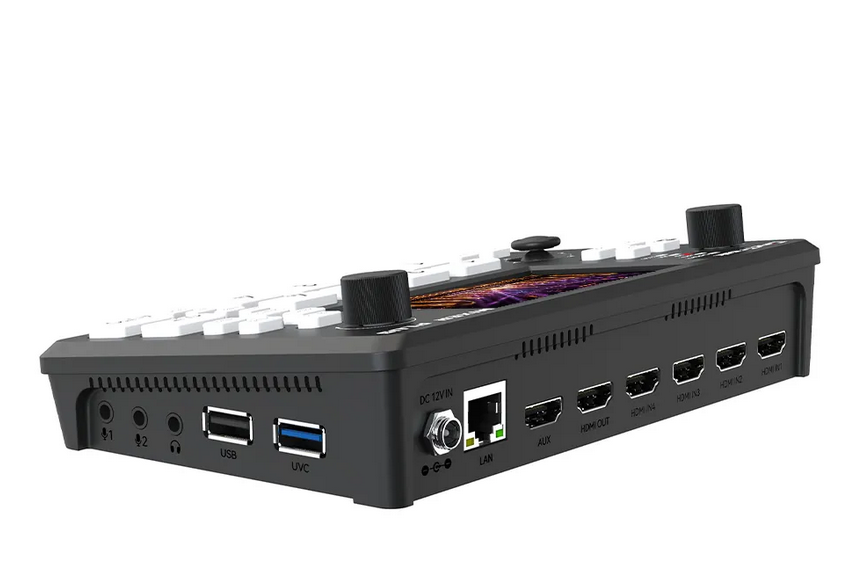

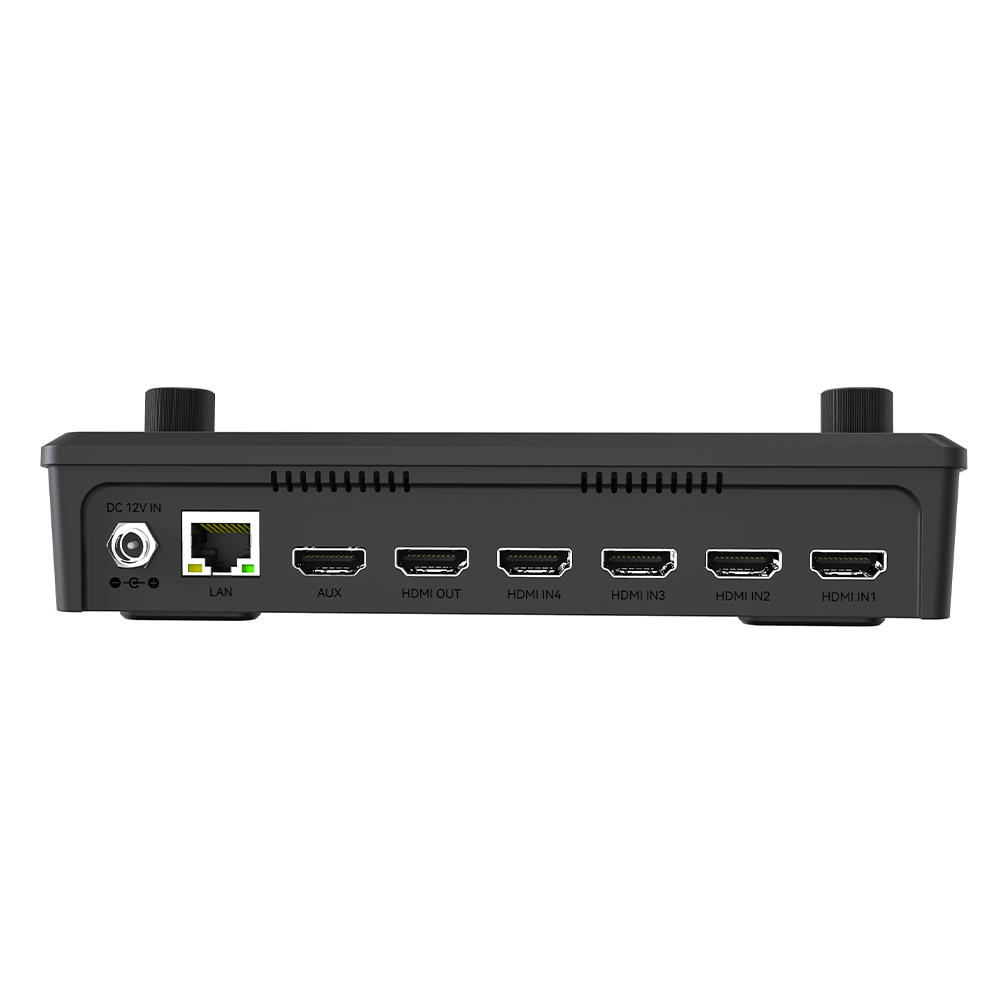

Rear panel

The rear carries the DC 12 V power input, the LAN port, the AUX output, the HDMI output (PGM) and four HDMI inputs; the microphone inputs, the headphone output and the USB ports are on the side.

CineTreak Mixer Plus – Rear panel

More information

Four sources, one compact video switcher

CineTreak Mixer Plus is a compact HD video switcher for live streaming, hybrid events, education and mobile production. It combines four HDMI inputs, separate PGM and AUX outputs, a built-in 4-inch screen and a USB 3.1 UVC output for direct computer connection.

Clear connectivity for live production

Four HDMI inputs are joined by HDMI PGM, configurable HDMI AUX, LAN for PTZ camera control via VISCA over IP and USB 3.1 UVC. AUX can be routed to individual inputs, PGM, PVW, clean outputs, a test pattern or Multi View.

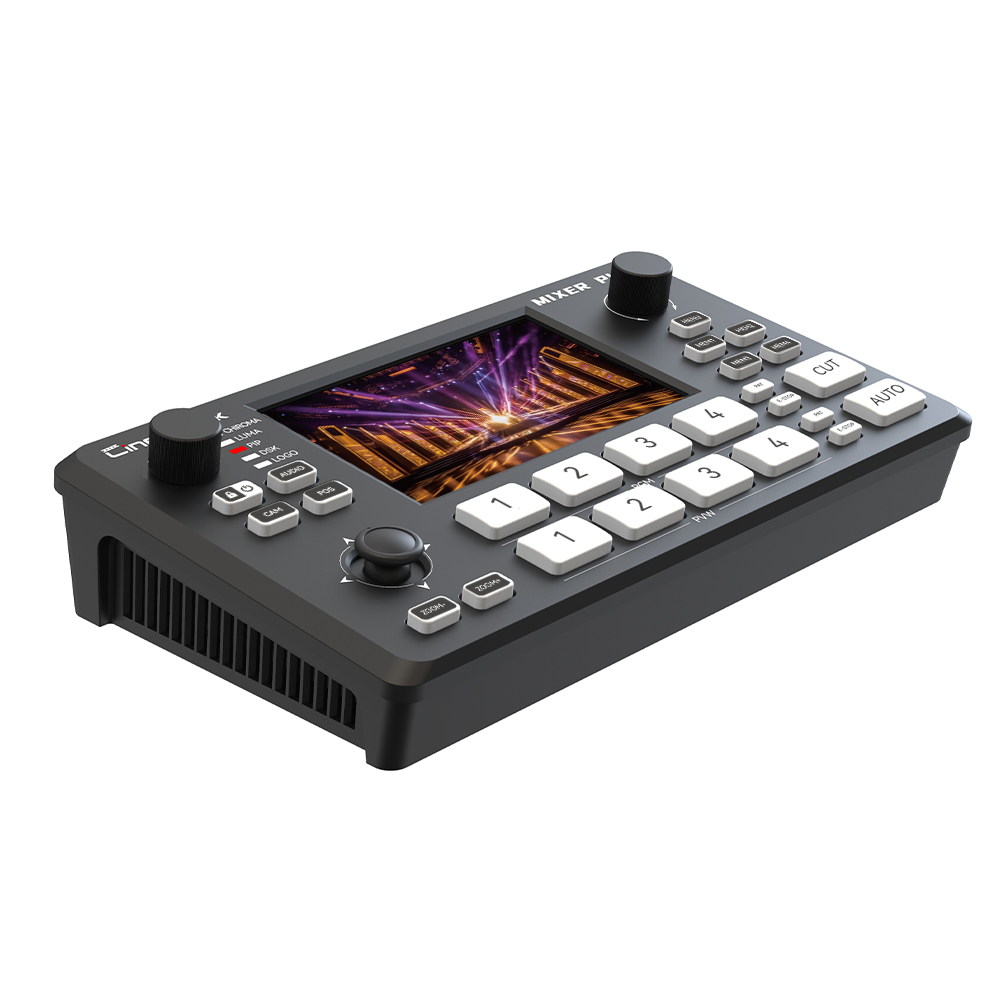

Hands-on control without menu diving

Dedicated PGM and PVW keys, a PTZ joystick, rotary controls and the built-in screen give the operator fast access to transitions, audio, keying and camera positions. The video switcher supports CUT, AUTO, MIX, DIP, WIPE, STILL and FTB.

Image layers and audio under control

Chroma key, luma key, PIP, DSK and logo tools build up to six program layers. Two 3.5 mm microphone/line inputs, a headphone output and adjustable audio delay make live-program synchronisation straightforward.

PACKAGE CONTENT

  • CineTreak Mixer Plus ×1
  • Power adapter 12 V / 2 A ×1
  • USB-A to USB-A cable ×1

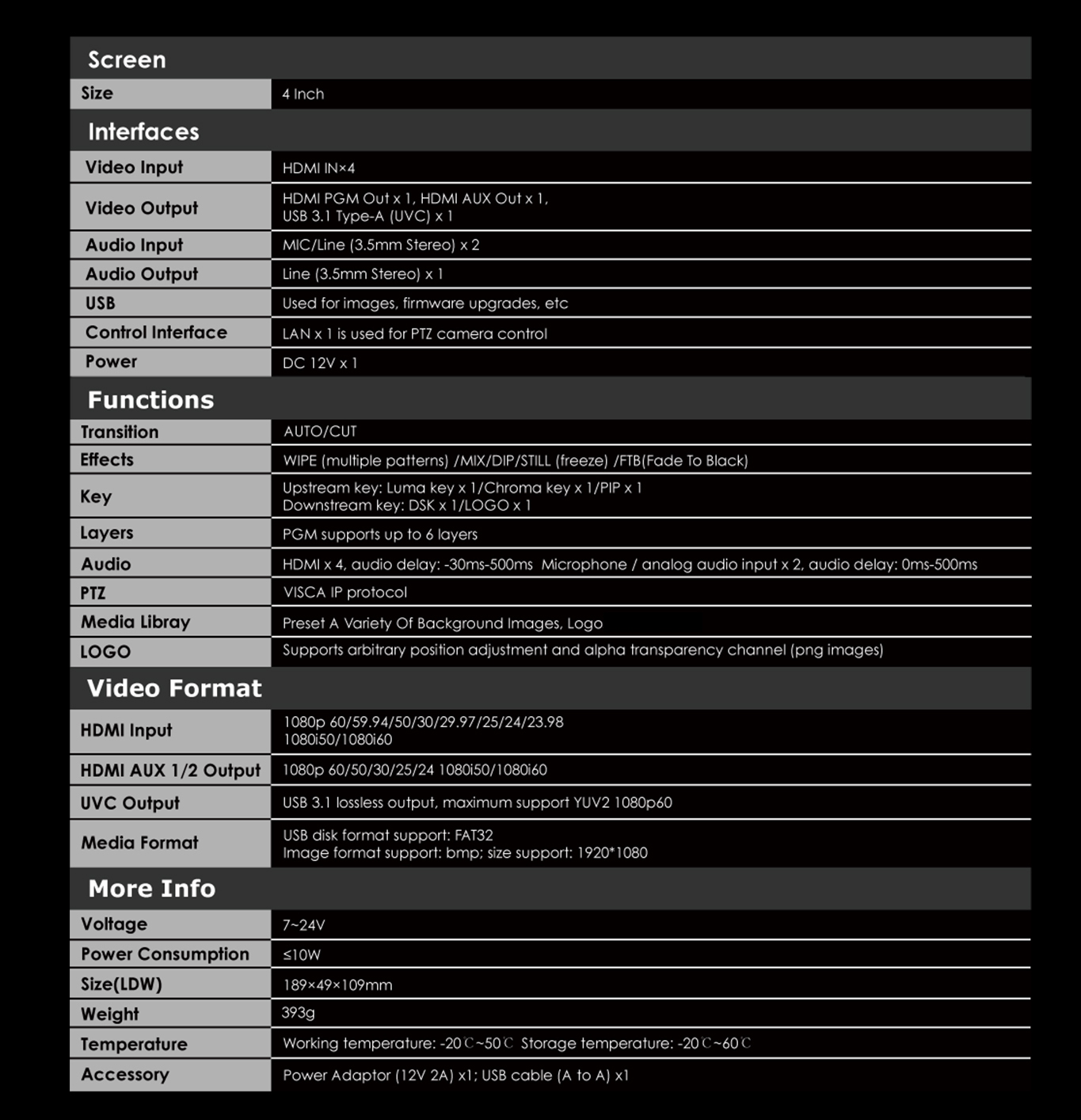

SPECIFICATIONS

  • Screen: 4 inches; Multi View or full screen
  • Video inputs: 4× HDMI
  • Video outputs: 1× HDMI PGM, 1× HDMI AUX, 1× USB 3.1 Type-A (UVC)
  • Audio inputs: 2× MIC/Line (3.5 mm stereo)
  • Audio output: 1× Line (3.5 mm stereo) for headphones
  • USB: for images, firmware updates etc.
  • Control interface: 1× LAN for PTZ camera control
  • Power: DC 12 V; power adapter 12 V / 2 A
  • Supply voltage: 7–24 V
  • Power consumption: ≤ 10 W
  • Transitions: AUTO / CUT
  • Effects: WIPE (multiple patterns), MIX, DIP, STILL (freeze frame), FTB (fade to black); 30 transition effects
  • Keying: upstream: luma key ×1, chroma key ×1, PIP ×1; downstream: DSK ×1, LOGO ×1
  • Layers: up to 6 layers in PGM
  • Audio: HDMI ×4 with −30 to 500 ms delay; microphone / analogue inputs ×2 with 0 to 500 ms delay
  • PTZ: VISCA over IP; up to 4 cameras, 4 presets per camera
  • Media library: built-in backgrounds and logos
  • Logo: any position, alpha channel (PNG)
  • HDMI input formats: 1080p60/59.94/50/30/29.97/25/24/23.98; 1080i50/60
  • HDMI output formats (PGM/AUX): 1080p60/50/30/25/24; 1080i50/60
  • UVC output: USB 3.1, lossless, up to YUY2 1080p60
  • Media format: FAT32 USB drive; BMP images 1920 × 1080
  • Dimensions: 189 × 49 × 109 mm
  • Weight: 393 g
  • Operating temperature: −20 to 50 °C
  • Storage temperature: −20 to 60 °C

WE RECOMMEND

The following accessories go with the CineTreak Mixer Plus video switcher.

Cables – HDMI cables for cameras and a monitor, a network cable for the LAN port.

Audio – A wireless microphone for the 3.5 mm input and headphones for monitoring.

PTZ cameras – CineTreak PTZ cameras with HDMI output and control over a LAN network.

Parameters

Parameters

Manufacturer: CineTreak
Category: Video switchers

Main parameters

Encoder video input4× HDMI
Number of inputs4
Switcher inputsHDMI
Streaming servicesCompatible with software streaming platforms via PC (OBS, Streamlabs, Zoom, Teams, etc.)
Switcher outputsHDMI · USB
Internal recordingNo
ResolutionHD
FeaturesStreaming · DSK · AUX · Chroma Key · Built-in display · PTZ camera control · Audio mixing · Multiviewer
Control panelYes
