RGBLink mini-pro v3

The RGBLink mini-pro v3 is a portable and versatile video mixer with quad HDMI inputs, built-in LCD preview, and advanced features like PTZ camera control, RTMP streaming, and Chroma Keying, perfect for professional streaming and video production.

The third generation of the mini-pro adds a second HDMI output without growing the body: the multiview preview and the program can now be watched on two monitors at once.

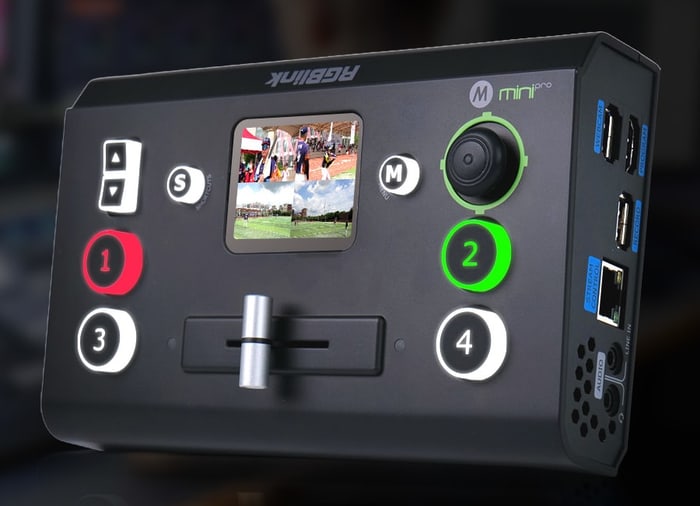

A pocket switcher for four cameras

Four HDMI 2.0 inputs accept up to 4K at 60 Hz, processed with latency under 3 frames. The program goes to the HDMI output, to a computer over USB 3.0 as a driver-free webcam (YUY2, MJPEG) and to a USB drive or SSD of up to 2 TB as MP4. The body measures 180.6 × 112.7 × 53 mm and weighs 0.42 kg.

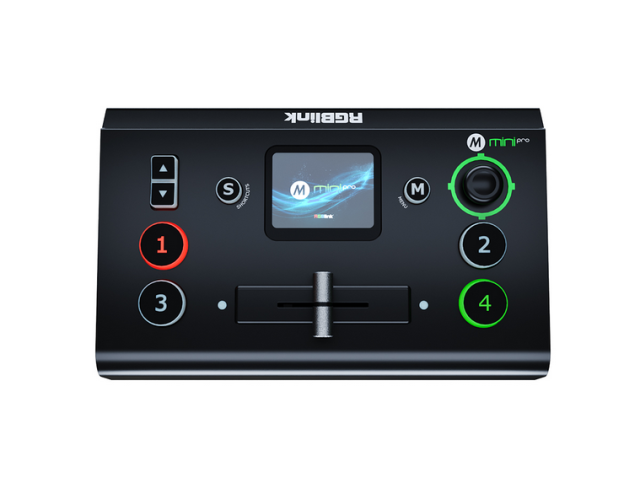

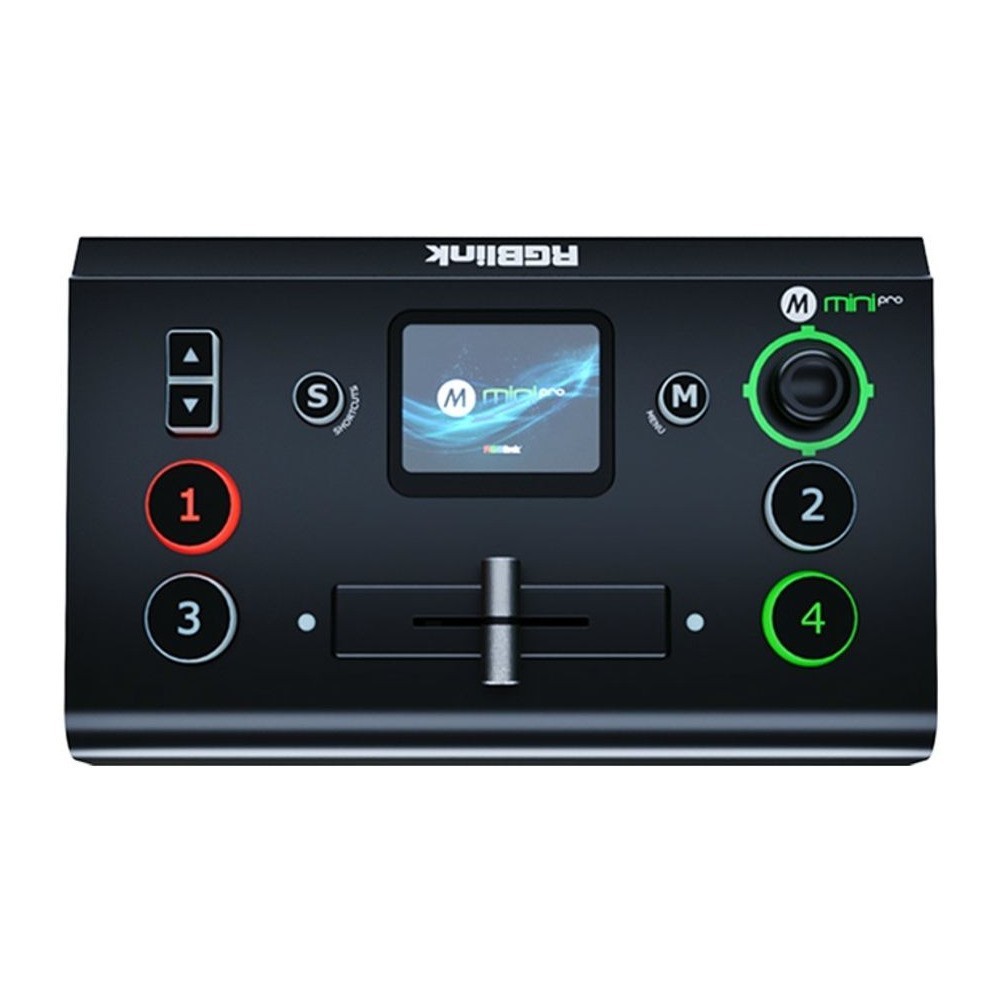

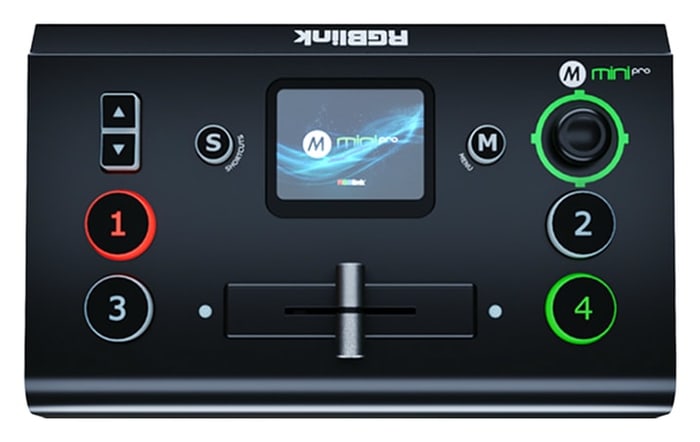

Touchscreen, buttons and T-bar

The 2.1-inch colour IPS touchscreen shows the inputs and an icon-based menu. Below it sit four illuminated input buttons, the T-bar for smooth transitions, the S shortcut button and the M menu button. Switch between preview and program in AUTO or WIPE mode and choose from 15 transition effects.

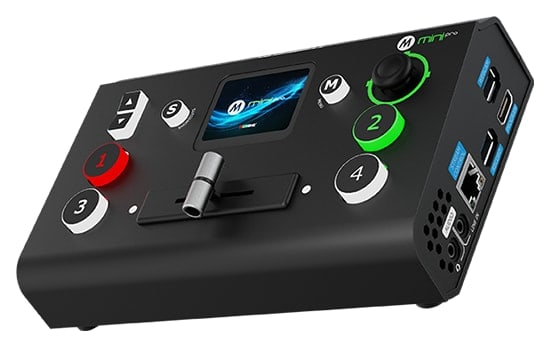

Joystick for PTZ cameras

The five-way joystick and toggle control PTZ cameras via IP VISCA – pan, tilt, zoom and focus. Camera positions are stored as presets and recalled with a single press. The same controls move and scale picture-in-picture layers and change the aspect ratio.

Chroma key without a computer

Key out a presenter in front of a green or blue background right on the touchscreen: switch keying on and choose green or blue as the key colour, with no extra software.

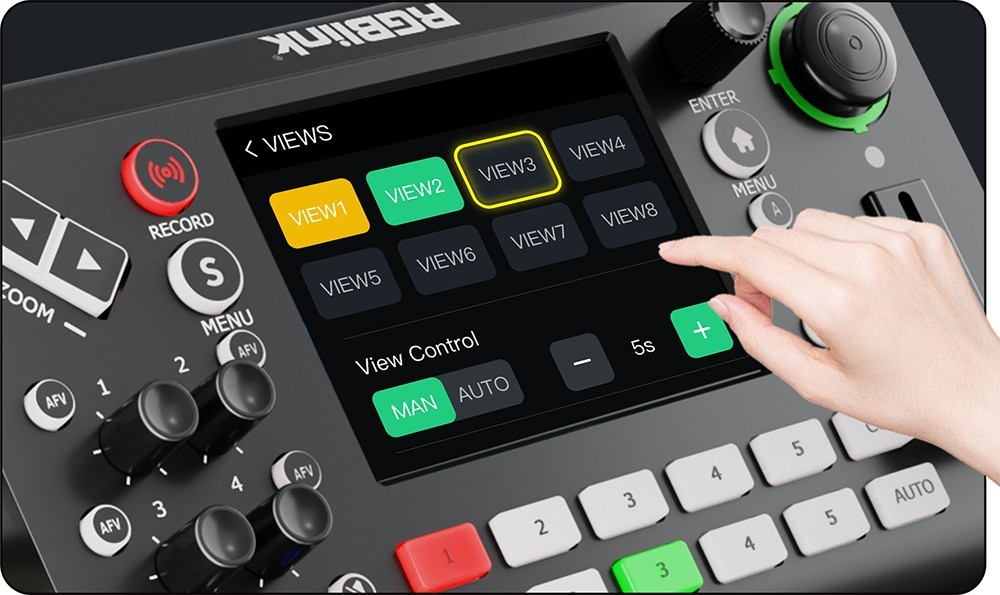

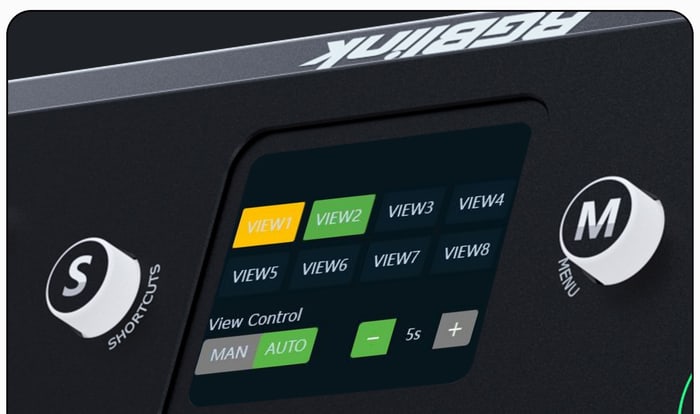

Saved views

Save layout, sources and camera positions as views VIEW 1–8 and recall them from the touchscreen. AUTO mode cycles through them at a set interval, MAN mode waits for you.

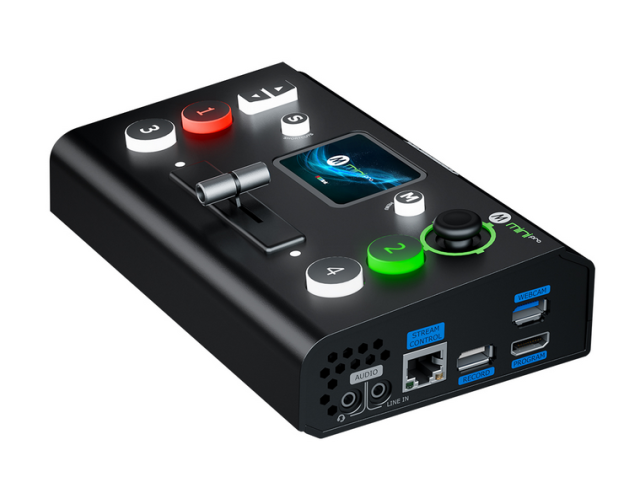

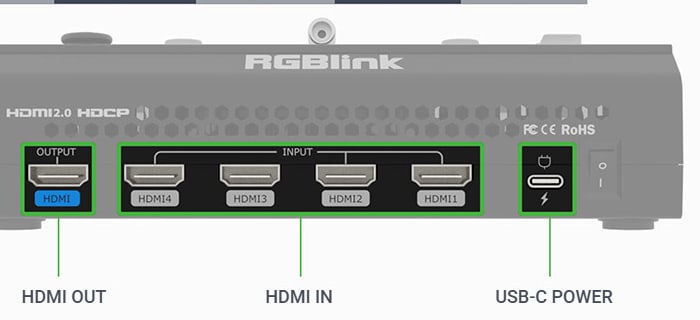

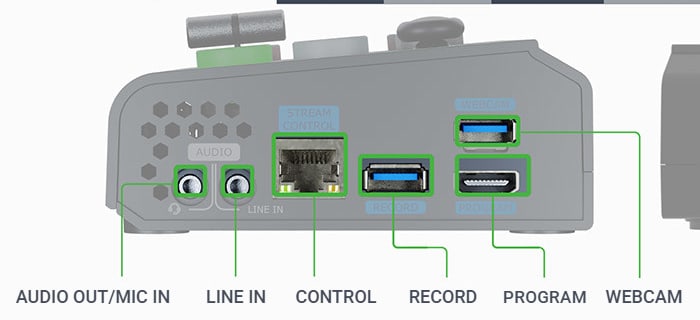

Connectors

The side carries the audio output / microphone input and the line input (3.5 mm jack), RJ45 network for control and streaming, the WEBCAM port (USB 3.0), the PROGRAM output (HDMI) and the RECORD port. At the rear are the multiview HDMI output, four HDMI inputs and USB-C PD power (12 V / 1.5 A, max. 20 W). Over the network it streams via RTMP(S), and via RGBlink TAO Cloud to more than 30 platforms.

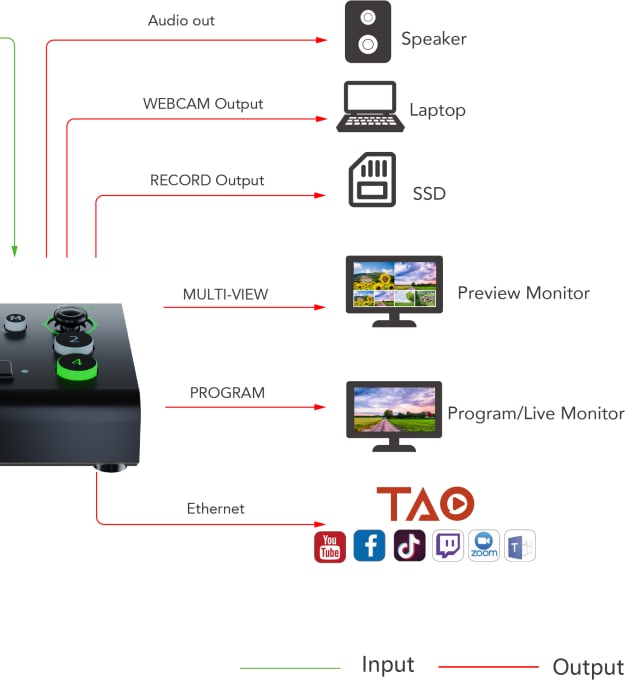

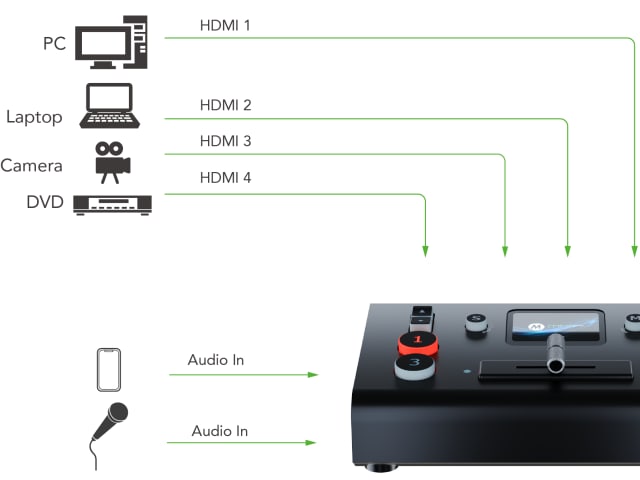

Connection example

A PC, laptop, camera and DVD player on HDMI inputs 1–4, a phone and microphone on the audio inputs. On the outputs a speaker, a laptop via WEBCAM, an SSD via RECORD, a preview monitor (MULTI-VIEW), a program monitor (PROGRAM) and TAO Cloud and streaming platforms over Ethernet.

More information

The RGBLink mini-pro v3 is designed for creators and professionals seeking a compact yet powerful video mixing solution. Its lightweight design makes it easy to carry, while the built-in LCD screen provides a convenient video preview and intuitive touch menu operation.

Equipped with four HDMI 2.0 inputs supporting resolutions up to 4K@60 and dual HDMI 1.3 outputs for multi-view monitoring, the mini-pro v3 ensures seamless video handling. The device supports embedded audio from HDMI and two external channels, offering flexible audio mixing capabilities. With 15 transition effects and AUTO and WIPE switching modes, creating polished video outputs has never been easier.

The mini-pro v3 supports USB 2.0 recording in exFAT or FAT32 formats with bitrates up to 16Mbps, making it ideal for capturing high-quality footage. USB output options include YUY2 and MJPEG formats, enabling webcam recognition for live streaming. Advanced features include a 5-direction joystick and toggle for PTZ camera control via IP VISCA Protocol, preset saving, and one-click recall.

Perfect for streaming, the RGBLink mini-pro v3 allows RTMP(S) broadcasting to up to four platforms and supports TAO Cloud control, compatible with both mobile devices and desktops. Additional functionality includes Chroma Keying with green or blue key options and a user-friendly interface for professional-grade production.

Key Features:

• Portability: Compact and lightweight design for easy transport.
• Preview and Controls: Built-in LCD for video preview and touch menu operation.
• Versatile Inputs and Outputs: Quad HDMI 2.0 inputs (up to 4K@60) and dual HDMI 1.3 outputs for multi-view monitoring.
• Audio Mixing: Supports 4-channel HDMI embedded and 2-channel external audio.
• USB Recording: One-key recording in exFAT or FAT32 format with up to 16Mbps bitrate.
• PTZ Camera Control: Includes 5-direction joystick, IP VISCA Protocol support, and preset recall.
• Streaming Ready: RTMP(S) streaming to up to four platforms simultaneously.
• Chroma Key: Supports green and blue key colors for advanced video effects.
• TAO Cloud Control: Compatible with mobile and desktop devices for remote operation.
