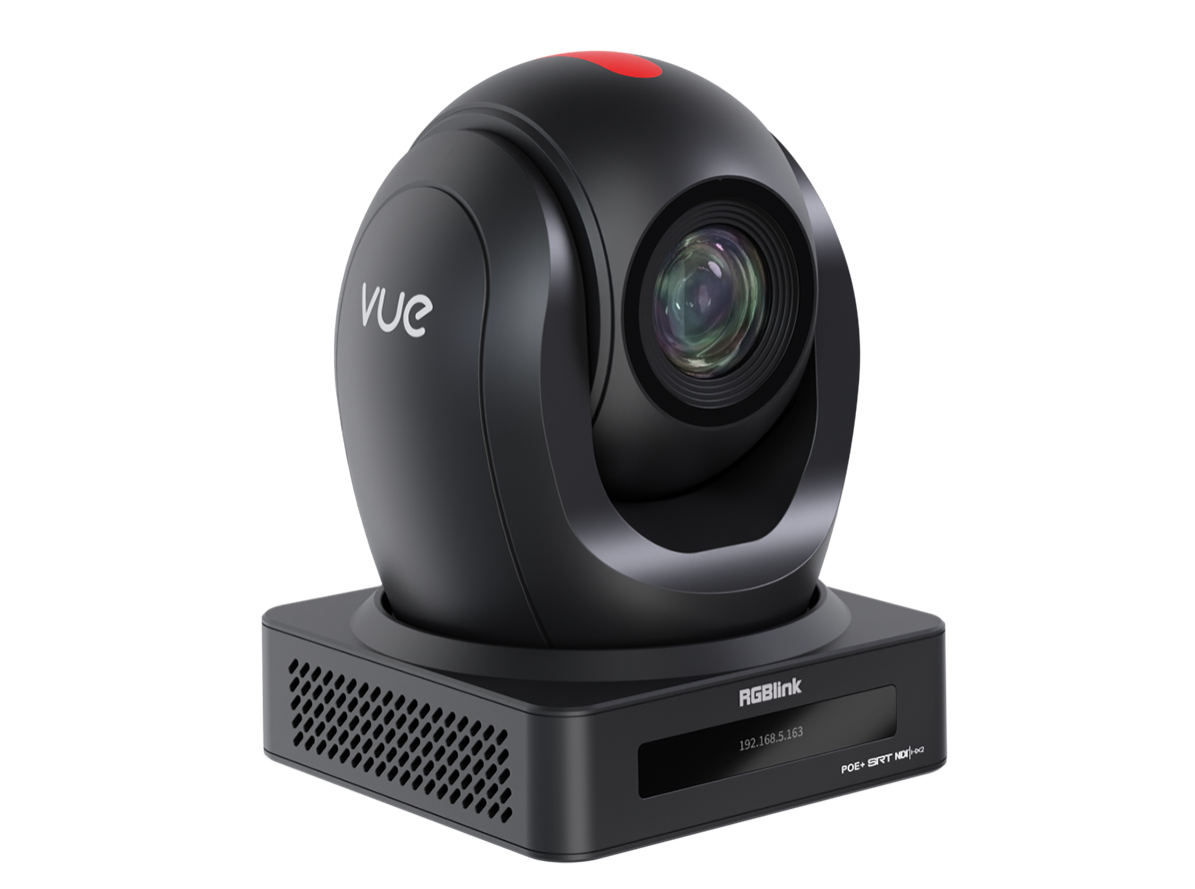

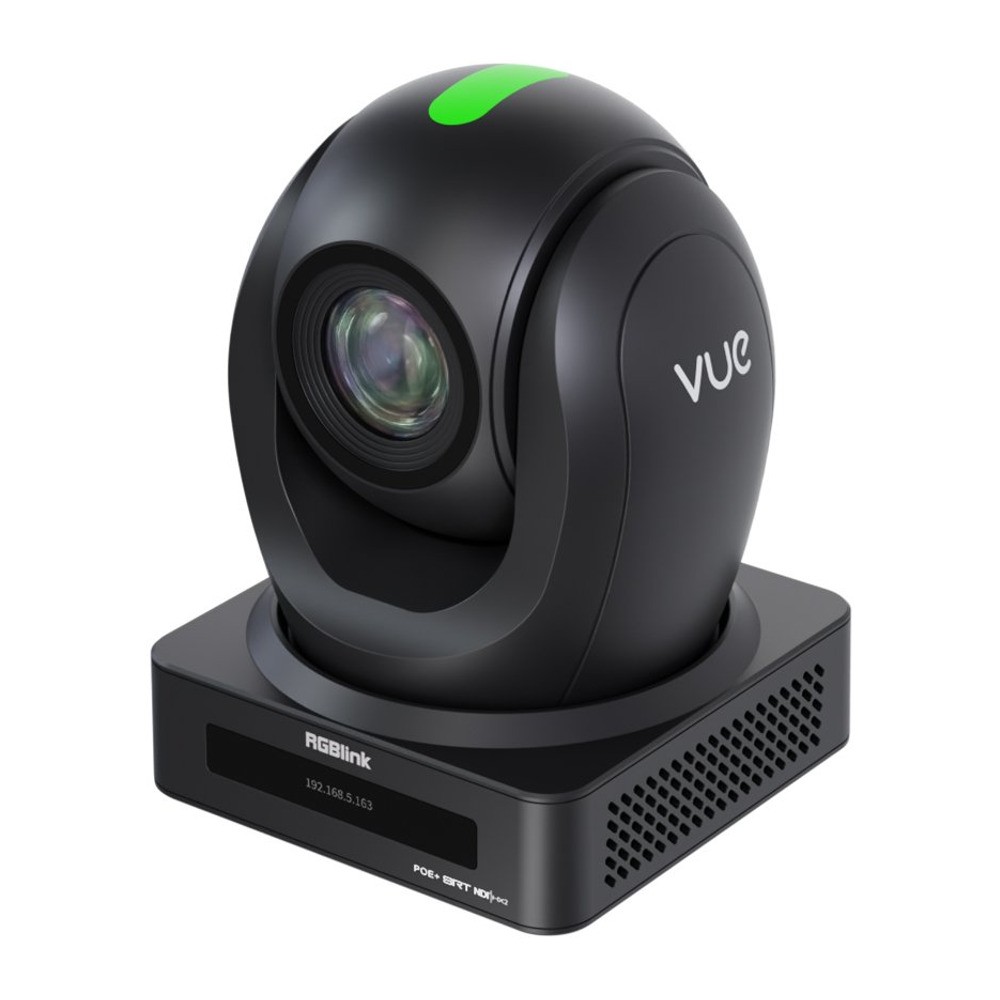

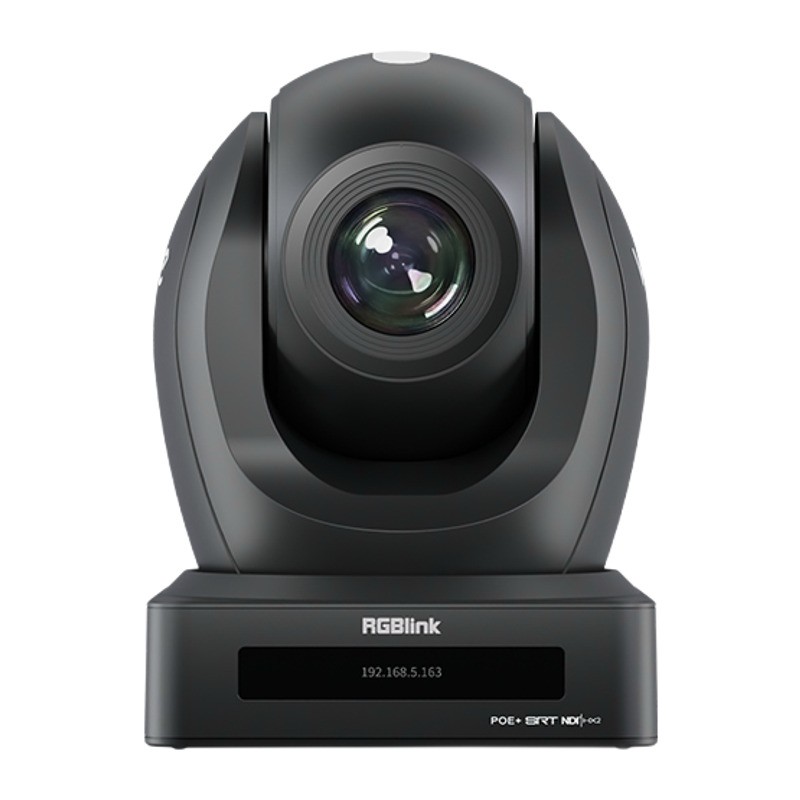

RGBlink RGB20X-PAI-OL

Vue 4K PTZ with 20x optical zoom increases HDMI/RTSP output resolution up to 4K@30Hz. It supports real-time AI tracking of faces, characters and zones and now also offers USB 3.0 output to meet the growing demands for remote video conferencing and live streaming.

The front panel features an OLED display that shows the current resolution and IP information for better camera management.

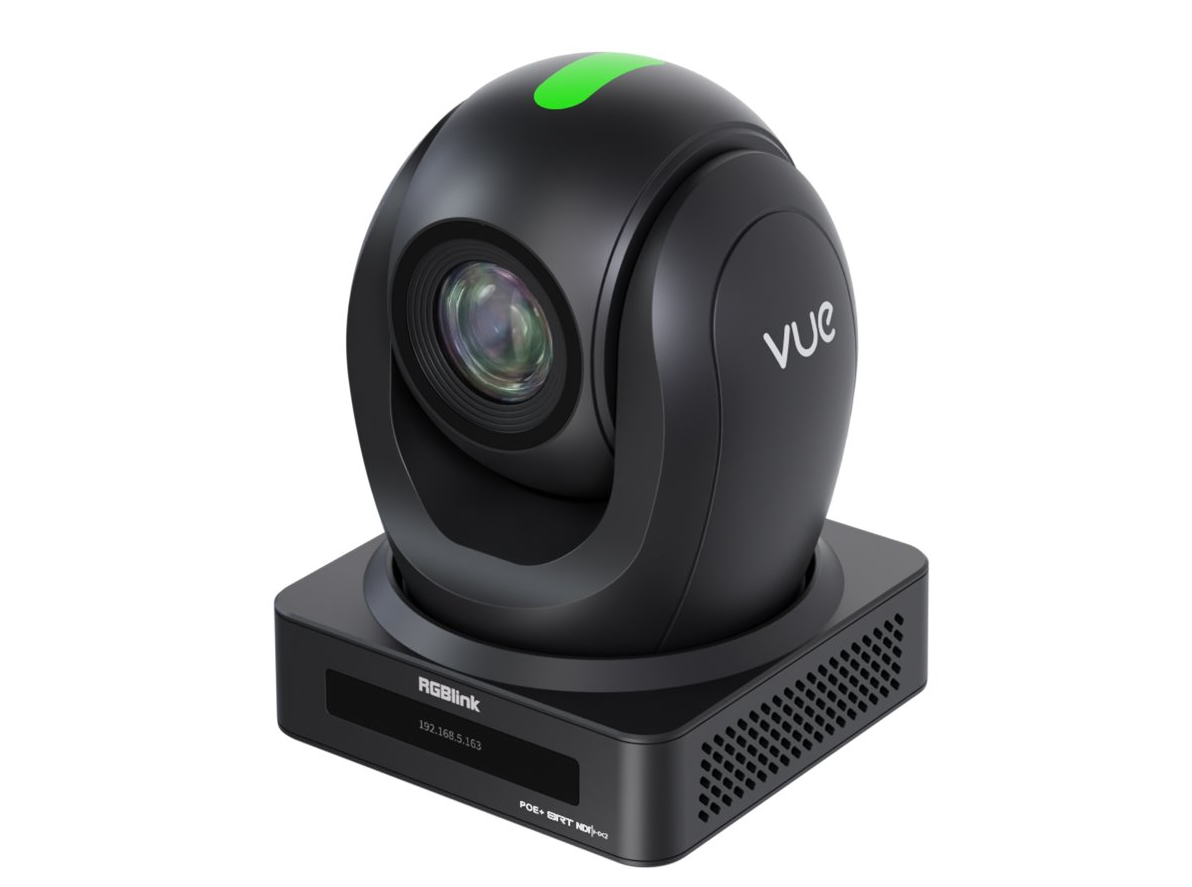

The vue 4K PTZ boasts a unique 360° visible TALLY indicator and identification plate (resistant to interference when switching devices), also the innovative RGBlink vue camera design with patented technology adapts seamlessly to any environment.

Key features:

• 4K image with 1/2.8" 8.42MP sensor, 3840x2160 resolution at 30 frames per second
• AI tracking with face/person recognition - ideal for classrooms and meetings

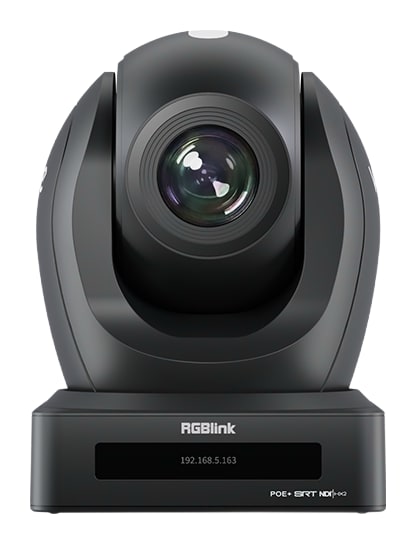

• 20x optical zoom lens
• RS485/RS232 control (RS232 supports device chaining)
• Advanced autofocus for fast, accurate and stable focusing
• Supports VISCA/PELCO-D/P protocols with automatic detection
• Low-noise CMOS sensor with 2D/3D noise reduction for high signal-to-noise ratio and clear images
• Silent gimbal with precision stepper motor for smooth and quiet operation

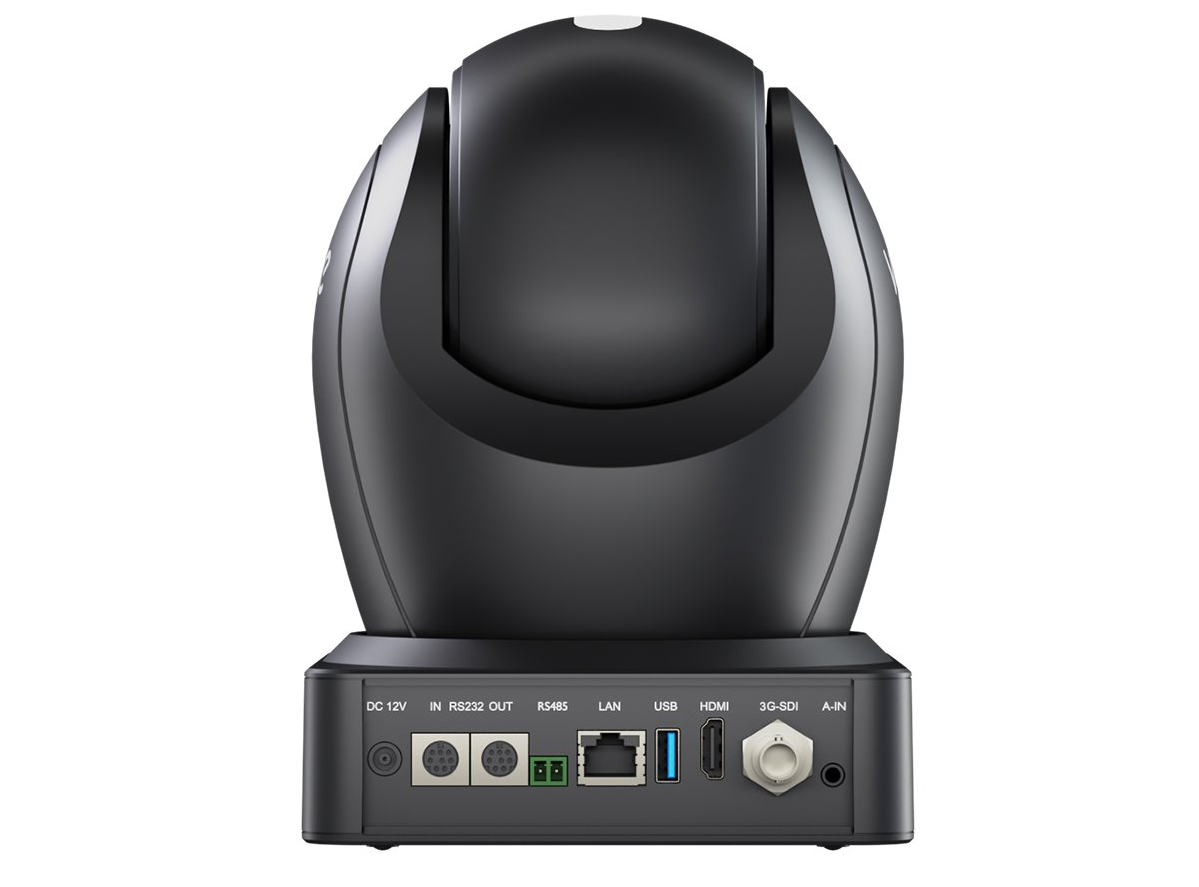

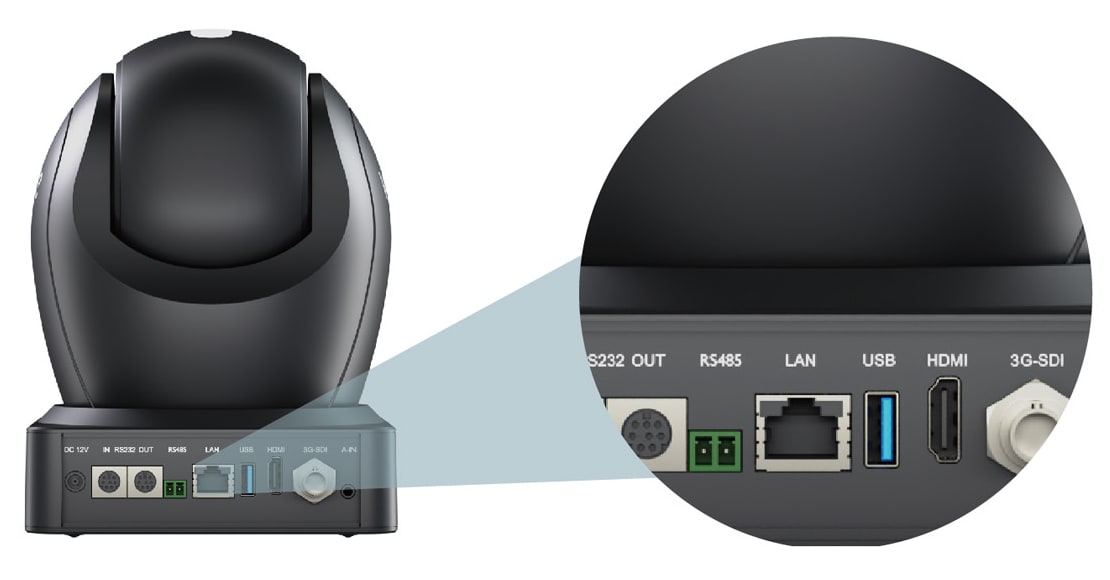

• HDMI/SDI/USB/LAN outputs (POE+ optional), SDI supports 1080P60 up to 100m
• Low power sleep mode - under 400 mW
• H.265/H.264 video and AAC/G.711A audio compression up to 4K@30fps
• Up to 255 presets (10 directly accessible via remote)
• AAC audio input (16-48 kHz) and G.711A support (8 kHz)
• Infrared remote control (interference-resistant, pass-through signal)
• Support for ONVIF/RTSP/RTMP, RTMP push and VISCA control
• Ideal for education, conferencing, healthcare, forensics and control systems
