RGBlink MSP 405 Pro

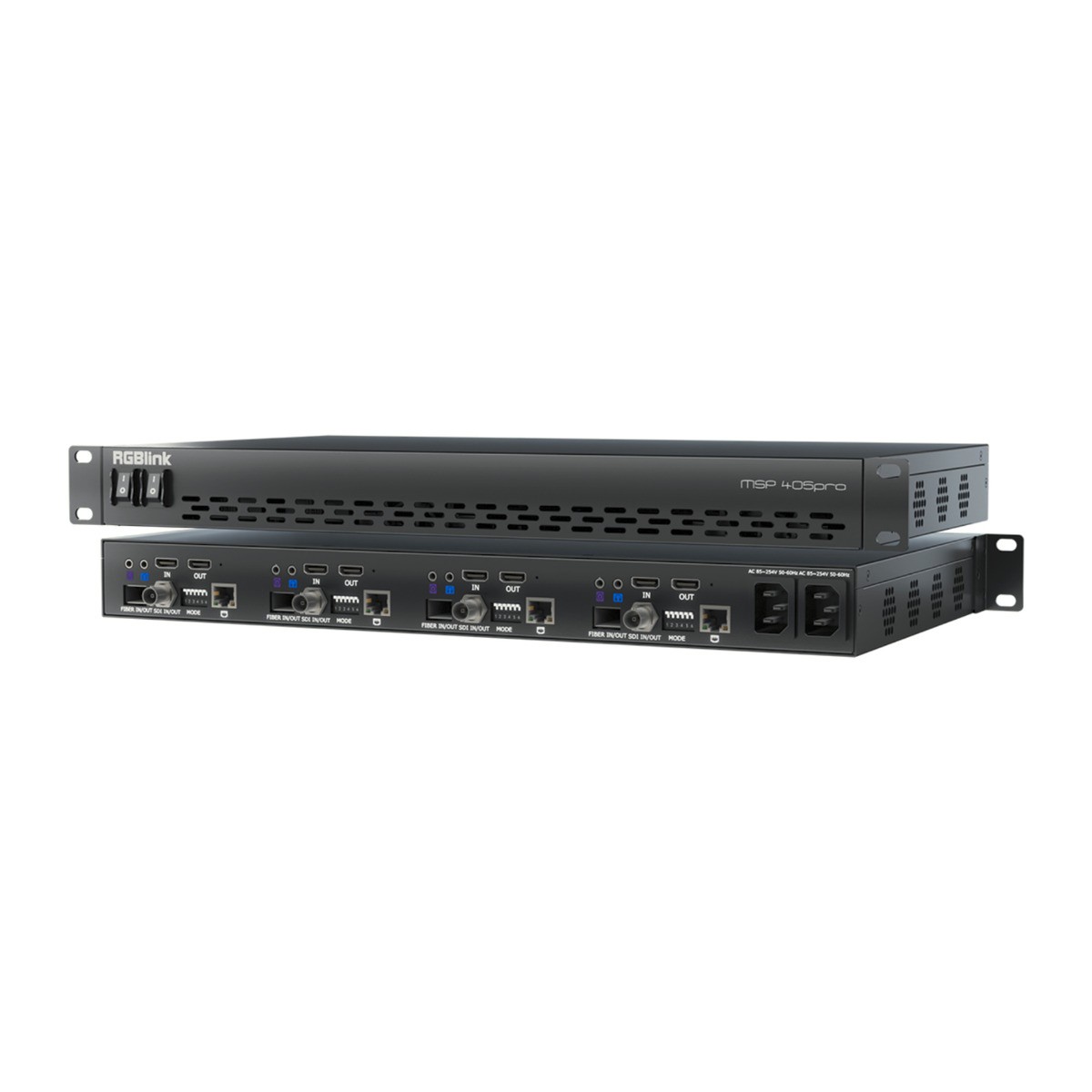

The RGBlink MSP 405 Pro is the installation rack version of the MSP 405 converter: a 1U chassis holds up to four converter modules and the power supply is ready for redundancy. Each module converts bidirectionally between 12G-SDI, HDMI 2.0 and fiber, including format and frame rate conversion up to 2160p60, and embeds or de-embeds audio.

The Pro is made for a rack in a control room or equipment room where several conversions are needed at once. The conversion functions are the same as on the small MSP 405.

Conversion between SDI, HDMI and fiber

Any of the three inputs – 12G-SDI, HDMI 2.0 or fiber – is converted to both other outputs without quality loss and with automatic format adaptation. Over fiber the converter carries the signal up to 50 km on single-mode and up to 700 m on multi-mode fiber. These are functions of the MSP 405 converter module, available in every module of the system.

Format and frame rate conversion

During conversion it can scale resolution up or down and change the frame rate, so it links devices working to different standards. It handles 2160p and 1080p at 25 to 60 fps, 1080i and 720p at 50 to 60.

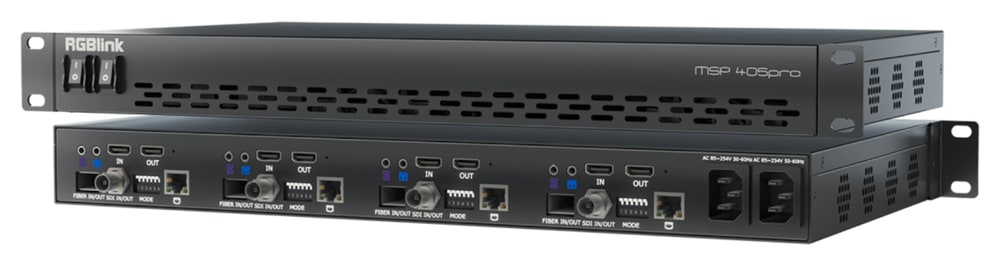

Four modules in 1U

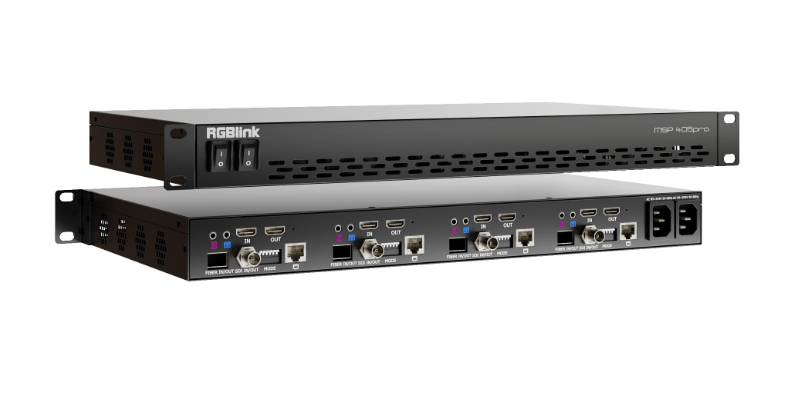

On the rear panel each of the four modules has a fiber port, a BNC connector for SDI, HDMI input and output, a mode switch and a LAN port. On the right are two power inlets for redundant power, and the front panel has two power switches.

More information

TheRGBlink MSP 405 Pro is a professional-grade AV signal converter and distribution system, capable of converting between SDI, HDMI 2.0, and fiber signals with support for HD, 3G, 6G, and 12G formats. With built-in test patterns, audio embedding, and Ethernet control, the MSP 405 Pro is ideal for broadcast, live events, and complex AV installations requiring long-distance signal transmission and flexible routing.

The RGBlink MSP 405 Pro is a versatile, high-performance signal conversion and distribution device designed for professional AV environments. It supports full conversion between SDI (HD/3G/6G/12G), HDMI 2.0, and fiber signals, making it suitable for a wide variety of broadcast, live production, and enterprise AV setups. The unit features auto format adaptation for seamless signal compatibility, allowing quick integration of multiple sources and displays.

Designed for long-distance transmission, the MSP 405 Pro supports both single-mode and multi-mode fiber modules, ensuring high-quality signal relay over extended distances. It includes a standard test pattern generator for on-site setup, as well as audio playback and embedding functions. Ethernet control enables system integration and remote management, making it ideal for custom workflows and complex AV networks. Up to four units can be installed in a 1U rack, with redundant power supply support for professional reliability.

Key Features

• Converts SDI → HDMI 2.0 / SDI → Fiber / HDMI 2.0 → SDI / HDMI 2.0 → Fiber / Fiber → SDI / Fiber → HDMI 2.0
• Supports HD/3G/6G/12G-SDI and HDMI 2.0b standards
• Auto format adaptation for seamless signal conversion
• Single-mode and multi-mode fiber modules optional
• Built-in standard test pattern generator
• Audio playback and embedding function
• Upgrade and control via Ethernet interface
• Rack-mountable: Up to 4 units in 1U with redundant power supply
• Long-distance signal transmission via fiber or HDMI/SDI

System parameters

• Inputs: 4 × HDMI-A, 4 × BNC SDI, 4 × LC Fiber
• Outputs: 4 × HDMI-A, 4 × BNC SDI, 4 × LC Fiber
• Audio I/O: 4 × 3.5 mm Line In, 4 × 3.5 mm Line Out
• Control: 4 × RJ45 LAN, 4 × IP Reset Button, 4 × Dial Switch
• Resolution Support: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 25/29.97/30/50/59.94/60, 2160p 25/29.97/30/50/59.94/60
• Standards: HDMI 2.0b, SDI/Fiber HD/3G/6G/12G-SDI
• Cooling: 1 × Built-in Fan
• Power Input: AC 85–264V, 50/60Hz
• Dimensions: 484 × 290.4 × 44 mm
• Rack Mount: 1U, up to 4 units per 1U slot
