RGBlink MSP 405 Premier

The RGBlink MSP 405 Premier is the rack version of the MSP 405 converter: a 1U chassis holds two converter modules and the connectors on the rear panel lock in place. Each module converts bidirectionally between 12G-SDI, HDMI 2.0 and fiber, including format and frame rate conversion up to 2160p60, and embeds or de-embeds audio.

The Premier is made for fixed installations where the converter sits in a rack and cables must not be pulled out by accident. The conversion functions are the same as on the small MSP 405.

Conversion between SDI, HDMI and fiber

Any of the three inputs – 12G-SDI, HDMI 2.0 or fiber – is converted to both other outputs without quality loss and with automatic format adaptation. Over fiber the converter carries the signal up to 50 km on single-mode and up to 700 m on multi-mode fiber. These are functions of the MSP 405 converter module, available in every module of the system.

Format and frame rate conversion

During conversion it can scale resolution up or down and change the frame rate, so it links devices working to different standards. It handles 2160p and 1080p at 25 to 60 fps, 1080i and 720p at 50 to 60.

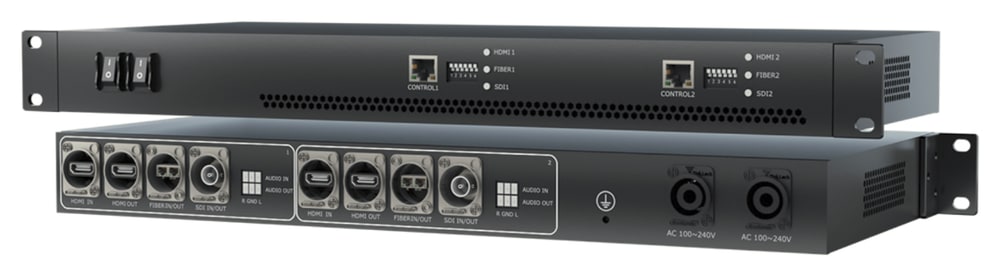

Two modules in 1U with locking connectors

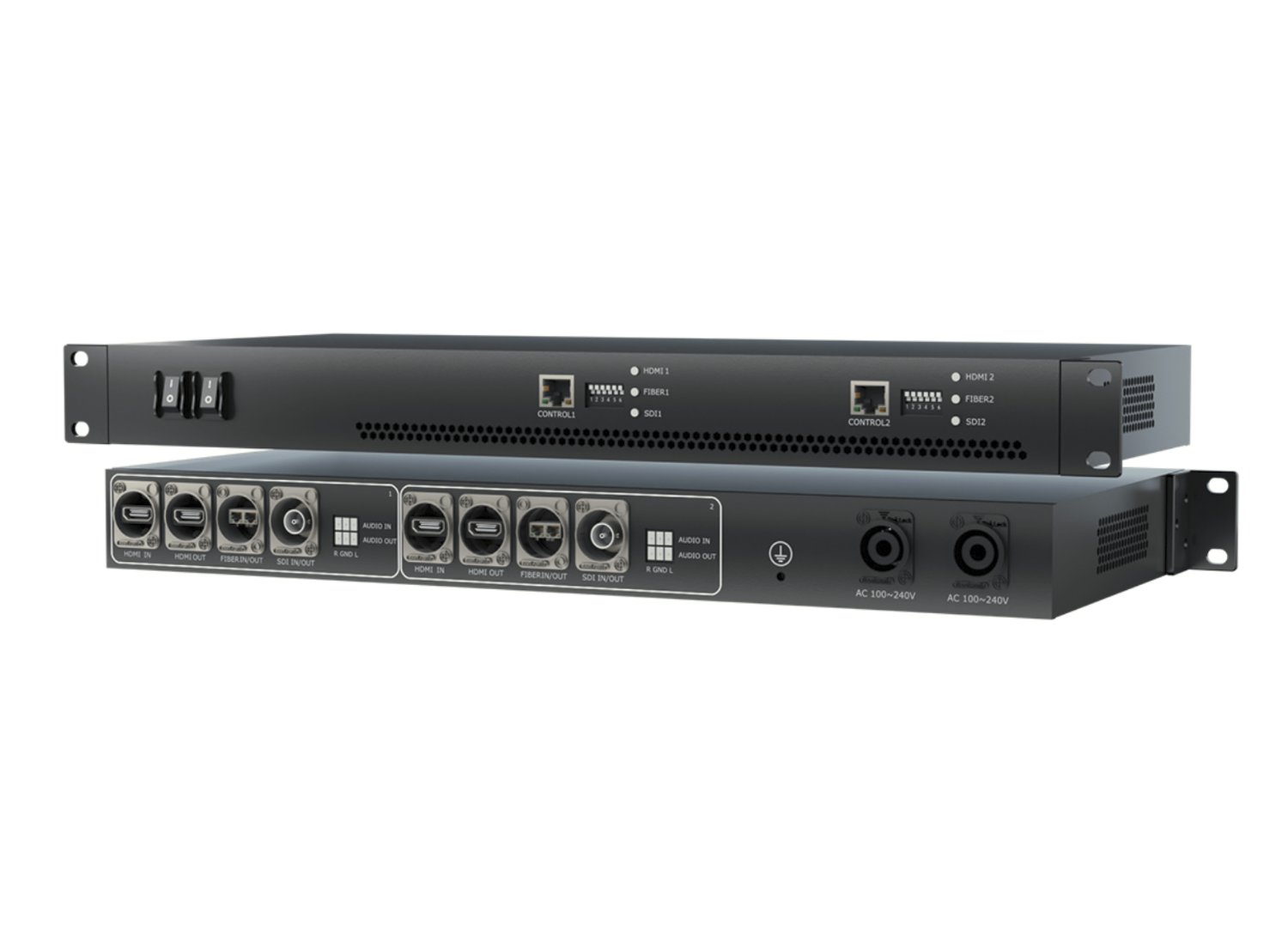

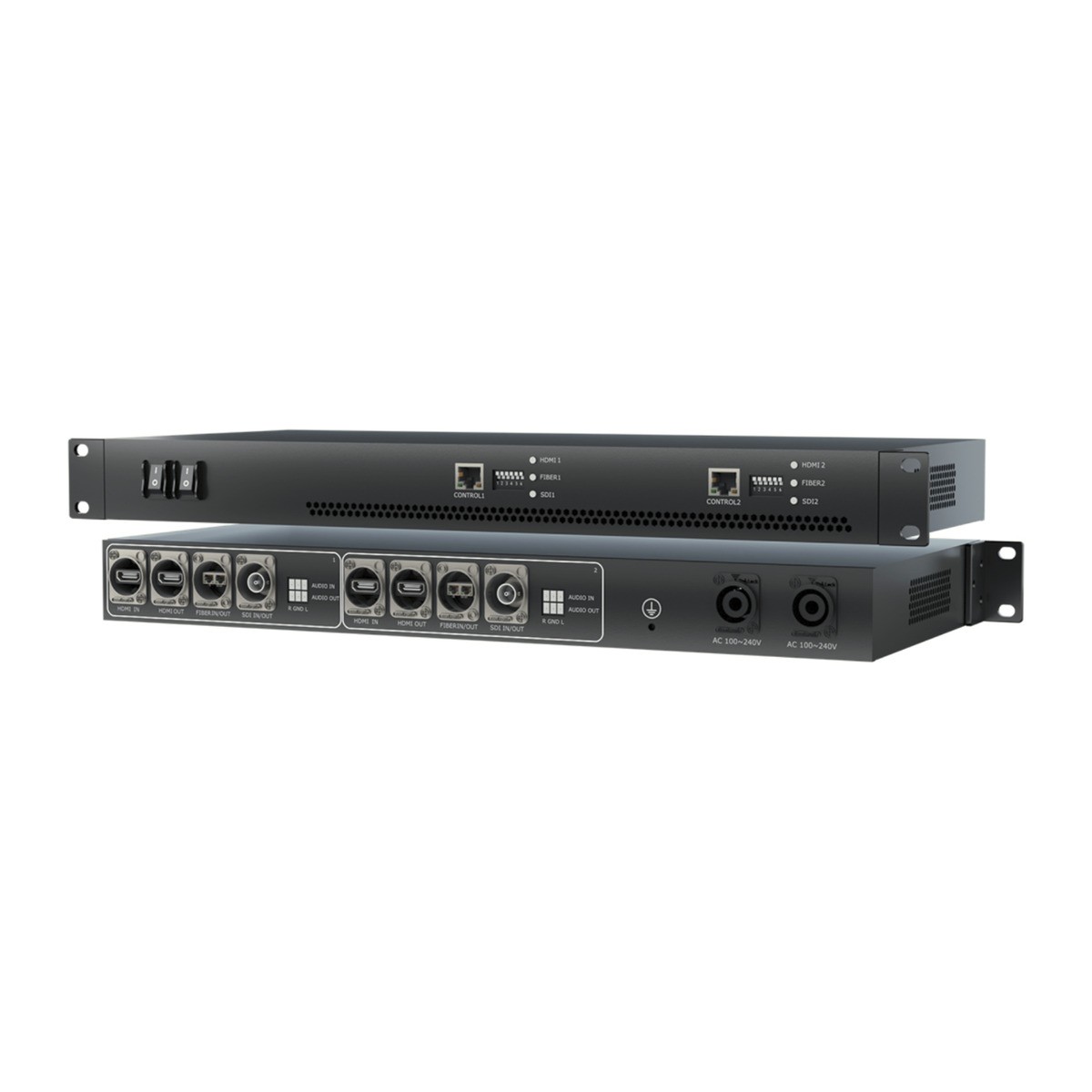

The rear panel carries the locking connectors of both modules and two AC 100–240 V power inlets. On the front panel each module has its own LAN control port (CONTROL), a DIP switch and signal indicators for HDMI, fiber and SDI.

More information

The RGBlink MSP 405 Premier is a professional rack-mounted 4K video signal converter and fiber extender designed for high-end broadcast and live production environments. Supporting bidirectional conversion between HDMI 2.0, SDI (SD/HD/3G/6G/12G), and fiber signals, the MSP 405 Premier delivers zero-latency performance, long-distance transmission, and secure, lockable rack integration for mission-critical AV workflows.

The RGBlink MSP 405 Premier is a premium version of the MSP 405 series, engineered for fixed installations and professional broadcast infrastructures requiring stability, security, and high performance. It supports full conversion between HDMI 2.0, SDI (including SD, HD, 3G, 6G, and 12G-SDI), and fiber optic signals, with automatic format adaptation to ensure seamless compatibility across a wide range of video sources and displays. All interfaces support ultra-high-definition resolutions up to 3840×2160 @ 60Hz, while maintaining backward compatibility with HD and SD formats.

Powered by high-performance FPGA pure hardware processing, the MSP 405 Premier achieves zero-delay, real-time protocol conversion with excellent signal integrity. It features a standard test pattern generator for on-site configuration, and comprehensive audio playback and embedding functions. Designed for medium- to long-distance transmission, the unit provides robust fiber relay, clock recovery, and signal equalization, making it ideal for large-scale events and permanent installations.

The MSP 405 Premier supports installation of up to two units in a 1U rack, utilizing a lockable rear-panel connection for enhanced reliability and professional-grade build quality. Ethernet-based control and upgrade capability allow easy system integration and remote management. With strong anti-interference performance, high security, and a compact rack-mounted form factor, the MSP 405 Premier is a dependable solution for broadcast studios, control rooms, and premium AV installations.

Key Features

• Converts SDI → HDMI 2.0 / SDI → Fiber / HDMI 2.0 → SDI / HDMI 2.0 → Fiber
• Converts Fiber → SDI / Fiber → HDMI 2.0
• Supports SD/HD/3G/6G/12G-SDI and HDMI 2.0 standards
• Auto format adaptation for seamless signal compatibility
• Supports medium- to long-distance fiber transmission
• Integrated standard test pattern generator
• Audio playback and audio embedding support
• Ethernet interface for control, upgrade, and system integration
• Rack-mountable: Up to 2 units in 1U with lockable back-panel connection
