Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.
The VC-100UHD is a half-rack 4K scaler and converter for live events, fixed installations and livestreaming. Using Roland Ultra Scaler technology it processes a 12G-SDI or HDMI 2.0 signal and sends it simultaneously at different resolutions to an LED wall, monitors and a computer over USB 3.0.
Lossless 4:4:4 10-bit processing, high frame rates up to 240 Hz, ROI and a USB 3.0 webcam output in one rugged unit.

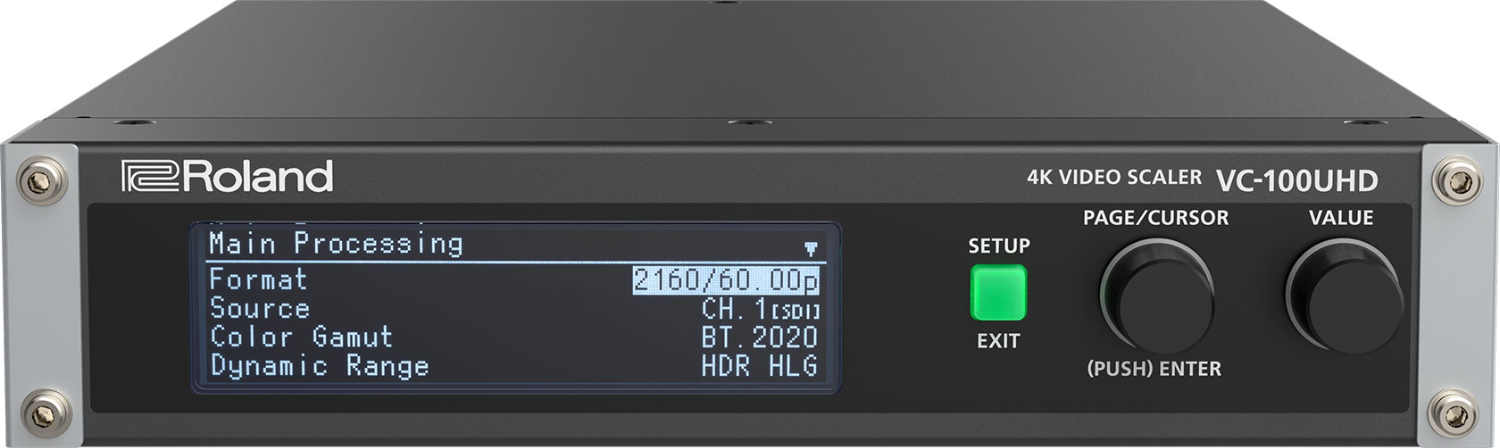

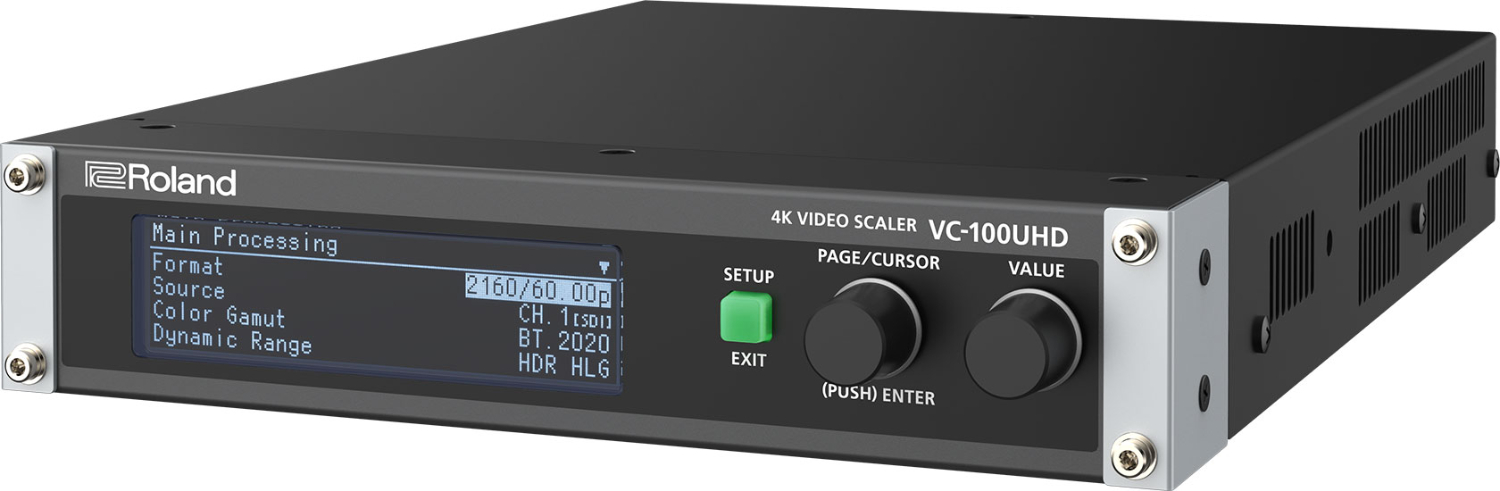

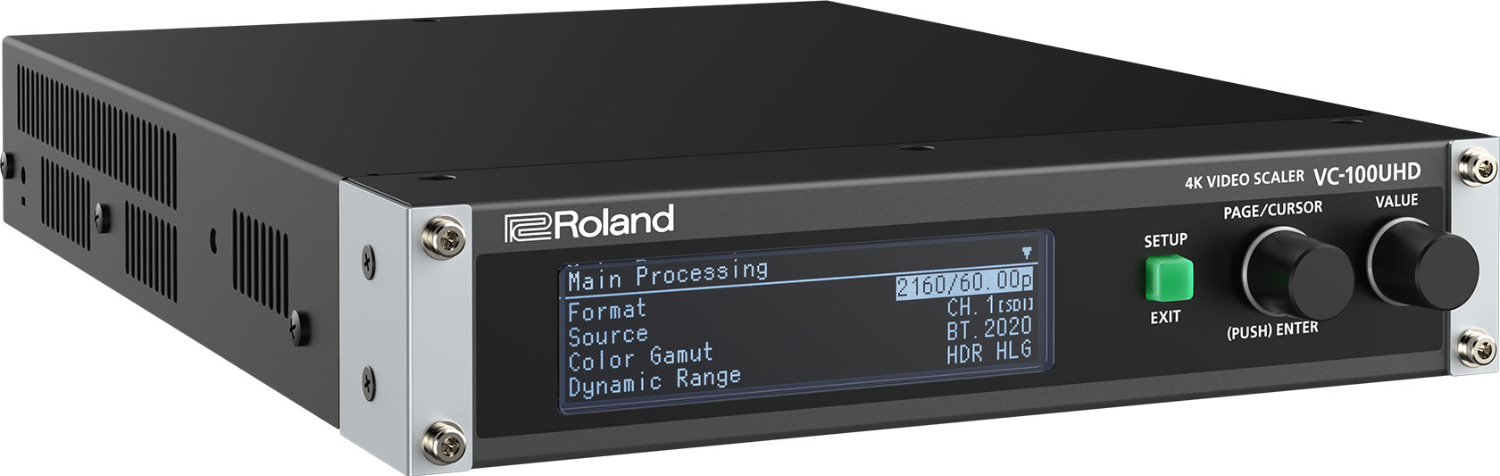

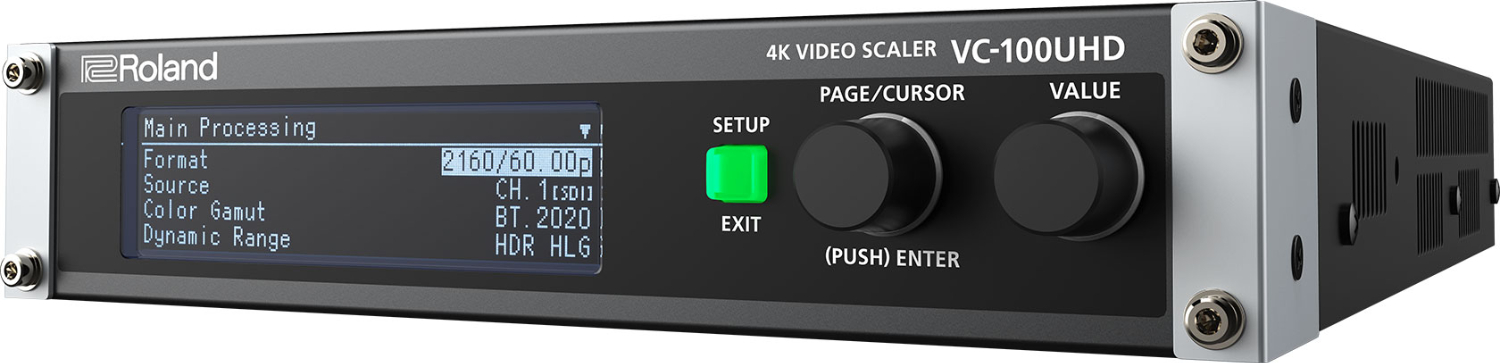

A graphic LCD with a clear menu gives access to every function without an external controller. Status screens show resolution, frame rate, HDCP, colour space, gamut, dynamic range and audio levels.

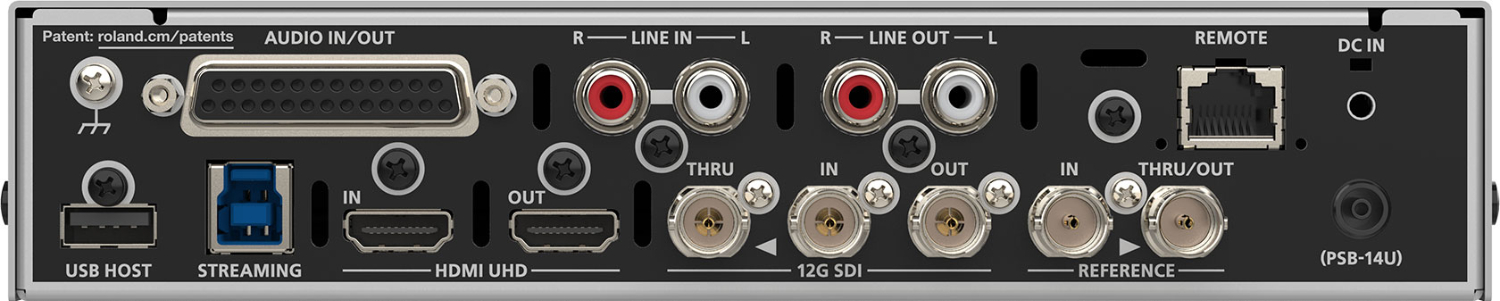

12G-SDI inputs and outputs including THRU, HDMI, reference in and thru/out, balanced audio on D-sub 25, line audio on RCA, LAN for remote control and USB for streaming and a flash drive.
Ultra Scaler scales the output to the exact pixel dimensions the LED wall controller needs, supporting 4K HDR, 1080p SDR and DCI Cinema 4K.
Region of Interest crops up to eight windows from the 4K image and enlarges them to HD. Switch between windows with a USB numeric keypad, or from a V-160HD (Version 3.3 and later) over the network, and turn a single camera into a multi-camera production.
1080p pass-through up to 240 Hz for a gaming monitor while delivering 59.94/50 Hz to the video system and stream.
Rotate, flip and mirror images, plus frame synchroniser and genlock.
Patching of up to 16 input and 8 output channels, embedding and de-embedding, and delay on every output.

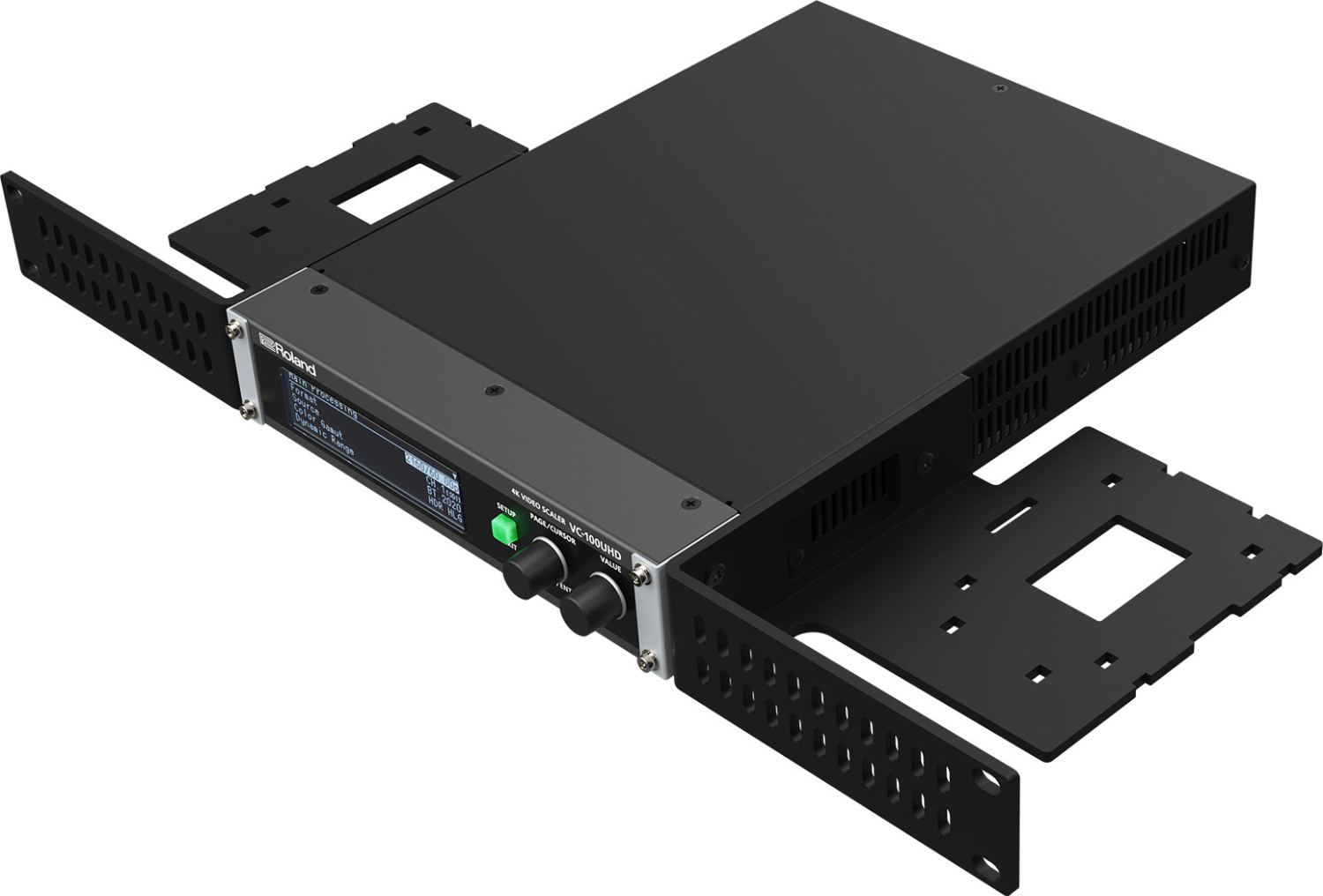

Rack mount angles included, 8 presets, settings backup to USB and LAN remote control.
Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.
With the VC-100UHD’s high-resolution graphic LCD and intuitive menu structure, all functions can be accessed locally without the need for an external control device. On the comprehensive status screens, you can quickly check the resolution, frame rate, HDCP status, color space, bit depth, color gamut, dynamic range, audio levels, and more. In addition, the system message log screen makes troubleshooting easy.
The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.
Roland's Ultra Scaler supports:
When using YCbCr 4:4:4 and YCbCr 4:4:4 subsampling, the VC-100UHD’s 10-bit internal processing fully maintains the color and gradation details of the input source. Compared with 8-bit processing, this allows you to display images with more colors and a smooth, natural look.
High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.
Using the VC-100UHD’s built-in visual effects, it’s simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD’s Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed.
With the VC-100UHD's built-in Region of Interest (ROI) function, you can easily produce multi-shot productions with a single 4K camera or zoom in and highlight presentation details. Creating an inviting viewer experience has never been easier: select any 4K video input source to zoom, move, crop, and scale up to eight ROI windows. Then, use a USB numeric keypad to switch windows during events like a PTZ camera.
Pictures for several audiences at once. Main processing sends 4K or HD to the LED wall, sub processing feeds another image to a monitor, and the USB stream output carries HD for internet broadcasting.

USB 3.0 webcam output. Uncompressed 1080p at 59.94/50 Hz goes over USB 3.0 straight into streaming software as a webcam, with no drivers.

Audio patchbay. Audio from 12G-SDI, HDMI, RCA and D-sub 25, plus a test tone, can be routed freely, with delay on each output to keep sound in sync with the picture.

10-bit processing. Internal 10-bit processing keeps the colour and gradation of the source, giving more colours and smoother transitions than 8-bit processing.

The Roland VC-100UHD is a state-of-the-art 4K video processor and scaler equipped with 12G-SDI, HDMI 2.0, and USB 3.0 interfaces for professional streaming and signal conversion. To fully realize its potential in video and audio processing, it is essential to use high-quality cabling for the transmission of high-resolution video and balanced audio.
Video Cables - High-quality SDI cables are essential for stable transmission of 12G-SDI and HD-SDI signals between the processor and other devices.
Audio cables - Balanced XLR and TRS cables allow full use of the built-in audio processor for professional sound processing.
| Manufacturer: | Roland |
| Category: | Signal converters |
