Roland RCC-25-SDI

The Roland RCC-25-SDI is a 7.5 m (25 ft) Black Series SDI cable with BNC connectors, 75 Ω impedance and a 20 AWG core. Dense shielding with polyethylene insulation protects HD video from interference; the flexible jacket is 6 mm thick.

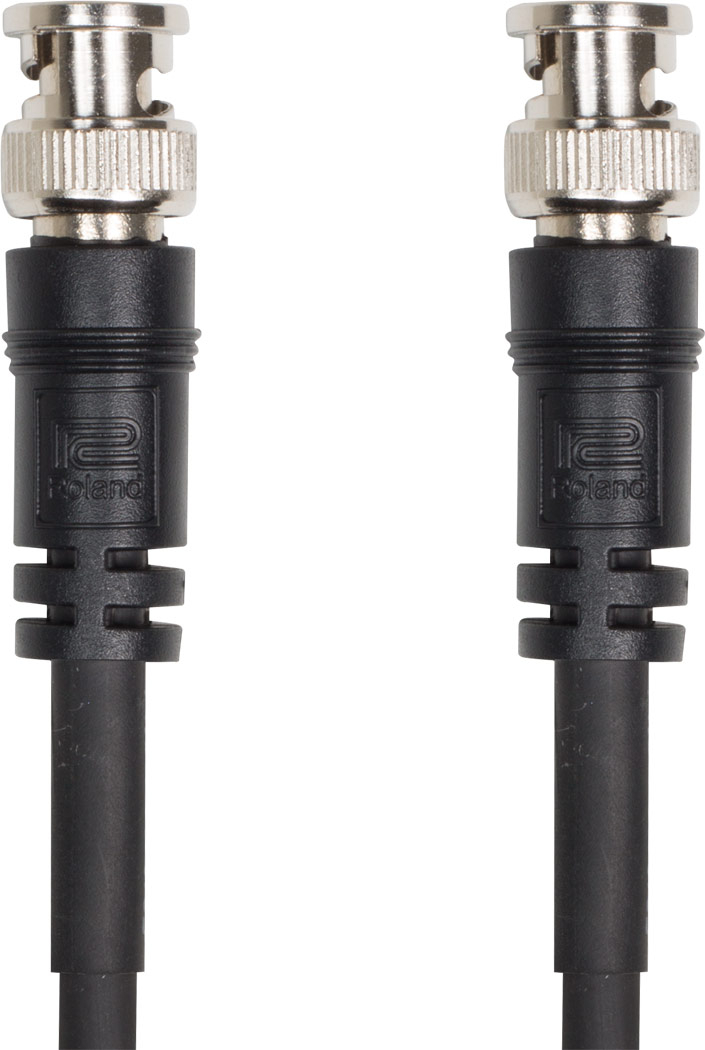

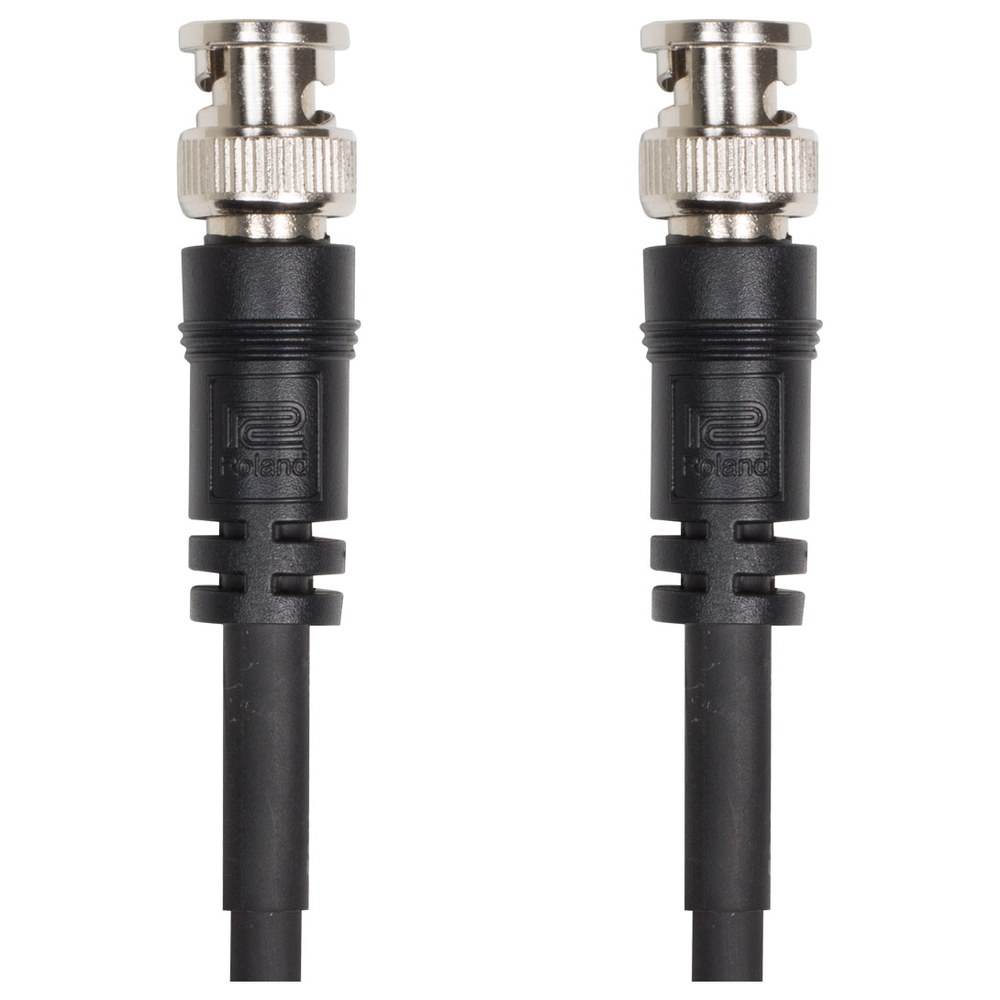

The Roland RCC-25-SDI is a 7.5 m (25 ft) Black Series SDI cable with BNC connectors at both ends. It links cameras, video switchers, converters and monitors with SDI inputs and outputs.

SDI connections you can rely on

Length 7.5 m (25 ft), 75 Ω impedance, a 20 AWG core and dense shielding for precise HD video transfer.

7.5 m (25 ft)BNC – BNC75 Ω20 AWG coreFull HD6 mm jacket

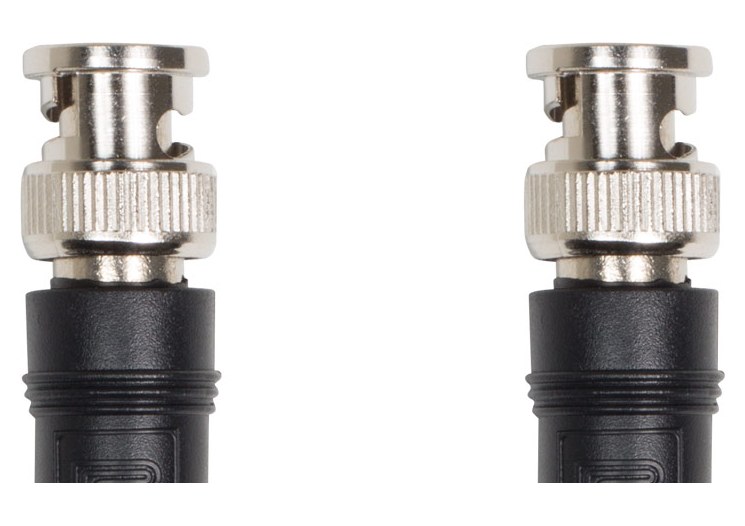

High-quality BNC connectors

Quality BNC connectors at both ends ensure a secure connection and full dynamic reproduction of the signal.

Shielded against interference

High-density spiral shielding and heavy-duty polyethylene insulation protect HD video and RF signals from interference and contamination.

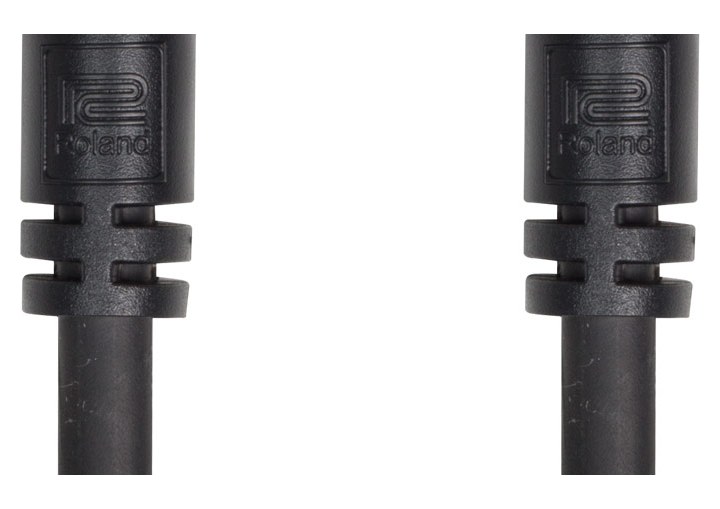

Flexible matte jacket

The flexible matte black PVC jacket, 6 mm in diameter, is easy to run and stays unobtrusive in the rack or on stage.

Eight lengths for every run

Black Series SDI cables come in 1, 2, 3, 5, 7.5, 15, 30 and 60 m lengths. Short ones connect gear in the rack, long ones carry the camera signal all the way to the control room.

75 Ω impedance

Matches the standard for SDI digital video transmission.

20 AWG core

A thick centre conductor carries the signal precisely and reliably.

Full HD 1920 × 1080

Designed to carry Full HD video.

Polyethylene insulation

Heavy-duty insulation under the jacket protects the centre conductor.

Roland Black Series SDI cables are designed to transmit HD video and RF signals precisely and accurately. Our 20 AWG core carries your signal with precision, while the high-density braided shielding eliminates any interference and contamination. Incorporating high-quality BNC connectors and heavy-duty polyethylene insulation, Black Series SDI cables deliver performance you can trust.

• 75 ohm cable impedance
• High-quality BNC connectors for full dynamic reproduction
• Supports Full HD (1920 x 1080 pixels)
• High-density spiral shielding with heavy-duty polyethylene insulation
• 6 mm OD flexible matte black PVC jacket
• Lifetime guarantee
