RGBlink MSP 405

The RGBlink MSP 405 is a bidirectional 12G-SDI, HDMI 2.0 and fiber converter: it converts a signal from any input to both other outputs, with format and frame rate conversion, up to 2160p60. It has a 2.4-inch touch preview display, a test pattern generator and audio embedding and de-embedding. A battery plate for two camera batteries turns it into a standalone mobile unit.

The MSP 405 from the RGBlink mini converter range brings SDI, HDMI and fiber together in one small box. It fits in a camera bag, runs from batteries or USB-C and sends the signal over optical fiber on long runs.

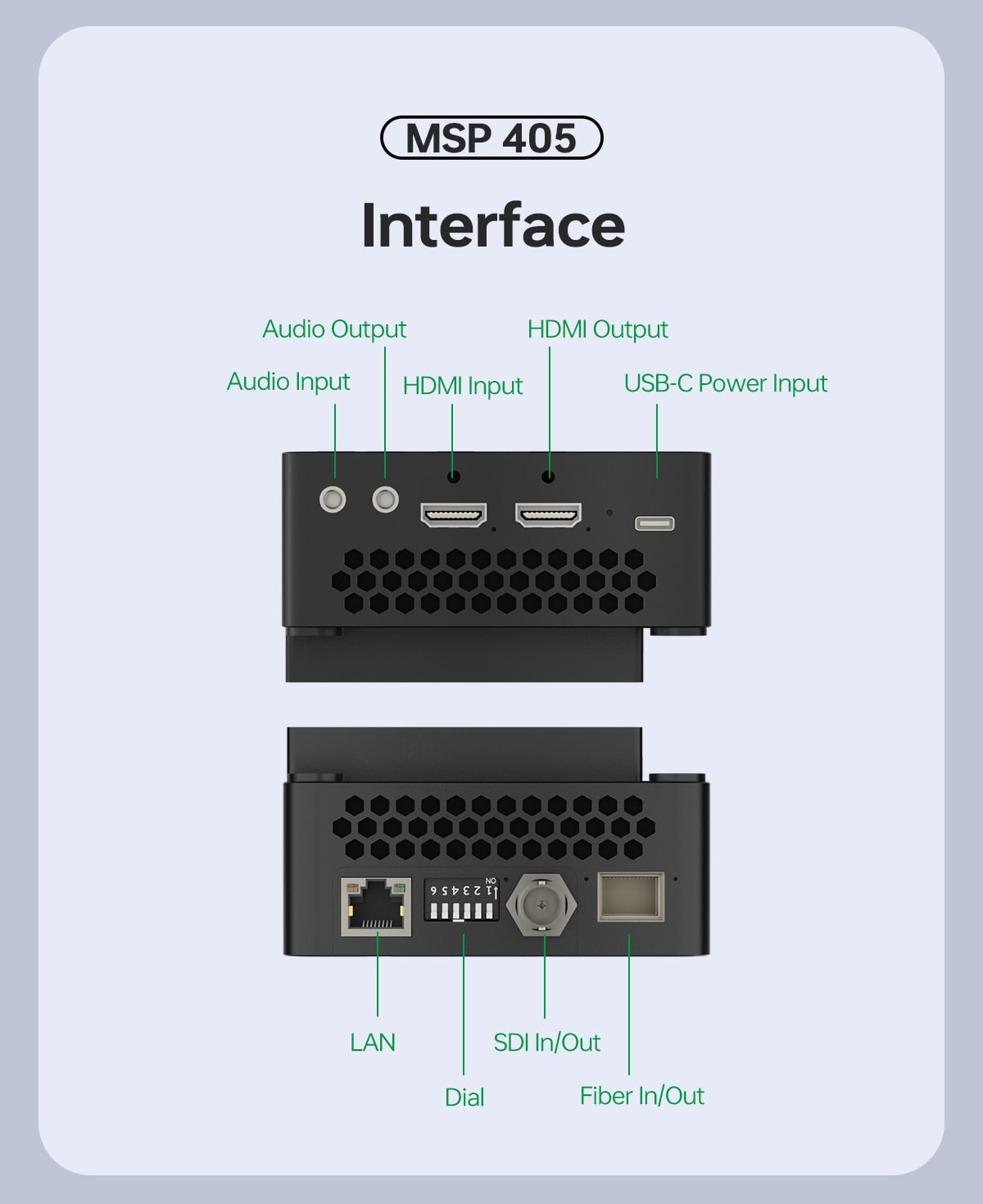

Connectors

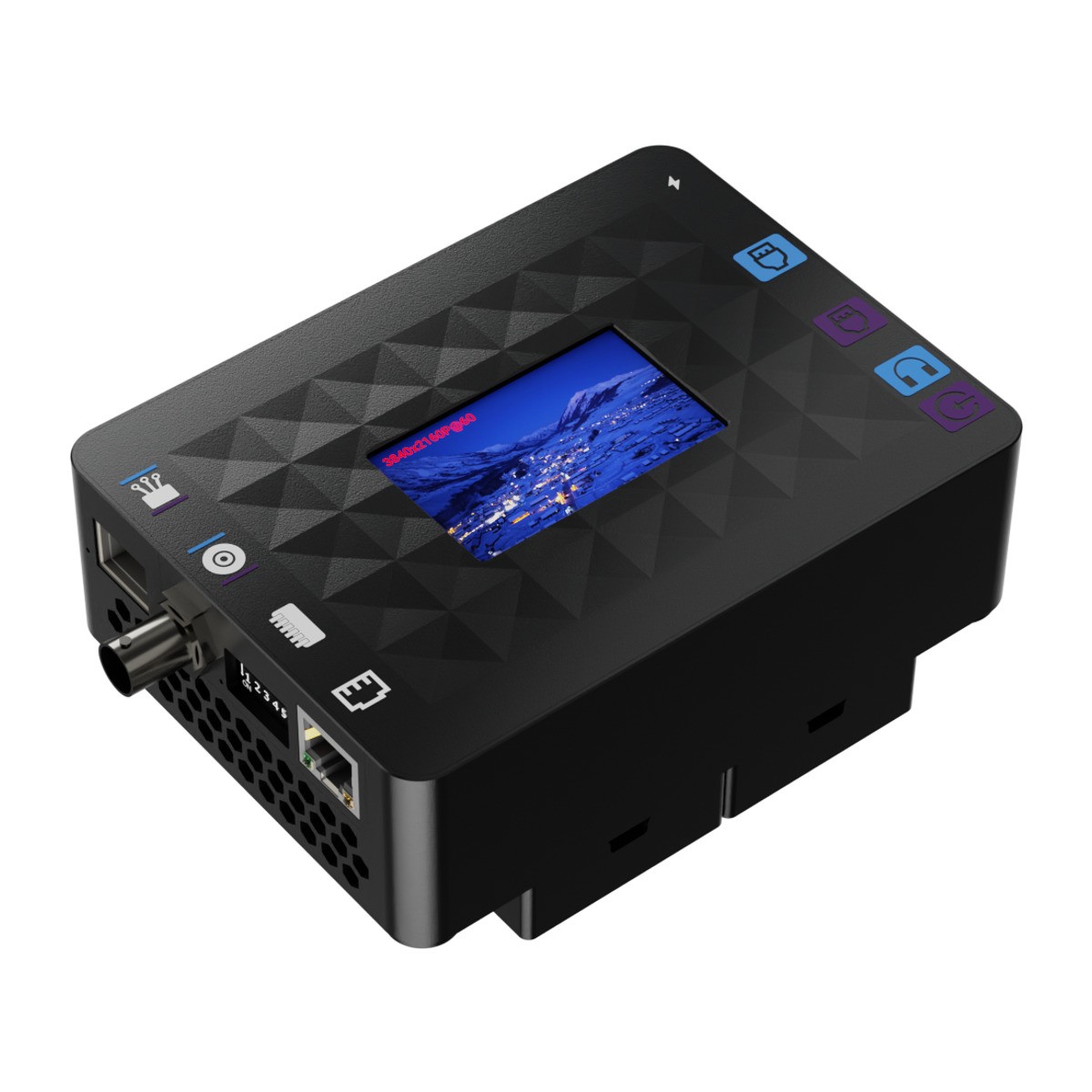

One side carries the 3.5 mm line audio input and output, the HDMI 2.0 input and output and USB-C power. The other side has the LAN port, a DIP switch, a BNC connector that serves as SDI input or output, and a slot for an SFP optical module with LC connector.

Conversion between SDI, HDMI and fiber

Any of the three inputs – 12G-SDI, HDMI 2.0 or fiber – is converted to both other outputs without quality loss and with automatic format adaptation. Over fiber the converter carries the signal up to 50 km on single-mode and up to 700 m on multi-mode fiber.

Format and frame rate conversion

During conversion it can scale resolution up or down and change the frame rate, so it links devices working to different standards. It handles 2160p and 1080p at 25 to 60 fps, 1080i and 720p at 50 to 60.

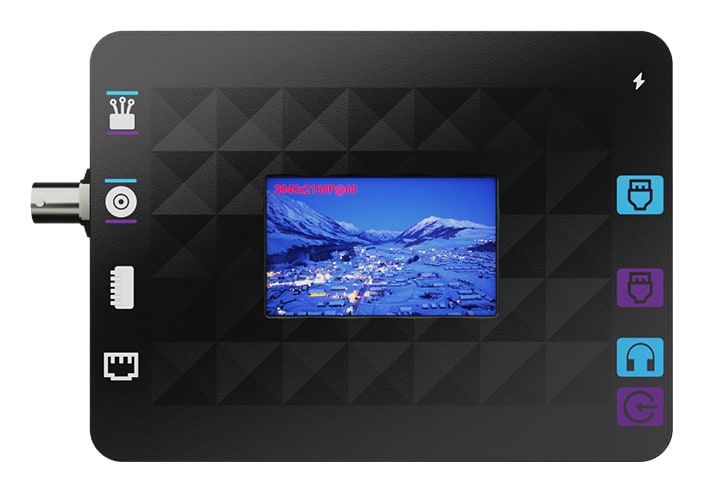

Touch display and test patterns

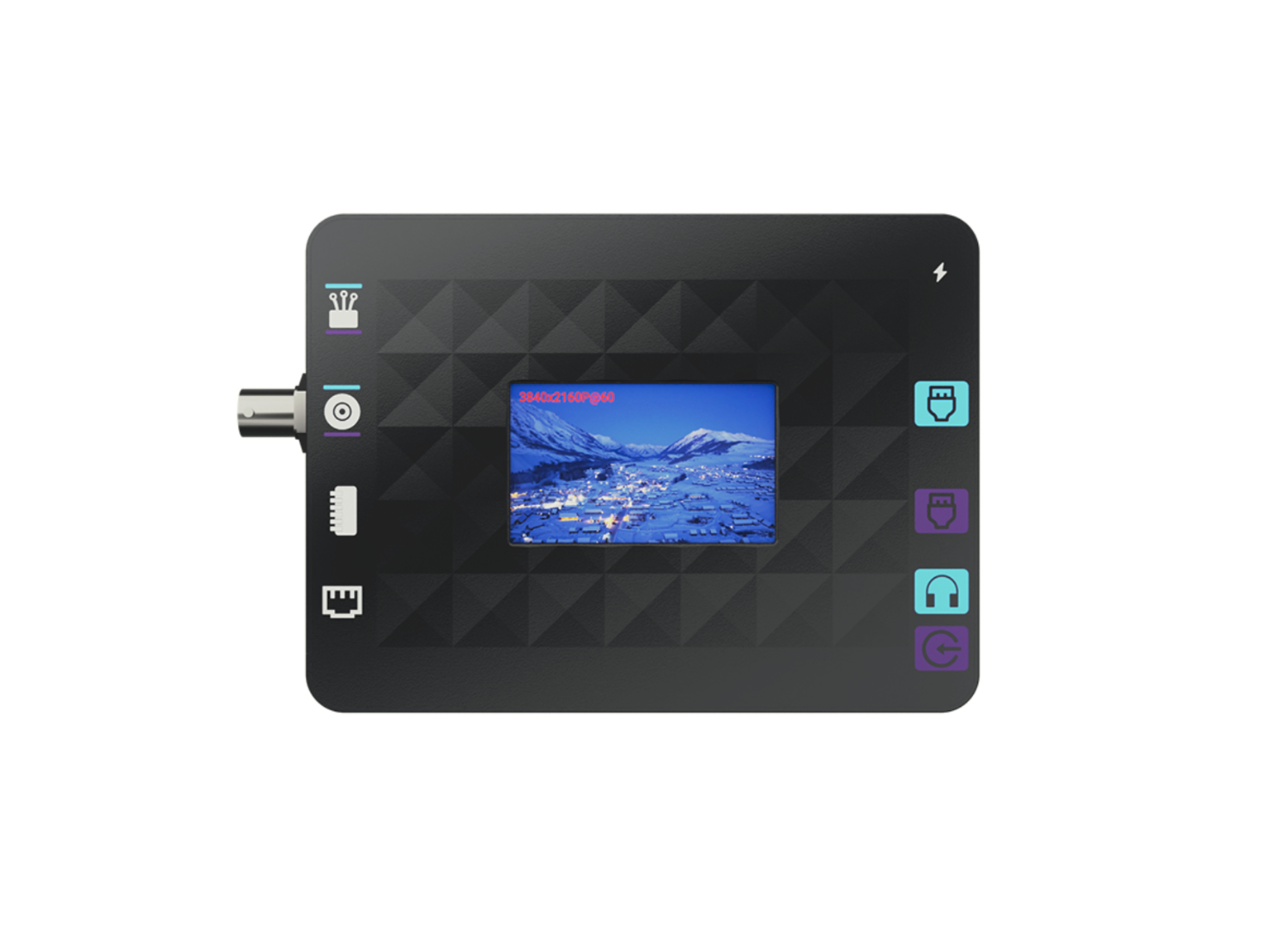

On top there is a 2.4-inch touch display that shows the input signal and gives access to the menu. The built-in generator sends standard test patterns to the outputs, which is handy during on-site setup.

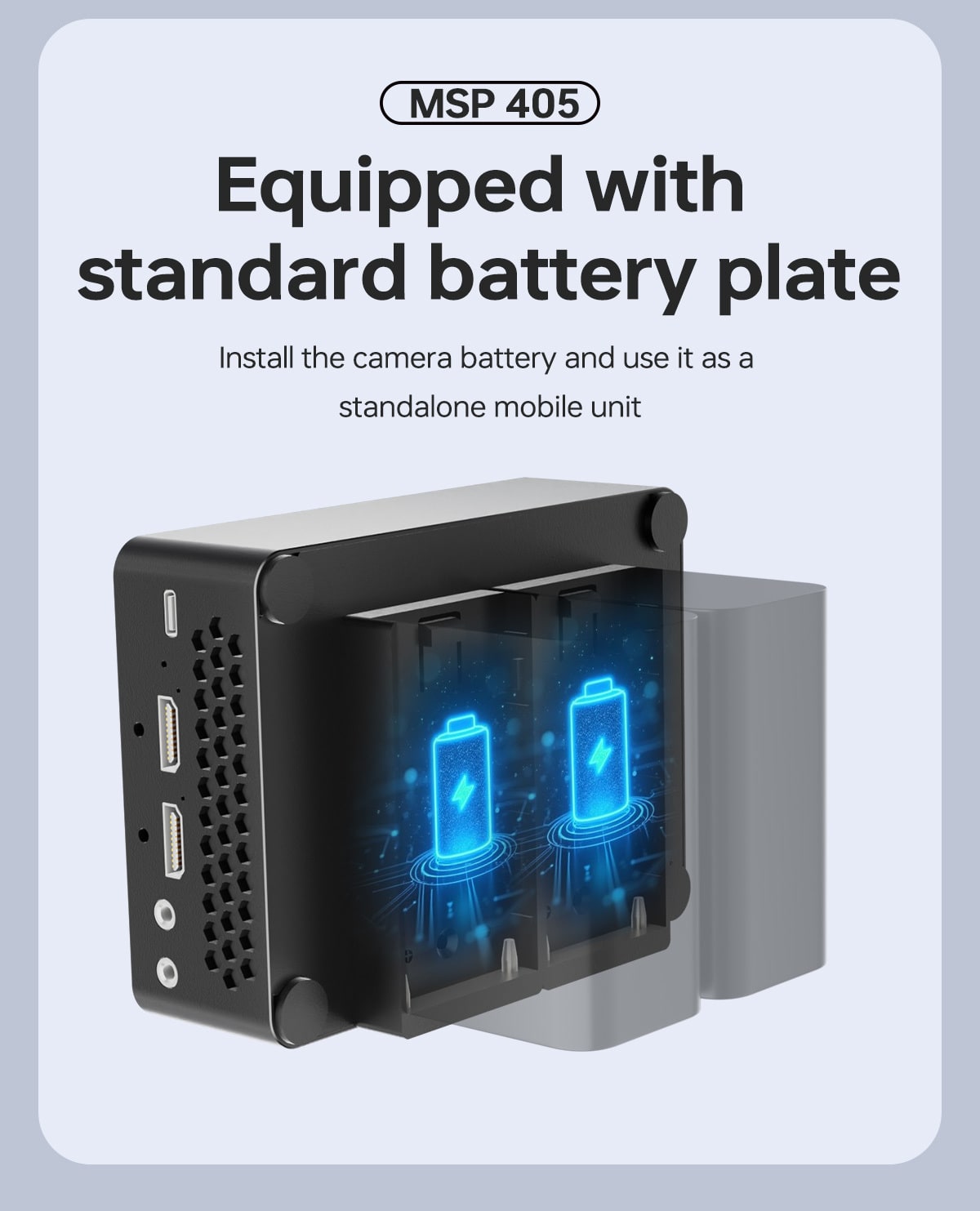

Battery plate for two batteries

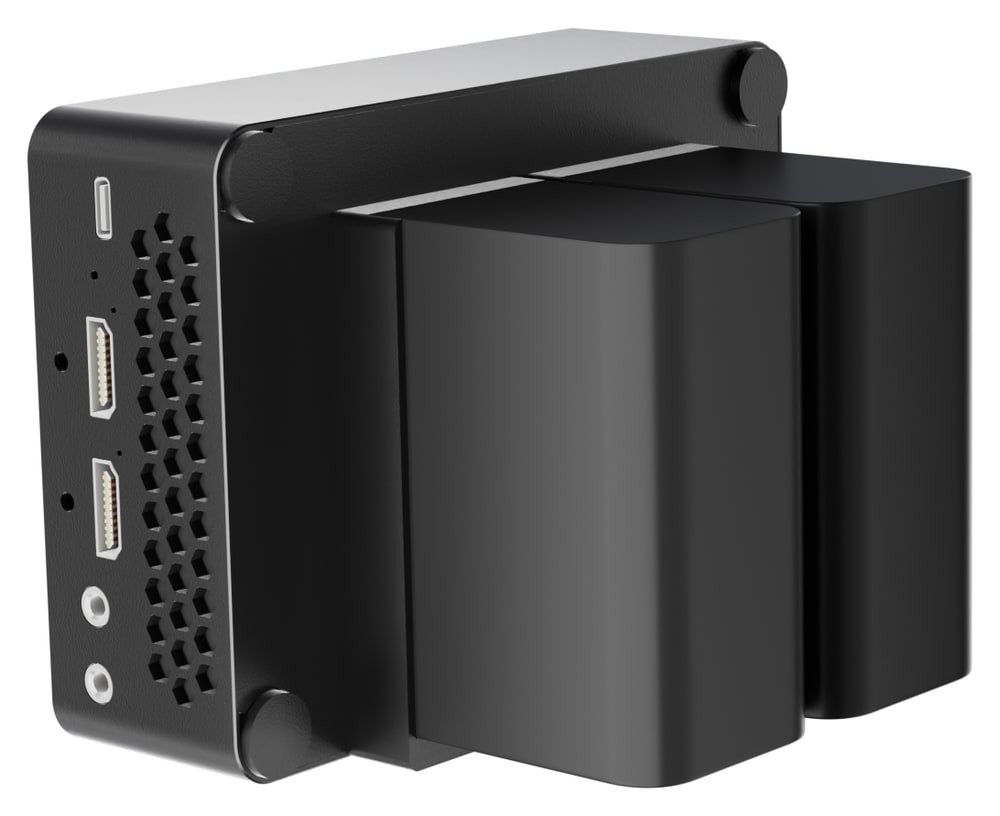

Two camera batteries fit on the plate (Sony F550/F750/F960, FM50/FM70/FM90, QM91D, Panasonic VBD1/VBD2, JVC V607U/V617U). When the primary battery runs low, the converter switches to the backup by itself; one battery lasts about 3 hours. Batteries are not charged in the converter.

More information

The RGBlink MSP 405 is a professional 4K video signal converter that seamlessly converts between HDMI 2.0, SDI, and fiber optic signals with zero latency, making it ideal for broadcast, live events, and long-distance transmission applications.

The RGBlink MSP 405 is a high-performance, multi-interface video converter engineered for demanding UHD 4K workflows. It supports bidirectional conversion between HDMI 2.0, SDI (SD/HD/3G/6G/12G-SDI), and fiber optic signals, allowing any one input type to be converted to the other two outputs with automatic format adaptation. All interfaces support resolutions up to 3840×2160 at 60Hz, while remaining fully backward compatible with HD and SD formats. Powered by a high-performance FPGA and pure hardware processing algorithms, the MSP 405 delivers zero-delay, real-time signal conversion with excellent stability and accuracy. The unit features a built-in preview monitor with a touch panel for intuitive local operation, as well as a standard test pattern generator for fast on-site setup and troubleshooting. Designed for field and mobile use, the MSP 405 includes a battery case supporting up to two camera batteries with automatic power switching for uninterrupted operation. Additional features such as audio playback and embedding, fiber relay for medium to long-distance transmission, and Ethernet-based control and upgrades make the MSP 405 a versatile and reliable solution for broadcast studios, large-scale events, and professional AV installations.

Key Features

• Converts SDI (SD/HD/3G/6G/12G-SDI) to HDMI 2.0 with auto format adaptation
• Converts SDI to fiber for long-distance signal transmission
• Converts HDMI 2.0 to SDI with auto format adaptation
• Converts HDMI 2.0 to fiber for medium to long-distance transmission
• Converts fiber to SDI or HDMI 2.0 with auto format adaptation
• Supports UHD 4K up to 3840×2160 @ 60Hz
• Zero-latency conversion using FPGA hardware processing
• Built-in preview monitor with touch panel control
• Integrated test pattern generator
• Audio playback and audio embedding support
• Battery case supports up to two camera batteries with automatic power switching
• Ethernet interface for system control and firmware upgrades
