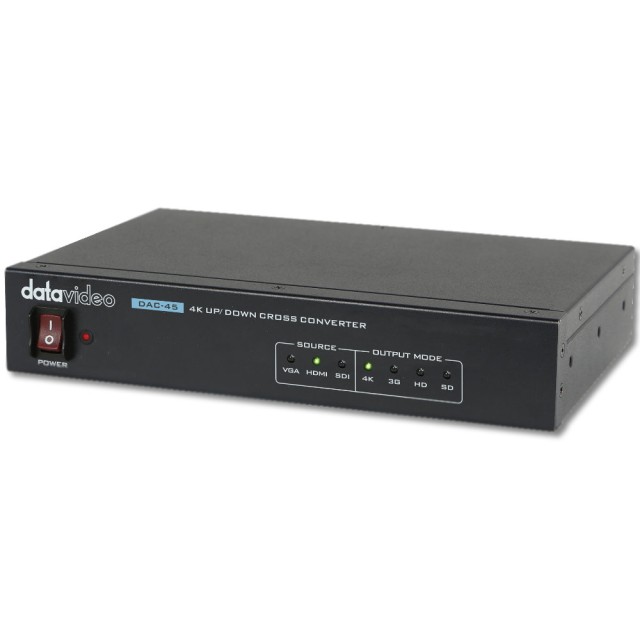

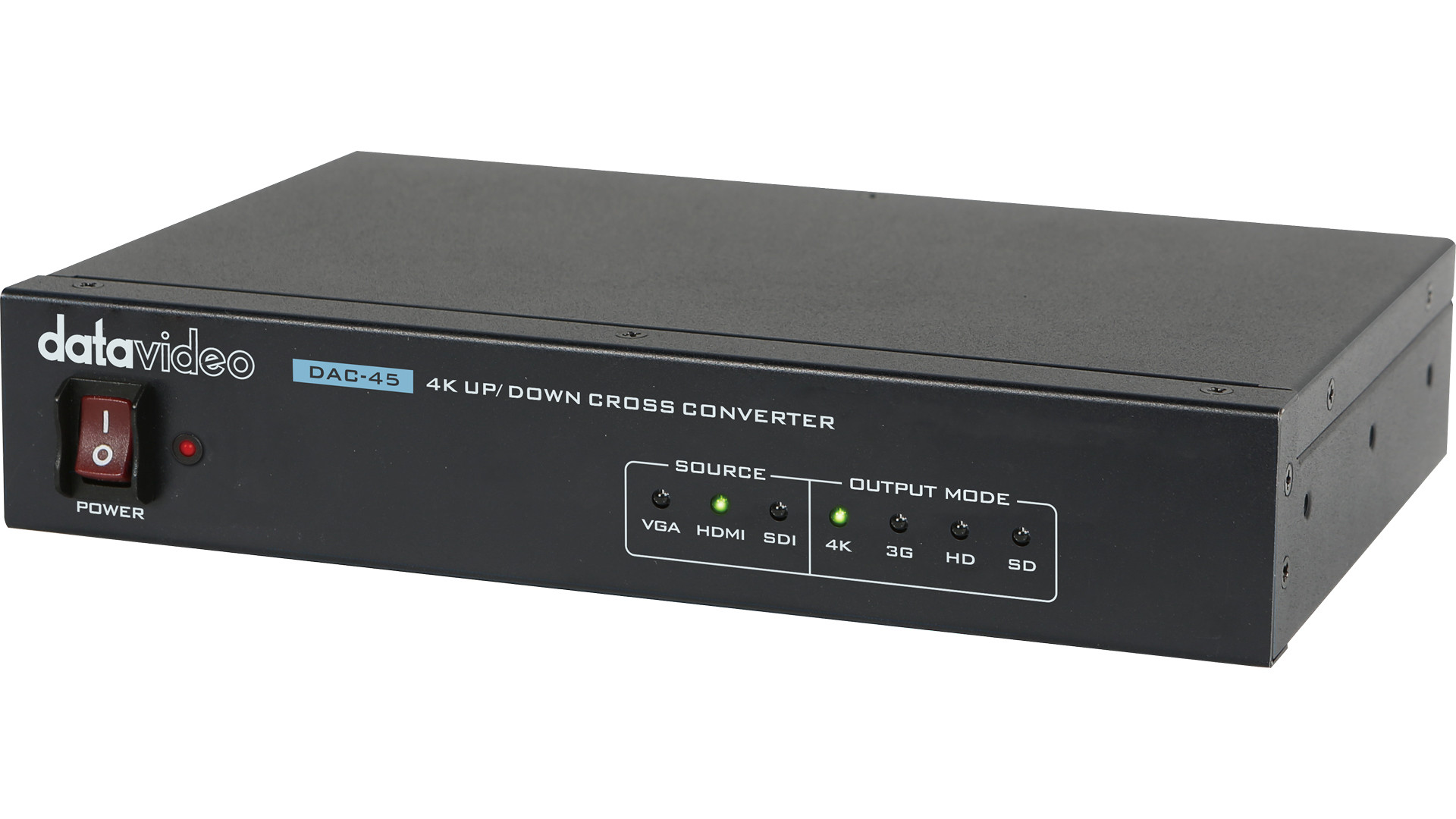

Datavideo DAC-45 4K Up/Down/Cross Converter
SKU: 2000-2220
The Datavideo DAC-45 converts VGA, HDMI and HD/SD-SDI to HDMI up to 4K or to 3G-SDI. Up/down/cross format and frame-rate conversion connects legacy computer sources to professional video systems, while two RCA inputs can embed separate stereo audio in the HDMI or SDI output.
1 219 € with VAT
1 007.44 € without VAT
Availability
14-30 days
Top accessories for Datavideo DAC-45 4K Up/Down/Cross Converter
Datavideo RMK-1 1RU Rack Mount Holder
The Datavideo RMK-1 is a 1U rack mounting kit for Datavideo products with a 0.5U
71 €
In stock 3 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo DAC-45 converts VGA, HDMI and HD/SD-SDI to HDMI up to 4K or to 3G-SDI. Up/down/cross format and frame-rate conversion connects legacy computer sources to professional video systems, while two RCA inputs can embed separate stereo audio in the HDMI or SDI output.

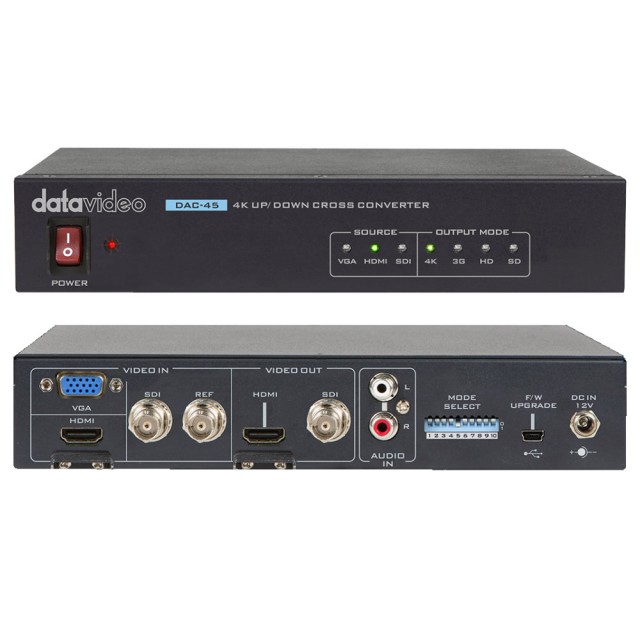

Connect VGA, HDMI and SDI

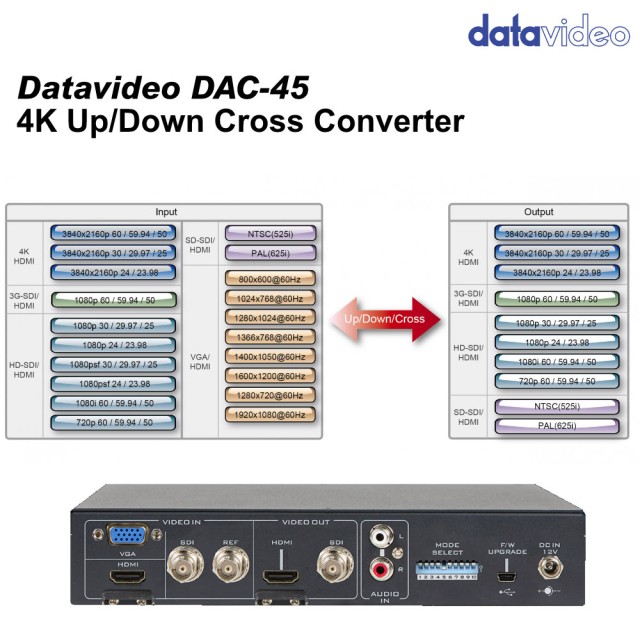

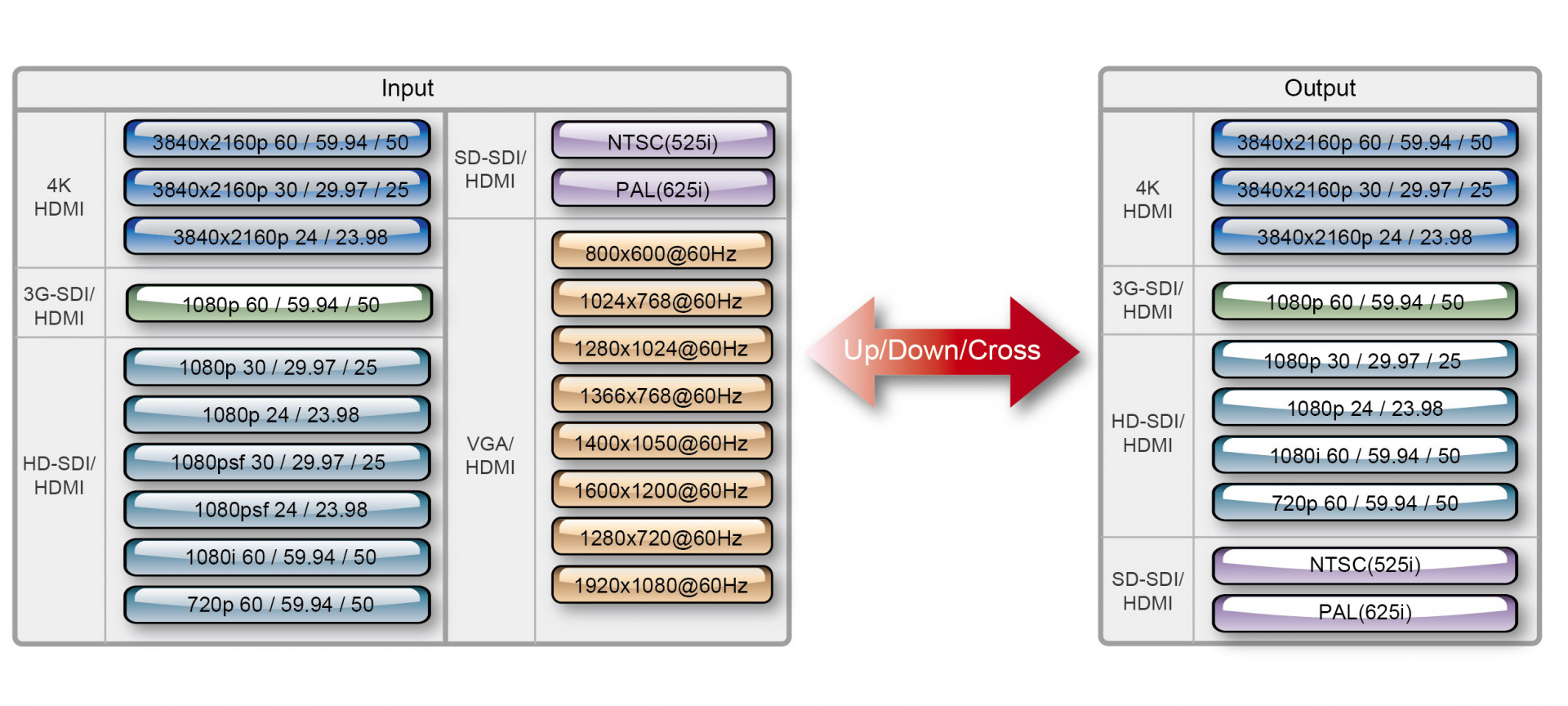

The DAC-45 connects VGA, HDMI and HD/SD-SDI sources to HDMI output up to 4K and to 3G-SDI. It converts up, down and across formats, helping integrate legacy computer or studio signals into a modern chain while adapting resolution and frame rate.
Convert signals without extra steps
VGA, HDMI or HD/SD-SDI input can be converted to HDMI up to 4K or to SDI. All outputs are active at the same time, so the DAC-45 can distribute the signal to multiple downstream devices in a compatible setup. It supports 3G-SDI Level A and B, and built-in interlacing processing converts between interlaced and progressive formats.
Embed audio in HDMI and SDI
Two unbalanced RCA inputs let you add external stereo audio to the video output. The DAC-45 carries embedded HDMI and SDI audio in PCM at up to 8 channels and 48 kHz. This is useful when converting a computer picture that needs a separate audio input.
Reference sync and color adjustment
The reference input supports Black Burst and Tri-Level Sync. HDMI color space can be adjusted in DAC CENTER software; the Proc Amp provides video adjustment, while the SDI output supports equalization, reclocking and cable drive. Mini USB is used for device updates and configuration.

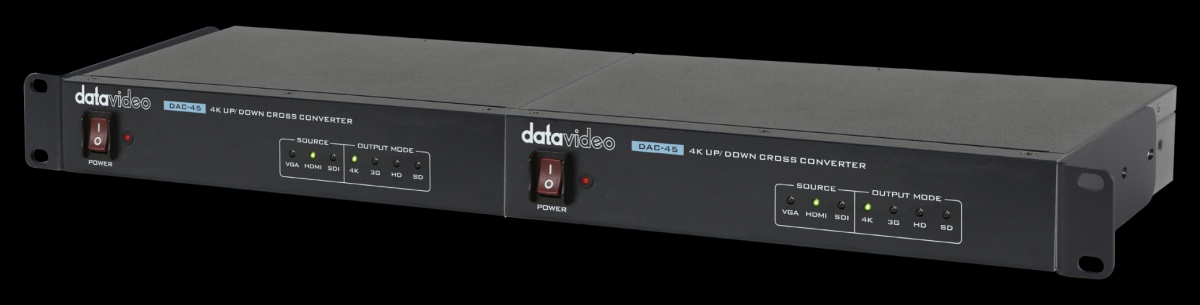

Easy rack integration
The optional Datavideo RMK-1 kit installs one or two compatible DAC-45 converters in a 19-inch rack. An integrated HDMI strain relief helps protect the connector from cable stress, and the switch-setting chart is printed on the underside of the unit.
PACKAGE CONTENT
- 1× Datavideo DAC-45 converter
- 1× 12 V DC power adapter (AD Switch)
SPECIFICATIONS
- Type: video format converter with up/down/cross conversion
- Video inputs: 1× VGA, 1× HDMI, 1× HD/SD-SDI, 1× reference input
- Video outputs: 1× HDMI, 1× SDI; all active simultaneously
- Conversion: VGA/HDMI/SDI to HDMI up to 4K or 3G-SDI
- SDI: 3G-SDI Level A/B, equalization, reclocking and cable drive
- Supported inputs: 2160p, 1080p/psf/i, 720p, SD and computer formats up to 1600×1200
- Output formats: 2160p up to 60 Hz, 1080p/psf/i, 720p and SD
- Reference sync: Black Burst and Tri-Level Sync
- Audio inputs: 2× RCA (unbalanced L/R) and embedded HDMI/SDI audio
- Audio outputs: embedded HDMI/SDI PCM audio up to 8 channels, 48 kHz
- Adjustment: DAC CENTER, Proc Amp, Mini USB for updates and configuration
- Dimensions: 220 × 143 × 42 mm
- Weight: 1 kg
- Power: DC 12 V, 9.4 W
- Operating temperature: 0 to 40 °C
WE RECOMMEND
Choose an HDMI cable length to connect your source and destination devices in the production setup. For SDI, use a 75-ohm BNC cable with BNC connectors. The optional RMK-1 kit mounts one or two DAC-45 converters in a 19-inch rack.
Parameters
| Manufacturer: | Datavideo |
| Category: | Signal converters |
Main parameters
| Other features | 4K Up/Down Cross |
| Source | SDI · HDMI · VGA |
| Target | HDMI · SDI |
