Datavideo RMK-1 1RU Rack Mount Holder

SKU: 2200-2510

The Datavideo RMK-1 is a 1U rack mounting kit for Datavideo products with a 0.5U width. It secures one compatible unit on its own or two side by side in a standard 19-inch rack, giving converters and other compact equipment a fixed, organised place in a technical installation.

More information

71 € with VAT 58.68 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 3 pcs
Praha 3 pcs, Bratislava 1 pcs
SKU:
2200-2510
Add to Compare Price history

Top accessories for Datavideo RMK-1 1RU Rack Mount Holder

Datavideo AD-100M Audio Delay Box with Microphone Input

  • -12 %
Promotion: -12%
The Datavideo AD-100M is a single-channel analog audio delay box for synchronizing
477.24 €
539.54 €
In stock 3 pcs

Datavideo NVS-35 H.264 Video Streaming Server

  • Free transport
The Datavideo NVS-35 is a compact H.264 encoder and recorder designed for live streaming
1 269 €
To be sent 1 pcs

Datavideo DAC-45 4K Up/Down/Cross Converter

  • Free transport
The Datavideo DAC-45 converts VGA, HDMI and HD/SD-SDI to HDMI up to 4K or to 3G-SDI.
1 219 €
14-30 days

Datavideo NVD-40 4K HDMI IP Video Decoder

The Datavideo NVD-40 converts a supported IP stream into video and audio output for
699 €
3-5 days

Datavideo NVS-40 4-Channel Streaming Encoder and Recorder

  • Free transport
The Datavideo NVS-40 combines a four-channel streaming encoder and video recorder
2 539 €
14-30 days

Datavideo NVD-45 4K IP Video Decoder for 12G-SDI

  • Free transport
The Datavideo NVD-45 converts an IP video stream into outputs for professional video
1 269 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo RMK-1 is a 1U rack mounting kit for Datavideo products with a 0.5U width. It secures one compatible unit on its own or two side by side in a standard 19-inch rack, giving converters and other compact equipment a fixed, organised place in a technical installation.

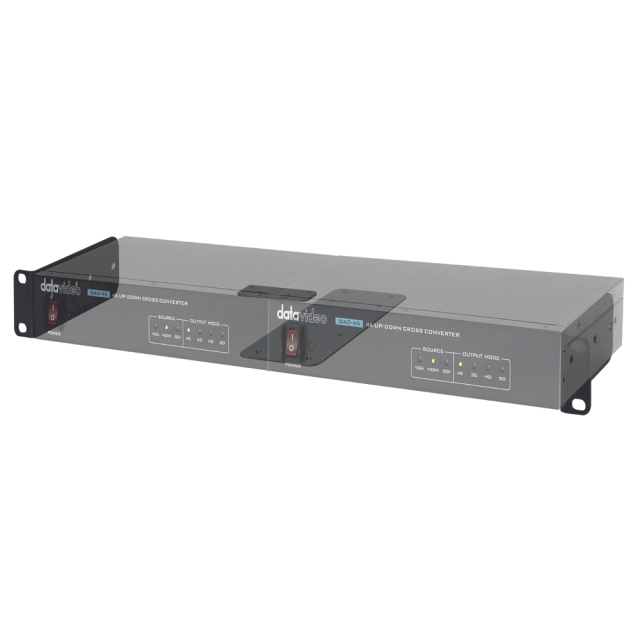

Datavideo RMK-1 rack installation with two DAC-45 units

DATAVIDEO RMK-1 • 1U RACK MOUNT KIT

ONE OR TWO UNITS IN 1U

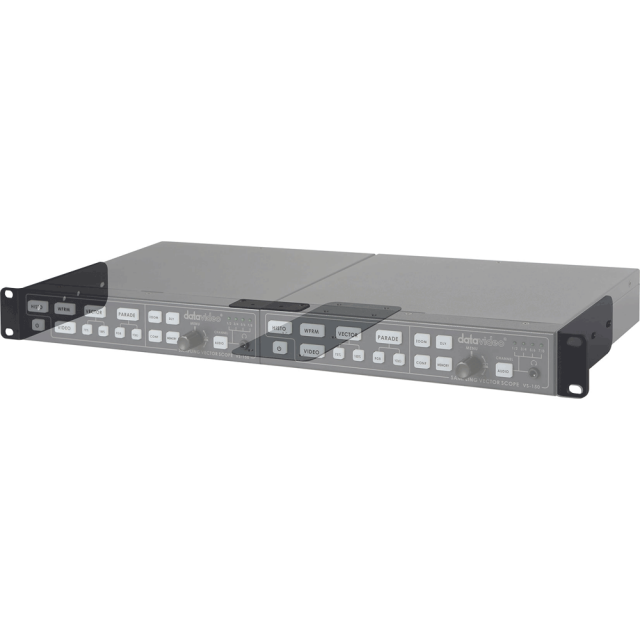

For Datavideo equipment with a 0.5U width. Mount one compatible unit on its own or two side by side in a 19-inch rack.

0.5U FORMATFor compatible half-rack Datavideo equipment.
CAPACITY FOR ONE OR TWOInstall one unit on its own or two side by side.
1U RACK SPACEOrganises compact equipment in a 19-inch rack.

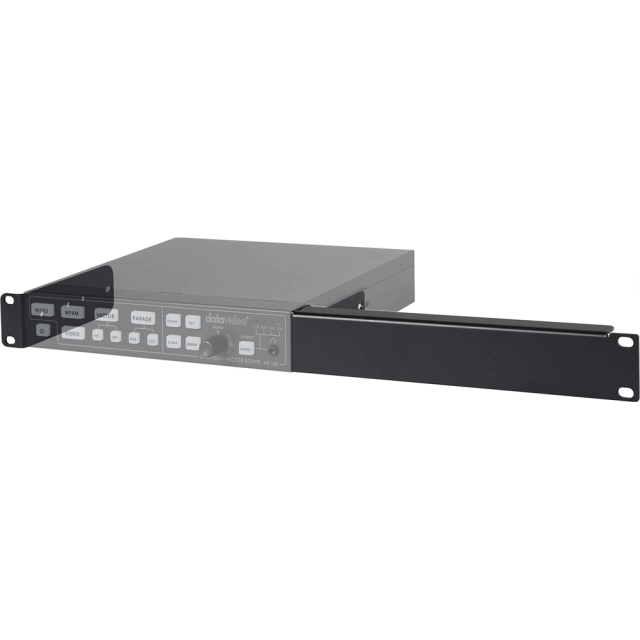

Datavideo RMK-1 with one Datavideo DAC-45 converter and half-length cover plate

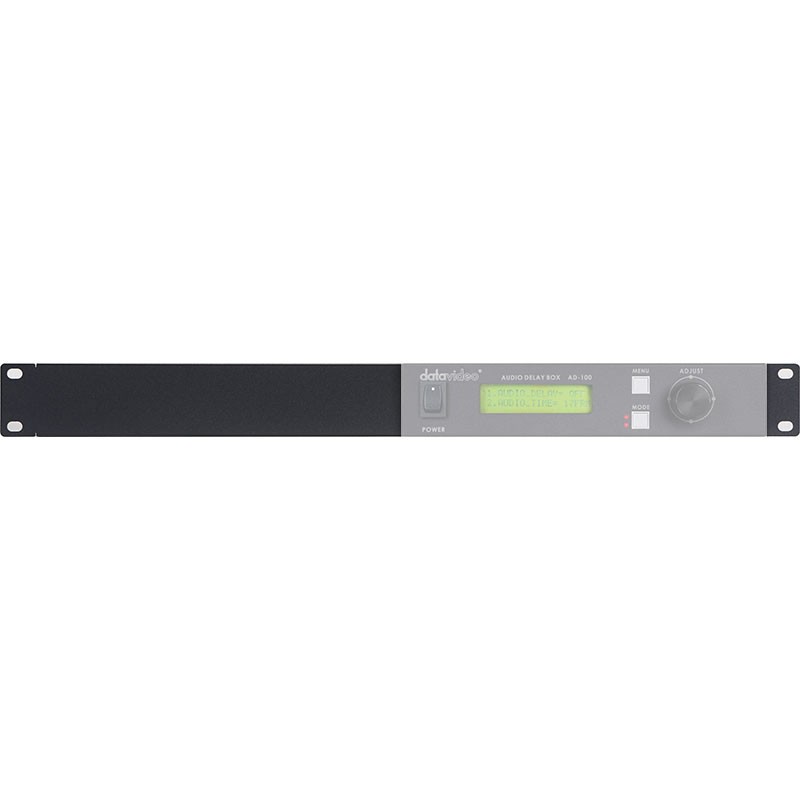

MOUNT A SINGLE UNIT

When mounting one half-rack unit, the half-length front block plate covers the unused half of the front panel. The kit can therefore be used without a second device.

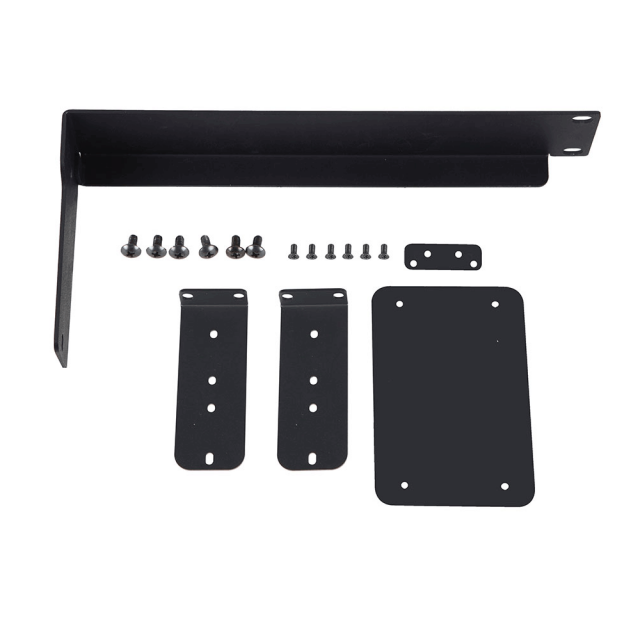

PACKAGE CONTENT

  • 2× rack ears
  • 1× upper connection plate
  • 1× lower connection plate
  • 1× half-length front block plate
  • 4× black M3 × 4 mm screws for the lower connection plate
  • 4× black M4 × 8 mm screws for the rack ears
  • 2× nickel-plated M3 × 6 mm screws for the upper connection plate
  • 1× manual / quick start guide
  • 1× thank-you card

SPECIFICATIONS

  • Model: RMK-1
  • Purpose: Rack mounting kit for Datavideo products with a 0.5U width
  • Capacity: 1 unit on its own or 2 side by side
  • Rack height: 1U
  • Rack width: Standard 19-inch rack
  • Compatibility: Datavideo DAC-45, AD-100/AD-100M, VS-150, NVD-20/25/30/35, NVS-25/30 and NVP-20
Parameters

Parameters

Manufacturer: Datavideo
Category: Accessories
