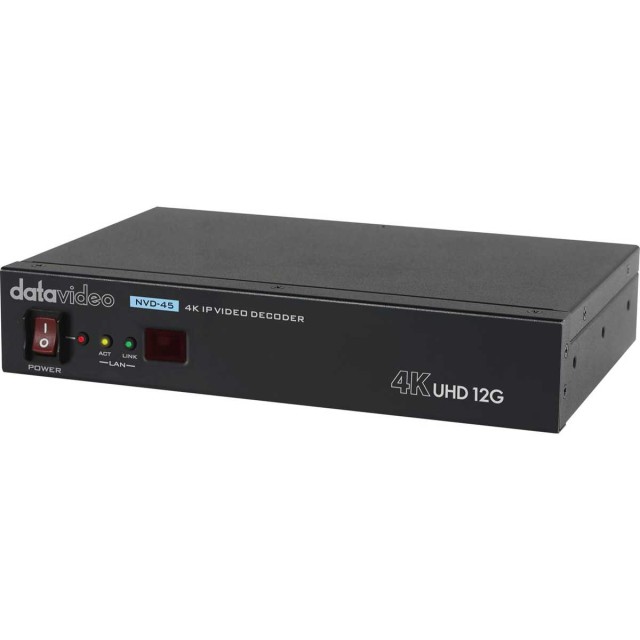

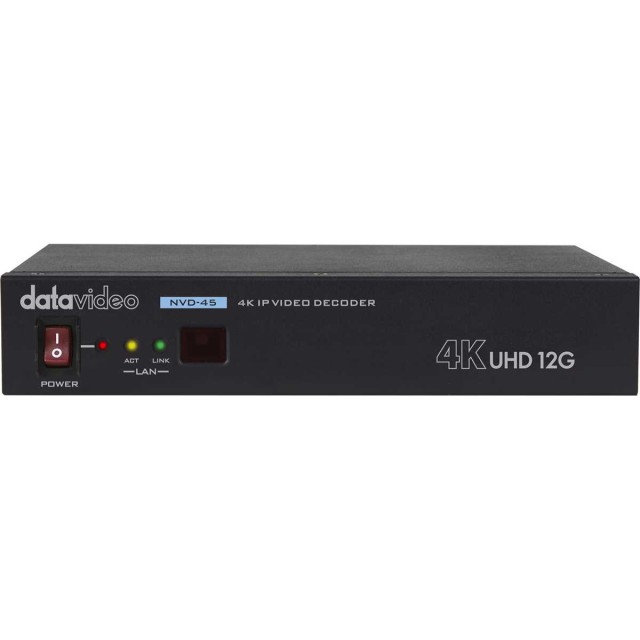

The Datavideo NVD-45 converts an IP video stream into outputs for professional video equipment. It decodes video up to 4K UHD and provides two 12G-SDI outputs, composite video and analogue audio. Support for SRT, RTSP, RTMP, HLS and MPEG-TS makes it suitable for a streaming or distribution chain with a compatible encoder. An RMC-12 infrared remote is included;…
The Datavideo NVD-45 converts an IP video stream into outputs for professional video equipment. It decodes video up to 4K UHD and provides two 12G-SDI outputs, composite video and analogue audio. Support for SRT, RTSP, RTMP, HLS and MPEG-TS makes it suitable for a streaming or distribution chain with a compatible encoder. An RMC-12 infrared remote is included; the unit can also be managed through its web interface and dvCloud.
IP streams to 4K video
The NVD-45 converts a compatible IP stream into video at up to 4K UHD. It accepts streams using SRT, RTSP, RTMP, HLS and MPEG-TS.
Two 12G-SDI outputs

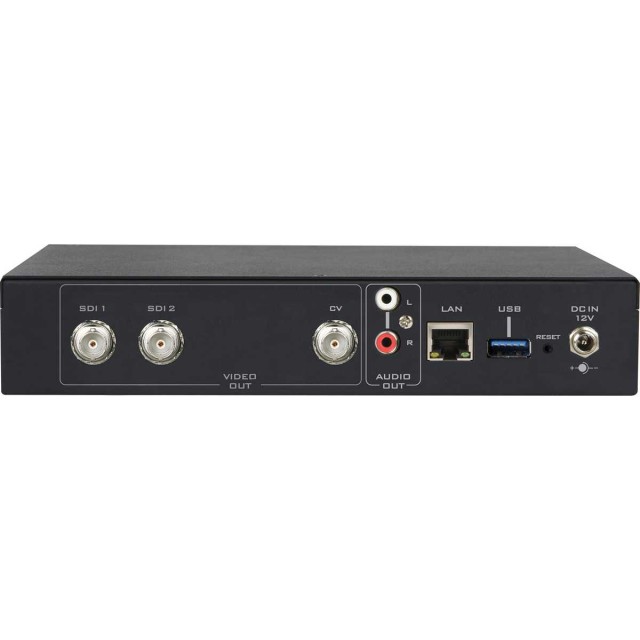

Both 12G-SDI connectors carry the decoded picture at up to 4K UHD. The unit also provides a BNC composite output and analogue stereo audio on RCA connectors. It can therefore connect to modern 12G-SDI equipment as well as compatible composite systems.
Protocols for a streaming chain
The NVD-45 supports SRT, RTSP, RTMP, HLS and MPEG-TS. Connect it to a compatible Datavideo source or another encoder using a supported protocol. The web interface simplifies configuration, while dvCloud enables remote device management.
An RMC-12 remote control is included. The decoder can also be operated through its web interface; image rotation and flipping are available with compatible streams.
PACKAGE CONTENT
1× Datavideo NVD-45 4K IP video decoder
1× 12 V DC power adapter
1× RMC-12 infrared remote control
SPECIFICATIONS
Type: IP video decoder
Maximum resolution: 3840 × 2160 (4K UHD), up to 60p
Audio outputs: 2× RCA (L/R), audio embedded in SDI
Network connection: Ethernet RJ-45
Management: web interface, dvCloud
Power: 12 V DC, 13.7 W
Dimensions (W × D × H): 220 × 143.3 × 42 mm
Weight: approx. 1 kg
Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo NVD-45 is a professional 4K IP video decoder that converts streams (RTMP, SRT) to high-quality 12G-SDI output. For optimal use in a production environment, it is recommended to supplement it with monitoring converters, rack-mount kits, and audio synchronization tools.
Signal Conversion and Distribution - Devices for converting 12G-SDI output to other formats and ensuring signal integrity.
