Datavideo TLM-700UHD 7-inch 4K LCD Monitor

Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920 × 1200 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.

More information

381 € with VAT 314.88 € without VAT
-+
Personal pickup: 26. 10. from 09:00
Shipment day: 26. 10.
In stock 2 pcs
Praha 2 pcs, Bratislava 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920 × 1200 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.

  • 7" 4K Look-Back Monitor. Supports 4K/3G/HD/SD 1920x1200 panel resolution.
  • 4K 50/60P Amazing Details. Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7" screen. The monitor is a 1920 × 1200 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.

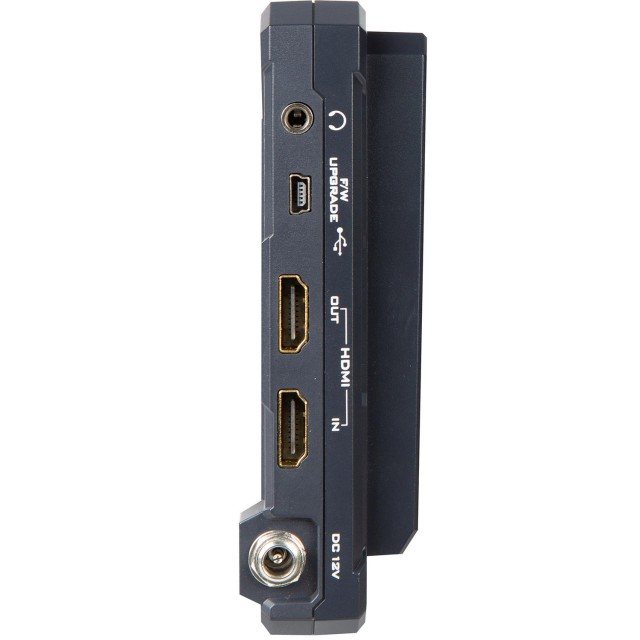

  • Simple Input and Output Configuration. 1x HDMI input and loop out.
  • Compatible with Professional Cameras. Compatible with DSLRs, mirrorless cameras and camcorders.
  • Fast and Accurate Focus Peaking. The red/green/blue peaking profile helps users instantly determine proper focusing. Peaking zones can be shown during shooting, recording and playback.
  • Over-Exposure Analysis. Exposure analysis lets users see if the brightness is too strong in certain regions of the video.
  • Colour Field Checking. Provides monochrome, red, green and blue-only mode for easy colour recognition and correction.
  • Screen Flip Function. Supports both vertical and horizontal rotation. Compatible with tripods, arms and cages. Convenient for viewing from multiple angles.
  • Zoom In. Zoom in 1.5x / 2x / 3x / 4x Clearly view the details of image for instant adjustment.
  • Safety Marker and Aspect Marker. Simulates the effect of cropping in post-production. Support vertical mode, too. Safety marker 95% / 93% / 90% / 88% / 85% / 80% and aspect maker 16:9 / 1.85:1 / 2.35:1 / 4: 3 / 3:2

PACKAGE CONTENT

  • 1× Datavideo TLM-700UHD monitor
  • 1× AD switch, DC 12 V
  • 1× folding sunshade cover
  • 1× HDMI A/C cable
  • 1× battery plate
  • 1× hot shoe mount

SPECIFICATIONS

  • Display panel: 7-inch TFT LCD, 1920 × 1200 pixels
  • Brightness and contrast: 450 cd/m²; 1000:1
  • Viewing angles: H: +85°/−85°; V: +85°/−85°
  • Input and loop-through: 1× HDMI 2.0 input, HDCP 2.2; 1× HDMI 2.0 loop-through
  • Supported input resolutions: DCI 4K up to 4096 × 2160p60; UHD up to 3840 × 2160p60; HD and SD formats
  • Audio: Embedded HDMI audio (48 kHz), analog stereo Phone Jack input, 1× 2 W speaker
  • Monitoring tools: Focus Assist (peaking), False Color, Histogram, Exposure, Pixel-to-Pixel Zoom, Underscan, Check Field (blue-only and monochrome modes)
  • Dimensions and weight: 182 × 129 × 37 mm; 0.3 kg
  • Power: DC 12 V; 12 W
  • Operating temperature: 0 to 40 °C

WE RECOMMEND

The Datavideo TLM-700UHD is a professional 7" monitor with 4K HDMI support and power supply via the Sony NP-F standard, ideal for monitoring both on location and in the studio. To fully utilize it in a professional workflow, we particularly recommend signal converters, intercom systems with Tally support, and accessories for readout devices.

Signal Converters and Adapters - Devices for converting SDI signals from professional cameras to the monitor’s HDMI input.

Intercom and Tally Systems - Accessories for crew communication and broadcast status indication directly on the monitor.

Reading devices - Compatible teleprompters where the monitor can be used as a display unit.

Audio and Video Workflow - Accessories for audio processing and monitor integration into production setups.

Parameters

Parameters

Manufacturer: Datavideo
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI
Luminosity450cd/m2
Panel resolution1920x1200
Monitor power supplyAC 100-240V

Other parameters

Other featuresLightweight
