Datavideo AD-100M Audio Delay Box with Microphone Input

  • -12 %
SKU: 2205-1101

The Datavideo AD-100M is a single-channel analog audio delay box for synchronizing sound with video in live production, studio and field workflows. It provides up to 700 ms of delay, XLR line and microphone inputs, and XLR/RCA outputs; the dedicated mic input also supports direct microphone connection.

More information

Promotion: -12%
539.54 € 477.24 € with VAT 394.41 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 3 pcs
Praha 3 pcs
SKU:
2205-1101
Add to Compare Price history

Top accessories for Datavideo AD-100M Audio Delay Box with Microphone Input

Datavideo RMK-1 1RU Rack Mount Holder

The Datavideo RMK-1 is a 1U rack mounting kit for Datavideo products with a 0.5U
71 €
In stock 3 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo AD-100M is a single-channel analog audio delay box for synchronizing sound with video in live production, studio and field workflows. It provides up to 700 ms of delay, XLR line and microphone inputs, and XLR/RCA outputs; the dedicated mic input also supports direct microphone connection.

Datavideo AD-100M Audio Delay Box with Microphone Input

Audio delay for picture synchronization

Place the AD-100M between an analog mixer and video switcher. Adjust audio delay up to 700 ms to keep the program sound synchronized with the picture.

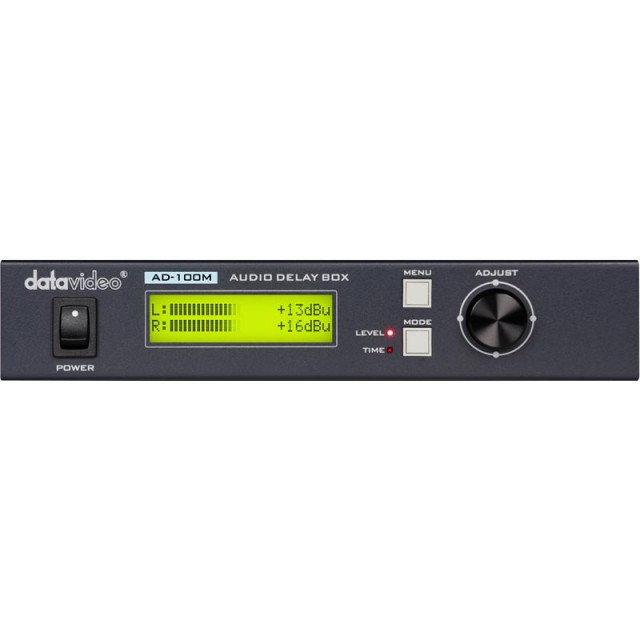

Front panel controls

The display shows audio delay or input level. Use MENU and MODE to open settings and select the display, then turn the ADJUST dial to change the selected value.

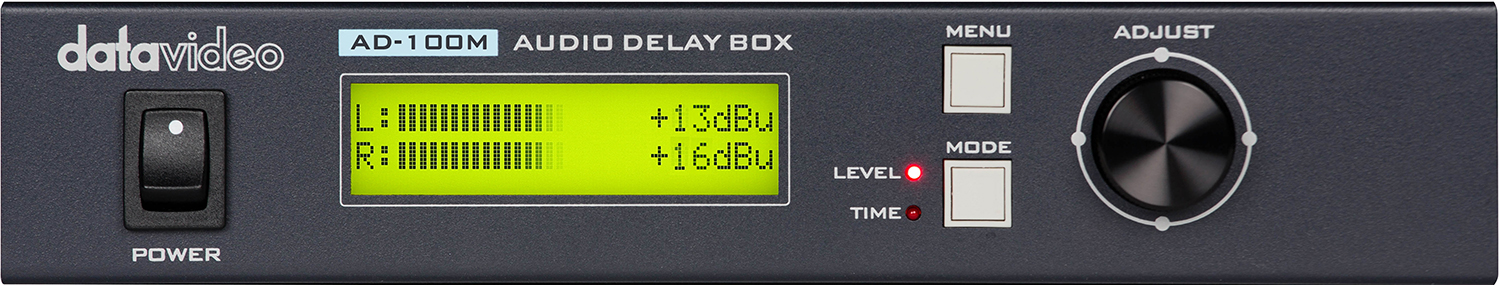

Front panel with SMT LCD, MENU and MODE buttons, and ADJUST dial

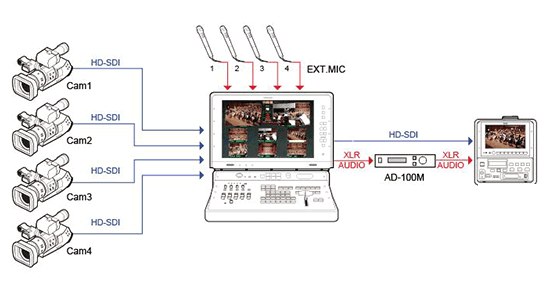

AD-100M setup diagram: camera video through a switcher and audio through the delay unit to a recorderVideo switcherRecorder

Signal flow with audio delay

The diagram routes camera video to the switcher over HD-SDI and its XLR audio output through the AD-100M before recording. Set the delay according to the measured difference between sound and picture.

PACKAGE CONTENT

  • Datavideo AD-100M main unit ×1
  • DC 12 V power adaptor ×1

SPECIFICATIONS

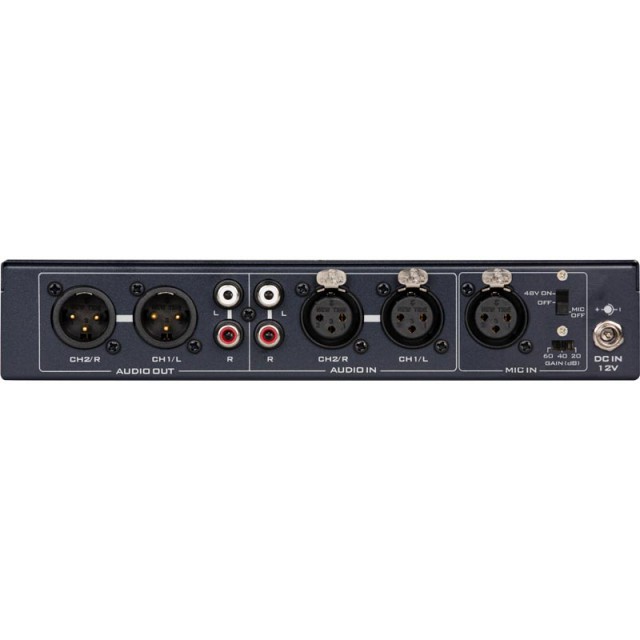

  • Inputs: 3× XLR (2× line, 1× mic), 2× RCA
  • Outputs: 2× XLR, 2× unbalanced RCA
  • Audio delay: 0–700 ms
  • Sample rate: 48 kHz
  • Output attenuation: 0–60 dB
  • Test tone: 1 kHz
  • Display: SMT LCD
  • Rack mounting: with optional RMK-1 kit
  • Power: DC 12 V / 2 A; 18 W
  • Dimensions (W × D × H): 220 × 211 × 42 mm
  • Weight: 1.4 kg
  • Operating temperature: 0 to 40 °C
  • Microphone input: +48 V phantom power; 20/40/60 dB gain
