Datavideo AD-200
SKU: 2205-1105
The Datavideo AD-200 is a six-channel audio mixer and delay unit with matrix routing for broadcast studios and outside-broadcast vehicles. It routes six input channels to four outputs, lets you adjust levels, and provides up to 3 seconds of delay independently on each channel. Its control panel and main I/O unit can be installed separately in 1U rack posi…
1 319 € with VAT
1 090.08 € without VAT
Availability
14-30 days
Top accessories for Datavideo AD-200
Blackmagic Design Mini Converter Audio to SDI
Blackmagic Design Mini Converter Audio to SDI embeds 4 channels of balanced analog
278 €
In stock 3 pcs
Datavideo DAC-80
The Datavideo DAC‑80 is a passive, two-channel audio isolation transformer designed
151 €
In stock 3 pcs
Datavideo AD-300 Pro Audio Delay Box
Promotion: -16%
AD-300 is an easy to use audio delay box to enable you to synchronise video and audio.
883.32 €
1 046.65 €
In stock 1 pcs
Blackmagic Design Mini Converter SDI to Audio
Blackmagic Design Mini Converter SDI to Audio de-embeds audio from an SDI signal
265 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo AD-200 is a six-channel audio mixer and delay unit with matrix routing for broadcast studios and outside-broadcast vehicles. It routes six input channels to four outputs, lets you adjust levels, and provides up to 3 seconds of delay independently on each channel. Its control panel and main I/O unit can be installed separately in 1U rack positions.
Mixer and audio delay in one
The AD-200 combines an audio mixer, matrix router and delay unit for multichannel production. Route six input channels to four outputs and set audio delay independently for each input.
It is suited to broadcast studios and outside-broadcast vehicles where audio must stay synchronized with video and signal routing must match the production setup.
Independent delay for each channel
Set up to 3 seconds of delay independently for each input channel. This compensates for different video-path latency and keeps audio synchronized with the picture.
Adjust input channel levels on the unit. The color OLED display shows operating status and selected values.

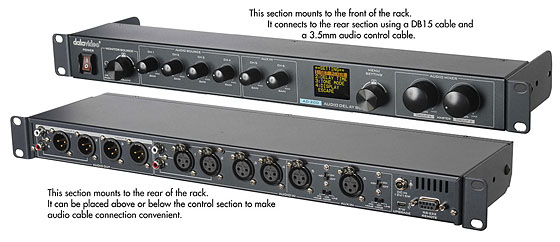

Two units for flexible installation
The system consists of a separate control panel and a main unit with the inputs and outputs. Place the panel near the operator and the I/O unit in the equipment area, or install both in a studio or outside-broadcast rack.
The two-unit design makes it easy to integrate the mixer into a studio rack.

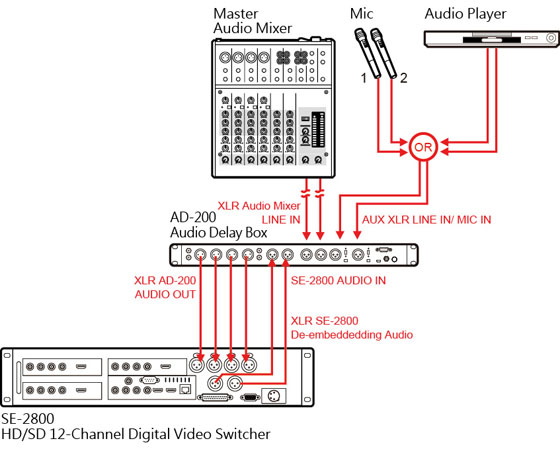

Matrix routing from 6 inputs to 4 outputs
Matrix routing can combine multiple input channels into one or more outputs. Alongside the four-channel main mix, the AD-200 provides two master output groups and a separate headphone monitoring output.
The AD-200 processes digital audio at a 48 kHz sample rate.
PACKAGE CONTENT
- AD-200 main unit ×1
- AD-200 control unit ×1
- AD Switch DC 12 V power adapter ×1
- D-SUB male-to-male cable ×1
- 3.5 mm stereo cable, 1.2 m ×1
- 1U rack mounting kit ×4
- M4 × 8 mm screw ×16
SPECIFICATIONS
- Type: six-channel audio mixer and delay unit
- Audio inputs: 6× XLR, 2× RCA
- Audio outputs: 4× XLR, 2× RCA, 1× 3.5 mm headphone output
- Audio delay: up to 3000 ms, independently for each input channel
- Routing: matrix from 6 input channels to 4 output channels
- Sample rate: 48 kHz
- Display: 1.77-inch color OLED
- Configuration: control panel and main I/O unit, two separate 1U rack units
- Power: DC 12 V; 19 W for the control panel, 16 W for the main unit
- Dimensions: 440 × 126 × 42 mm (L × W × H)
- Weight: 1.8 kg
- Operating temperature: 0–40 °C
WE RECOMMEND
The Datavideo AD-200 is a professional audio mixer and delay line in a 1U form factor, designed for precise synchronization of audio with video in OB vans and studios. To fully utilize it within the production workflow, it is recommended to supplement it with studio communication components, audio extraction converters, and rack-mounting accessories.
Audio and Monitoring - Accessories for listening to and editing audio signals within the production chain.
Video Control Room and Communication - Equipment for integrating the audio mix into the overall studio control room and intercom system.
Signal Converters and Distribution - Modules for signal conversion and distribution that complement the audio-video workflow.
Studio Equipment and Mounting - Rack-mount accessories and studio production accessories.
Parameters
| Manufacturer: | Datavideo |
| Category: | Audio Mixers |
Main parameters
| Number of audio outputs | 4 |
| Number of microphone inputs | 2 |
| Number of audio inputs | 6 |
