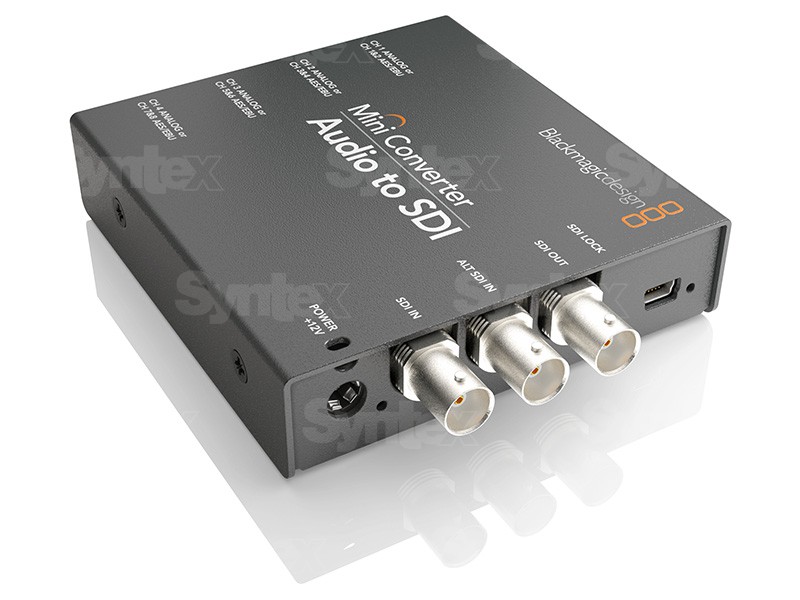

Blackmagic Design Mini Converter Audio to SDI
SKU: CONVMCAUDS2
Blackmagic Mini Converter Audio to SDI embeds 4 channels of balanced analog audio or 8 channels of digital AES/EBU into an SDI signal. It is ideal for adding audio from a mixing desk, an analog recorder or other studio equipment to an SD/HD/3G-SDI line. It has a redundant SDI input and reclocking and works with all SD and HD formats up to 1080p60.
278 € with VAT
229.75 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 1 pcs
Praha 1 pcs, Budapest 1 pcs
Praha 1 pcs, Budapest 1 pcs
Top accessories for Blackmagic Design Mini Converter Audio to SDI
Infinitek L-2T2S microphone cable 6,0mm, XLR (F) / JACK TRS 6,3mm 2m, BLK
Canare XLR-F to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
23 €
To be sent 3 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Mini Converter Audio to SDI embeds 4 channels of balanced analog audio or 8 channels of digital AES/EBU into an SDI signal. It is ideal for adding audio from a mixing desk, an analog recorder or other studio equipment to an SD/HD/3G-SDI line. It has a redundant SDI input and reclocking and works with all SD and HD formats up to 1080p60.
Professional audio into SDI
Embed separate studio audio directly into the SDI signal without a large control room setup. The converter accepts 4 analog channels or 8 AES/EBU channels and embeds them into the SD/HD/3G-SDI output.
3G-SDI4× analog8× AES/EBURedundant SDI inputPower supply included
4 analog or 8 AES/EBU channels
Each of the four jacks carries one analog channel or a pair of AES/EBU channels. Audio is embedded at 48 kHz and 24 bit.
Mixing desks
Add audio from the sound control room to SDI.
Analog recorders
Embed audio from an analog recorder with the picture.
SDI routes
The signal with audio continues to recorders and other SDI devices.
Extra channels
Add audio channels to video converters.
Four analog channels or eight AES/EBU

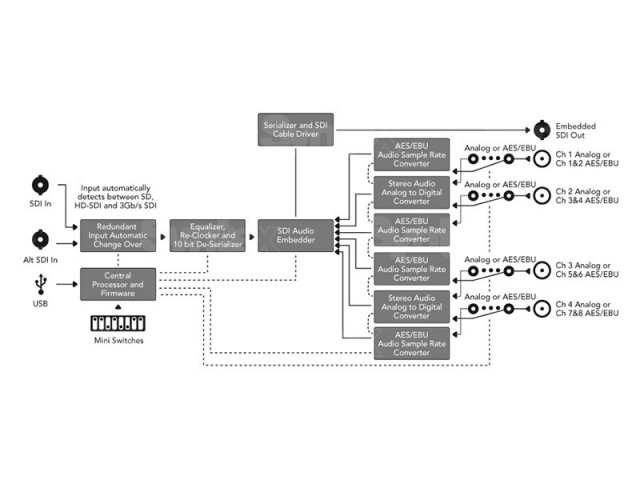

The converter embeds up to 4 channels of balanced analog audio or up to 8 channels of digital AES/EBU into the SDI signal. Each of the four jacks carries either one analog channel or a pair of AES/EBU channels (1 and 2, 3 and 4, 5 and 6, 7 and 8).
Redundant SDI input
In addition to the main SDI input, the converter has a redundant ALT SDI input. If the main signal is lost, for example when a cable is damaged, the converter automatically switches over to the redundant input and the SDI output with audio keeps running.
Standard jack connectors
Audio connects via standard 1/4 inch jacks, so no custom cables are needed. Sampling at 48 kHz and 24 bit matches the television standard, and the audio stays in sync with the picture.
SD and HD up to 1080p60
The multi-rate 3G-SDI input detects SD, HD and level B 3G-SDI automatically and works with all SD, HD and 2K DCI formats. Reclocking stabilizes the output signal, so the converter fits existing SD and HD equipment.
Affordable model for SD and HD
Mini Converter Audio to SDI is the ideal converter for audio embedding into SD and HD-SDI when you don’t need Ultra HD. For 6G-SDI and Ultra HD there is the Mini Converter Audio to SDI 4K model.
Setup with mini switches or over USB
Functions are selected with mini switches using the diagram printed on the converter: analog audio or AES/EBU, sample rate conversion, the channel group in SDI that the audio is embedded into and disabling individual channels. Over USB and the utility for macOS and Windows, settings can be changed from a computer and new software installed.
For the sound control room and the studio
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a rack in the sound control room, in the studio or in an outside broadcast truck. The connections are easy to reach and use standard cables.
Connections

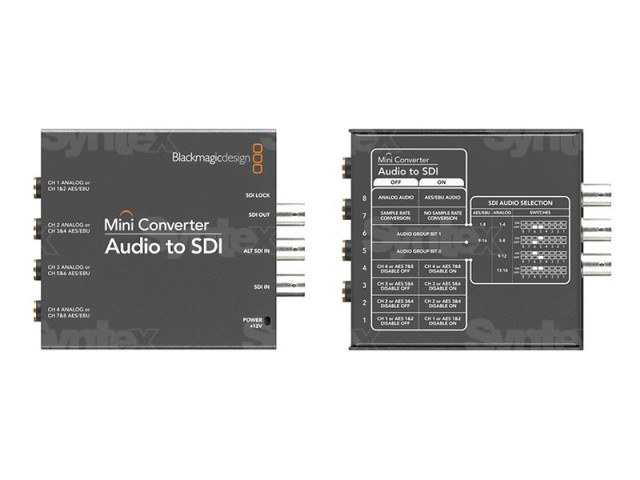

One side has four audio jacks (each for one analog channel or a pair of AES/EBU channels), the other the SDI input, the redundant ALT SDI input, the SDI output with embedded audio and the power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
Core settings are selected with mini switches using the diagram printed on the unit, while USB is used for configuration and updates. The converter handles supported formats automatically and keeps picture and sound stable throughout the signal chain.
The electronics automatically handle supported SD and HD formats and, on SDI models, keep the signal stable along the whole chain. The result is a practical link between older and current equipment without needlessly complex infrastructure.
PACKAGE CONTENT

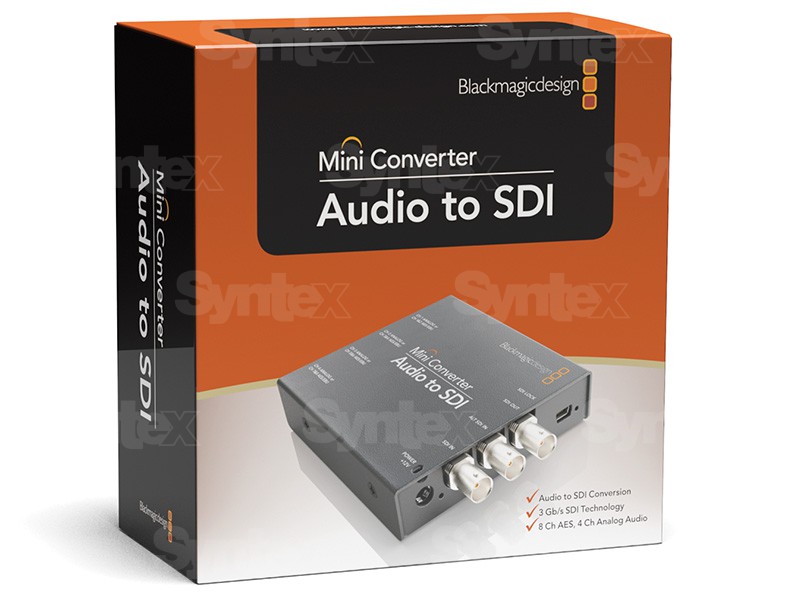

- Mini Converter Audio to SDI
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- Conversion: audio embedding into SDI
- SDI inputs: 1× SD/HD/3G-SDI and 1× redundant SDI input (ALT SDI)
- Redundant SDI input: automatically switches over if the main input is lost
- SDI output: 1× SDI with embedded audio
- Analog audio inputs: 4 channels of balanced analog audio, 1/4 inch jack
- Digital audio inputs: 8 channels of AES/EBU (a channel pair on each jack)
- Auto detection: SD, HD, level B 3G-SDI
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M level B, 425M level B, ITU-R BT.656 and BT.601
- SDI sampling and color space: 4:2:2 and 4:4:4, YUV and RGB
- Audio sampling: 48 kHz, 24 bit
- Reclocking: yes
- USB connection: USB 2.0 High Speed (480 Mb/s)
- Settings control: mini switches or USB software
- Software updates: via USB from a Mac or Windows computer
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: universal 12 V with international socket adapters, cable tie point
- Operating voltage: 12 V DC
- Power consumption: 8.40 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing
- Dimensions (L × W × H): 4.52 × 3.63 × 0.90 in (115 × 92 × 23 mm)
- Weight: 7.58 oz (215 g)
- Warranty: 3-year limited manufacturer warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | Audio input · auto format adaptation |
| Source | Audio · 3G SDI |
| Target | SDI · 3G SDI |
