Datavideo ITC-100 is a wired 8-channel production intercom for communication between a director, camera operators, lighting crew and the control room. The 19-inch/1U base station lets the director address one channel or the entire crew, while red/green tally indication shows camera status. The standard kit equips four positions with ITC-100SL belt packs, headsets, tally lights and 20 m intercom cables; it can be expanded to eight. Cable runs between the base and a belt pack can reach up to 200 m. The system uses half-duplex talkback.
Wired production intercom
Direct the whole crew

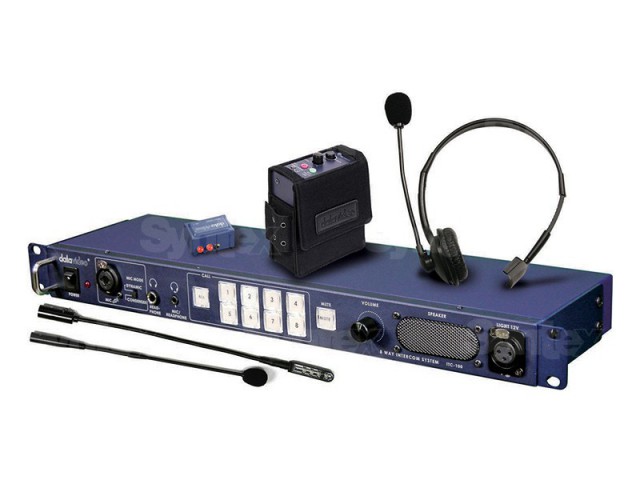

Datavideo ITC-100 is a rackmount intercom for a director and up to eight production positions. The kit equips four, with room for four more ITC-100SL belt packs. Address one channel or the whole crew; red and green tally indicators show camera status.
8 channelsFour belt packs included; expandable to eight positions.
Up to 200 mWired distance between the base station and a belt pack.
19″ / 1UFits a studio or outside-broadcast rack.
Built for the production rack

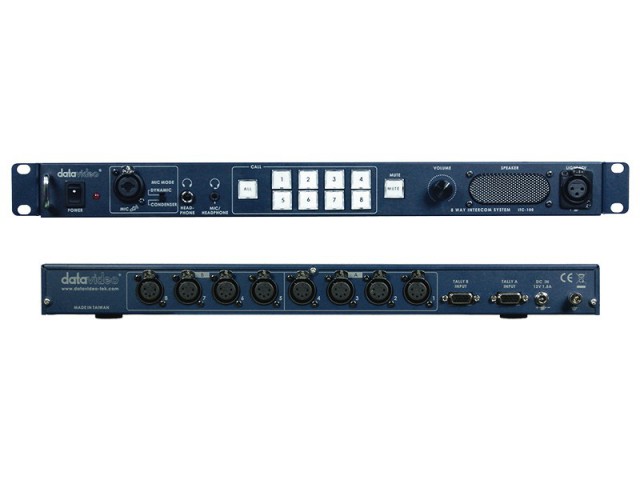

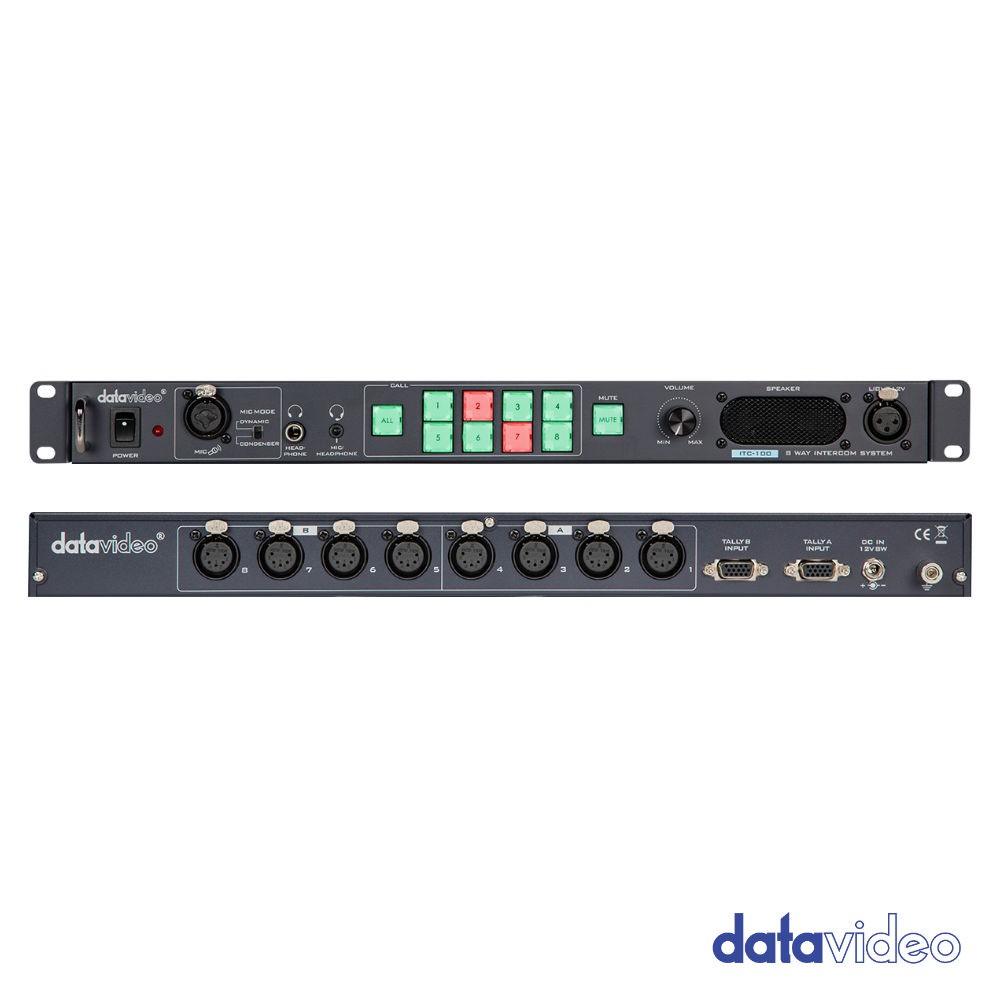

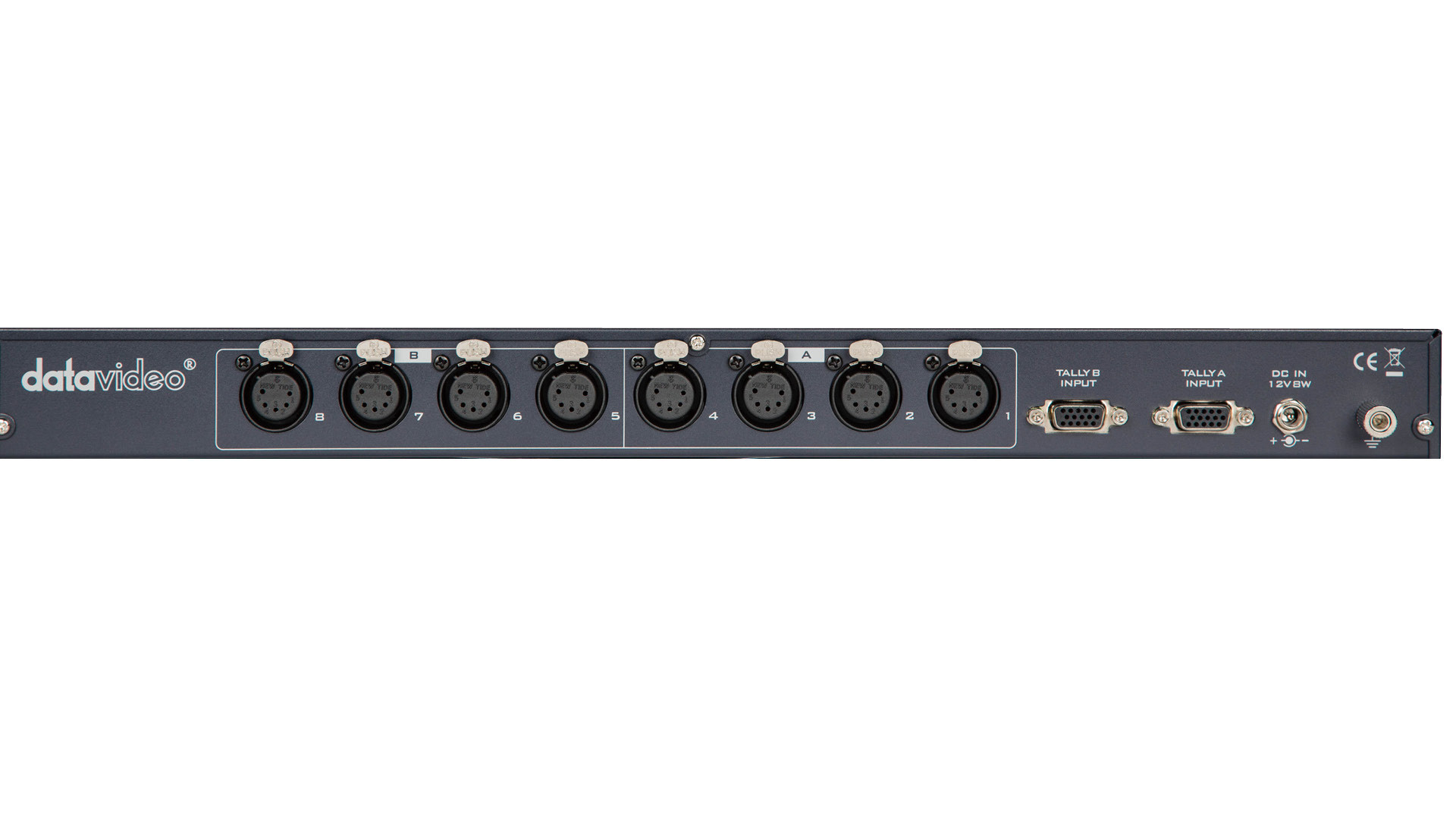

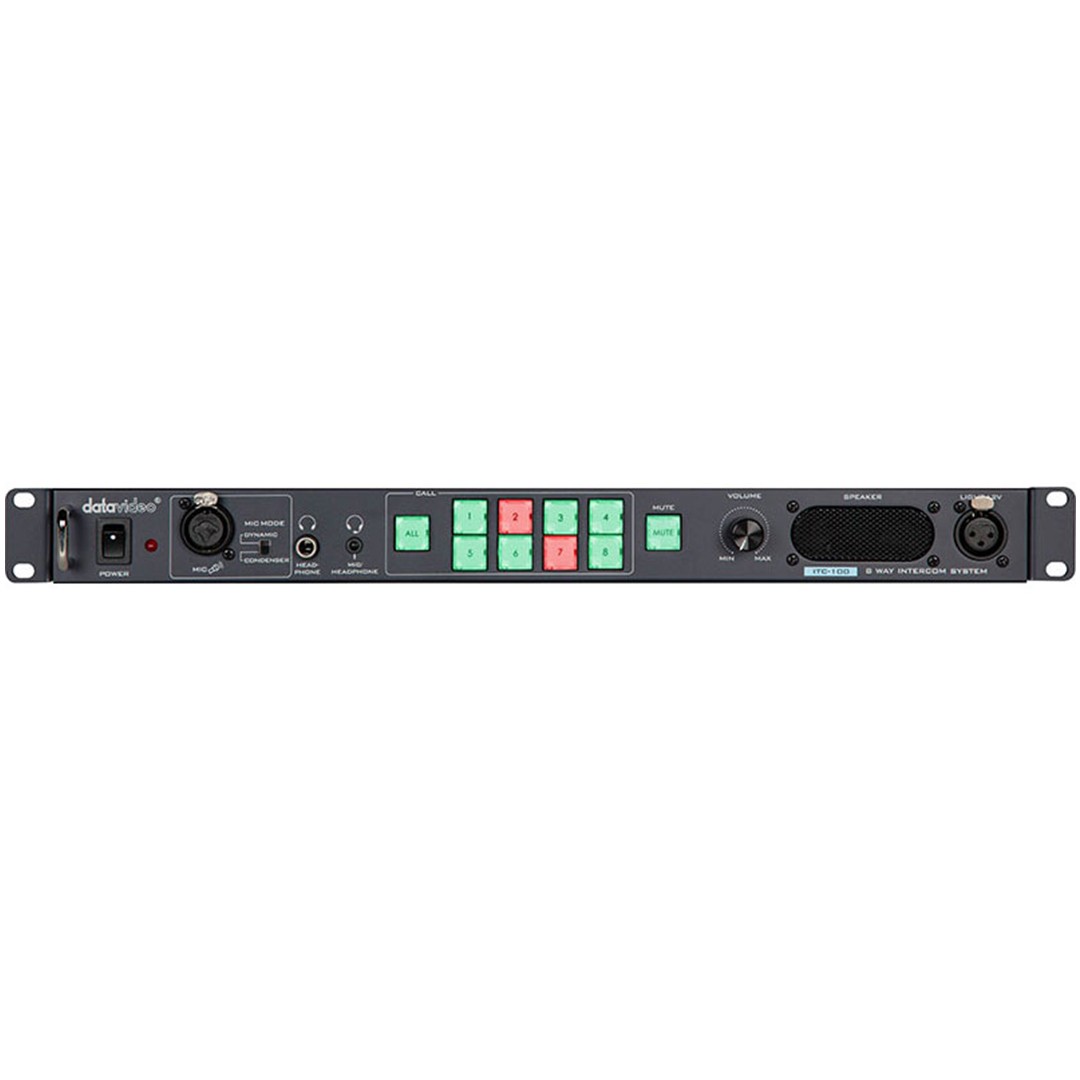

The 19-inch, 1U base station integrates into a studio rack or mobile production vehicle. Eight 5-pin XLR intercom connections serve the belt packs, while two 15-pin D-Sub sockets accept tally inputs A and B. The director has a built-in speaker, headset and headphone connections, a microphone input and a socket for the supplied gooseneck light.
Talkback and tally at each position

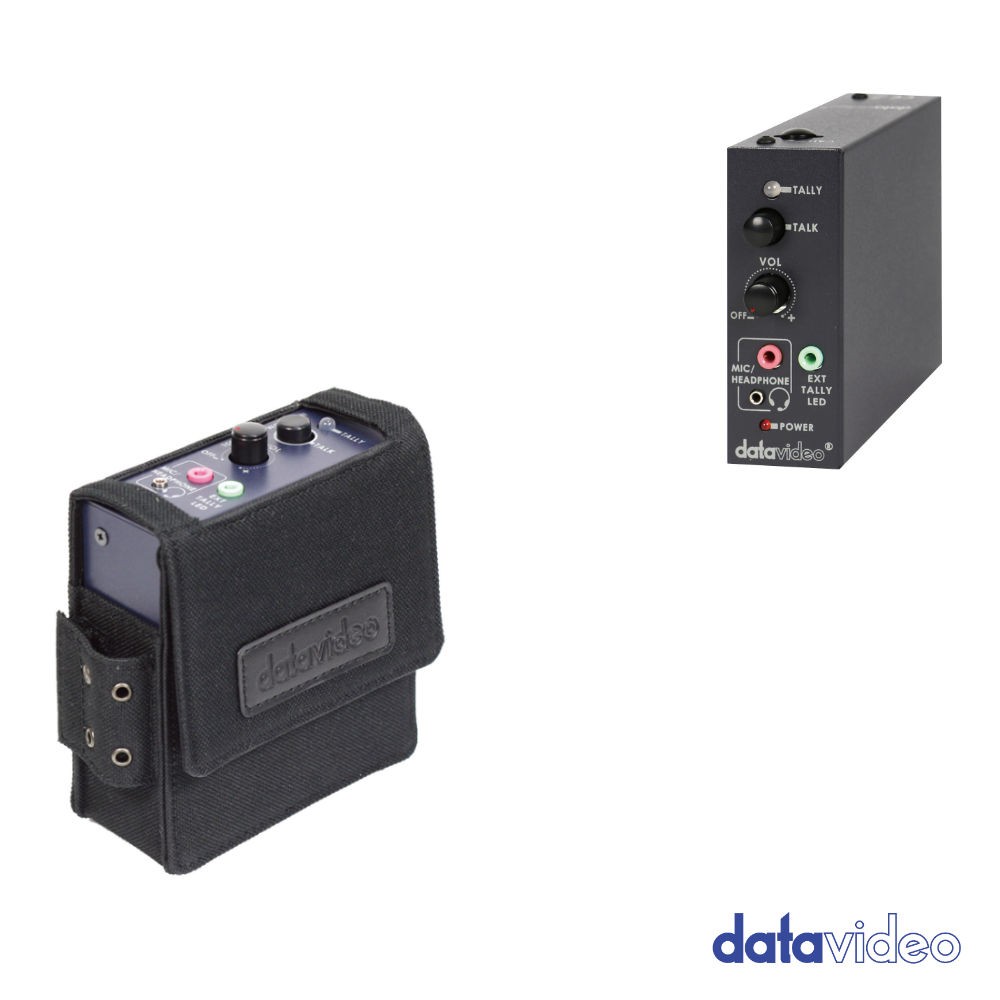

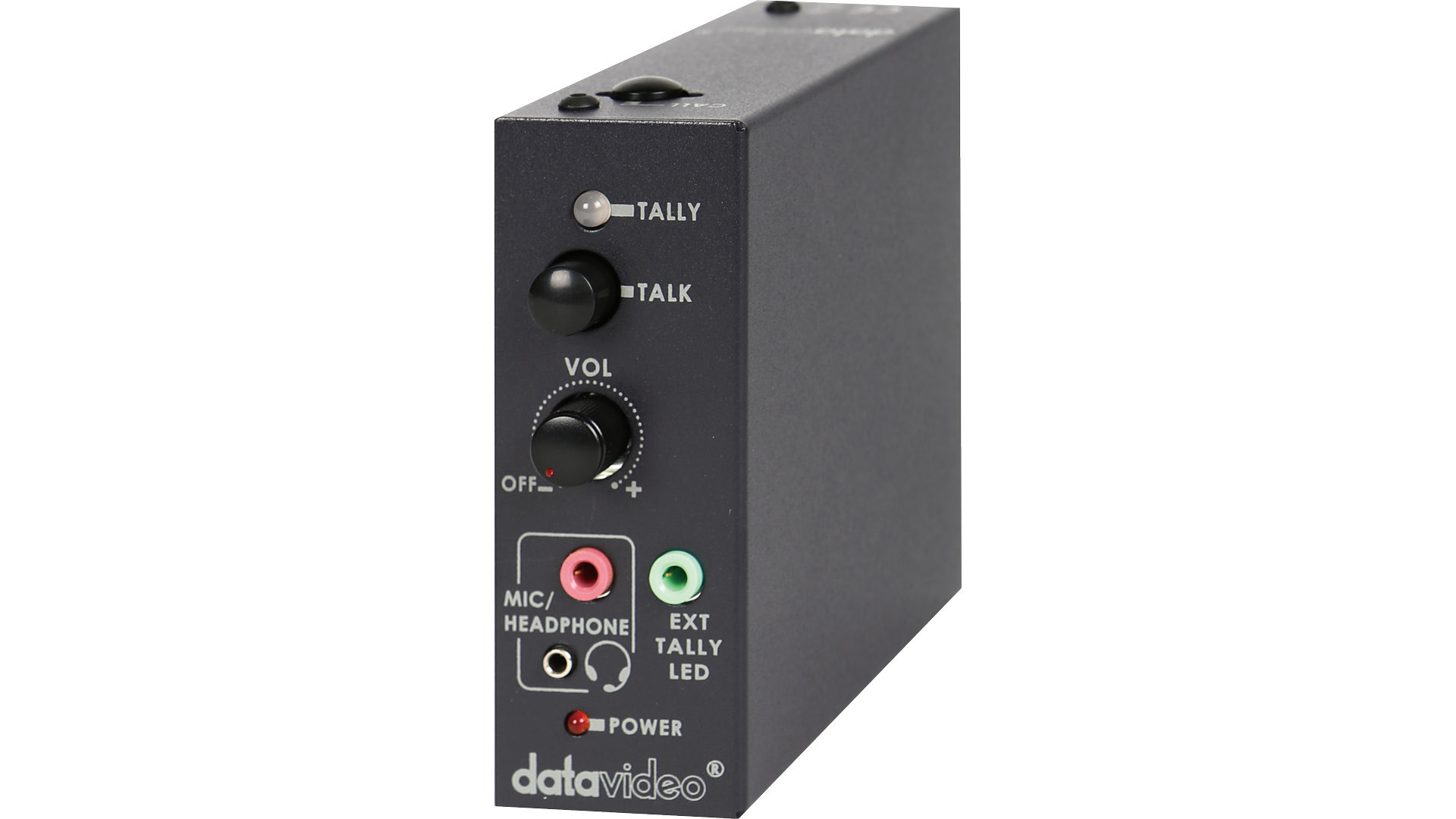

Each supplied ITC-100SL belt pack connects to the base station by cable and provides headset communication and a dual-colour tally indication. Four headsets and tally indicators are included for the camera positions. The director can call one channel or all channels; the wired system supports runs up to 200 metres.

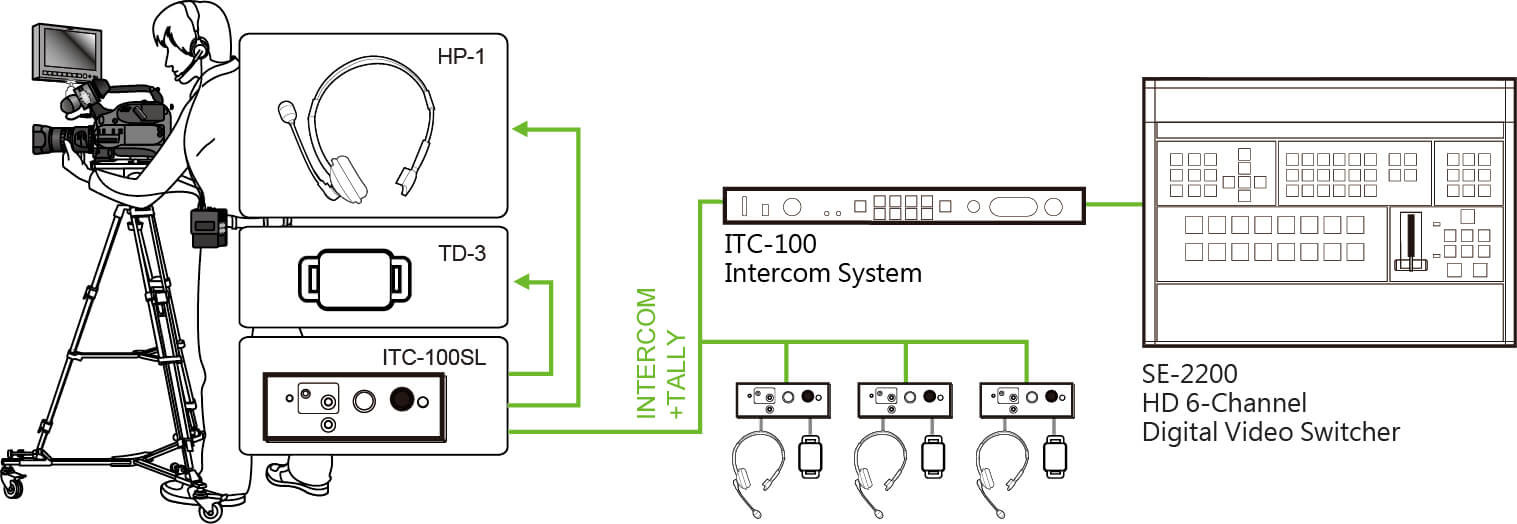

Example intercom and tally workflowThe manufacturer's diagram shows ITC-100 connected to an ITC-100SL belt pack, HP-1 headset and TD-3 tally light. SE-2200 is an example of an external video switcher and is not included in the package.
Ready for a four-position crew

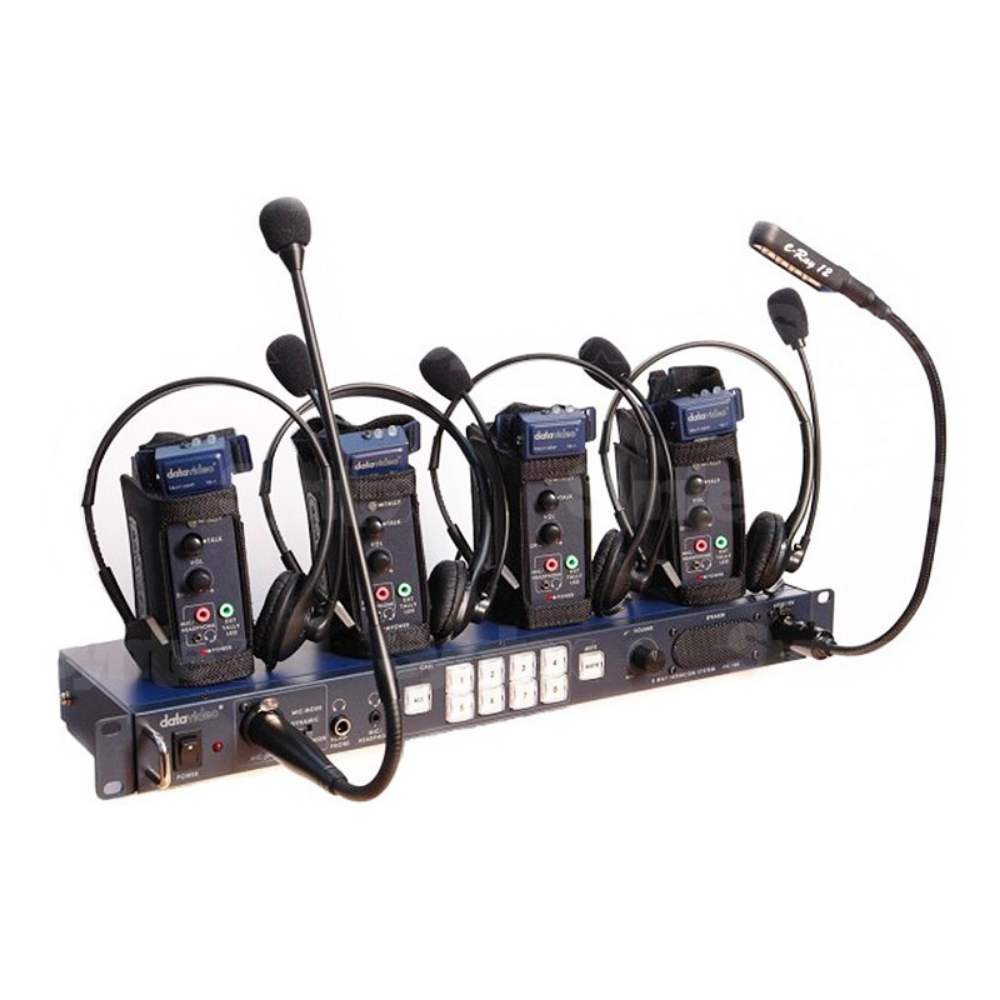

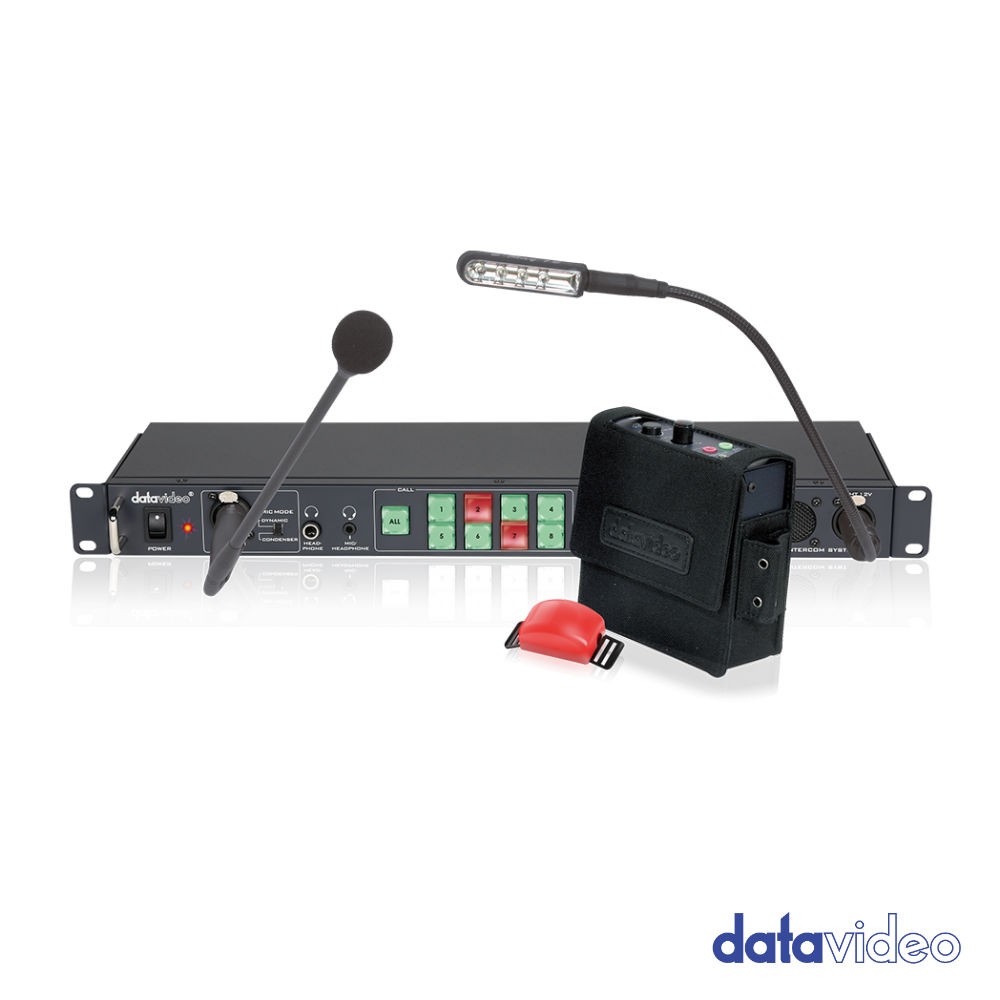

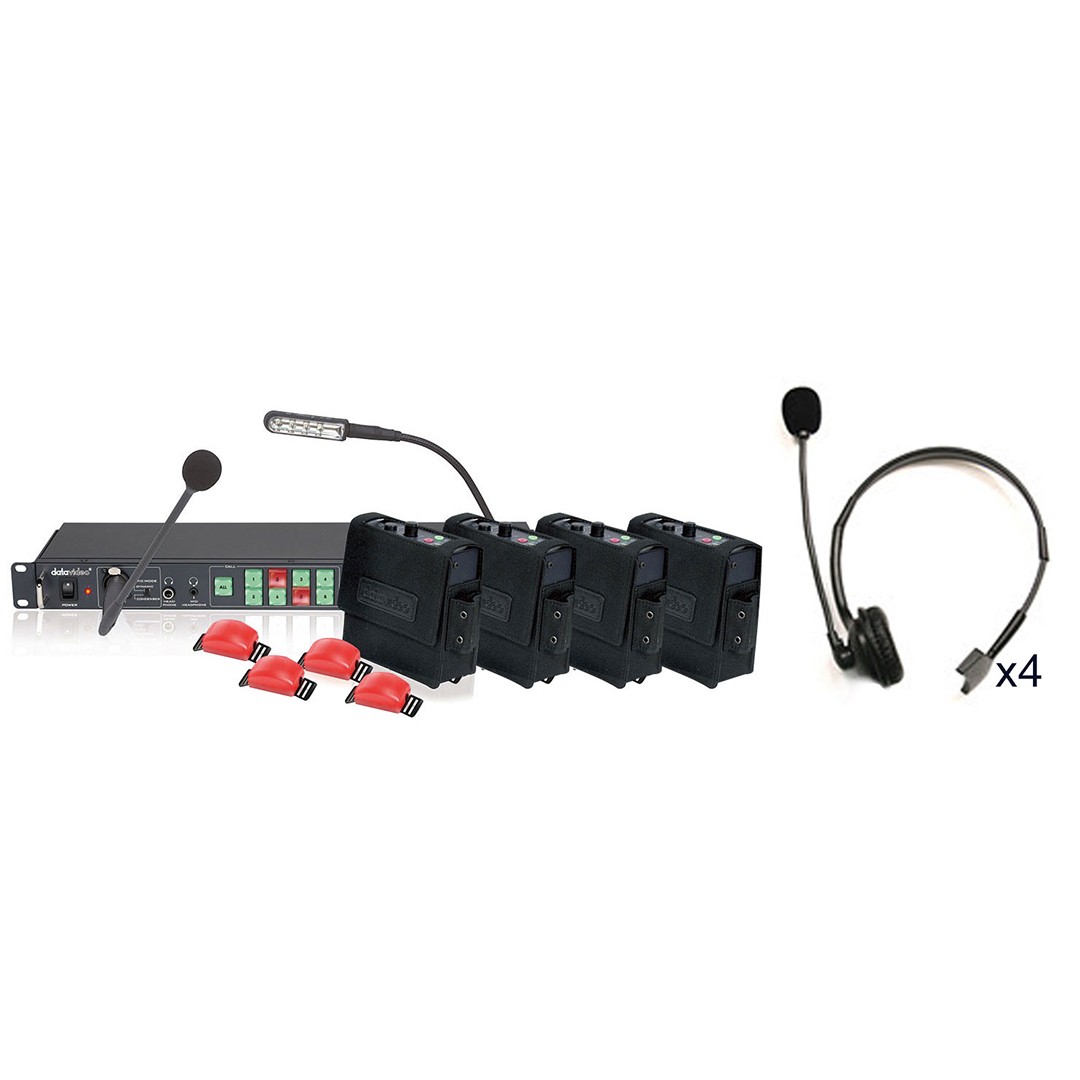

The standard package includes the base station, four ITC-100SL belt packs with carrying cases, four headset and tally sets, connecting cables, a gooseneck microphone, a gooseneck light and a 12 V power supply. Add compatible belt packs and cables when the production grows. The system is half-duplex: one person speaks at a time; it does not support full-duplex or party-line conversation.
PACKAGE CONTENT
ITC-100 base station ×1
ITC-100SL belt pack ×4
Belt-pack carrying case ×4
5-pin XLR intercom cable, 20 m ×4
3.5 mm jack-to-jack cable ×4
Headset with microphone ×4
Tally LED indicator ×4
XLR gooseneck microphone ×1
XLR gooseneck light ×1
12 V / 1 A power supply ×1
SPECIFICATIONS
System: wired, 8 channels; 4 belt packs supplied
Talkback: half-duplex; individual channel, all channels or mute
Operating distance: up to 200 m between base and belt pack
Rack format: 19″, 1U
Intercom connectors: 8 × 5-pin XLR
Tally inputs: 2 × 15-pin D-Sub (A/B)
Headset: 3.5 mm stereo jack; 8–600 Ω
Headphones: 6.3 mm stereo jack; 8–600 Ω
Microphone: 3-pin XLR / 6.3 mm jack; condenser/dynamic selectable
