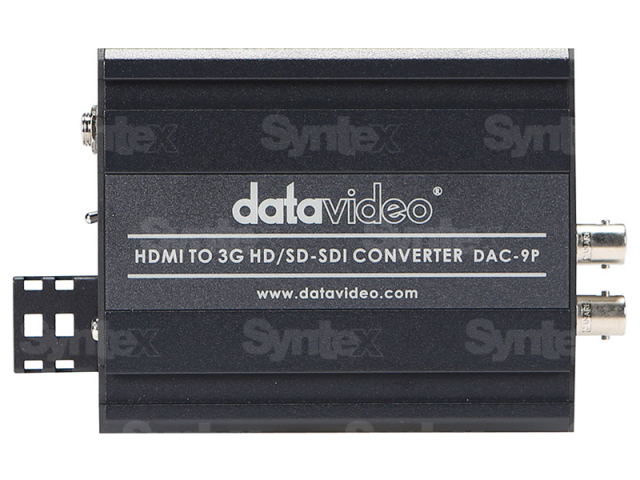

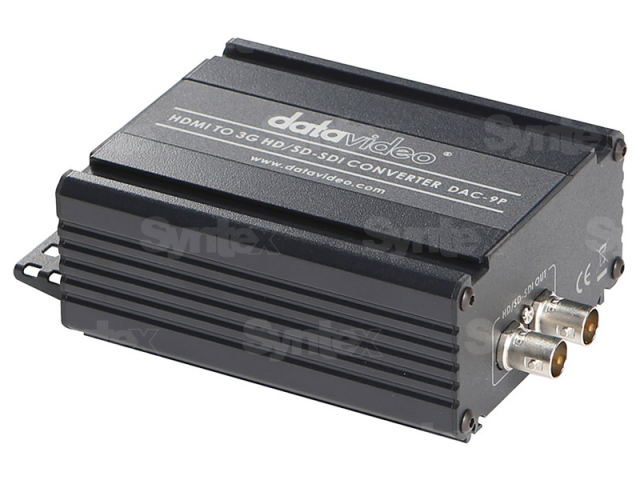

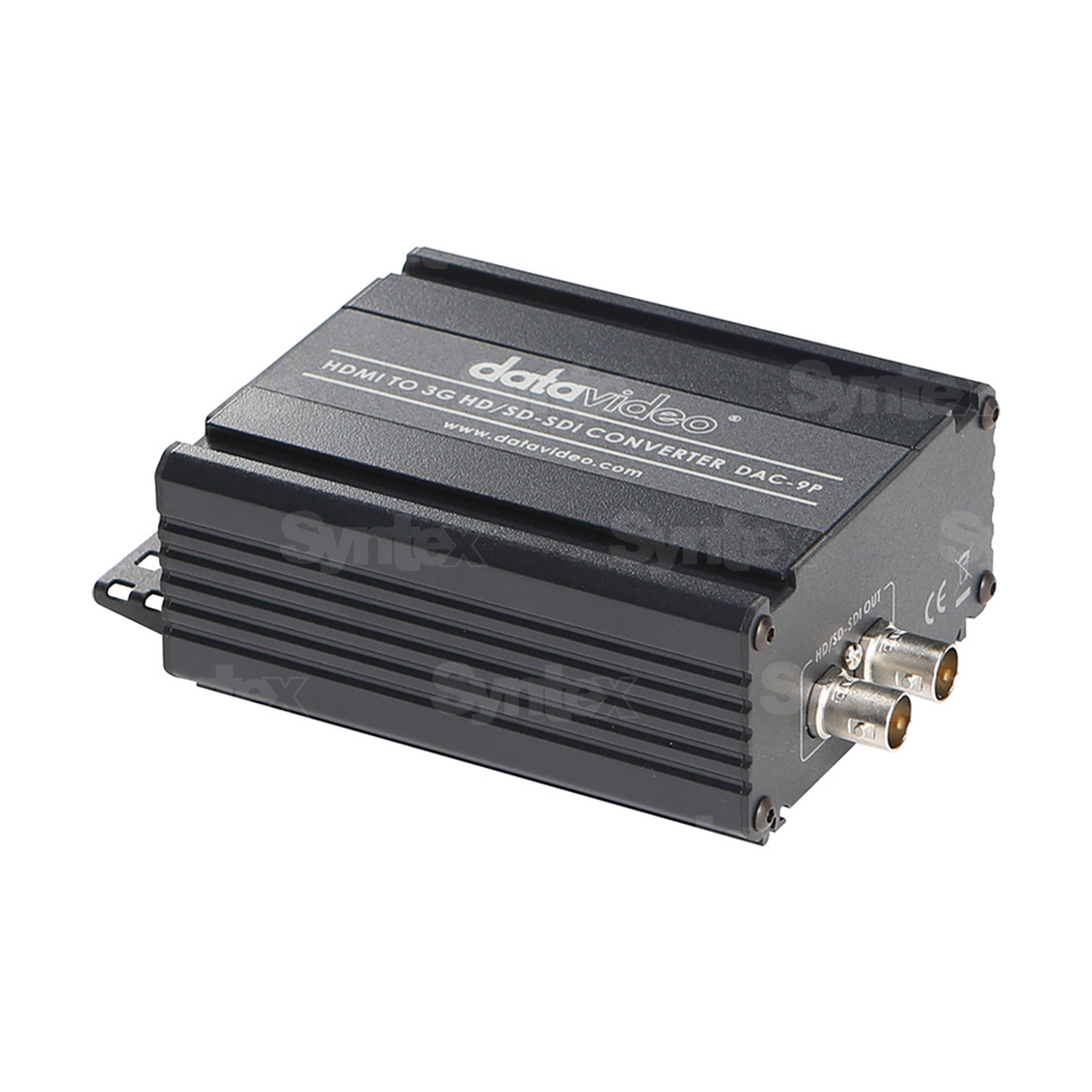

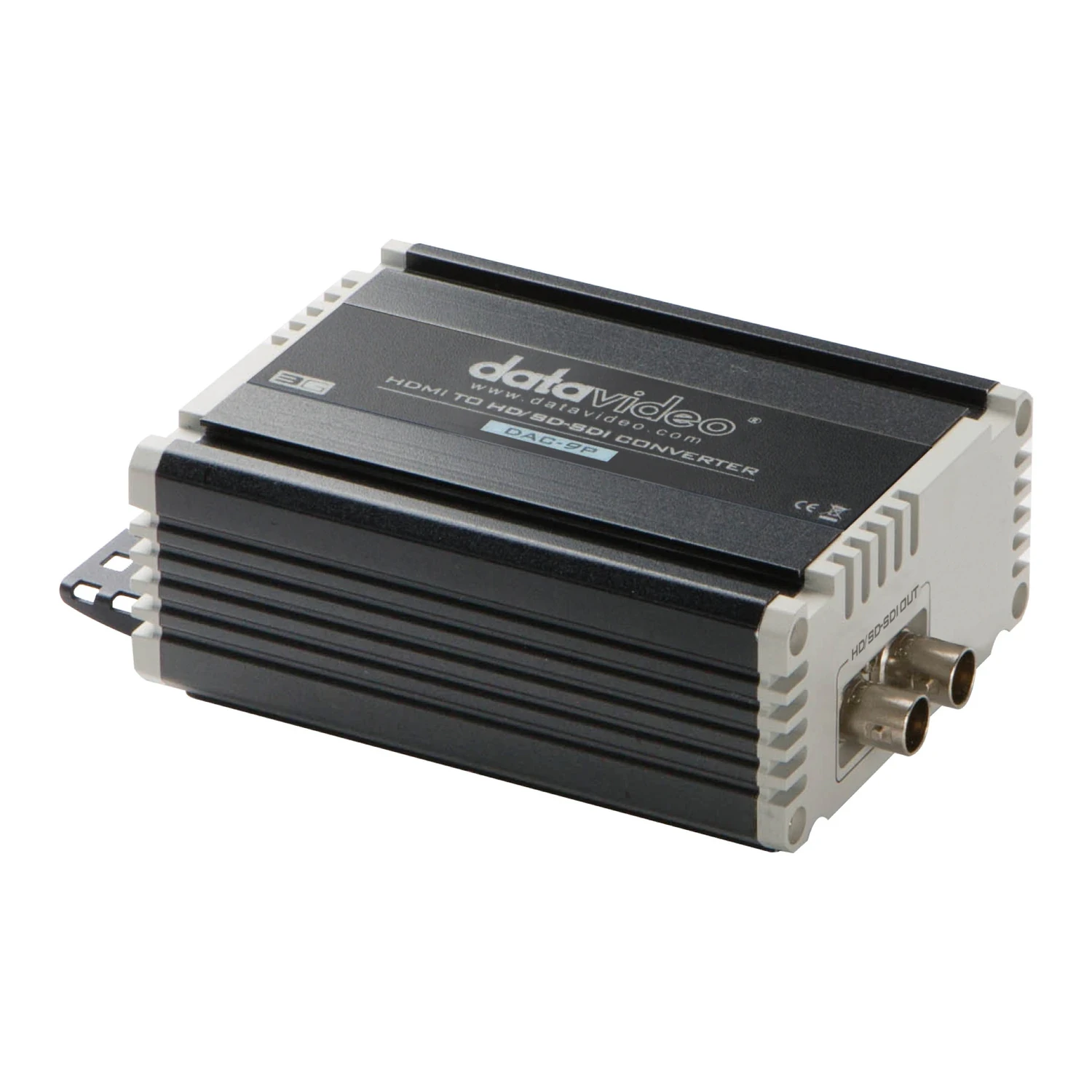

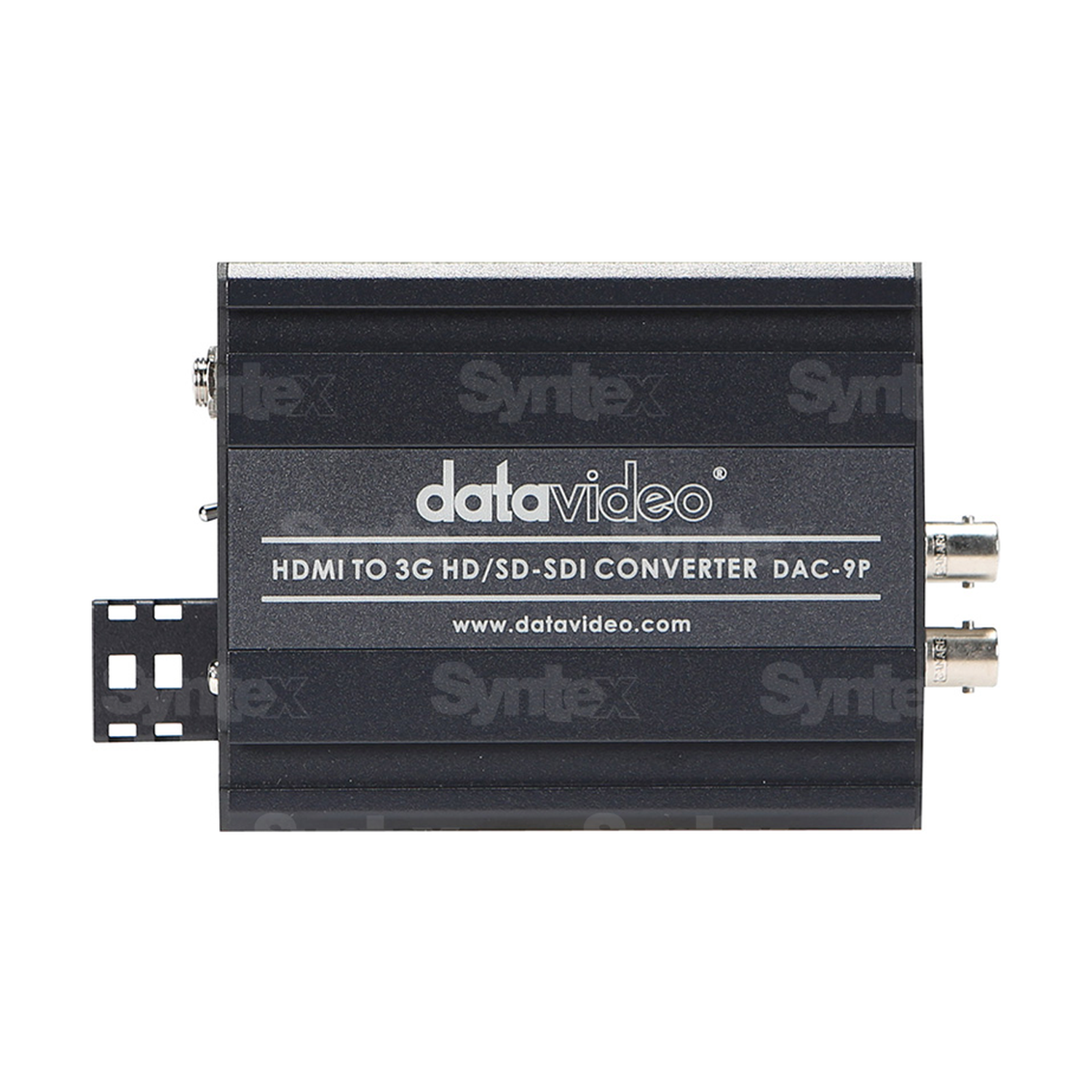

Datavideo DAC-9P HDMI to SDI Converter

+5
  • End Of Life
SKU: 2000-2290

Many new High Definition camcorders and devices provide HDMI as the only High Definition output option. Datavideo's DAC-9P allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders up to 200 meters away.

More information

439 € with VAT 362.81 € without VAT
Add to Compare Price history
Availability
Shipment day: Tomorrow
To be sent 1 pcs
Bratislava 1 pcs
SKU:
2000-2290
Add to Compare Price history

Datavideo DAC-9P 4K HDMI to 12G-SDI Converter

729 €without VAT 602.48 €

Top accessories for Datavideo DAC-9P HDMI to SDI Converter

Datavideo VP-633 100 m SDI Repeater (Powered)

The Datavideo VP-633 is a powered 100 m SDI repeater for HD-SDI and SD-SDI links.
419 €
14-30 days

Datavideo RMK-2 2U Rackmount Kit

The Datavideo RMK-2 is a 2U rackmount kit that holds up to eight compatible Datavideo
439 €
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Many new High Definition camcorders and devices provide HDMI as the only High Definition output option. Datavideo's DAC-9P allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders up to 200 meters away.

HDMI is not suitable for long cable runs, but using a Datavideo DAC-9P, users can convert HDMI to High Definition & Standard Definition SDI and take advantage of the high quality and affordable connectivity that SDI cables offer. The DAC-9P even embeds the audio from HDMI into the SDI signal so only one single low cost cable is needed.



Features:

  • Input: 1 X HDMI
  • Output: 2 x SDI (HD/SD-SDI)
  • Supports 1080p!
  • Enables long cable runs
  • Rugged case design
  • Audio can be embedded within SDI output signal
  • PAL / NTSC Compatible
  • Tripod Mount via Velcro straps (supplied)
  • DC 12V Operation

PACKAGE CONTENT

  • 1× Datavideo DAC-9P
  • 1× AD Switch DC 12V power adapter

SPECIFICATIONS

  • Type: HDMI to SDI converter
  • Conversion: HDMI → 3G/HD/SD-SDI

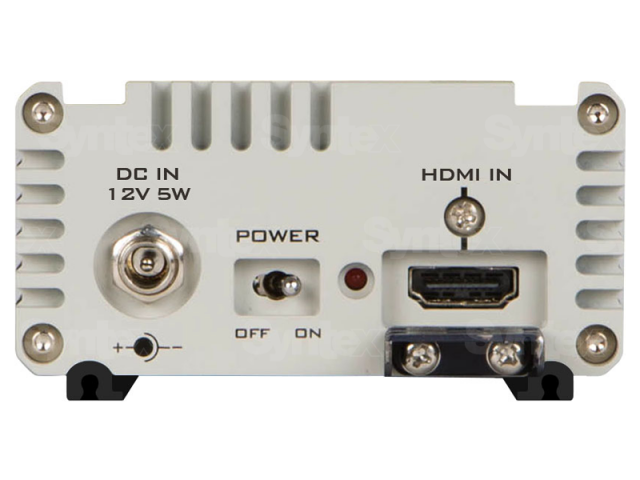

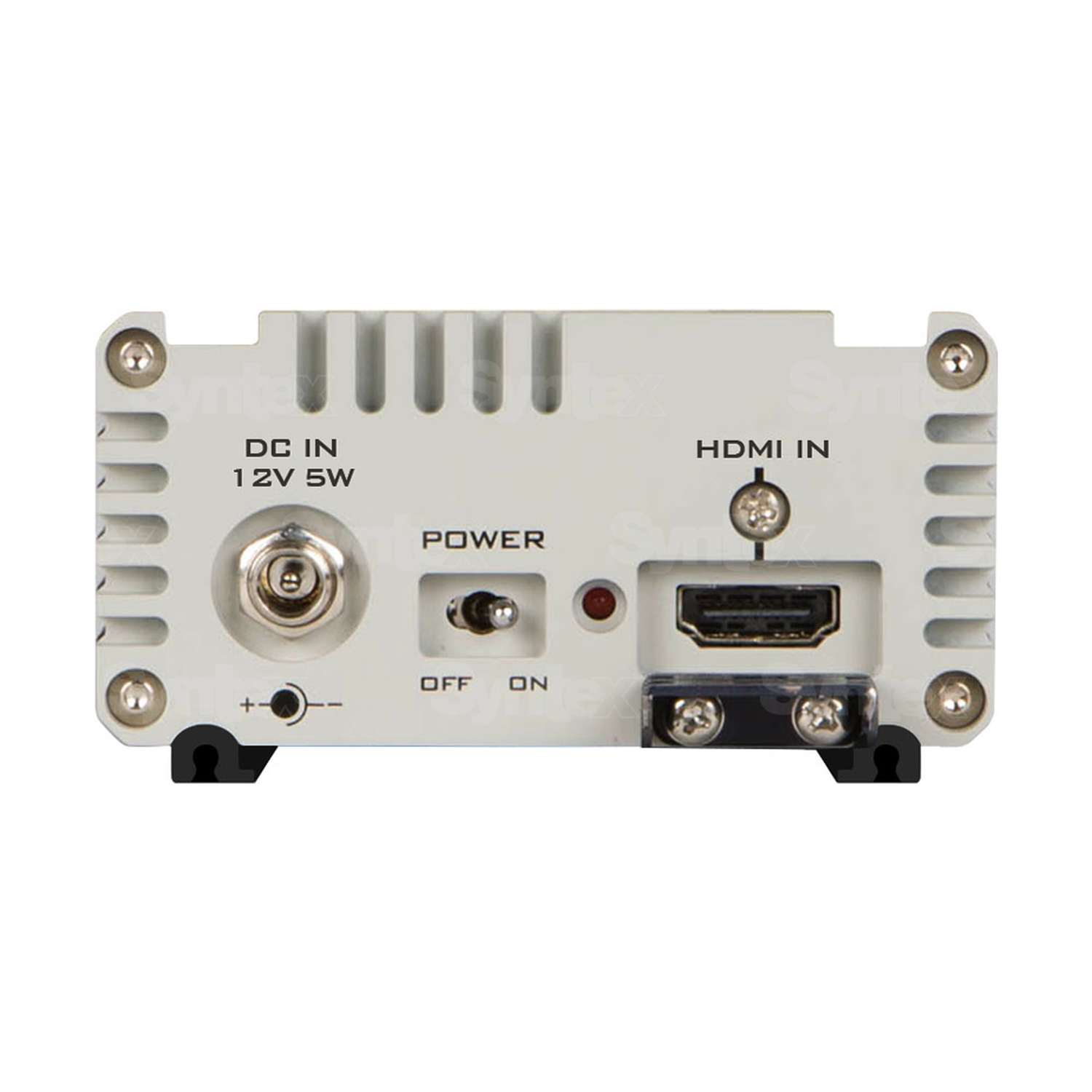

  • Input: 1× HDMI

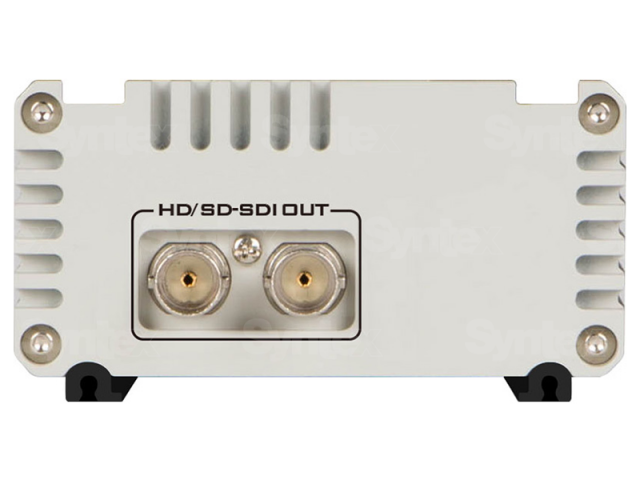

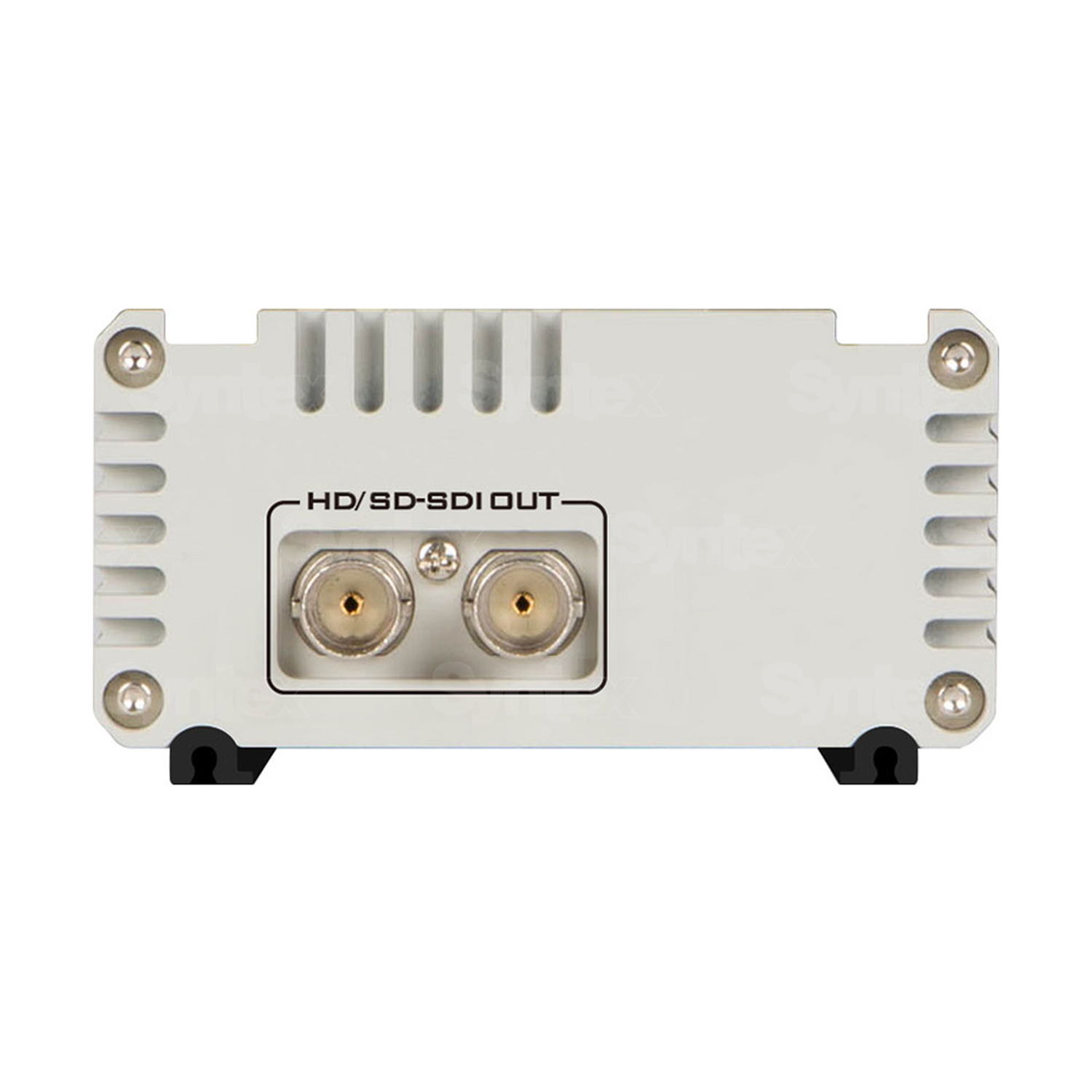

  • Outputs: 2× 3G/HD/SD-SDI with embedded audio
  • 720p input formats: 50 / 59.94 / 60 Hz
  • 1080i input formats: 50 / 59.94 / 60 Hz
  • 1080p input formats: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
  • SD input formats: 576i (PAL), 480i (NTSC)
  • Output resolution: automatically matches the SD, HD or 3G HDMI input signal
  • Dimensions (L × W × H): 112 × 85 × 45 mm
  • Weight: 0.3 kg
  • Operating temperature: 0–40 °C
  • Power: 12 V DC, 5 W

WE RECOMMEND

The Datavideo DAC-9P is a reliable HDMI-to-HD/SD-SDI converter suitable for use in any studio. For full integration, we recommend using the original rack-mount kits, power adapters, and downstream components for video and audio processing within the Datavideo ecosystem.

Mounting Accessories - Components for secure installation of the converter in a rack or on a wall.

Power Supply - Accessories for ensuring a stable power supply in professional environments.

Video Control and Distribution - Devices compatible with the converter’s SDI output for further signal processing.

Audio Synchronization and Mixing - Tools for editing and synchronizing audio with the video signal.

Intercom and Communication - Communication systems for coordinating production when using a converter.

Readers and Controls - Production accessories that often use an HDMI output for preview, which the DAC-9P converts.

Parameters

Parameters

Manufacturer: Datavideo
Category: Signal converters

Main parameters

Other featuresAudio output · auto format adaptation
SourceHDMI
TargetHDMI · SDI · 3G SDI
