Datavideo VP-633 100 m SDI Repeater (Powered)

SKU: 2332-2100

The Datavideo VP-633 is a powered 100 m SDI repeater for HD-SDI and SD-SDI links. It helps extend a cable run; the achievable length of each segment depends on the SDI cable used. Place the powered VP-633 near the receiving end, such as next to a switcher.

More information

419 € with VAT 346.28 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2332-2100
Add to Compare Price history

Top accessories for Datavideo VP-633 100 m SDI Repeater (Powered)

Datavideo VP-634 SDI Repeater

The Datavideo VP-634 is a passive SDI signal repeater designed to extend digital
381 €
In stock 3 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo VP-633 is a powered 100 m SDI repeater for HD-SDI and SD-SDI links. It helps extend a cable run; the achievable length of each segment depends on the SDI cable used. Place the powered VP-633 near the receiving end, such as next to a switcher.

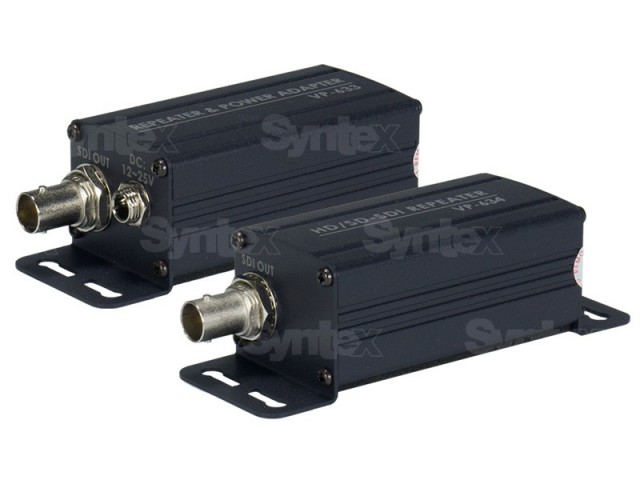

A chain can use one VP-633 and up to three passive VP-634 repeaters. With good-quality SDI cable, this arrangement can support a total run of up to 1000 m. The passive VP-634 units are placed closer to the signal source.

EXTENDING HD/SD-SDI CABLE RUNS

The Datavideo VP-633 is a powered repeater for HD-SDI and SD-SDI signals. It extends an SDI cable run while keeping the system based on SDI equipment; the achievable distance depends on cable quality and the system layout.

Place the powered VP-633 near the receiving end, for example by a switcher. Passive VP-634 repeaters are placed closer to the signal source. A chain can contain one VP-633 and up to three VP-634 units; with good-quality SDI cable, the total run can reach up to 1000 m.

PACKAGE CONTENT

  • 1 × powered Datavideo VP-633 SDI repeater
  • 1 × AD Switch DC 12 V power adapter

SPECIFICATIONS

  • Type: Powered SDI repeater
  • Video input: HD-SDI, SD-SDI
  • Video output: HD-SDI, SD-SDI
  • SD video formats: 480i, 576i
  • HD video formats: 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 24/25/30
  • SD video standard: SMPTE 259M
  • HD video standard: SMPTE 292M
  • Audio: SDI embedded audio
  • Power: DC 12–25 V (VP-633 only); supplied adapter is AD Switch DC 12 V
  • Dimensions (L × W × H): 107 × 38 × 32 mm
  • Weight: 0.1 kg
  • Operating temperature: 0–40 °C
  • Chain: 1 × VP-633 and up to 3 × passive VP-634; total run up to 1000 m depending on cable quality

WE RECOMMEND

For longer SDI runs, connect up to three passive Datavideo VP-634 repeaters to the powered VP-633. With good-quality SDI cable, the full chain can reach up to 1000 m; the achievable distance depends on the cable used.

Compatible passive SDI repeater

Parameters

Parameters

Manufacturer: Datavideo
Category: Signal converters

Main parameters

SourceSDI
TargetSDI
