Datavideo DDC-4012H DC-to-DC Converter

+2
SKU: 2600-3011

The Datavideo DDC-4012H converts a 15–50 V DC supply into regulated power for a camera or other AV equipment. Select 7.2 V, 8.4 V or 12 V with the slide switch; the converter delivers up to 4 A / 48 W. The input uses a 4-pin XLR connector, while the output can be connected through either a 4-pin XLR or a 5.5 mm DC jack. It is compatible with…

More information

260 € with VAT 214.88 € without VAT
Add to Compare Price history
Availability
Shipment day: Tomorrow
To be sent 1 pcs
Bratislava 1 pcs
SKU:
2600-3011
Add to Compare Price history

Top accessories for Datavideo DDC-4012H DC-to-DC Converter

Datavideo CB-23H, 50m

The Datavideo CB-23H is a 50 m, four-function cable for mobile production studios
569 €
14-30 days

Datavideo CB-22H, 30m

The Datavideo CB-22H is a 30 m all-in-one cable that connects a camera to a mobile
393 €
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo DDC-4012H converts a 15–50 V DC supply into regulated power for a camera or other AV equipment. Select 7.2 V, 8.4 V or 12 V with the slide switch; the converter delivers up to 4 A / 48 W. The input uses a 4-pin XLR connector, while the output can be connected through either a 4-pin XLR or a 5.5 mm DC jack. It is compatible with the Datavideo PD-6 system and CB-22H (30 m) or CB-23H (50 m) cables.

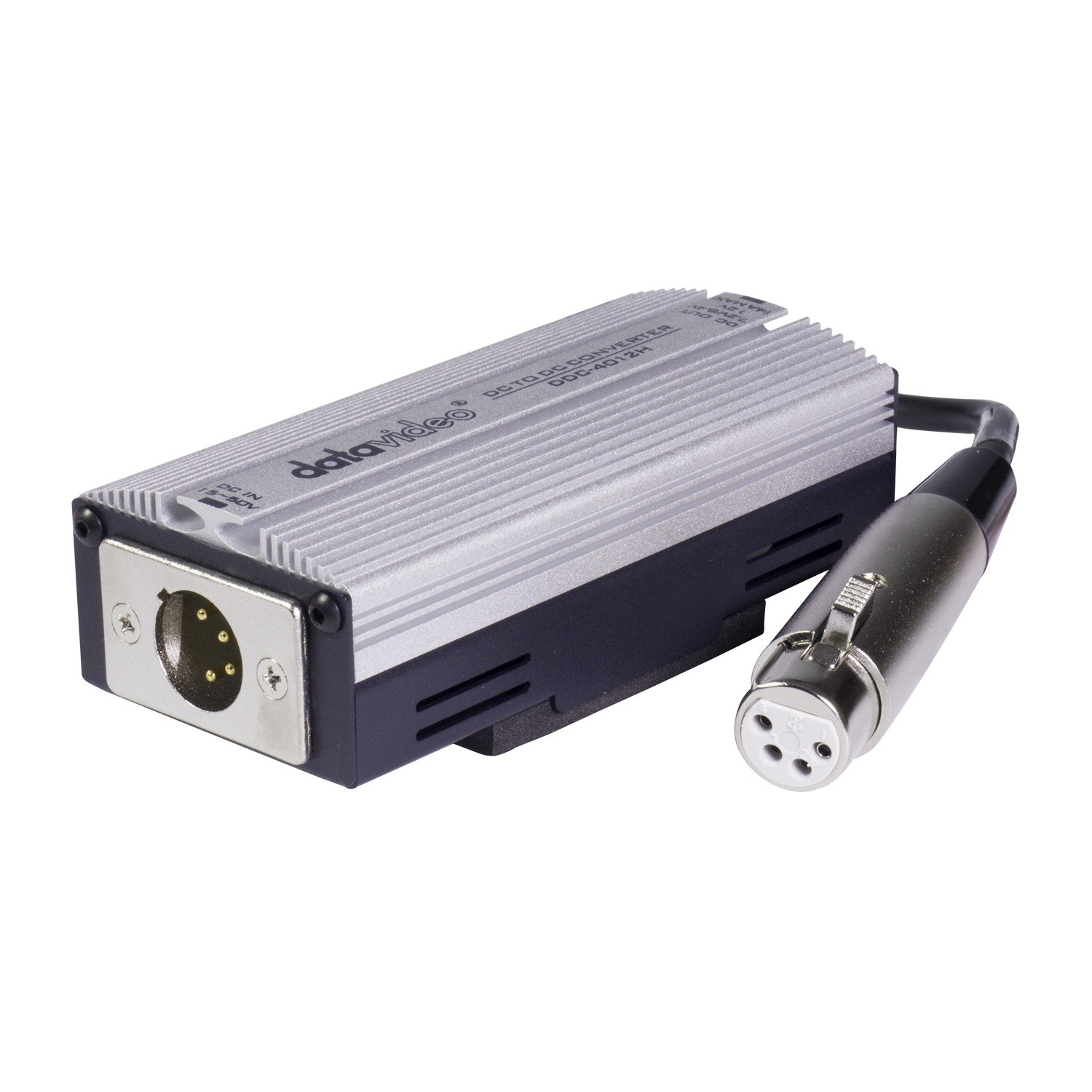

Datavideo DDC-4012H in-line DC-to-DC converter with cable input and output connectors

Power matched to your equipment

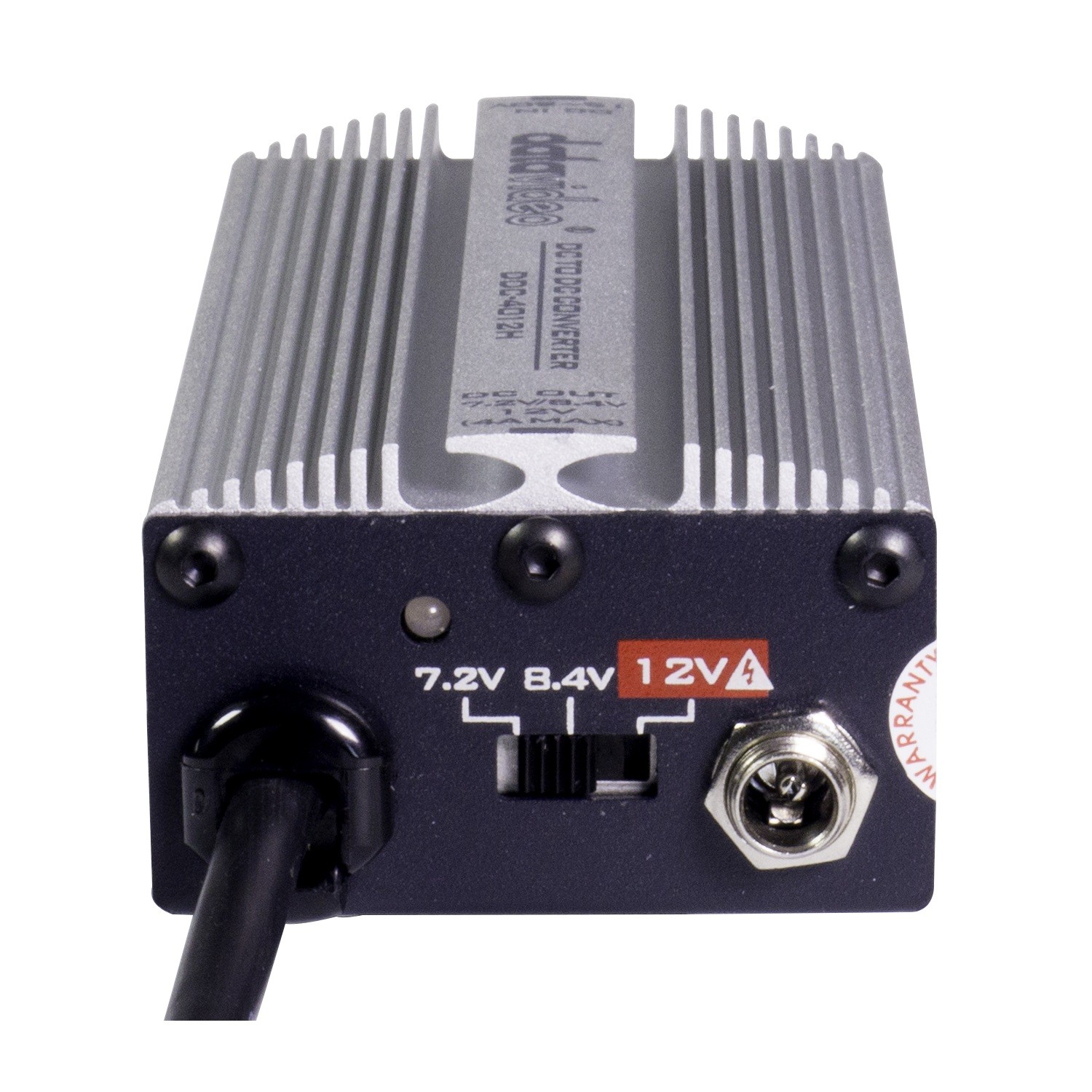

One converter covers three common voltage settings for camera and AV equipment. Select 7.2 V, 8.4 V or 12 V using the switch on the unit; the coloured LED confirms the selected output.

Datavideo setup diagram: power, SDI video and intercom routed from a PD-6 through a CB-22H or CB-23H cable, DDC-4012H converter and camera

Power a camera from a Datavideo PD-6

With the PD-6 power distribution unit and a CB-22H or CB-23H cable, the DDC-4012H converts the camera’s power branch to the selected voltage. The setup diagram shows power, SDI video and intercom carried within one multicamera setup.

The CB-22H is 30 m long and the CB-23H is 50 m. Select an output voltage that matches the connected equipment.

The diagram separates the power, SDI video and intercom paths.

Regulated output with overload protection

The converter changes a 15–50 V DC input to the selected 7.2 / 8.4 / 12 V DC output with ±3% tolerance. Overload protection recovers automatically after the fault is removed.

Two output connection options

Connect equipment through the 4-pin XLR female output or the 5.5 mm DC jack. The DDC-4012H is rated IP20 and is not water- or weather-proof; indoor use is recommended.

PACKAGE CONTENT

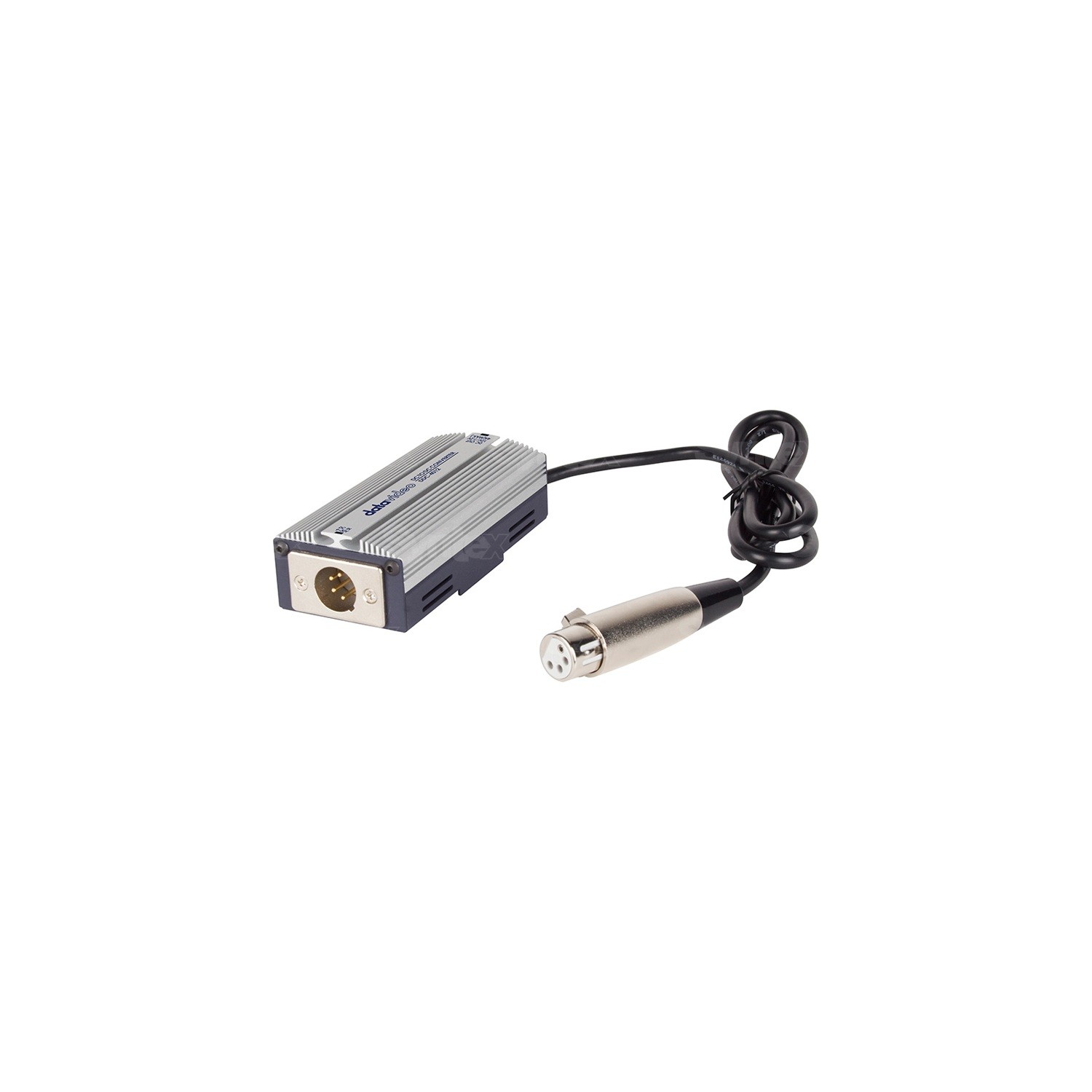

  • 1× Datavideo DDC-4012H in-line DC-to-DC converter with integrated 1 m cable

SPECIFICATIONS

  • Type: in-line DC-to-DC converter
  • Input voltage: 15–50 V DC

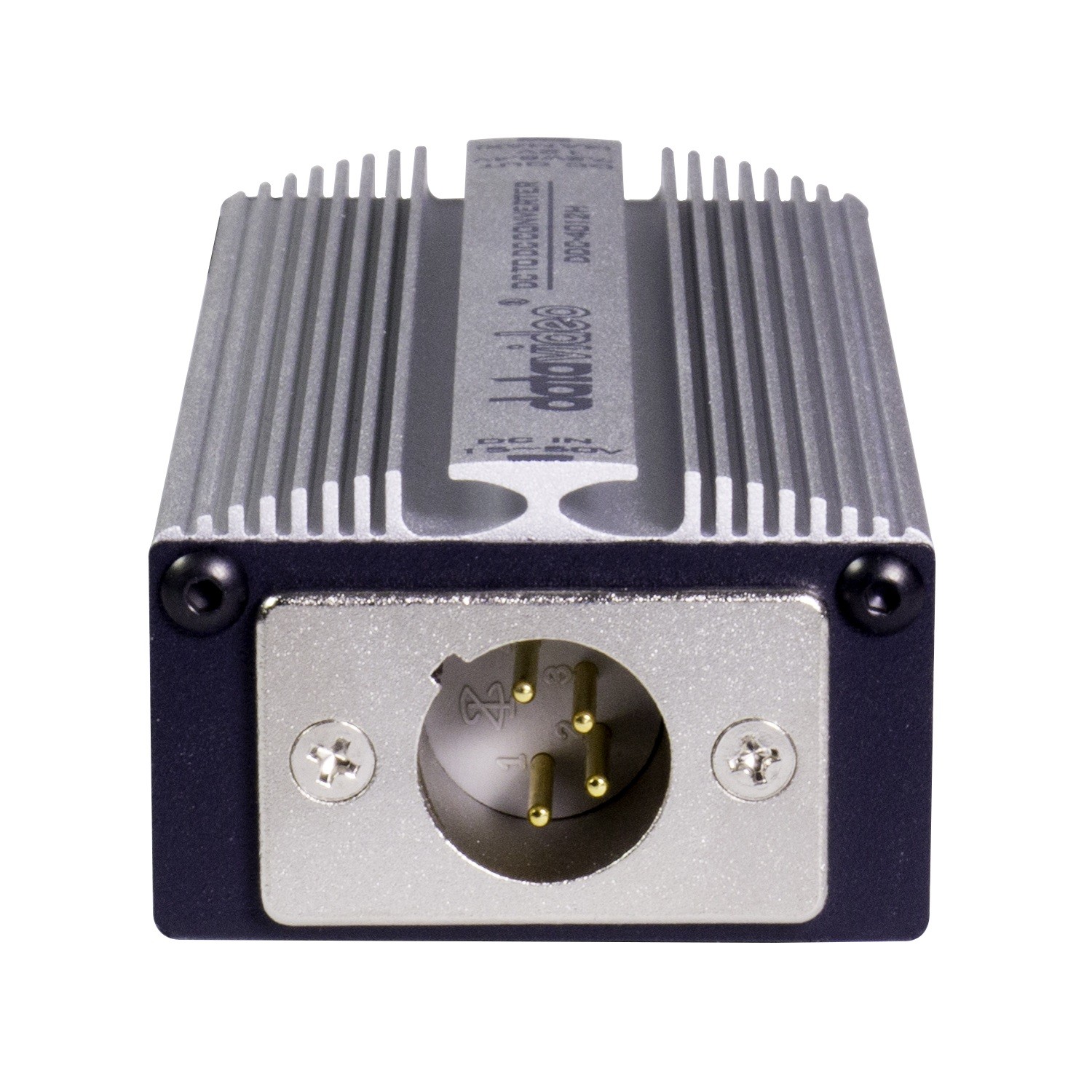

  • Input connector: 4-pin XLR male
  • Output voltage: 7.2 V / 8.4 V / 12 V DC, switch-selectable
  • Output connectors: 4-pin XLR female or 5.5 mm DC jack
  • Maximum output current: 4 A
  • Rated power: 48 W
  • Output voltage tolerance: ±3%
  • Efficiency (typ.): up to 85%
  • Ripple and noise (max.): <400 mV
  • Overload protection: at 105–150% of rated output power; automatic recovery after the fault is removed
  • Voltage indicators: red 12 V, amber 8.4 V, green 7.2 V
  • Integrated cable: UL 2464, 18 AWG, 1 m
  • Dimensions (L × W × H): 115 × 50 × 35 mm
  • Weight: approx. 0.3 kg
  • Operating temperature: 0 to 40 °C
  • Operating humidity: 10–90%, non-condensing
  • Storage conditions: −40 to +85 °C, 10–95% relative humidity
  • Ingress rating: IP20; not water- or weather-proof, indoor use recommended
Parameters

Parameters

Manufacturer: Datavideo
Category: Power supplies

Main parameters

Power supply output4 pin XLR · 12 V output · 5.5 mm DC jack · 7.2 V DC · 8.4 V DC · 4 A · 48 W
