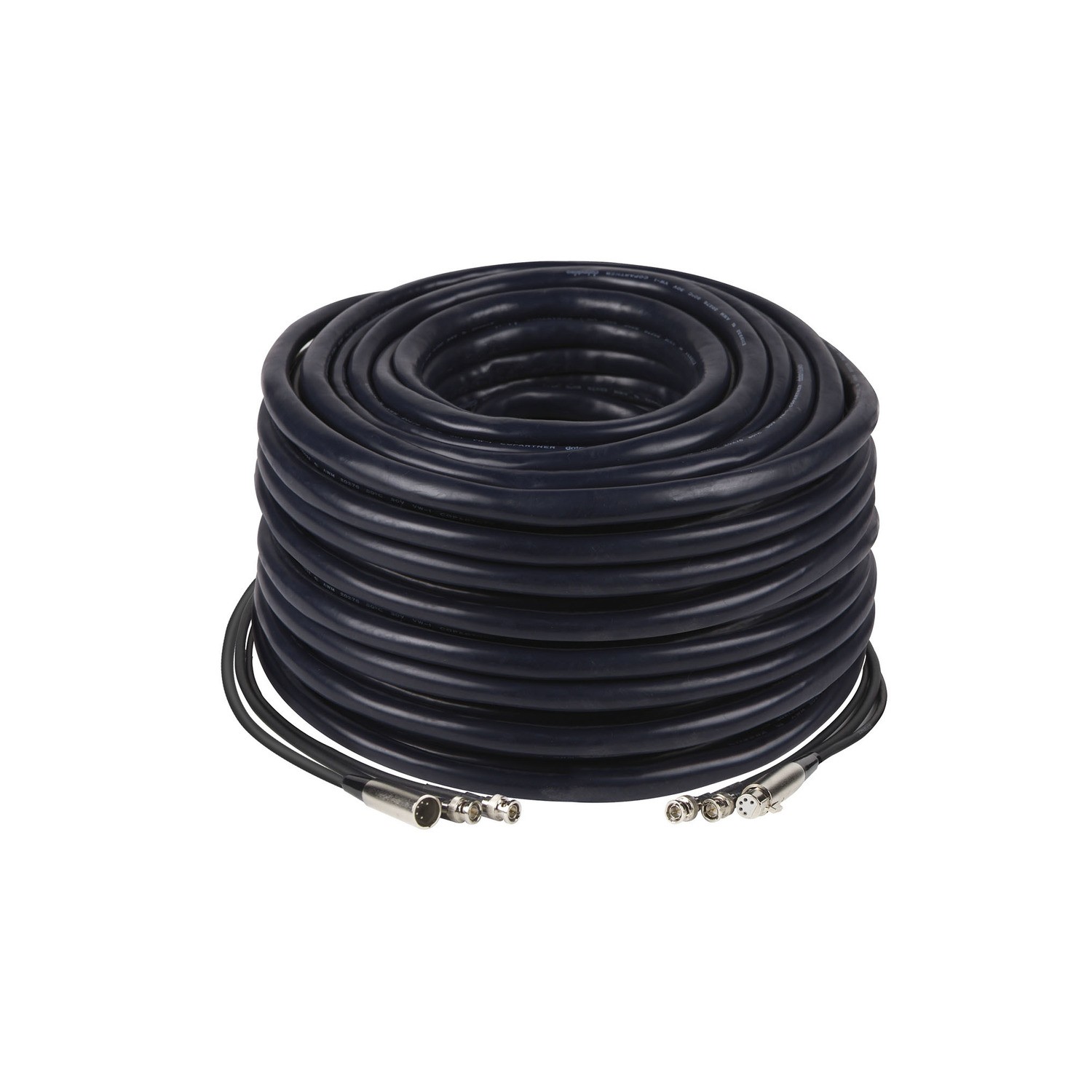

Datavideo CB-23H, 50m
SKU: 2200-9883
The Datavideo CB-23H is a 50 m, four-function cable for mobile production studios and live video. One integrated cable carries HD/SD-SDI video, composite return video for a confidence monitor, intercom and tally, plus 12–48 V DC power. Its connectors are a 4-pin power XLR, a 5-pin intercom/tally XLR and two 75 Ω BNC connections for the main and return video…
569 € with VAT
470.25 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo CB-23H is a 50 m, four-function cable for mobile production studios and live video. One integrated cable carries HD/SD-SDI video, composite return video for a confidence monitor, intercom and tally, plus 12–48 V DC power. Its connectors are a 4-pin power XLR, a 5-pin intercom/tally XLR and two 75 Ω BNC connections for the main and return video signals. It supports HD/SD-SDI transmission up to 1080i.
FOUR FUNCTIONS IN ONE CABLE
The CB-23H connects a camera, mobile production studio, intercom and confidence monitor through one 50 m cable assembly. It reduces the number of separate cable runs needed on location or in an outside broadcast vehicle.
HD/SD-SDI videoMain video transmission up to 1080i.
Video returnA separate path carries composite video to a confidence monitor.
Intercom, tally and powerIntegrated signal paths and 12–48 V power.
PACKAGE CONTENT
- 1× Datavideo CB-23H combined cable, 50 m
SPECIFICATIONS
- Model: CB-23H
- Length: 50 m
- Video: HD/SD-SDI up to 1080i
- Video connectors: 1× 75 Ω BNC for main video; 1× 75 Ω BNC for composite return video
- Intercom and tally: 1× 5-pin XLR
- Power: 1× 4-pin XLR, 12–48 V DC (pin 1 + / pin 2 −)
- Operating temperature: 0 to 55 °C
- Storage temperature: −20 to 80 °C
- Intended use: Mobile production studios and live production
