Datavideo CB-22H, 30m

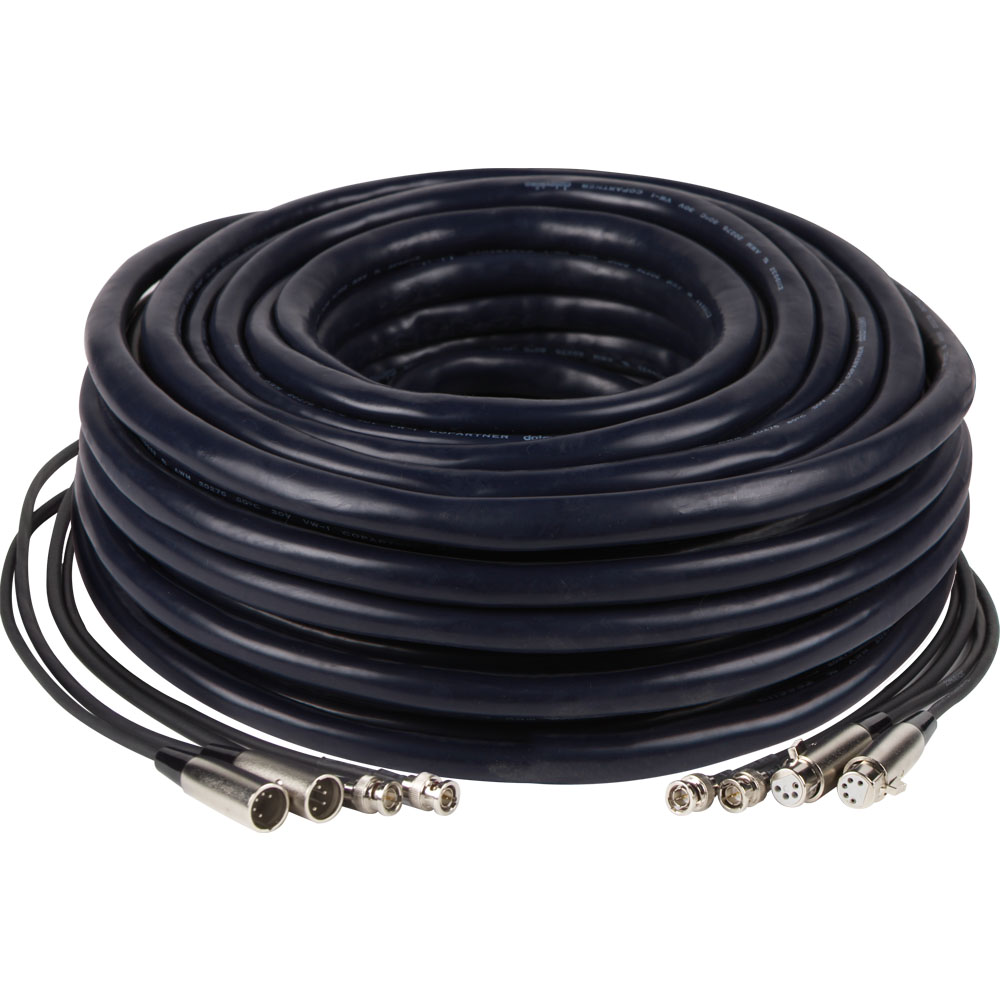

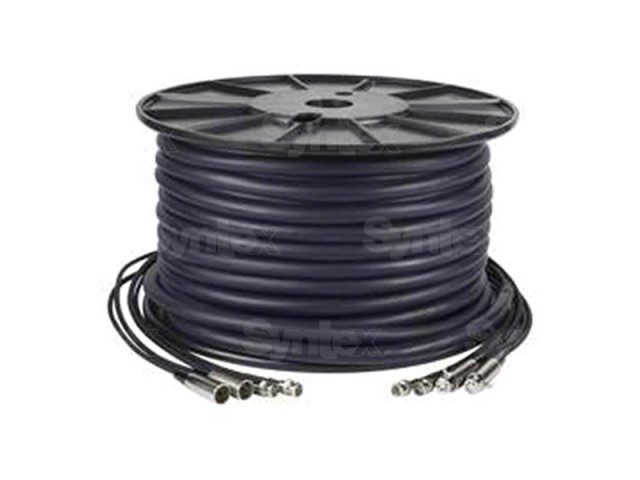

The Datavideo CB-22H is a 30 m all-in-one cable that connects a camera to a mobile studio or video switcher. One cable bundle carries power, intercom and tally, the main HD/SD-SDI feed, and composite return video for a look-back monitor. It suits Datavideo OBV and mobile-studio setups and supports HD/SD-SDI transmission up to 1080i.

• 1× 4-pin XLR power cable
• 1× 5-pin XLR intercom and tally transmission cable
• 1× 1.5C-2V, 75 Ω coaxial cable for main video
• 1× 1.5C-2V, 75 Ω coaxial cable for return video

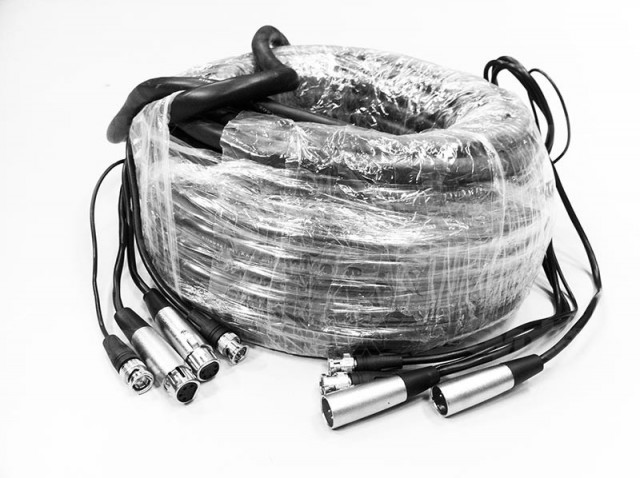

ONE CABLE FOR FOUR SIGNAL PATHS

CB-22H carries power, intercom with tally, the main video feed and return video between a camera and a mobile studio. One 30 m cable bundle simplifies the camera-position connection.

30 mHD/SD-SDI up to 1080i4 signal paths

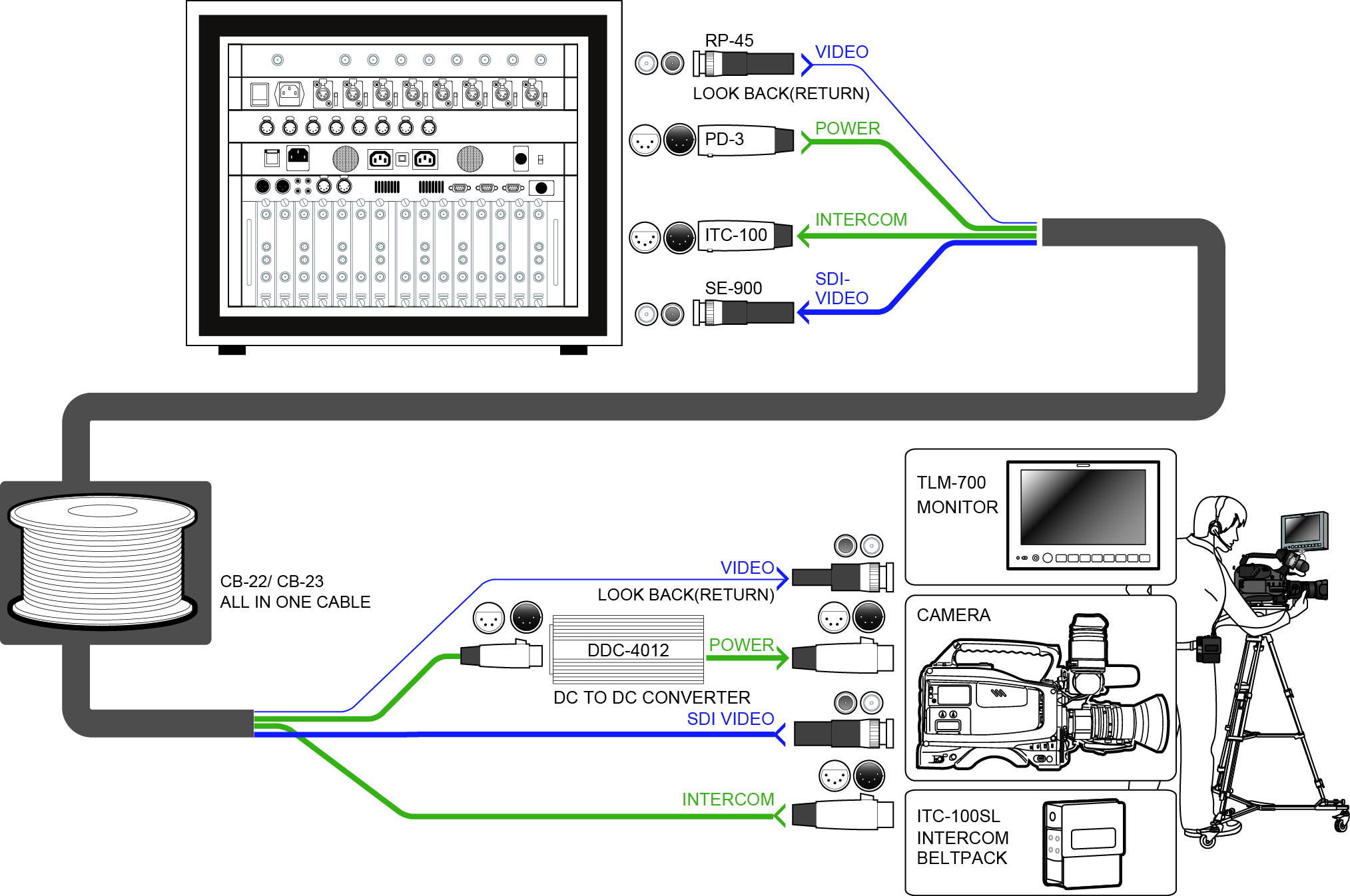

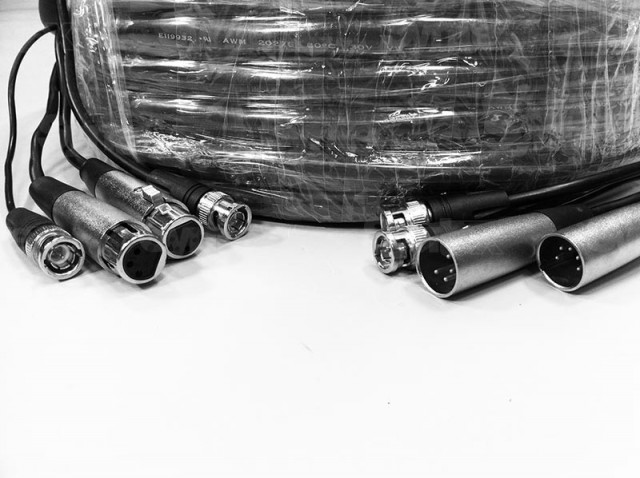

FOUR LINES IN ONE BUNDLE

Dedicated lines provide 4-pin XLR power, 5-pin XLR intercom/tally, 75Ω BNC for the main HD/SD-SDI feed and a second 75Ω BNC for composite return video. The operator can monitor the return feed while the camera remains connected to the studio system.

30 m · HD/SD-SDI up to 1080i · 4 signal paths

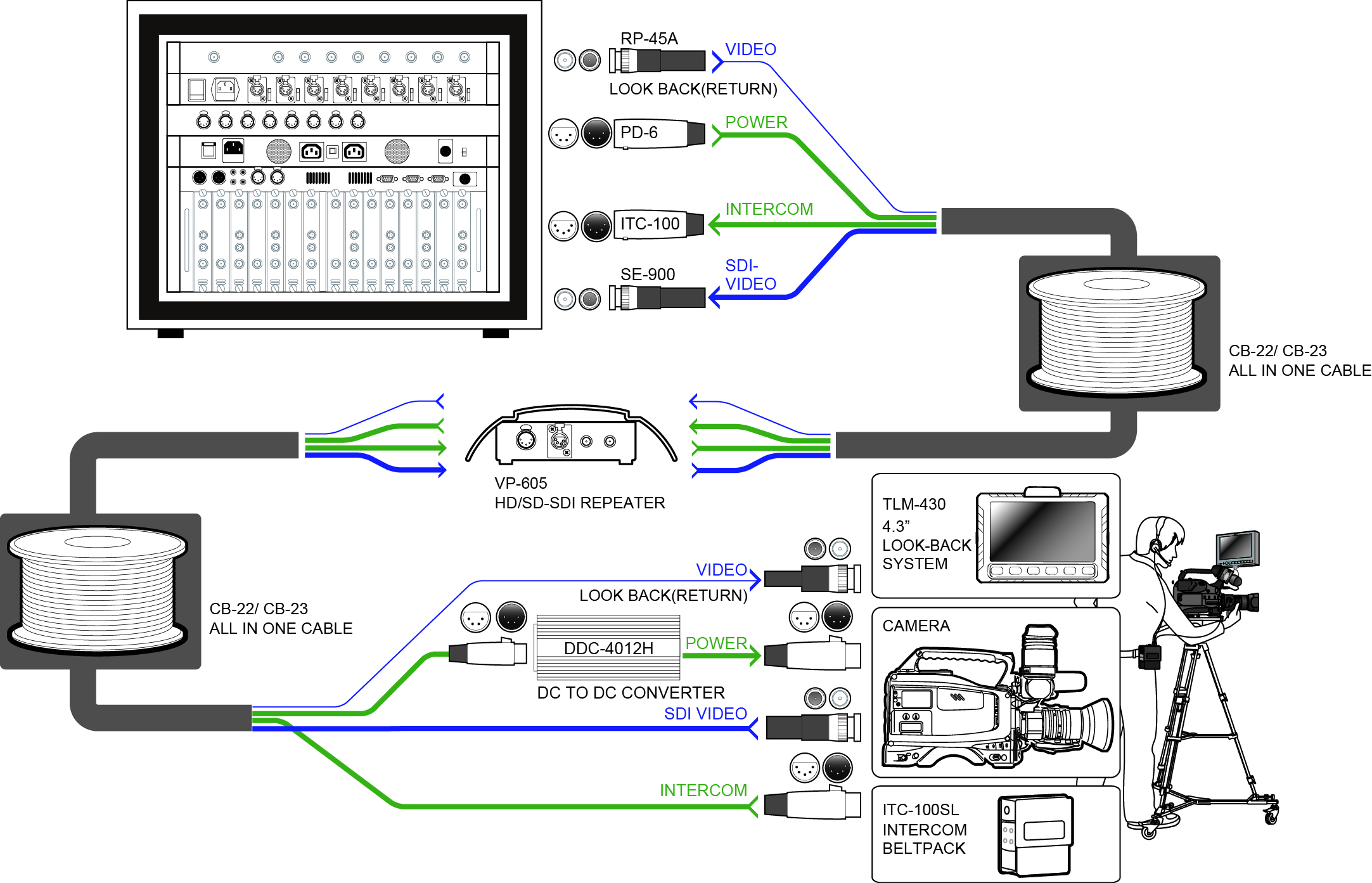

SETUP WITH THE VP-605H REPEATER

Datavideo recommends the VP-605H repeater for the CB-22H. The manufacturer also lists compatibility with the PD-6 power center and DDC-4012H converter; the H versions must be distinguished from their corresponding non-H models.

VP-605H · DDC-4012H · CB-22H
