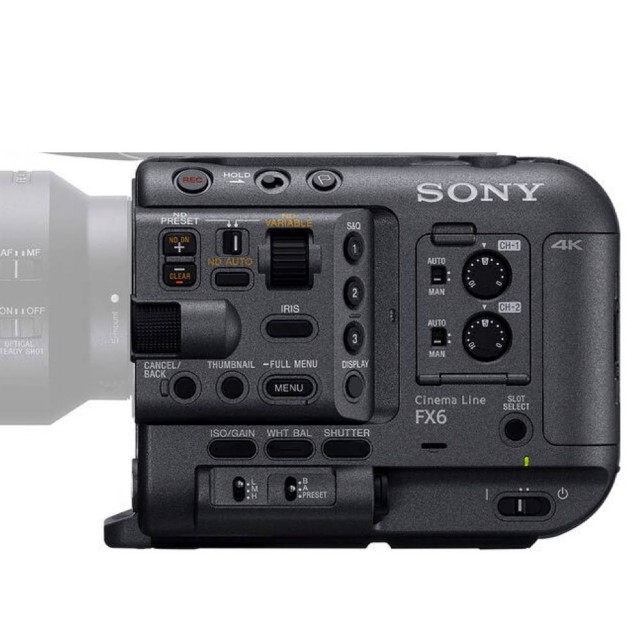

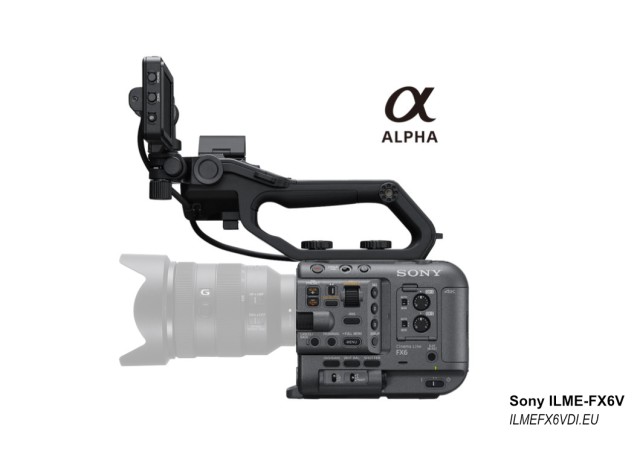

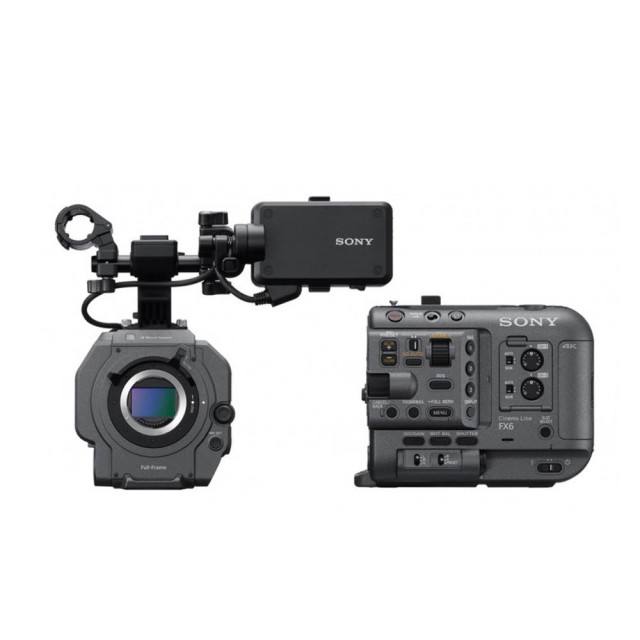

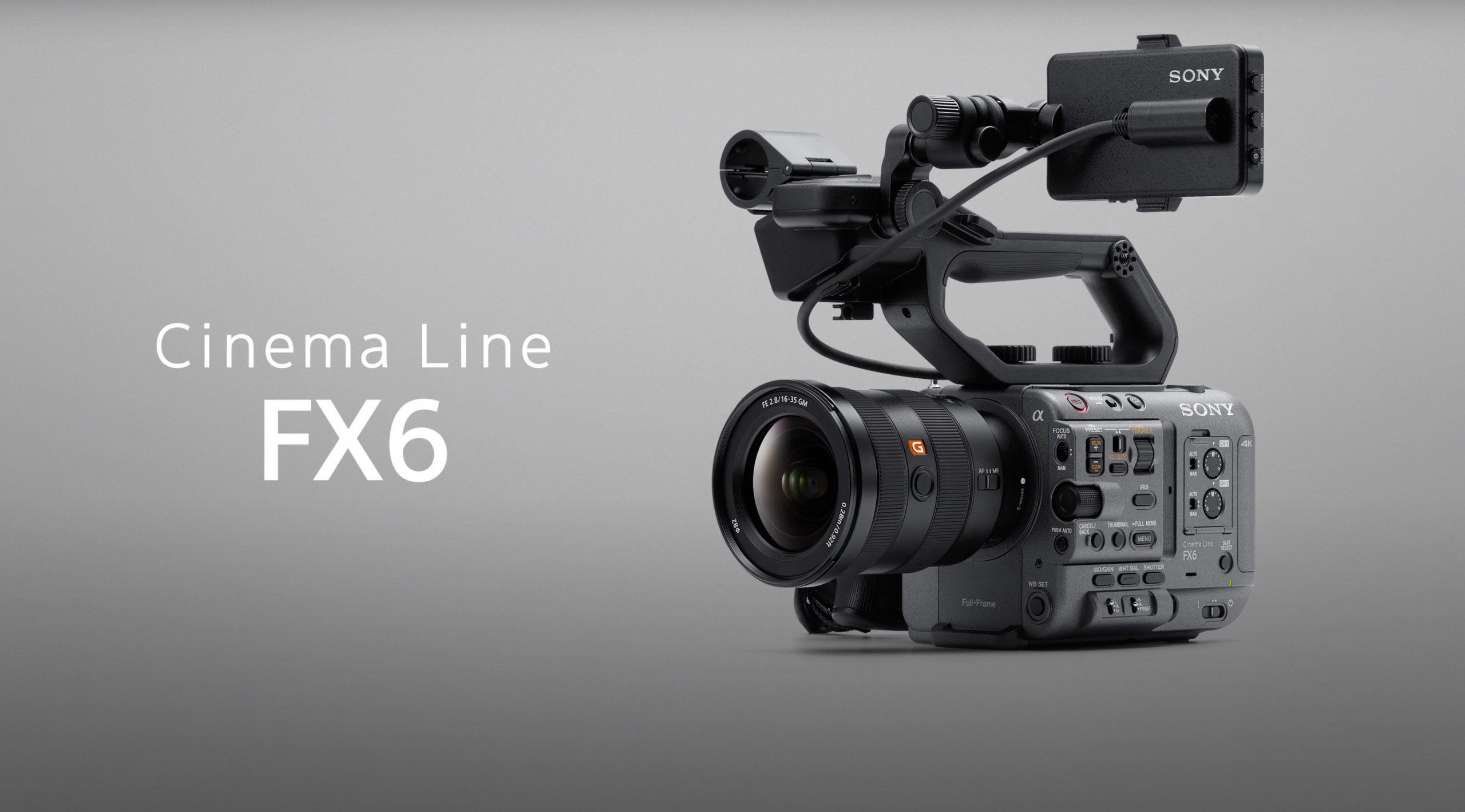

Sony FX6

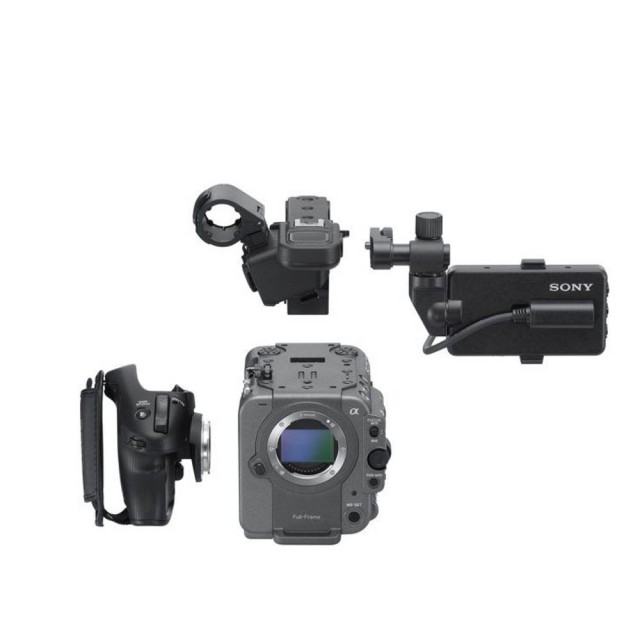

• Sony FX6 Full-Frame Cinema Camera (Body Only)
• Handle Unit
• 3.5" LCD Monitor
• Grip Remote Control
• Sony BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30
• Sony BP-U35 Lithium-Ion Battery Pack
• AC Adapter
• Power Cord
• USB Type-C Cable
• LCD Hood
• Cold Shoe Kit
• Lens Mount Cap
• Handle Connector Cap
• no lens included


Image Sensor

Image Sensor Size Full-FrameSensor Type CMOSSensor

Resolution Actual: 12.9 MP Effective: 10.2 MP

Color Filter Bayer

Shutter Type Rolling Shutter

ISO 800 (Native), 12,800 (Expanded), 320 to 409,600 (Expanded)

Gain -3 to 30 dB

Advertised Dynamic Range 15 Stops

CameraLens Mount Sony E-Mount

Lens Communication Yes

Interchangeable Lens Mount None

Shutter Speed 1/1 to 1/8000 sec

Built-In ND Filter 1/4 to 1/128 Stop Electronic ND Filter

Built-In Microphone Type Stereo, Mono

Media/Memory Card Slot Dual Slot: CFexpress Type A / SD

Variable Frame Rates DCI 4K: 1 to 60 fps, UHD: 1 Up to 120 fps, 1080p: 1 Up to 240 fps

Internal Recording

Recording Modes XAVC-I 4:2:2
10-Bit:4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (240 to 600 Mb/s) 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s) 1920 x 1980p at 23.98/25/29.97/50/59.94 fps (89 to 222 Mb/s) XAVC-L 4:2:0

8-Bit:3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s) XAVC-L 4:2:2
10-Bit:1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s) Gamma Curve HDR-HLG, S Cinetone, Sony S-Log, Sony S-Log 3Audio Recording AVC-Intra: 2/4-Channel 24-Bit 48 kHz LPCM AudioAVC-Long: 2/4-Channel 24-Bit 48 kHz LPCM Audio

Still Image Support Not Specified by Manufacturer

External Recording

Raw Output SDI/BNC
In Raw Mode:4096 x 2160
16-Bit at 23.98/24/25/29.97/50/59.94 fps 3840 x 2160
16-Bit at 23.98/25/29.97/50/59.94 fps

Interfaces

Video Connectors 1 x BNC (12G-SDI) Output, 1 x HDMI Output
Audio Connectors 2 x 3-Pin XLR Mic/Line Level Input, 1 x 1/8" / 3.5 mm Stereo Headphone OutputOther I/O 1 x BNC Timecode Input/Output, 1 x USB Type-C, 1 x USB Micro-B, 1 x 2.5 mm Control
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi

Display

Display Type Included External Touchscreen LCD
Size 3.5"
Resolution 1280 x 720 (2,760,000 Dot)

EVF

EVF Optional, Not Included

Power

Battery Type Sony BP-U Series
Power Connectors 1 x Barrel (19.5 VDC)

Input

Power Consumption 18 W

Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C

General
Dimensions 6 x 4.6 x 4.5" / 153 x 116 x 114 mm (Without Protrusions)Weight 2 lb / 890 g
