Sony BP-U series battery with a capacity of 72 Wh for professional XDCAM, NXCAM and Cinema Line cameras. Weighing about 450 g, it charges in roughly 150 minutes on the BC-U1A or BC-U2A charger, and the camera shows the remaining capacity on its LCD and in the viewfinder. It suits cameras such as the FX6, FX9, FS7 and the PXW-Z handheld camcorders.
Sony BP-U series battery with a capacity of 72 Wh for professional XDCAM, NXCAM and Cinema Line cameras. Weighing about 450 g, it charges in roughly 150 minutes on the BC-U1A or BC-U2A charger, and the camera shows the remaining capacity on its LCD and in the viewfinder. It suits cameras such as the FX6, FX9, FS7 and the PXW-Z handheld camcorders.

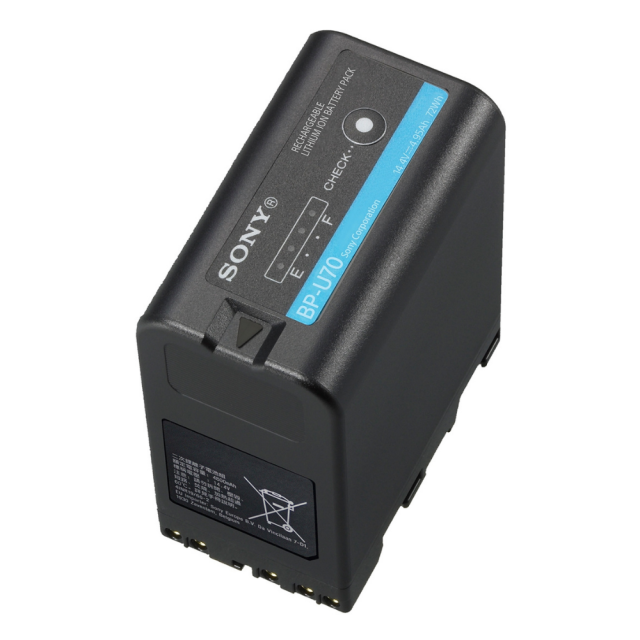

The BP-U70 offers 72 Wh at a weight of approx. 450 g and fits Sony cameras that use the BP-U series – from the FX6 and FX9 through the FS7 to the PXW-Z handheld camcorders.

With the BC-U1A or BC-U2A charger, the BP-U70 charges in approx. 150 minutes – as fast as the previous BP-U60, but with significantly higher capacity.
The battery continuously sends status data to the camera, so you see the remaining capacity on the LCD monitor and in the viewfinder while shooting.
It can be discharged at temperatures from −20 to +45 °C and charged from 0 to 40 °C.
The BP-U70 is a 72 Wh capacity lithium-ion battery that offers an ideal balance of capacity and weight for many professional video applications.
Battery status data is continuously communicated to the camera. Remaining capacity is displayed on the camera’s LCD monitor and viewfinder, allowing operators to monitor battery status easily and accurately while shooting.
The BP-U70 offers significantly higher capacity while keeping the same charging time as the previous generation BP-U60.
Compatible cameras
| Type | BP-U series lithium-ion battery |
|---|---|
| Dimensions (W × H × D) | 41.5 × 84.5 × 69.7 mm |
| Weight | approx. 450 g |
| Maximum / nominal voltage | 16.4 V DC / 14.4 V DC |
| Capacity | 72 Wh |
| Charging time (BC-U1A / BC-U2A charger) | approx. 150 min |
| Operating temperature (discharging / charging) | −20 to +45 °C / 0 to 40 °C |
| Remaining capacity display | four LEDs (20, 40, 60 and 80 %) |
| Manufacturer: | SONY |
| Category: | Battery 14,4V |
| Battery Capacity | 72Wh |
| Battery mount type | BP-U |
