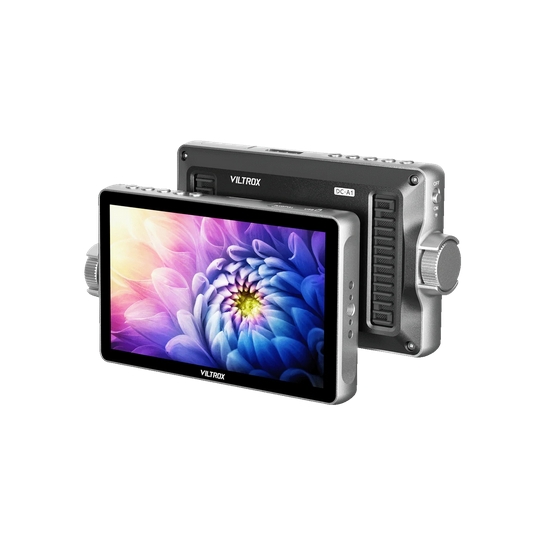

Viltrox DC-A1 7-inch 2800-nit camera monitor

SKU: DC-A1

Viltrox DC-A1 is a 7-inch ultra-bright Full HD IPS touchscreen camera monitor with 2800 nits and HDMI 2.0 input/loop output up to 4K60. It offers 3D LUT, waveform, zebra, false color and focus peaking, powered by NP-F, USB-C or DC.

More information

306 € with VAT 252.89 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 4 pcs
Praha 4 pcs
SKU:
DC-A1
Add to Compare Price history

Feelworld P7

In stock 3 pcs236.82 €without VAT 195.72 €

Datavideo TLM-700UHD

In stock 3 pcs381 €without VAT 314.88 €

Lilliput FS7 7" 4K HDMI/3G-SDI Monitor with L-Series Type Plate

Backordered > 5 pcs289 €without VAT 238.84 €

Viltrox DC-L1 Monitor

172 €without VAT 142.15 €

Viltrox DC-L2 touchscreen monitor

238 €without VAT 196.69 €

Top accessories for Viltrox DC-A1 7-inch 2800-nit camera monitor

K&F CONCEPT NP-F970 touch screen display direct charging battery, 10500mAh large capacity

A power block on a Sony NP-F mount with 10.500 mAh and an OLED touch screen that
73 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green

Tilta Battery Charger for L Series NP F batteries in green. This dual channel charger
18 €
In stock 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Viltrox DC-A1 is a 7-inch ultra-bright Full HD IPS touchscreen camera monitor with 2800 nits and HDMI 2.0 input/loop output up to 4K60. It offers 3D LUT, waveform, zebra, false color and focus peaking, powered by NP-F, USB-C or DC.

Viltrox DC-A1 monitor

DAYLIGHT-READY BRIGHTNESS

Viltrox DC-A1 is a 7-inch Full HD IPS touchscreen monitor with 2800 cd/m² brightness. Přehledný obraz, ovládací kolečko a klávesy zrychlují kontrolu záběru při práci na place i venku.

4K60 HDMI PRO PLYNULÝ WORKFLOW

HDMI 2.0 vstup a loop výstup podporují signál až 4K při 60 Hz. K dispozici jsou focus peaking, zebra, false color, waveform, vectorscope, de-squeeze a import až 20 uživatelských 3D LUT přes USB.

Dotykové ovládání Viltrox DC-A1
Viltrox DC-A1 při monitorování obrazu

NAPÁJENÍ PRO DLOUHÝ DEN

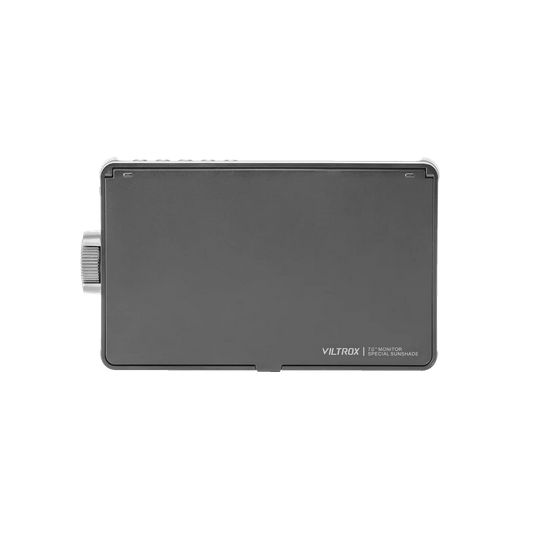

Monitor lze napájet bateriemi NP-F, USB-C nebo DC 10–18 V. Integrovaný ventilátor upravuje otáčky podle teploty; odnímatelná sluneční clona pomáhá omezit odlesky.

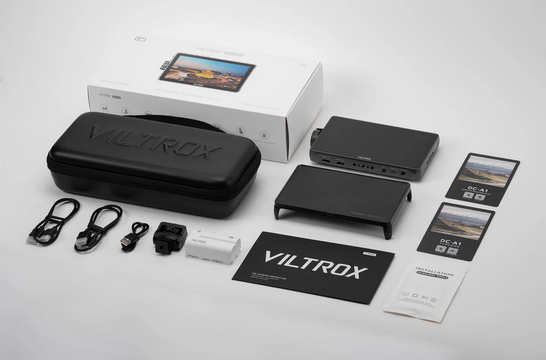

PACKAGE CONTENT

  • Monitor DC-A1 ×1
  • Odnímatelná sluneční clona ×1
  • Pan/tilt hlava ×1
  • Přepravní pouzdro ×1
  • Baterie NP-F550 ×1
  • Ochranná fólie ×1
  • USB napájecí kabel ×1
  • Mini HDMI a HDMI kabel ×1

SPECIFICATIONS

  • Panel: 7″ IPS touch, 1920 × 1080
  • Jas: 2800 cd/m²
  • Kontrast: 1000:1; 60 Hz
  • Vstup/výstup: HDMI 2.0, až 4K60
  • Barvy: sRGB, 8 bit
  • Zorný úhel: 170°
  • Napájení: NP-F, USB-C nebo DC 10–18 V
  • Zvuk: 3,5mm sluchátkový výstup
  • Hmotnost: přibližně 348 g
  • Rozměry: 187,8 × 110,5 × 28,5 mm

WE RECOMMEND

The Viltrox DC-A1 is a professional 7" monitor with an extreme brightness of 2800 nits, which requires a reliable NP-F power source and a stable mount for operation. The accessories listed below include compatible batteries, tripod equipment, and supplementary lighting to create a complete production kit.

Power and Batteries - Essential accessories for powering the monitor in the field using standard NP-F batteries.

Tripods and Stabilization - Sturdy tripods providing secure support for a camera equipped with a viewfinder monitor.

LED Lighting - Additional lights compatible with the same battery system or suitable for mounting on a camera rig.

Lighting and Flash Accessories - Light Modifiers and Other Accessories for Scene Control When Shooting with a Monitor.

Parameters

Parameters

Manufacturer: Viltrox
Category: Camera monitors

Main parameters

Size7"
Luminosity2800cd/m2
Panel resolution1920 × 1080 (Full HD)
Monitor power supplySony NP-F
