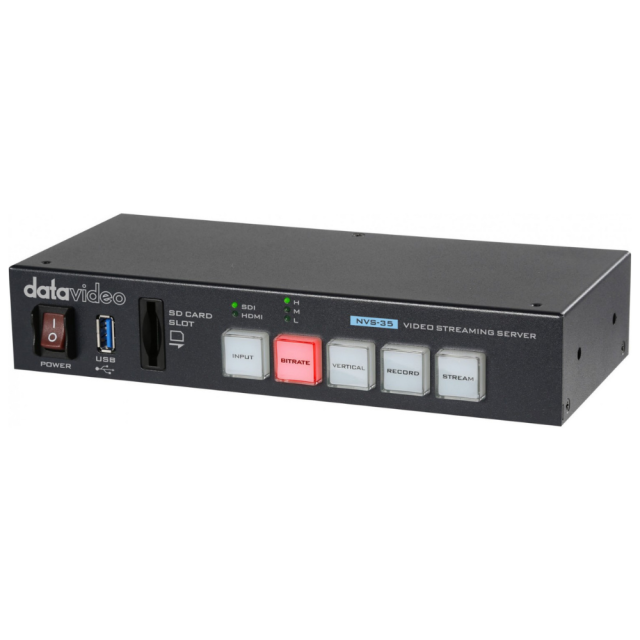

Datavideo NVS-35 H.264 Video Streaming Server

  • Free transport
SKU: 2510-8218

The Datavideo NVS-35 is a compact H.264 encoder and recorder designed for live streaming and simultaneous recording to an SD card. It connects to a source via HDMI or 3G-SDI, accepts audio through two balanced XLR inputs or an unbalanced RCA input, and allows for simultaneous streaming to two platforms. It is suitable for corporate presentations, classroom…

More information

1 269 € with VAT 1 048.76 € without VAT
Add to Compare Price history
Availability
Shipment day: 27. 10.
To be sent 1 pcs
Bratislava 1 pcs
SKU:
2510-8218
Add to Compare Price history

Top accessories for Datavideo NVS-35 H.264 Video Streaming Server

Canare DMX203 kabel 3pin 5m

Canare DMX203 3pin XLR (M) / XLR (F) cable. Custom made cable made of high quality
30 €
In stock > 5 pcs

Canare DMX203 3-pin cable, 20 m

  • LAST PIECE
Canare DMX203 3pin XLR (M) / XLR (F) cable. Custom made cable made of high quality
73 €
In stock 1 pcs

Canare DMX203 3-pin cable, 25 m

  • LAST PIECE
Canare DMX203 3pin XLR (M) / XLR (F) cable. Custom made cable made of high quality
88 €
In stock 1 pcs

Datavideo NVD-40 4K HDMI IP Video Decoder

The Datavideo NVD-40 converts a supported IP stream into video and audio output for
699 €
3-5 days

Datavideo NVD-45 4K IP Video Decoder for 12G-SDI

  • Free transport
The Datavideo NVD-45 converts an IP video stream into outputs for professional video
1 269 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo NVS-35 is a compact H.264 encoder and recorder designed for live streaming and simultaneous recording to an SD card. It connects to a source via HDMI or 3G-SDI, accepts audio through two balanced XLR inputs or an unbalanced RCA input, and allows for simultaneous streaming to two platforms. It is suitable for corporate presentations, classroom instruction, religious services, and smaller live productions where it is important to have a local recording in addition to the broadcast.

Datavideo NVS-35 – H.264 streaming encoder and recorder

Stream and record

It streams to two platforms at once while recording to an SD card. The total bitrate for recording plus two streams reaches 36 Mb/s at 1080p50/60.

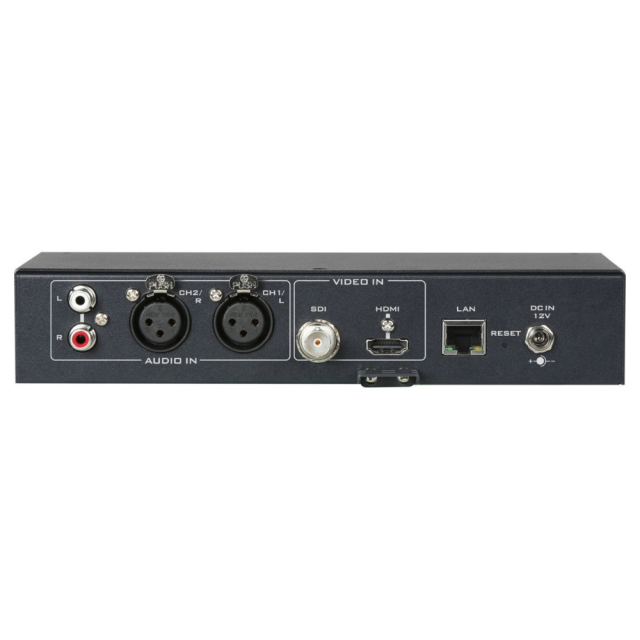

Video and Audio Inputs

Select an HDMI or 3G-SDI video input. Audio can be fed in via two balanced XLR connectors or an unbalanced RCA input; the device also supports audio embedded in the HDMI or SDI signal. Audio output can come from an embedded, external, or mixed source.

Formats, Recording, and Streaming

The encoder supports H.264 and allows recordings to be saved as MP4 or TS files on an SD card. It supports the FAT, exFAT, and NTFS file systems. Available streaming protocols include RTMP/RTMPS, RTSP, MPEG-TS over TCP/UDP, and SRT; the 9:16 vertical output facilitates publishing to mobile platforms.

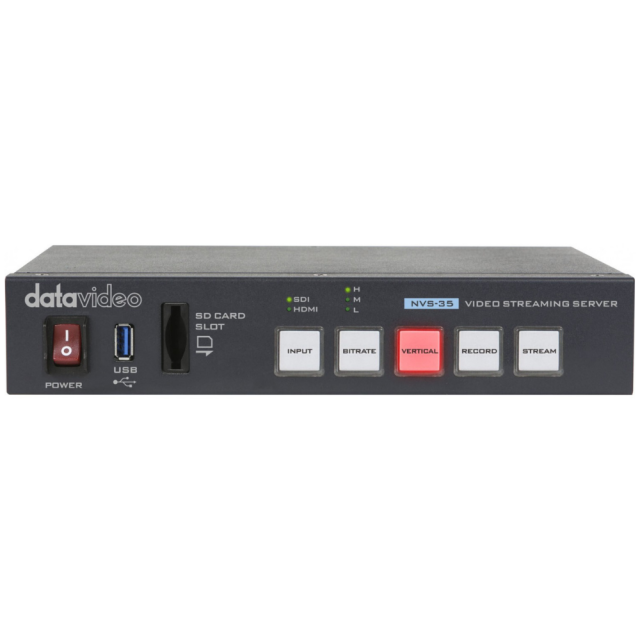

Live Operation Controls

Basic options and the start of a stream or recording are controlled using the buttons on the front panel. Detailed settings are configured via a web interface from a computer or tablet. This allows you to select the video input, target platform, and bitrate based on the available connection.

PACKAGE CONTENT

  • 1× Datavideo NVS-35
  • 1× AD Switch DC 12 V power adapter

SPECIFICATIONS

  • Video Inputs: HDMI, 3G-SDI
  • Audio inputs: 2× balanced XLR, 1× unbalanced RCA
  • Video codec: H.264
  • Video bitrates: recording only up to 16 Mb/s; streaming only up to 10 Mb/s; recording plus dual streaming up to 36 Mb/s at 1080p50/60
  • Audio: AAC-LC, stereo/mono, 48 kHz/16-bit; selectable 128/256/384 kb/s
  • Recording: MP4 or TS to an SD card; FAT, exFAT, NTFS
  • Streaming protocols: RTMP, RTMPS, RTSP, MPEG-TS (TCP/UDP), SRT
  • Simultaneous streaming: up to two platforms
  • Vertical video: 9:16
  • Supported input formats: 1080p 60/59.94/50; 1080p 30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50; 480i 59.94; 576i 50
  • Dimensions (W × H × D): 220 × 47 × 95 mm
  • Weight: 0.78 kg
  • Power supply: 12 V DC; power consumption: 12 W

WE RECOMMEND

Choose accessories according to your NVS-35 signal chain. The unit handles HDMI/3G-SDI video and balanced XLR or unbalanced RCA audio.

Rack installation

  • Datavideo RMK-1 – mounting kit for installing Datavideo equipment in a rack.

Video conversion and processing

Audio processing

Parameters

Parameters

Manufacturer: Datavideo
Category: Encoders

Main parameters

Formát/KodekH.264 / AVC
Interní záznamYes
Maximální rozlišení videa1080p60
PřipojeníEthernet (RJ-45)
ProvedeníKompaktní / Stolní
Síťové protokolyRTMP / RTMPS · SRT · RTSP / RTP · MPEG-TS
Typ napájeníDC adaptér (12V)
Video vstup enkodéruHDMI · 3G-SDI
Záznamová médiaSD karta
