RGBlink MSP 217

The RGBlink MSP 217 is a compact, all-in-one SDI-to-fiber and fiber-to-SDI converter designed for professional broadcast and AV workflows. With automatic format detection, embedded audio pass-through, and support for long-distance transmission via interchangeable SFP+ modules, it delivers stable, high-quality SDI transport over fiber in a miniature form factor.

The MSP 217 converts 3G-SDI to optical fibre and back. The same unit works as a transmitter or as a receiver, so two identical units are all a link needs. The reach depends on the chosen SFP module – from 300 m over multimode fibre up to 20 km over single-mode.

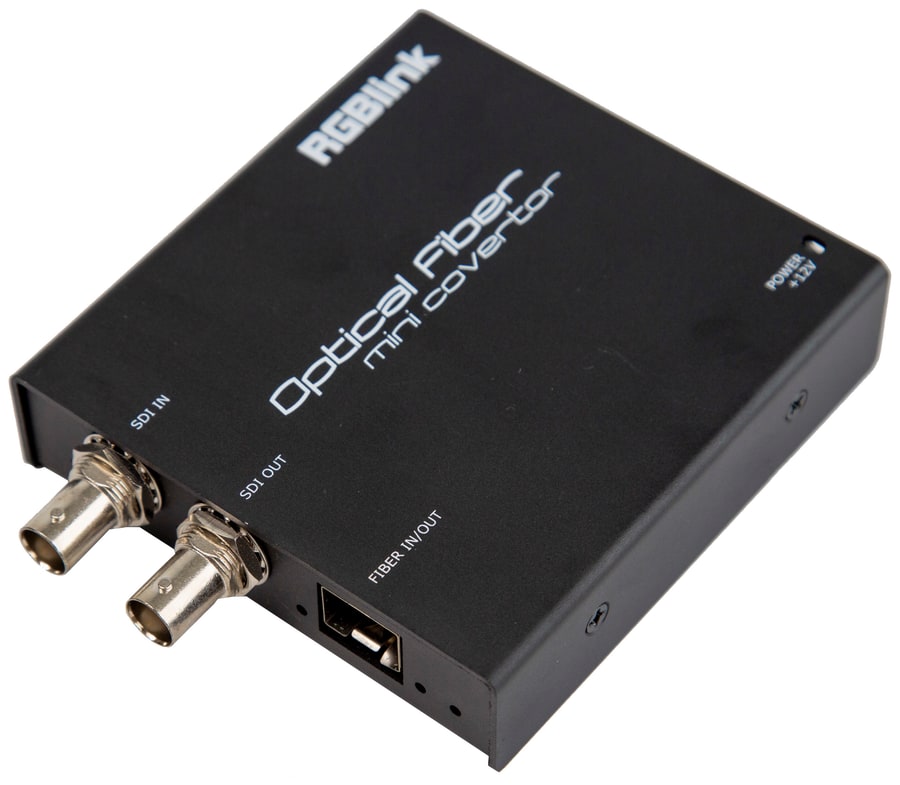

One unit, transmitter and receiver

The MSP 217 has a 3G-SDI input and output and a slot for an SFP module. It detects the input format itself, passes embedded audio through unchanged and handles SD, HD and 3G-SDI from 480i to 1080p60 to SMPTE 259M-C, 292M, 424M and 425M (Level A and B) as well as DVB-ASI. It is powered by a 12 V adapter.

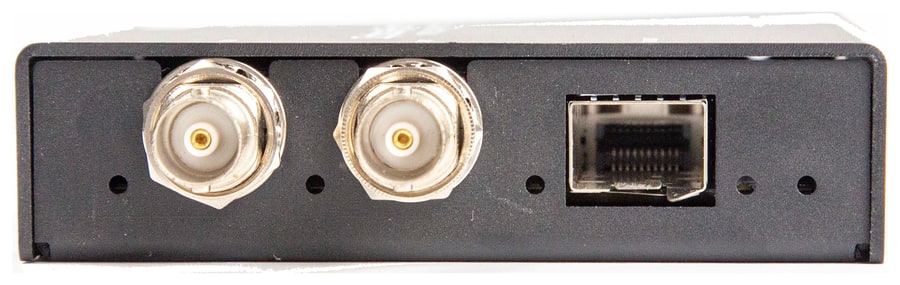

Reach set by the SFP module

The SFP module is not included and is chosen to suit the route: single-mode SFP-20KM, SFP-10KM or SFP-2KM, or multimode SFP-300M. The MSP 217 adapts itself to a 3 Gb/s or 10 Gb/s module, and the fibre connects with a duplex LC connector.

More information

The RGBlink MSP 217 is a versatile fiber transmission solution that seamlessly operates as either an SDI-to-fiber transmitter or a fiber-to-SDI receiver within a single unit. Designed for flexibility in broadcast, live events, OB vans, and AV installations, it supports a wide range of SD, HD, and 3G-SDI formats with automatic input format detection and embedded audio pass-through.

Equipped with an SFP+ fiber port, the MSP 217 automatically adapts to 3Gbps or 10Gbps SFP+ modules, enabling transmission distances that scale with the selected module—up to 20 km over single-mode fiber or 300 m over multi-mode fiber. The device ensures stable, low-latency signal transport while maintaining full compliance with major SMPTE standards including SMPTE 425M (Level A & B), 424M, 292M, and 259M-C, as well as DVB-ASI.

Its miniature size makes it ideal for space-constrained environments, while its bidirectional functionality reduces the need for separate transmitter and receiver units. The MSP 217 is an efficient, cost-effective solution for extending SDI signals over long distances without compromising signal integrity or audio synchronization.

Key Features:

• All-in-one SDI to fiber and fiber to SDI converter
• One unit functions as both transmitter and receiver
• Supports SD-SDI, HD-SDI, and 3G-SDI
• Automatic input format detection
• Embedded audio pass-through
• Auto-adjusts to 3Gbps / 10Gbps SFP+ modules
• Transmission distance up to SFP+ module capability (up to 20 km)
• Compact, miniature design
• Stable, professional-grade transmission
