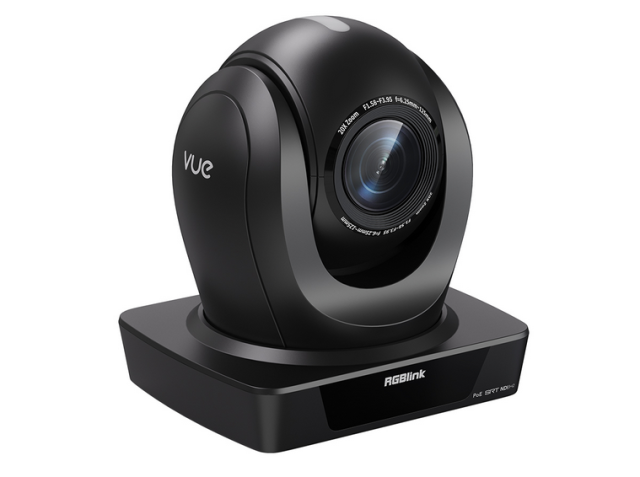

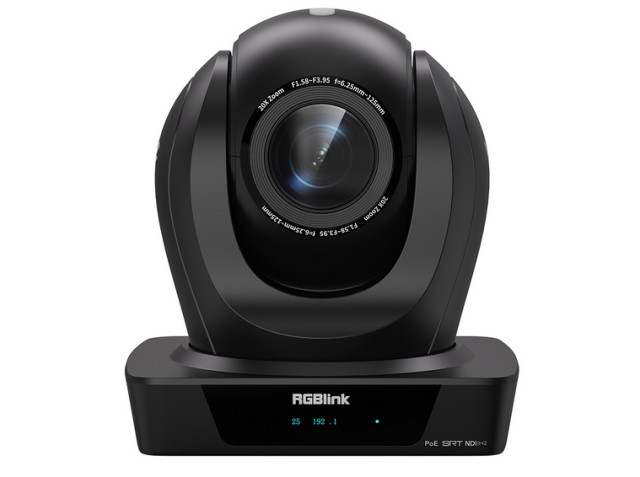

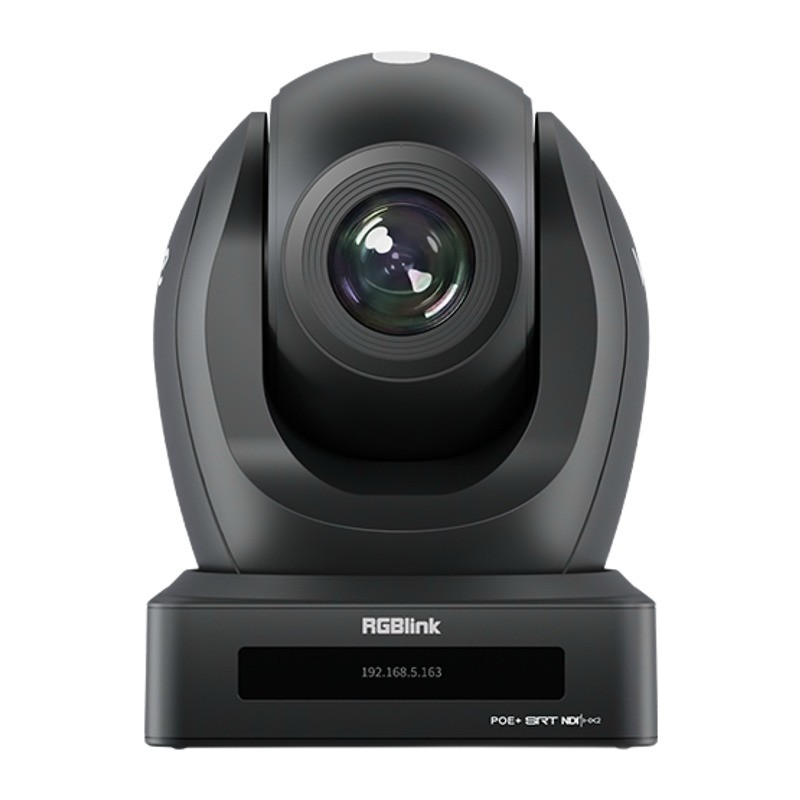

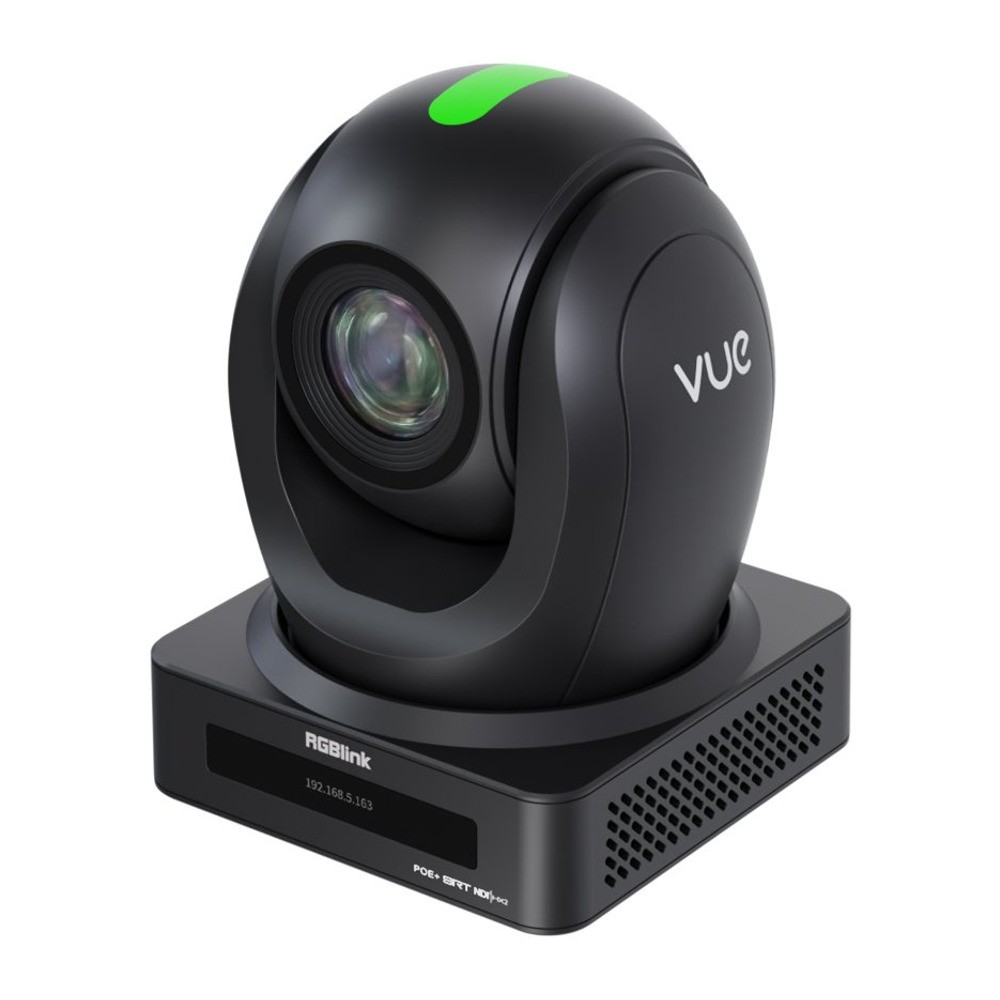

RGBlink vue PTZ camera

The RGBlink 4K Vue PTZ camera with 20x optical zoom is a high-performance camera with stable AI tracking, 4K@60 resolution, versatile output options and advanced features such as a line audio input and PoE+, making it ideal for a variety of professional applications.

The vue 4K PTZ camera with 20× optical zoom shoots 4K at 60 frames per second and follows the presenter on its own using AI tracking. It outputs simultaneously over HDMI, 3G-SDI, USB 3.0 and the network, and a single Ethernet cable with PoE+ is all it needs for power. It suits classrooms, meeting rooms, halls and live productions.

Professional PTZ camera in 4K

The Sony 1/2.8″ 8.42 MP sensor delivers 3840 × 2160 at 60 frames per second. The image processor with 2D and 3D noise reduction keeps the picture clean in dimmer light – the camera works from 0.5 lux – and the wide dynamic range copes with shots where a bright window meets a darker hall.

Lens with 20× optical zoom

Focal length 4.8–96 mm, aperture F1.8–F2.9 and horizontal field of view 60.04°–3.81° – from the whole room down to a close-up of a face. On top of the optical zoom the camera adds 16× digital zoom and focuses automatically, manually or at one press.

Three zoom ranges in one series

The vue 4K series comes with 12×, 20× and 30× lenses. The shorter zoom covers a meeting room or classroom, the longer one reaches across a whole hall. This camera has 20× optical zoom.

Connections and power

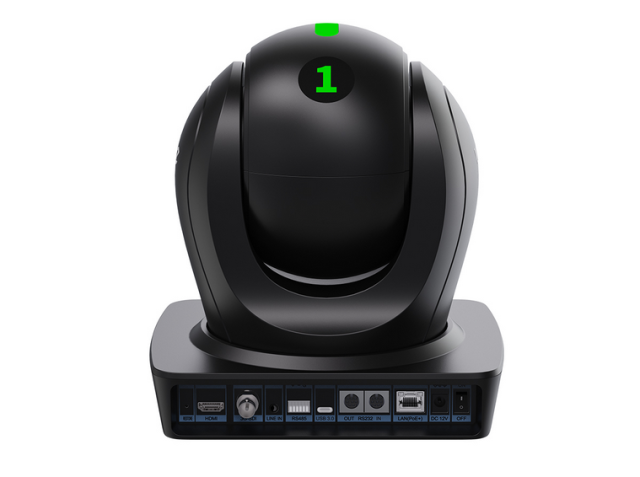

The rear panel has HDMI, 3G-SDI (1080p60 up to 100 m), USB 3.0 with UVC and UAC for video conferencing, gigabit LAN with PoE+, a 3.5 mm line input, RS232 in and loop-through out, and RS485. Over the network the camera streams H.264 or H.265 via RTSP, RTMP and SRT. It is powered over PoE+ or from the supplied 12 V adapter and is controlled with VISCA, Pelco-D, Pelco-P and VISCA over IP.

For teaching, conferences and live production

The camera is designed for indoor use – classrooms and lecture halls, meeting rooms and conference halls, hospitals, courtrooms and control rooms. It mounts on a ceiling or wall via the 1/4″-20 UNC thread in its base; a mounting bracket is not included.

More information

The RGBlink Vue PTZ camera is a versatile and feature-rich camera designed for professional video production and streaming. It features stable tracking with artificial intelligence and provides smooth object focusing during dynamic movements. With up to 3840×2160@60 resolution, the Vue delivers stunning 4K image clarity, even in challenging lighting conditions, thanks to its wide dynamic range (WDR) and low-light performance.

Offering multiple output options including 3G-SDI, HDMI, USB 3.0 and network streaming, the camera can be easily integrated into a variety of setups. The dual H.265/H.264 bitstreams adapt to different network environments and ensure optimal live streaming quality.

The Vue PTZ camera features pan and tilt controls for versatile capture, a 3.5 mm line input for clear audio recording, and TALLY support for on-set communications. Its support for Power-over-Ethernet (PoE+) technology simplifies installation and reduces cabling. A power-saving sleep mode feature increases energy efficiency when the camera is not in use, making it a reliable and environmentally friendly choice.

Ideal for broadcast, conferencing, education and live events, the RGBlink Vue PTZ camera offers exceptional performance, flexibility and ease of use.

Key Features:

• AI-powered tracking: Robust AI technology for accurate object tracking.
• 4K resolution: up to 3840 × 2160@60 for stunning clarity and detail.
• Low-light performance: Wide dynamic range and high sensitivity for challenging environments.
• Versatile outputs: 3G-SDI, HDMI, USB 3.0 and LAN.
• Dual Stream: H.265/H.264 encoding for optimized network performance.
• Audio input: 3.5 mm line input for clear audio recording.
• PTZ control: Smooth pan and tilt control for dynamic capture.
• Power over Ethernet (PoE+): Simplifies installation with fewer cables.
• TALLY support.
• Energy efficiency: low-power sleep mode for eco-friendly operation.
