RGBlink RGB12X-UNAI-OL

Vue UHD PTZ with 12x optical zoom increases HDMI/RTSP output resolution up to 4K@60Hz. It supports real-time AI tracking of faces, figures and zones, and now also offers output via USB 3.0 and NDI|HX2 to meet the growing demands for remote video conferencing and live streaming.

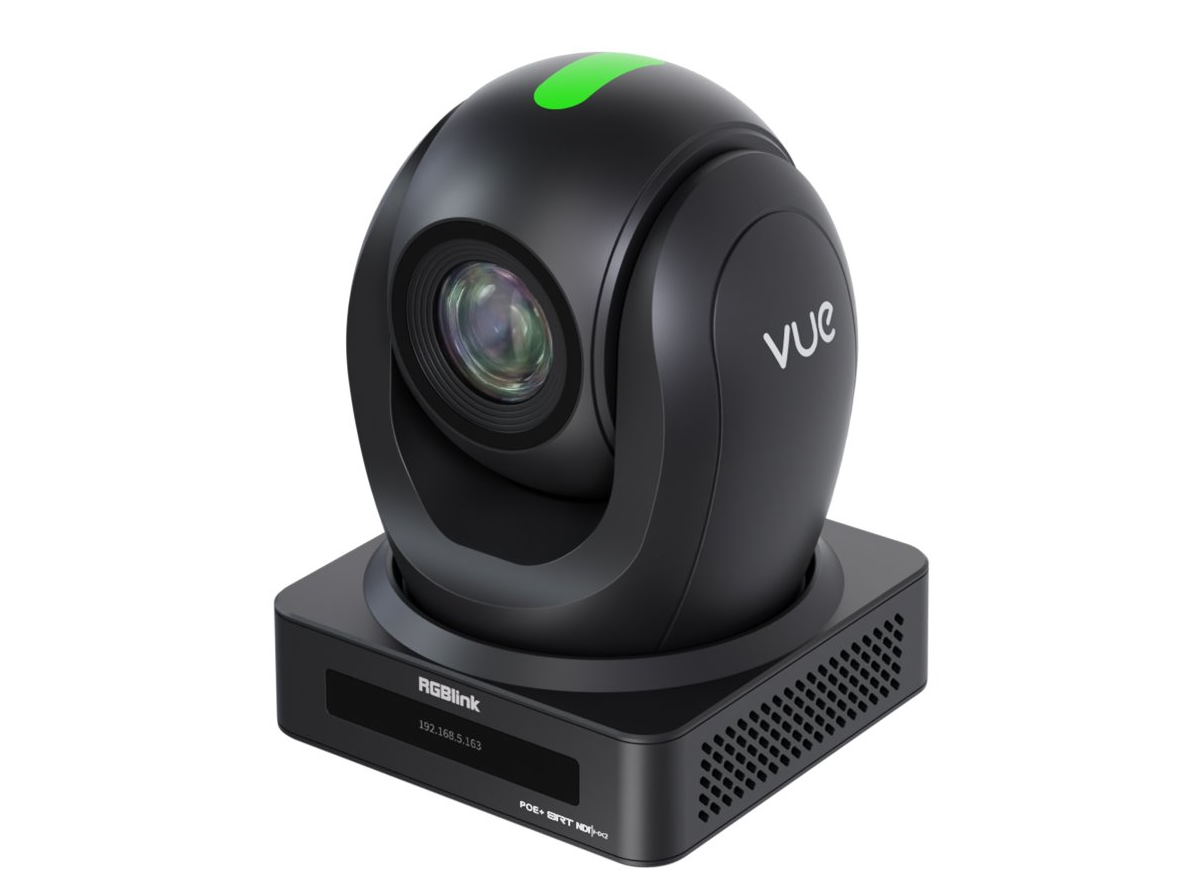

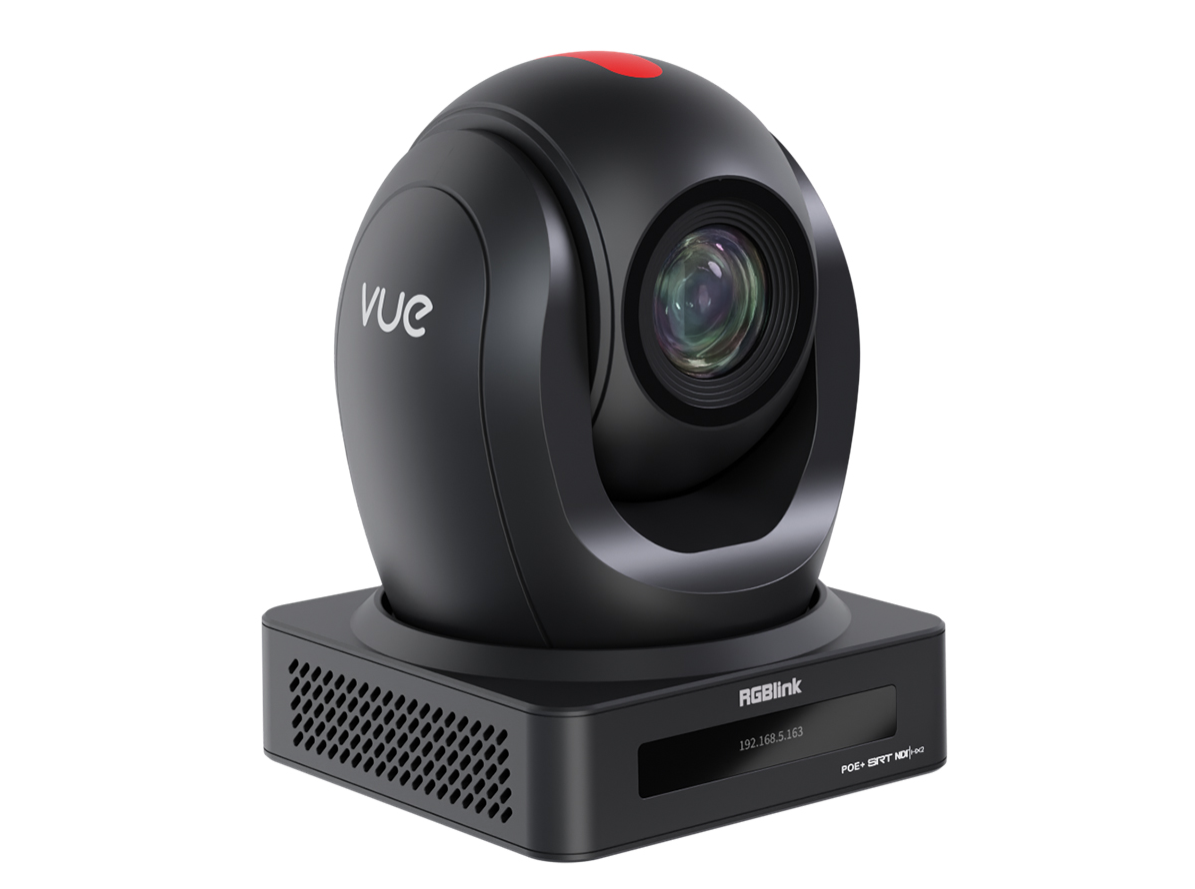

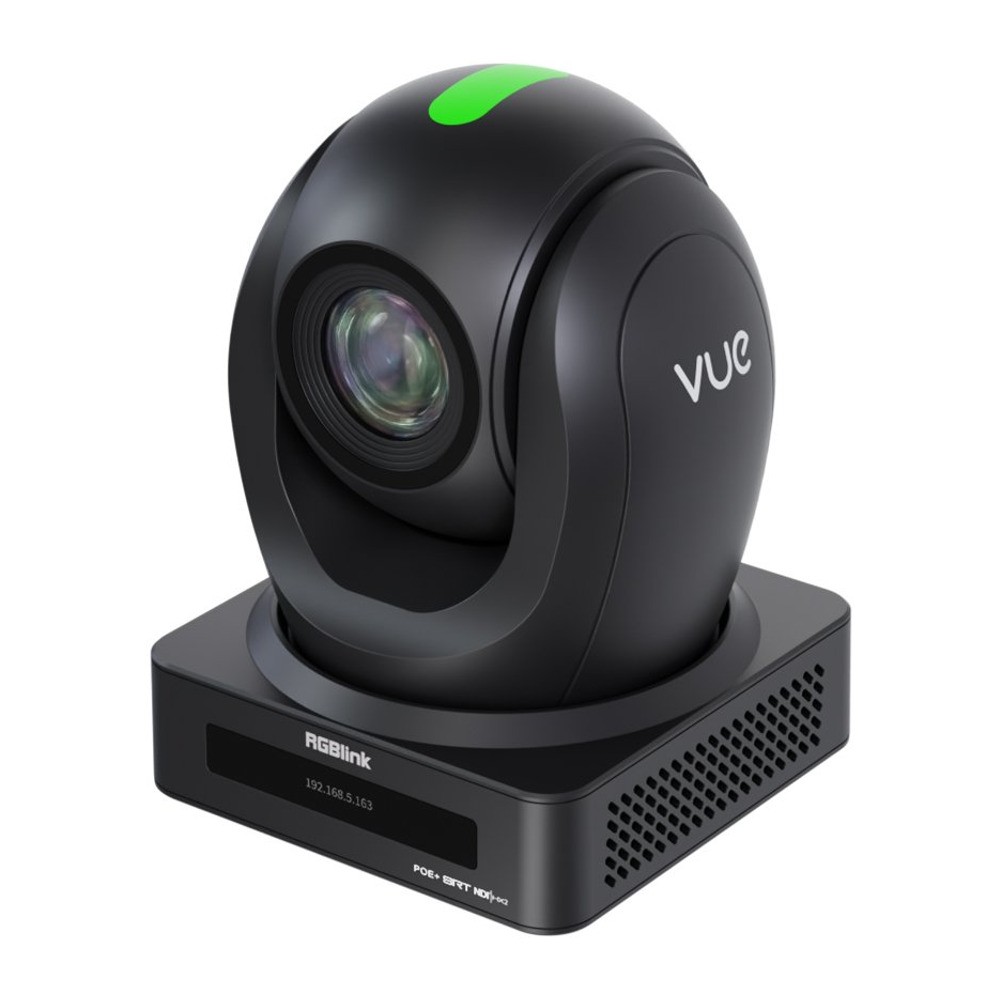

The vue 4K PTZ camera with 12× optical zoom shoots 4K at 60 frames per second and follows the presenter on its own using AI tracking. It outputs simultaneously over HDMI, 3G-SDI, USB 3.0 and the network – including NDI, and a single Ethernet cable with PoE+ is all it needs for power. It suits classrooms, meeting rooms, halls and live productions.

Professional PTZ camera in 4K

The Sony 1/2.8″ 8.42 MP sensor delivers 3840 × 2160 at 60 frames per second. The image processor with 2D and 3D noise reduction keeps the picture clean in dimmer light – the camera works from 0.5 lux – and the wide dynamic range copes with shots where a bright window meets a darker hall.

Lens with 12× optical zoom

Focal length 4.1–49.2 mm, aperture F1.8–F2.68 and horizontal field of view 70.4°–6.72° – from the whole room down to a close-up of a face. On top of the optical zoom the camera adds 16× digital zoom and focuses automatically, manually or at one press.

Three zoom ranges in one series

The vue 4K series comes with 12×, 20× and 30× lenses. The shorter zoom covers a meeting room or classroom, the longer one reaches across a whole hall. This camera has 12× optical zoom.

NDI for network production

The UNAI version also sends video to the network as NDI, so any NDI-capable switcher or software finds it – no capture card, just one cable that also powers the camera over PoE+. The picture is also available over RTSP, RTMP, SRT and ONVIF, and the camera is controlled over the network with VISCA over IP.

Connections and power

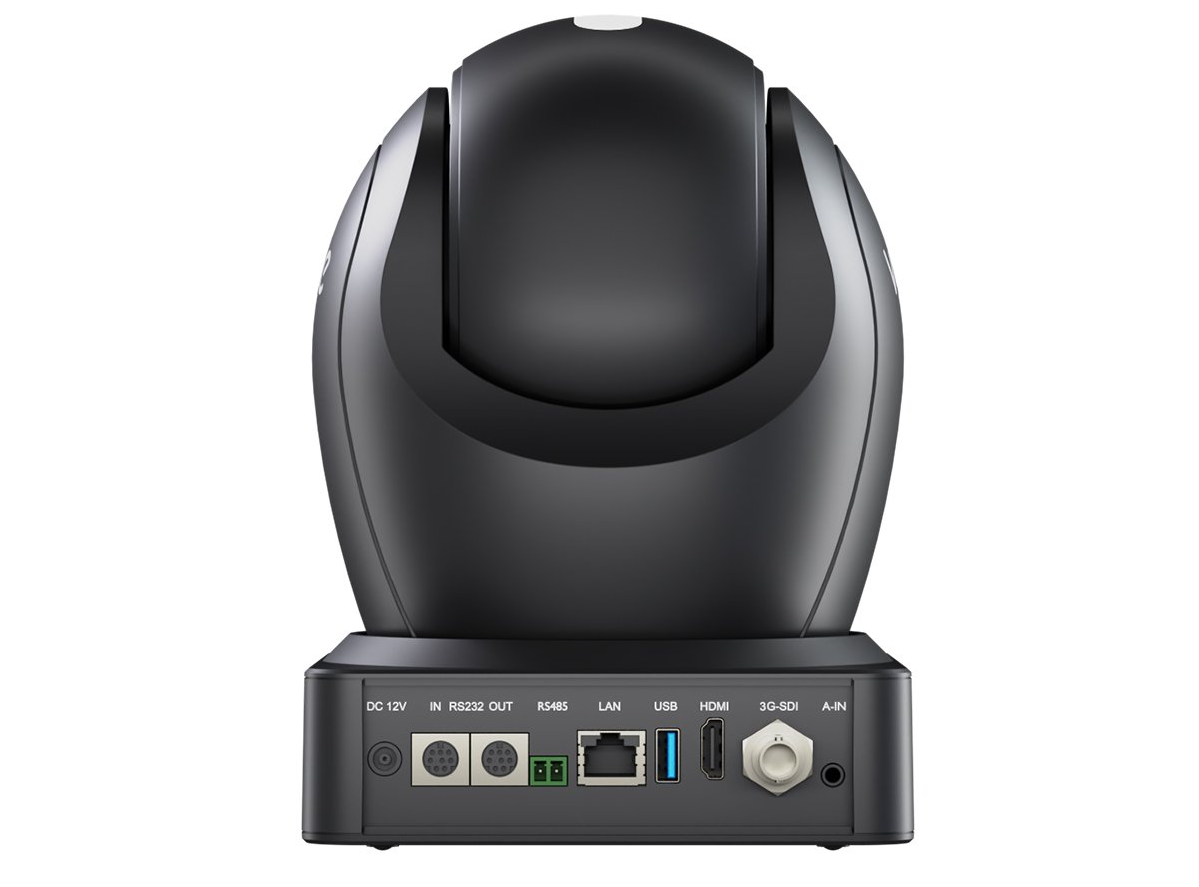

The rear panel has HDMI, 3G-SDI (1080p60 up to 100 m), USB 3.0 with UVC and UAC for video conferencing, gigabit LAN with PoE+, a 3.5 mm line input, RS232 in and loop-through out, and RS485. Over the network the camera streams H.264 or H.265 via RTSP, RTMP and SRT. It is powered over PoE+ or from the supplied 12 V adapter and is controlled with VISCA, Pelco-D, Pelco-P and VISCA over IP.

For teaching, conferences and live production

The camera is designed for indoor use – classrooms and lecture halls, meeting rooms and conference halls, hospitals, courtrooms and control rooms. It mounts on a ceiling or wall via the 1/4″-20 UNC thread in its base; a mounting bracket is not included.

More information

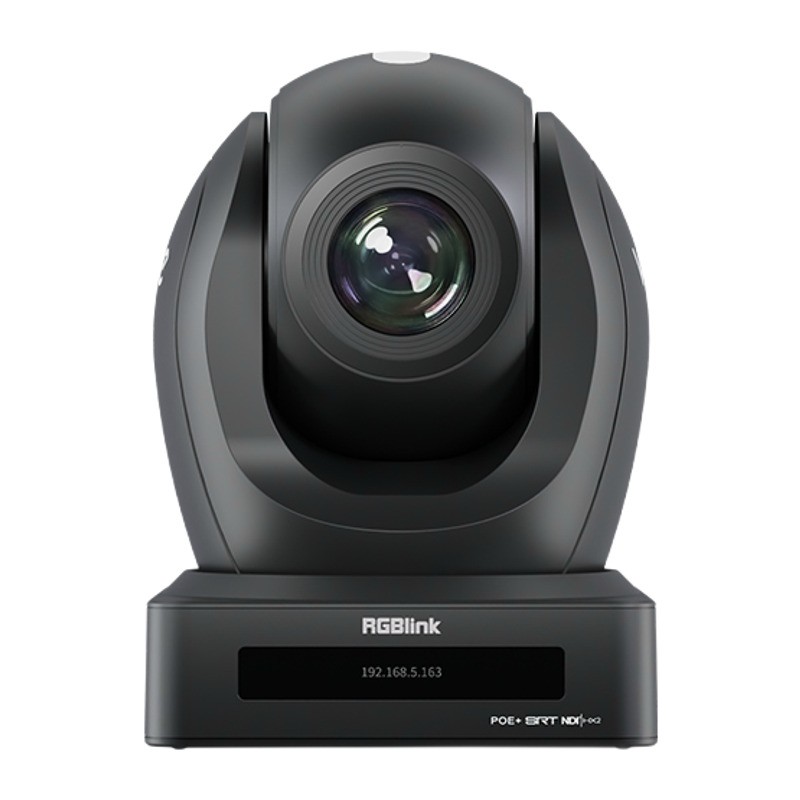

The front panel features an OLED display that shows the current resolution and IP information for better camera management.

The NDI-enabled version features NDI|HX2, which delivers higher video quality and lower latency during network streaming - meeting the high-end performance requirements of professional users.

Like its "sibling" vue 4K, which boasts a unique 360° visible TALLY indicator and identification plate (resistant to interference during device switching), vue's innovative RGBlink camera design with patented technology adapts seamlessly to any environment. It uses high-end UHD CMOS sensors with AI processors for superior performance.

Key Features:

• Ultra HD image with 1/2.8" 8.42MP sensor, 3840 × 2160 resolution at 60 frames per second
• AI tracking with face/person recognition - ideal for classrooms and meetings
• 12x optical zoom lens
• RS485/RS232 control (RS232 supports device chaining)
• Advanced autofocus for fast, accurate and stable focusing
• Supports VISCA/PELCO-D/P protocols with automatic detection
• Low-noise CMOS sensor with 2D/3D noise reduction for high signal-to-noise ratio and clear images
• Silent gimbal with precision stepper motor for smooth and quiet operation
• HDMI/SDI/USB/LAN outputs (optional POE+), SDI supports 1080P60 up to 100m
• Low power sleep mode - under 400 mW
• H.265/H.264 video and AAC/G.711A audio compression up to 4K@60fps
• Up to 255 presets (10 directly accessible via remote)
• AAC audio input (16-48 kHz) and G.711A support (8 kHz)
• Infrared remote control (interference-resistant, pass-through signal)
• Support for ONVIF/RTSP/RTMP, RTMP push and VISCA control
• Ideal for education, conferencing, healthcare, courtrooms and control systems
