RGBlink ASK nano (1TX+1RX)

RGBlink ASK nano puts the power of collaboration in your pocket with HDMI sticks and dongles that make screen sharing for laptops, tablets and mobile devices more convenient than ever. ASK nano makes wireless video sharing possible anytime and anywhere.

A pair of HDMI sticks carries the picture from a laptop to a TV or projector without a cable across the room: the transmitter plugs into the HDMI output of the computer, the receiver into the input of the display, and the Full HD picture appears by itself. There is nothing to install or configure.

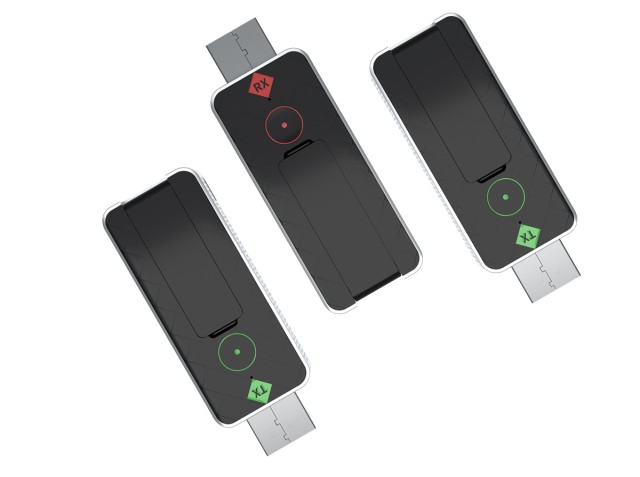

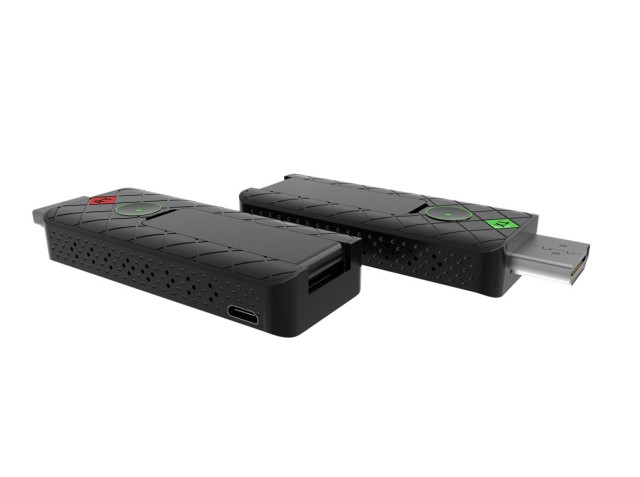

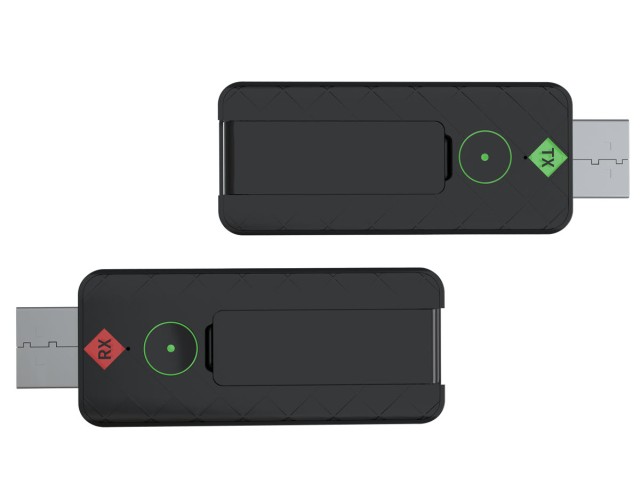

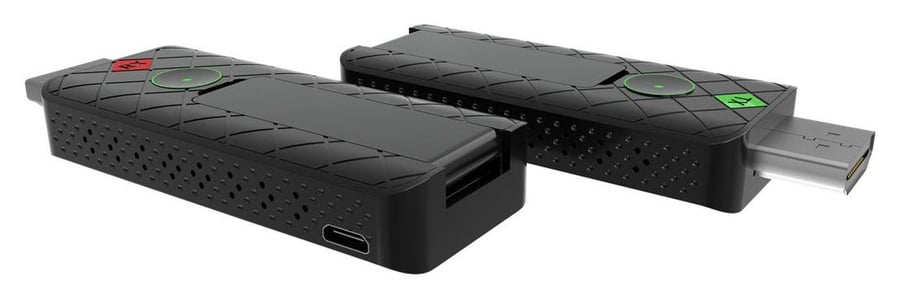

Transmitter and receiver as HDMI sticks

The transmitter (TX) and receiver (RX) measure 73.8 × 32 × 13 mm and weigh 26–27 g. They are powered via micro USB at 5 V / 500 mA with a maximum of 2.5 W, so the transmitter usually runs from the laptop’s USB port and the receiver from the TV’s. The set needs no drivers or app and shares the screen from Windows, macOS, iOS and Android.

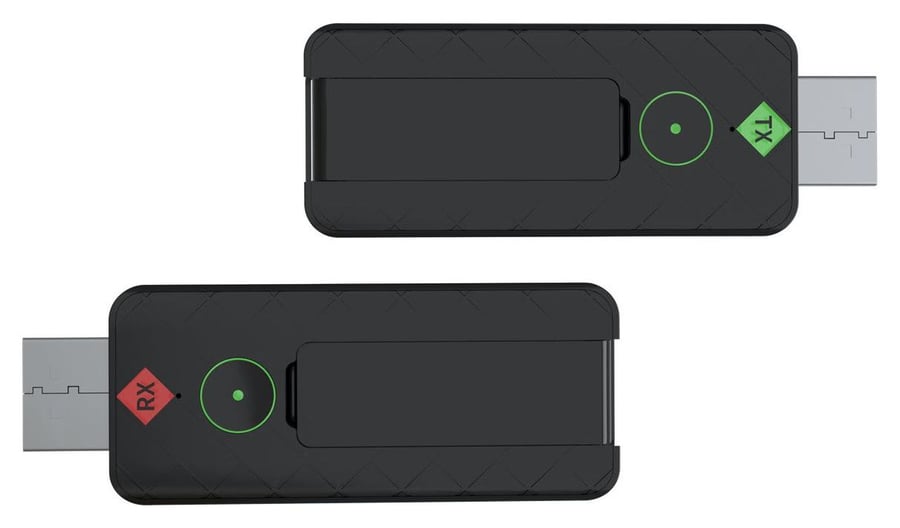

Wide compatibility

The transmitter accepts video from any source with an HDMI output – a computer, laptop, set-top box, camera or RGBlink mini mixer. The receiver plugs into a TV, projector, monitor or HDMI splitter. Paired with the RGBlink mini-pro mixer, the set works as a wireless camera input for live streaming without cables across the room.

Projection anywhere

The sticks fit in a pocket, so the set serves in a meeting room, a classroom, a church or outdoors for an evening screening. The laptop and display can be up to 40 m apart. The picture is carried uncompressed in full colour, together with the audio embedded in HDMI.

1080p60 video over HDMI 1.3

The transmitter accepts 720 × 480 and 720 × 576 at 50/60 Hz and 1920 × 1080 at 24/30/50/60 Hz, and the receiver outputs up to 1920 × 1080 at 60 Hz over HDMI 1.3. Both sticks operate at 0 to 70 °C and 10–85 % humidity.

More information

• Up to 40m between laptop and connected display
• Self-powered on most laptops
• Compact and discrete
• Plug-and-Play – no drivers required
• Support for Windows, macOS, iOS and Android screen sharing
• Low latency
• ASK nano support audio transmission (HDMI embedded)

Simply connect a compact ASK nano TX transmitter to a Windows or macOS computer for fast, driver free connection to an ASK nano RX receiver display – no lag, high frame rate, full rich colour video without compression.
