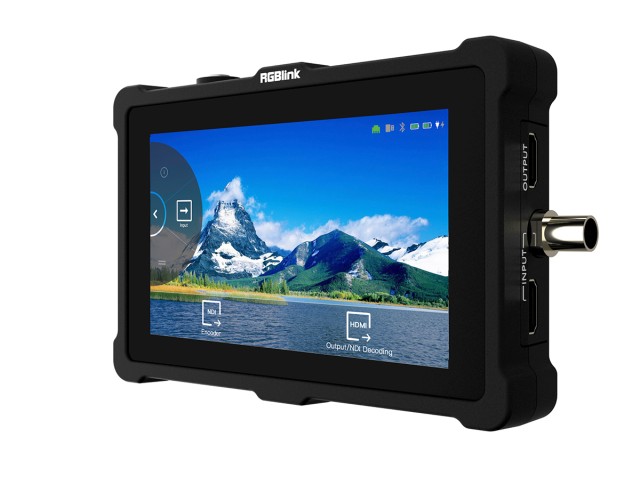

RGBLink TAO 1pro SDI
SKU: TAO 1pro-SDI
The RGBlink TAO 1pro SDI is a portable NDI encoder and decoder with a 5.5-inch Full HD touchscreen. Besides an HDMI 1.3 input and two USB 3.0 inputs for UVC cameras, it has a professional SDI input (BNC), so it can also put the picture from a professional camera on the network. The HDMI 2.0 output handles up to 3840 × 2160 at 60 Hz; power…
Promotion: -11%
878.9 €
779.78 € with VAT
644.45 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 4 pcs
Praha 4 pcs
Praha 4 pcs
Top accessories for RGBLink TAO 1pro SDI
SmallRig NP-F970 Battery and Charger Kit 3823
Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs
RGBlink RGB20X-UPAI-OL
Vue UHD PTZ with 20x optical zoom increases HDMI/RTSP output resolution up to 4K@60Hz.
1 429 €
In stock 3 pcs
Sony NP-F970
Sony NP-F970 is the largest-capacity (and largest) lithium-ion L-series battery for
209 €
Backordered > 5 pcs
RGBlink RGB12X-UPAI-OL
Vue UHD PTZ with 12x optical zoom increases HDMI/RTSP output resolution up to 4K@60Hz.
1 429 €
In stock 2 pcs
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The RGBlink TAO 1pro SDI is a portable NDI encoder and decoder with a 5.5-inch Full HD touchscreen. Besides an HDMI 1.3 input and two USB 3.0 inputs for UVC cameras, it has a professional SDI input (BNC), so it can also put the picture from a professional camera on the network. The HDMI 2.0 output handles up to 3840 × 2160 at 60 Hz; power comes via USB-C or from a battery.
A camera with SDI output, a webcam and a computer meet in one tablet-sized device. You watch the picture on the screen, send it to the network as NDI and record it to a USB drive.
SDI input for professional cameras
The TAO 1pro SDI accepts the signal from a professional camera via a BNC connector, alongside an HDMI 1.3 source and two UVC cameras using USB 2.0 or USB 3.0. The built-in encoder sends the picture to the network as an NDI source, and the HDMI 2.0 output feeds a monitor or projector.
Touchscreen and NDI decoder
The 5.5" display with 1080 × 1920 pixels and 450 cd/m² brightness is used for preview and for fingertip setup. The NDI decoder works the other way round: it receives a stream from the network and sends it to the HDMI output. Picture rotation on the screen and on the HDMI output is set independently, and the built-in speaker lets you check the sound.
Power from USB-C or a battery
It is powered via USB-C with PD support (9 V / 2 A, max. 18 W). The back carries a standard battery slot for Sony NP-F970 and Panasonic AG-VBR59MC batteries; the standard version ships without a battery. Audio goes through the 3.5 mm jack input and output, recording through the USB 2.0 port.
More information
TAO 1pro-S is an NDI encoder/decoder with a 5.5-inch FHD preview display, which also comes with 1 professional SDI input, 1 HDMI 1.3 input and 2 USB 3.0 inputs.
TAO 1pro-S is compatible with standard USB 2.0 and USB 3.0 cameras via the UVC protocol.
TAO 1pro-S has a touch panel for configuration with a fingertip and can take two optional rechargeable batteries that extend its operation outdoors.
PACKAGE CONTENT
- RGBlink TAO 1pro SDI
SPECIFICATIONS
- Video inputs: 1× HDMI 1.3 (HDMI-A), 1× SDI (BNC), 2× USB 3.0 (USB-A, UVC cameras)
- Video output: 1× HDMI 2.0 (HDMI-A)
- Recording: 1× USB 2.0 (USB-A)
- Audio: 1× 3.5 mm jack input and 1× output, built-in speaker
- Network: 1× RJ45 (LAN), NDI encoding and decoding
- Power: 1× USB-C (PD), 9 V / 2 A, max. 18 W
- Battery: slot for Sony NP-F970 and Panasonic AG-VBR59MC, battery not included
- HDMI input resolutions (SMPTE): 720p at 50/60 Hz, 1080p at 23/24/60 Hz
- HDMI input resolutions (VESA): 1024×768, 1280×720, 1280×800, 1280×1024, 1360×768, 1600×1200, 1680×1050 and 1920×1080, all at 60 Hz
- HDMI output resolutions (SMPTE): 720p at 50/60 Hz, 1080p at 24/25/50/60 Hz, 2160p at 60 Hz
- HDMI output resolutions (VESA): 1024×768, 1280×800, 1280×1024 and 1360×768 at 60 Hz; 1280×720 and 1920×1080 at 50/60 Hz; 3840×2160 at 60 Hz
- Standards: HDMI 1.3 (input), HDMI 2.0 (output), USB 3.0
- Display: 5.5" TFT, 1080 × 1920 pixels, 16:9 aspect ratio, LED backlight
- Dot pitch: 0.063 × 0.021 mm (H × W)
- Brightness and contrast: 450 cd/m², 1000:1
- Viewing angle: 80°/80° left/right, 80°/80° up/down
- Operating temperature and humidity: 0–55 °C, 5–85 %
- Weight: 350 g without battery, 882 g with battery; packed 770 g
- Dimensions: 161 × 106 × 36 mm; package 255 × 145 × 85 mm
- Interlaced (i) signals are not supported on input or output
- Changing the signal format requires a restart
- Encoding and decoding latency depends on the network
ARTICLES
WE RECOMMEND
The RGBLink TAO 1pro SDI is a versatile 5.5" monitor, recorder, and NDI encoder/decoder equipped with SDI and HDMI inputs and powered by Sony NP-F batteries. To fully utilize its potential in live streaming and production, it is recommended to pair it with compatible PTZ cameras, wireless video transmission systems, and professional production control systems, all of which can be monitored and controlled through this device.
PTZ Cameras - Professional cameras with SDI, HDMI, and NDI outputs that can be easily connected to the TAO 1pro SDI for monitoring and control.
- RGBlink vue PTZ camera
- RGBlink vue PTZ 2K 20X NDI Camera with TALLY (PoE Support)
- RGBlink RGB12X-PAI-OL
- RGBlink RGB30X-UPAI-OL
- RGBlink RGB12X-UPAI-OL
- RGBlink RGB20X-NAI-OL
- RGBlink RGB20X-UNAI-OL
- RGBlink RGB20X-PAI-OL
- RGBlink RGB20X-UPAI-OL
Wireless Video Transmission - Systems for wireless transmission of HDMI signals to the TAO 1pro monitor for flexible, cable-free production.
- RGBLink ASK nano 4K (1TX+2RX)
- RGBlink ASK nano 4K (1T1R)
- RGBlink ASK nano 4K (USB-C)
- RGBlink ASK nano (1TX+1RX)
Production Control Rooms - Powerful control rooms compatible with TAO 1pro that expand the capabilities for switching and streaming multiple signal sources.
Mounting Accessories - Accessories for fixed installation of PTZ cameras within a camera chain controlled via TAO 1pro.
Parameters
| Manufacturer: | RGBlink |
| Category: | Field recorders / Monitors |
Main parameters
| Audio inputs | 3.5 mm jack |
| Display aspect ratio | 16:9 |
| Video outputs | HDMI 2.0 |
| Size | 5.5" |
| Monitor inputs | HDMI · SDI |
| Luminosity | 450cd/m2 |
| Panel resolution | 1920x1080 |
| Recording medium | HDD |
| Monitor power supply | Sony NP-F · USB-C |
Other parameters
| Weight | 350g |
| Display type | LCD |
| Other features | Touchscreen · rekordér |
