SKU: Cinelive C2S

The CineTreak Cinelive C2S is a compact hybrid switcher with four HDMI and four 3G-SDI inputs, a 5.5″ display, HDMI and SDI outputs, H.264 recording, streaming to two RTMP destinations and control of up to four PTZ cameras via VISCA IP. HDMI and SDI sources can be mixed, and the switcher handles four at a time.

More information

769 € with VAT 635.54 € without VAT
Add to Compare Price history
Availability
Backordered 1 pcs
SKU:
Cinelive C2S
Add to Compare Price history

CineTreak Cinelive C2

In stock 1 pcs659 €without VAT 544.63 €

Top accessories for CineTreak Cinelive C2S

Exascend 64GB Catalyst UHS-I SDXC Memory Card

  • 5 years warranty!
The Catalyst SDXC UHS-I memory card with V30 speed class reads at up to 180 MB/s
43 €
In stock > 5 pcs

Infinitek L-2.5CHWS 10m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
33 €
In stock 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs

CINETREAK NDI License Key

  • New
NDI License key
87 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The CineTreak Cinelive C2S is a compact hybrid switcher with four HDMI and four 3G-SDI inputs, a 5.5″ display, HDMI and SDI outputs, H.264 recording, streaming to two RTMP destinations and control of up to four PTZ cameras via VISCA IP. HDMI and SDI sources can be mixed, and the switcher handles four at a time.

HDMI and 3G-SDI in one compact desk

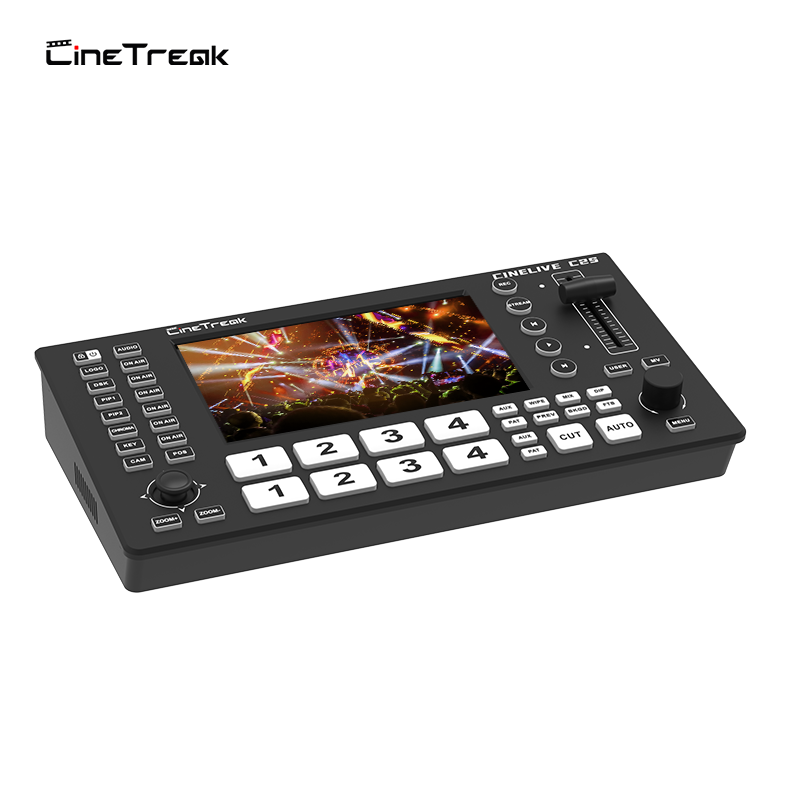

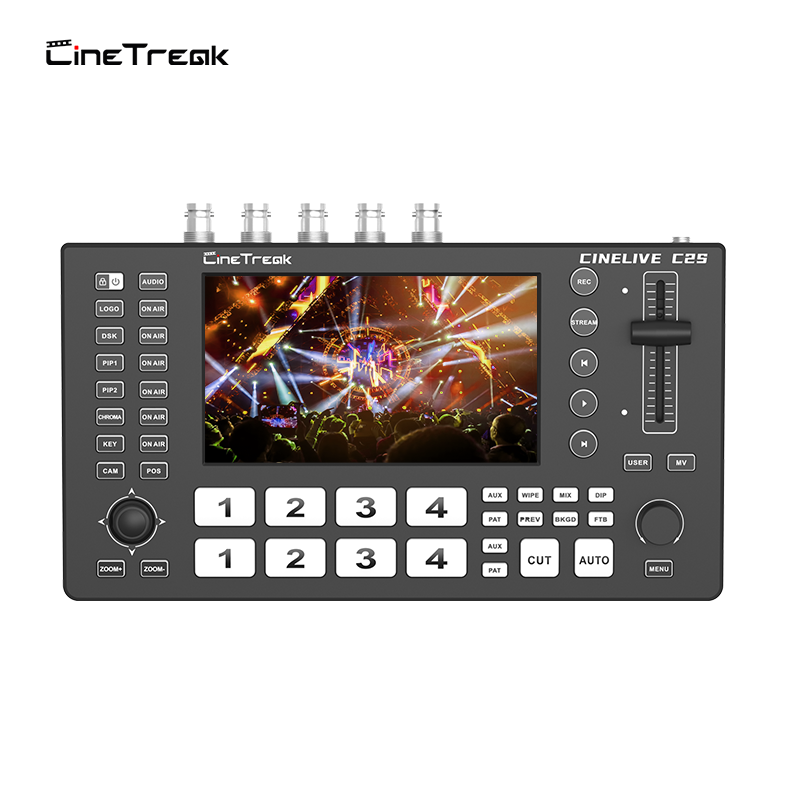

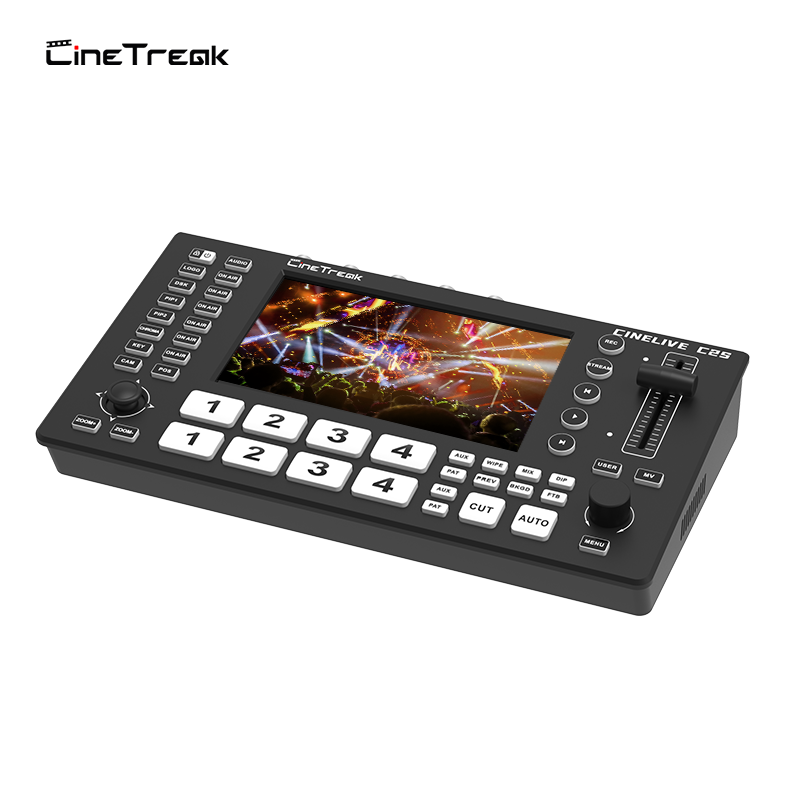

HDMI and BNC connectors side by side, physical buttons, a T-Bar and a joystick: the Cinelive C2S replaces signal converters and a separate PTZ camera controller in a compact body with an aluminium panel.

4× HDMI + 4× 3G-SDIHDMI 1–2 up to 4K605.5″ display2× RTMPSDI PGMOptional NDI

HDMI and SDI without converters

Each of the four channels accepts HDMI or SDI, so one production can combine HDMI cameras with professional SDI camcorders.

Up to 8 layers in PGM

Luma key, chroma key, two PIP windows, POP, DSK and two logos in one output.

20% lower power consumption

The new generation uses 20% less power than previous Cinelive models.

Down Streaming

Add video from an online source, SD card or the background input to the programme without interrupting the broadcast.

Optional NDI

NDI network video is a paid upgrade activated with a licence key.

Four HDMI or SDI channels

Each of the four input channels has both an HDMI and a 3G-SDI (BNC) connector. HDMI and SDI sources can be mixed, and the switcher handles up to four at a time. HDMI inputs 1 and 2 accept up to 4K60 (HDMI 2.0).

CineTreak Cinelive C2S – Four HDMI or SDI channels

Two streams and a webcam

The built-in encoder streams over Ethernet directly to two RTMP destinations at once without a computer. The USB-C (UVC) port connects the switcher to a computer as a webcam for OBS, vMix, Teams, Zoom or Skype.

CineTreak Cinelive C2S – Two streams and a webcam

Recording to SD card or USB

Record the programme in H.264 to an MP4, TS or FLV file on an SD card or USB drive and play the recording back instantly – even during a live broadcast.

CineTreak Cinelive C2S – Recording to SD card or USB

DSK, chroma key and logos

Chroma key and luma key create a virtual studio, and the DSK downstream key adds subtitles, a logo or graphics to the live and recorded picture.

CineTreak Cinelive C2S – DSK, chroma key and logos

PIP and POP

Two PIP windows and POP mode with adjustable size, position, zoom and cropping – for interviews, presentations and game streams with a camera.

CineTreak Cinelive C2S – PIP and POP

PTZ camera control

Via the VISCA IP protocol the switcher controls up to four PTZ cameras – zoom, focus and stored positions – with the five-way joystick and ZOOM buttons right on the panel.

Media library for your own show

The built-in library holds 16 default patterns, 16 imported and 16 captured images and two colour generators. Add more images, logos and videos via USB.

Landscape and portrait mode

The switcher broadcasts in classic 16:9 landscape or 9:16 portrait. After switching to portrait mode, simply connect cameras turned upright and the stream is ready for mobile platforms.

Meeting mode and AUX output

The HDMI AUX output shows a preview of any channel or several windows at once. Meeting mode shows four inputs simultaneously – ideal for hybrid conferences and teaching.

Connectors on the rear panel

From the left: DC 12 V power, LAN, SD card slot, USB-C (UVC), USB-A, HDMI PGM and AUX outputs, HDMI inputs 4 to 1, two microphone inputs and a 3.5 mm output. Above them sit the SDI OUT output and SDI inputs 1 to 4 (BNC).

CineTreak Cinelive C2S – Connectors on the rear panel

Typical setup

Connect HDMI or SDI cameras to the four channels, another source to the AUX input, plus microphones and headphones. The programme goes to the PGM and AUX outputs, to two RTMP streams, to a computer over USB-C (UVC) and to the recording.

CineTreak Cinelive C2S – Typical setup

More information

The CineTreak Cinelive C2S offers eight input connectors (4× HDMI and 4× 3G-SDI, up to four sources at a time), a 5.5″ monitor, hardware switching, recording, streaming and PTZ camera control in a portable aluminium body. The 3G-SDI inputs suit longer cable runs, HDMI 1 and 2 accept up to 2160p60, and the SDI inputs work with 3G Level A YCbCr 4:2:2 10-bit signals. The programme can be sent over HDMI PGM and SDI PGM at the same time.

Feature overview:

  • Up to 8 layers in PGM: PIP, logos, DSK and keying in one output
  • Chroma key and luma key for a virtual studio and creative compositions
  • More than 30 transitions, T-Bar, AUTO and instant CUT
  • Built-in media: videos, images, logos and custom backgrounds
  • H.264 recording to SD card or USB with playback
  • Control of up to four PTZ cameras via VISCA IP with the joystick
  • Interface for landscape and 9:16 portrait broadcasting
  • Web control from a computer, phone or tablet
  • Single-operator production: physical buttons, T-Bar, joystick and rotary knobs speed up live work
  • Two PIP windows: free cropping, resizing and positioning
  • PGM and clean previews: AUX shows the multiview or a selected source

PACKAGE CONTENT

  • CineTreak Cinelive C2S
  • 12 V / 2 A power adapter
  • USB 3.0 cable (A–A)
  • User manual (download)

SPECIFICATIONS

  • Display: 5.5″ LCD
  • Video inputs: 4× HDMI (2× HDMI 2.0) + 4× 3G-SDI; up to 4 sources at once, HDMI and SDI can be mixed
  • Video outputs: HDMI PGM, HDMI AUX, SDI PGM, USB 3.1 (USB-C, UVC), LAN
  • Audio inputs: 2× 3.5 mm stereo (microphone/line)
  • Audio output: 1× 3.5 mm stereo
  • Network: LAN – streaming, PTZ control and software control
  • USB: USB-A: recording storage, camera, tally, logos, firmware updates
  • SD card: video recording storage
  • Transitions: T-Bar, AUTO, CUT; more than 30 transitions, duration 0.1–5 s
  • Effects: WIPE (multiple patterns), MIX, DIP, transition preview, BKGD, STILL (freeze), MUTE, FTB
  • Live mode: landscape and portrait
  • Keying: upstream: luma key ×1, chroma key ×1, PIP ×2, POP; downstream: DSK ×1, LOGO ×2
  • Layers: PGM up to 8 layers
  • Audio: 4× HDMI, multimedia and 2 microphone/analogue inputs
  • PTZ control: VISCA IP protocol
  • Media library: preset backgrounds, logos and videos, import from USB and SD card
  • Encoding: H.264, separate recording and streaming bit rates
  • Recording: MP4, TS or FLV; 24/25/30/50/60 fps; 5–30 Mb/s
  • Streaming: RTMP/RTMPS to 2 destinations at once, 1–20 Mb/s; network stream input
  • File systems: FAT32, NTFS, exFAT (FAT32 max. 4 GB per file)
  • Logo: 2 logos, PNG with alpha channel, max. 960 × 540 px
  • IP control: web server (phone, PC, iPad)
  • HDMI input formats: 2160p 60/59.94/50/30/29.97/25/24/23.98 (HDMI 2.0), 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60
  • SDI input: HD-3G Level A, YCbCr 4:2:2 10 bit
  • PGM output format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60
  • Colour space: RGB/YUV
  • UVC output: USB 3.1 (USB-C), max. YUV2 1080p60
  • Power supply: 7–24 V DC (DC 12 V input)
  • Power consumption: < 15 W
  • Dimensions: 244 × 133 × 50 mm
  • Weight: 850 g

WE RECOMMEND

The CineTreak Cinelive C2S switches four HDMI or SDI sources, records to an SD card or USB drive and streams to two RTMP destinations. These products go well with it.

Recording and licence – An SD card for programme recording and a licence key for optional NDI.

Cables – HDMI and 3G-SDI cables for the inputs and outputs.

Parameters

Parameters

Manufacturer: CineTreak
Category: Video switchers

Main parameters

Encoder video input4× HDMI · 4× 3G-SDI
Number of inputs4
Switcher inputsHDMI
Streaming servicesYouTube Live · Facebook Live
Switcher inputs3G-SDI
Streaming servicesRTMP · Twitch
Switcher inputsUSB · HDMI 2.0 · NDI optional
Switcher outputsHDMI · 3G SDI · USB · NDI optional
Internal recordingYes
ResolutionHD · 4K 60p
FeaturesVirtual studio · Streaming · Recording · Subtitler · DSK · AUX · Chroma Key · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing · Media player · Multiviewer
Control panelYes
