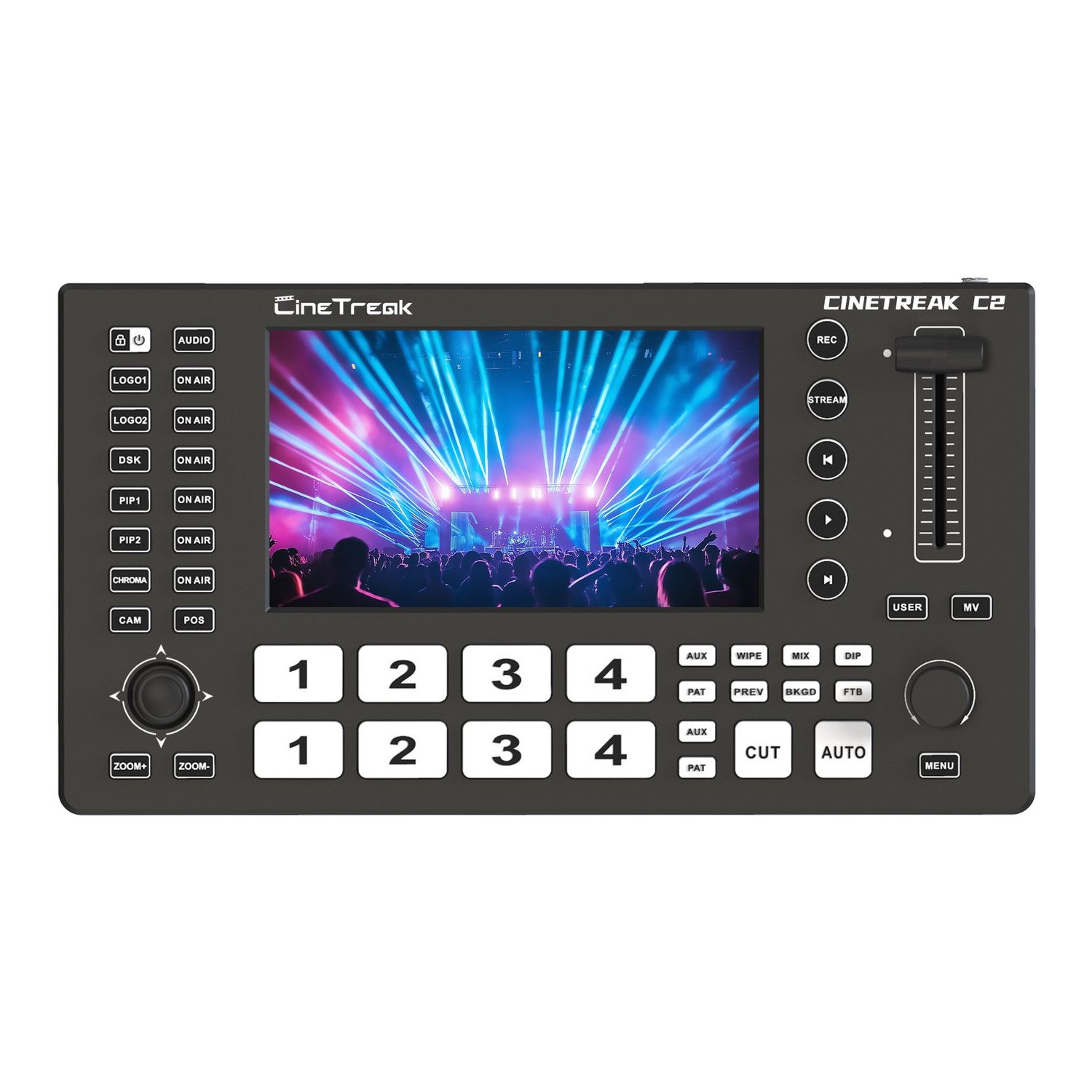

CineTreak Cinelive C2
SKU: Cinelive C2
The CineTreak Cinelive C2 is a compact switcher with four HDMI inputs, a 5.5″ display, a hardware T-Bar, H.264 recording, streaming to two RTMP destinations, a UVC output over USB-C and control of up to four PTZ cameras via VISCA IP. It suits live broadcasts, church services, teaching and corporate events run by a single operator.
659 € with VAT
544.63 € without VAT
Personal pickup within 90 minutes
Shipment day: 02. 11.
Shipment day: 02. 11.
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for CineTreak Cinelive C2
Exascend 64GB Catalyst UHS-I SDXC Memory Card
The Catalyst SDXC UHS-I memory card with V30 speed class reads at up to 180 MB/s
43 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
PremiumCord CAT6 UTP patch cable RJ45-RJ45, 5 m, blue
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
3 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The CineTreak Cinelive C2 is a compact switcher with four HDMI inputs, a 5.5″ display, a hardware T-Bar, H.264 recording, streaming to two RTMP destinations, a UVC output over USB-C and control of up to four PTZ cameras via VISCA IP. It suits live broadcasts, church services, teaching and corporate events run by a single operator.

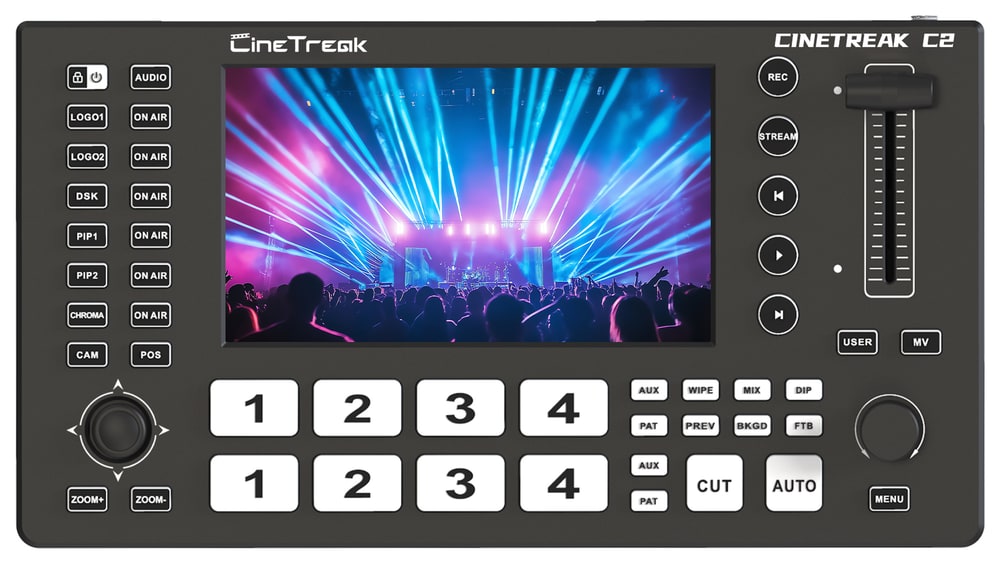

Four HDMI sources under one desk

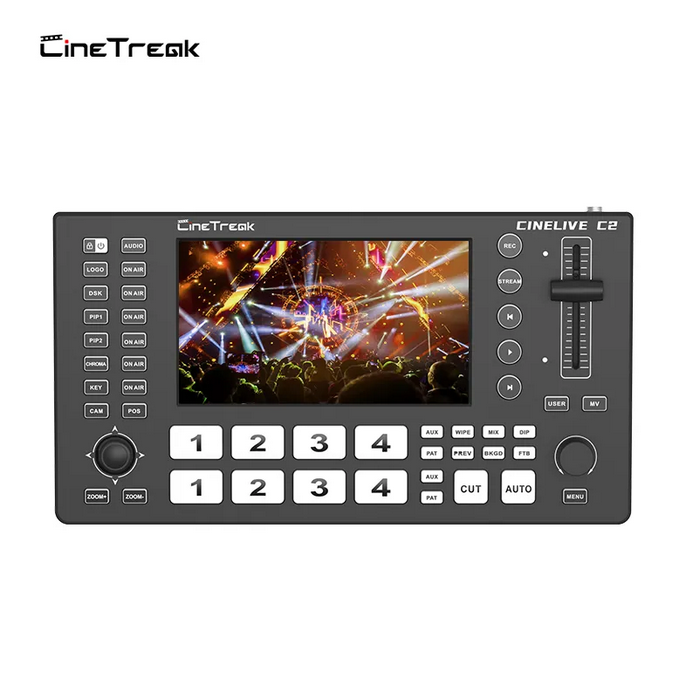

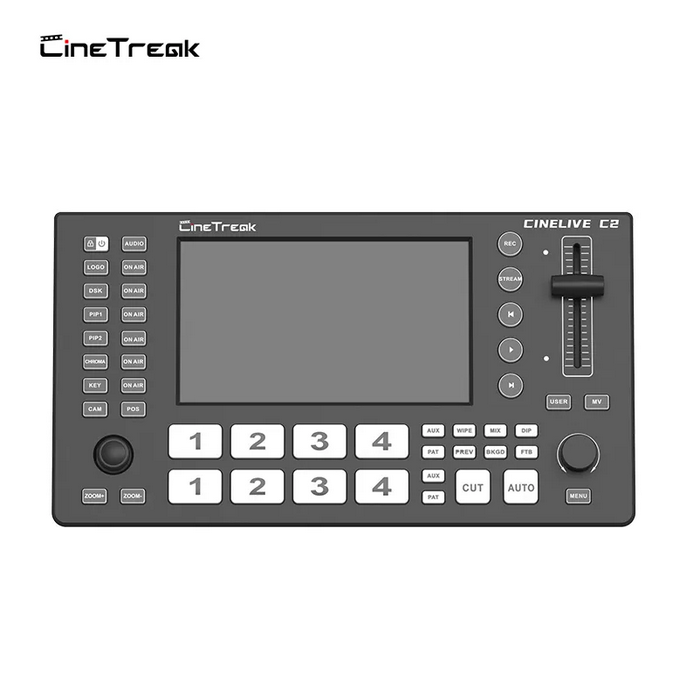

Physical buttons for preview and programme, a T-Bar, a five-way joystick and a rotary knob: the Cinelive C2 switches like a large desk, only in a compact body with an aluminium panel.
4× HDMIHDMI 1–2 up to 4K605.5″ display2× RTMPUVC over USB-COptional NDI
The whole production on one table
Switching, preview, recording to an SD card or USB drive, streaming to two platforms and control of four PTZ cameras – one operator handles it all without a computer.
Up to 8 layers in PGM
Luma key, chroma key, two PIP windows, POP, DSK and two logos in one output.
20% lower power consumption
The new generation uses 20% less power than previous Cinelive models.
Down Streaming
Add video from an online source, SD card or the background input to the programme without interrupting the broadcast.
Optional NDI
NDI network video is a paid upgrade activated with a licence key.

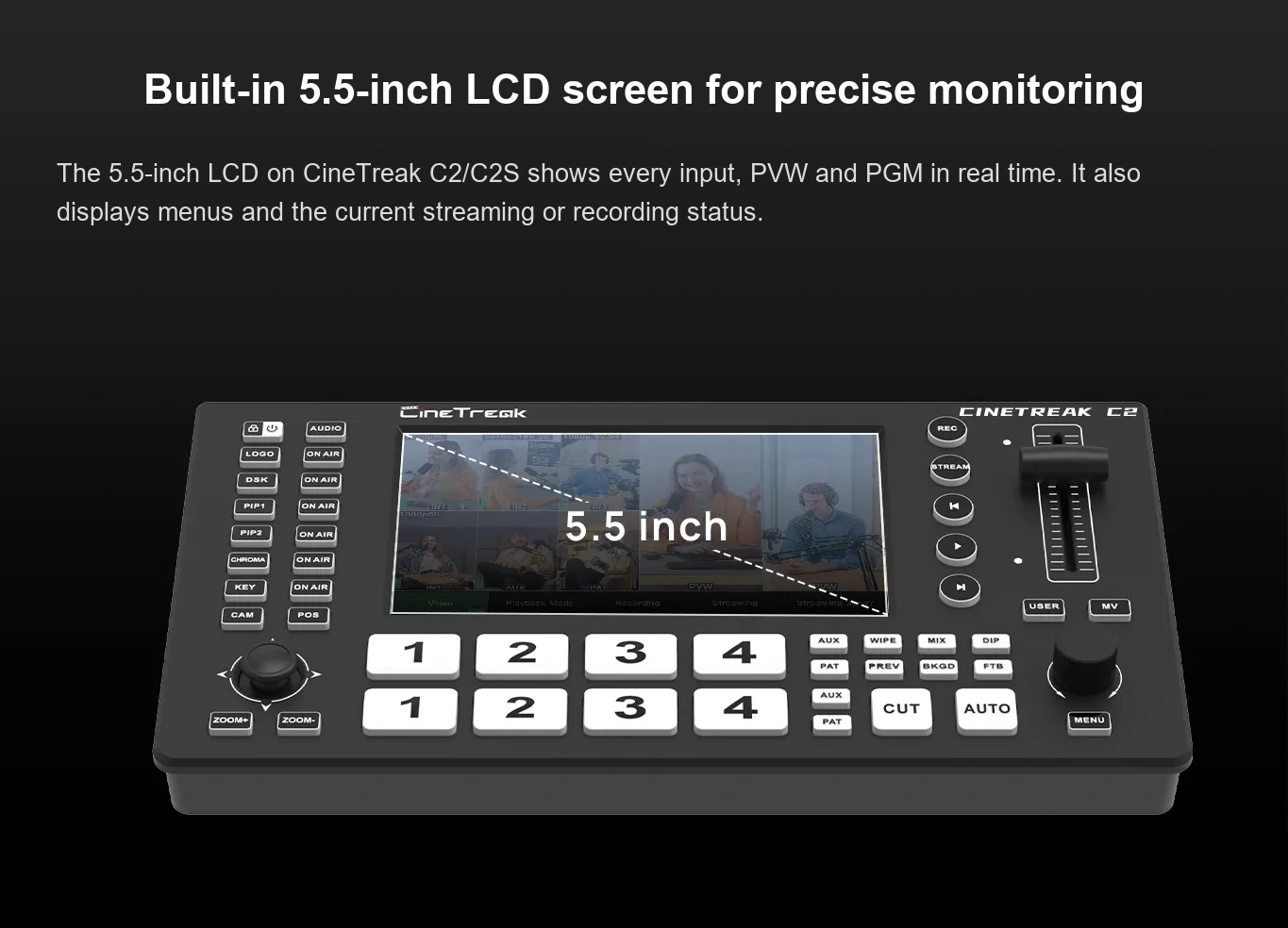

Built-in 5.5″ display
The LCD display shows all inputs, preview and programme in real time, plus the menu and the streaming and recording status. No external monitor is needed.

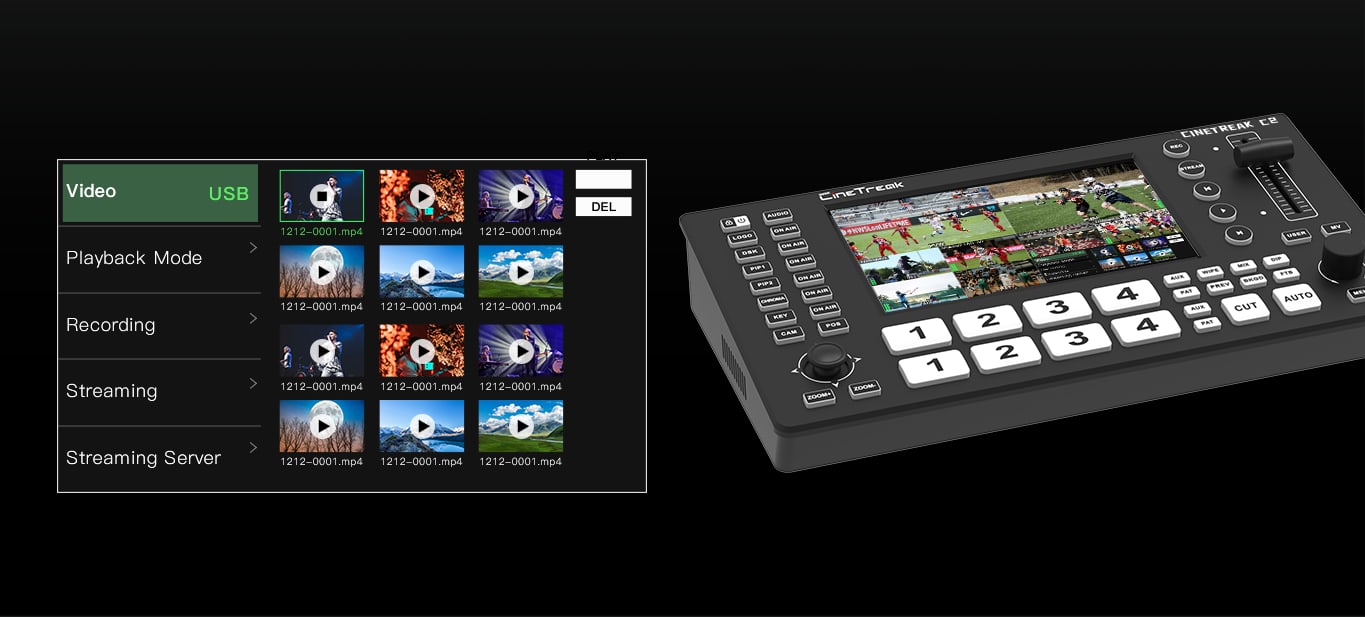

Media library for your own show
The built-in library holds 16 default patterns, 16 imported and 16 captured images and two colour generators. Add more images, logos and videos via USB.

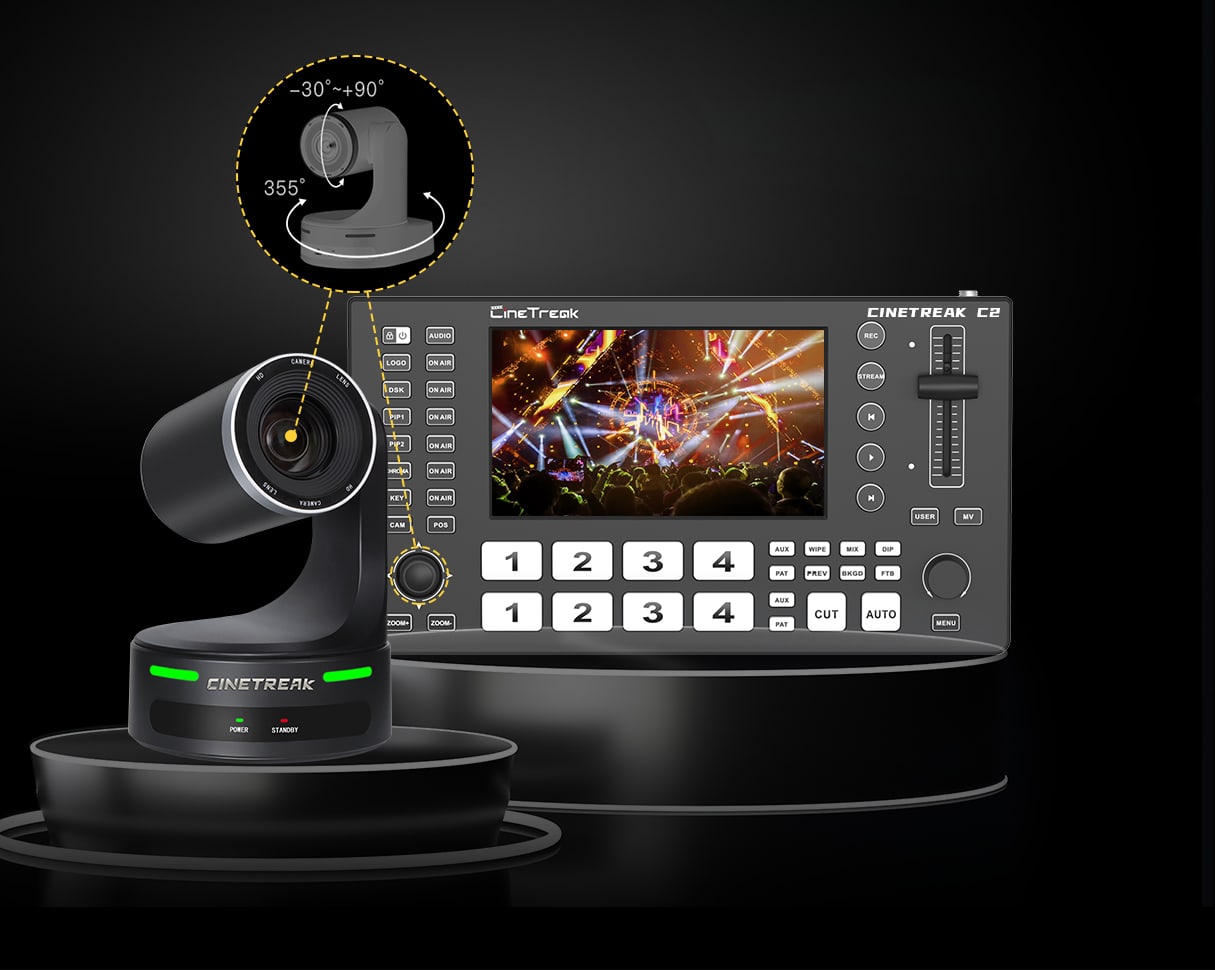

PTZ camera control
Via the VISCA IP protocol the switcher controls up to four PTZ cameras – zoom, focus and stored positions – with the five-way joystick and ZOOM buttons right on the panel.
DSK, chroma key and logos
Chroma key and luma key create a virtual studio, and the DSK downstream key adds subtitles, a logo or graphics to the live and recorded picture.
PIP and POP
Two PIP windows and POP mode with adjustable size, position, zoom and cropping – for interviews, presentations and game streams with a camera.
Two streams and a webcam
The built-in encoder streams over Ethernet directly to two RTMP destinations at once without a computer. The USB-C (UVC) port connects the switcher to a computer as a webcam for OBS, vMix, Teams, Zoom or Skype.
Recording to SD card or USB
Record the programme in H.264 to an MP4, TS or FLV file on an SD card or USB drive and play the recording back instantly – even during a live broadcast.
Landscape and portrait mode
The switcher broadcasts in classic 16:9 landscape or 9:16 portrait. After switching to portrait mode, simply connect cameras turned upright and the stream is ready for mobile platforms.
Meeting mode and AUX output
The HDMI AUX output shows a preview of any channel or several windows at once. Meeting mode shows four inputs simultaneously – ideal for hybrid conferences and teaching.

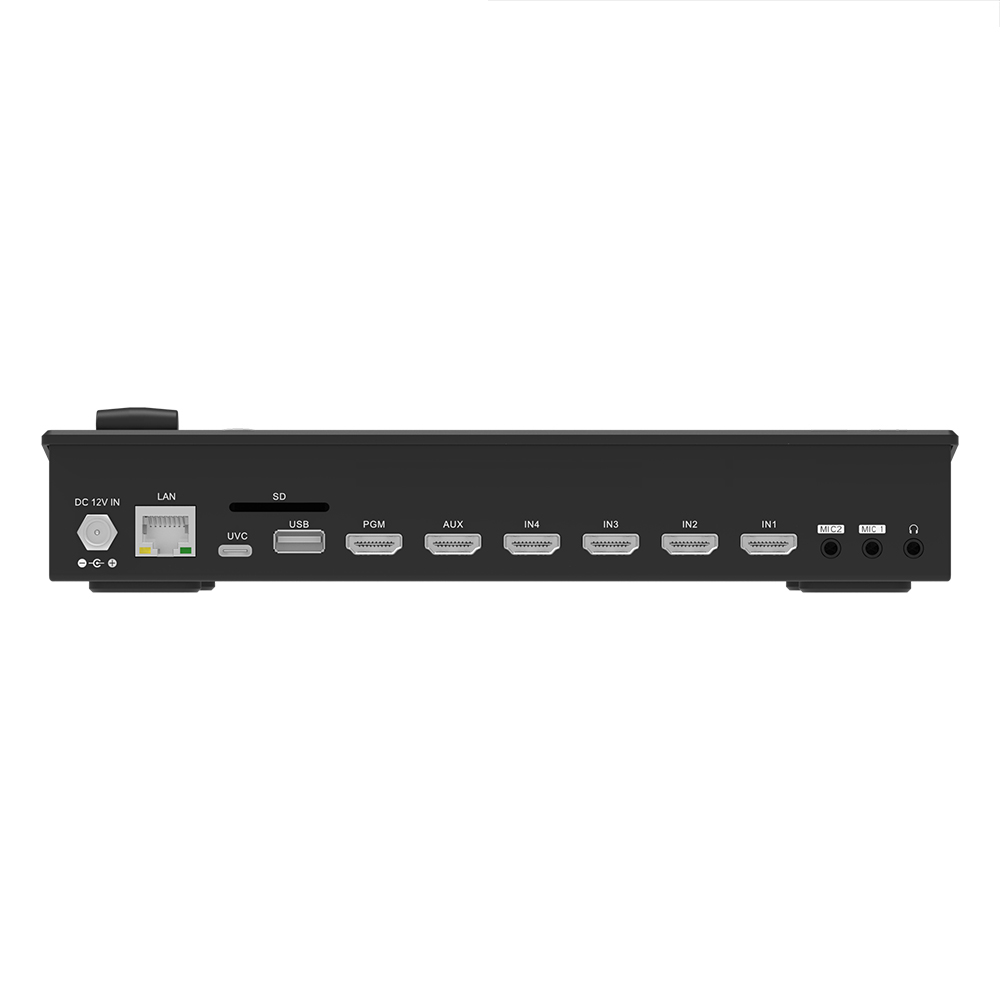

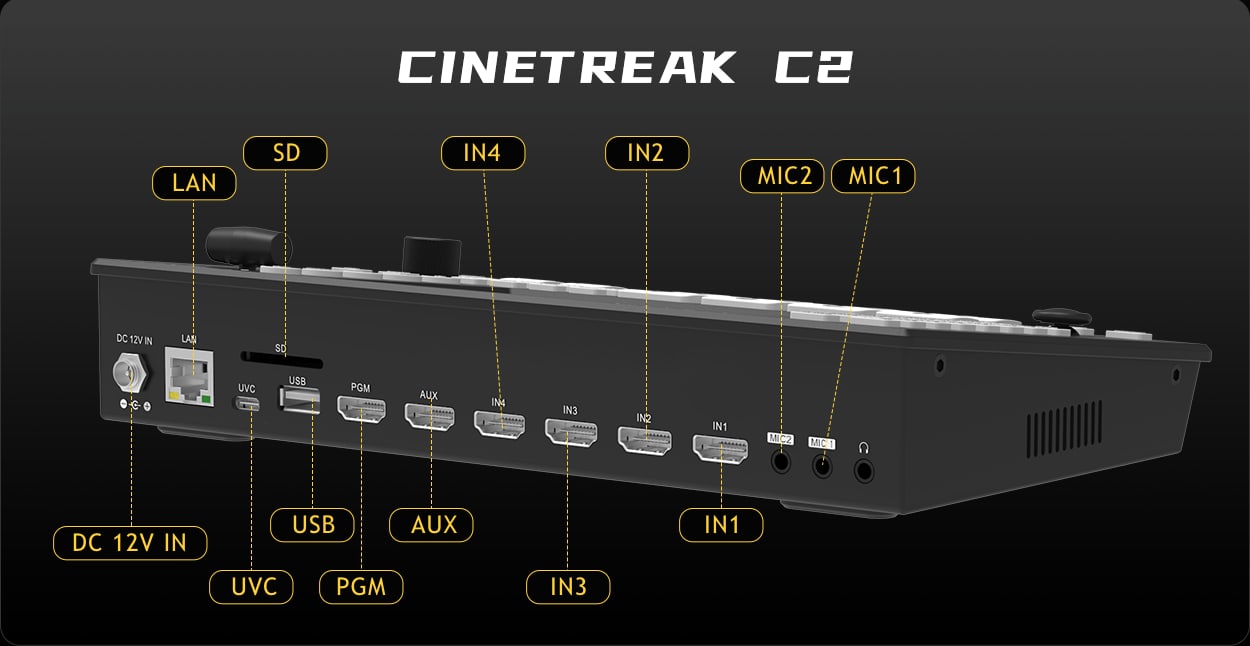

Connectors on the rear panel
From the left: DC 12 V power, LAN, SD card slot, USB-C (UVC), USB-A, HDMI PGM and AUX outputs, HDMI inputs 4 to 1, two microphone inputs and a 3.5 mm output.

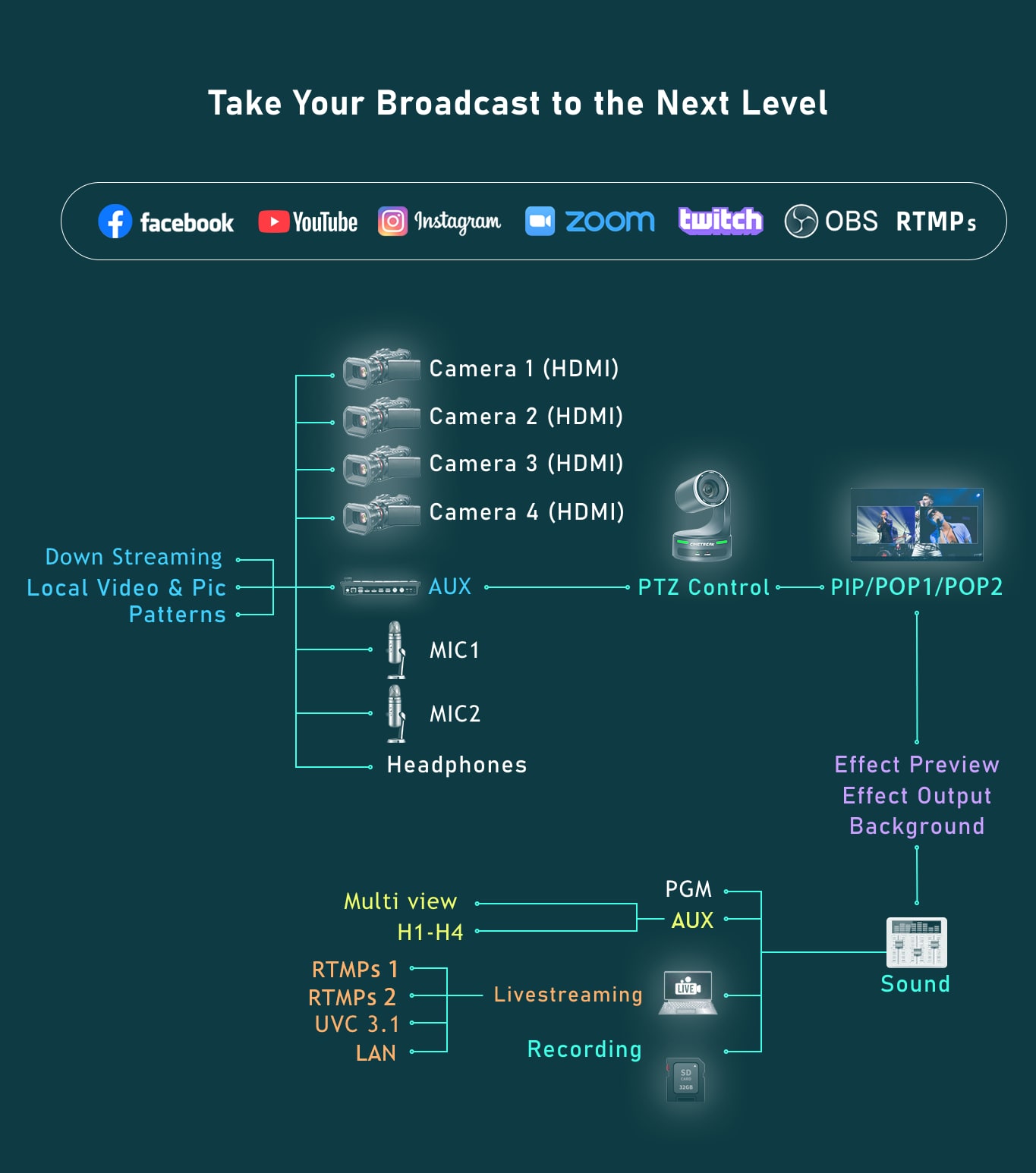

Typical setup
Connect HDMI cameras to the four inputs, another source to the AUX input, plus microphones and headphones. The programme goes to the PGM and AUX outputs, to two RTMP streams, to a computer over USB-C (UVC) and to the recording.
More information
The CineTreak Cinelive C2 combines hardware switching, a 5.5″ monitor, recording, streaming and PTZ camera control in a compact aluminium body. Four HDMI inputs cover cameras and computers: HDMI 1 and 2 accept up to 2160p60, HDMI 3 and 4 up to 1080p60. The programme goes out over HDMI PGM, a preview or selected source over HDMI AUX, and a clean signal to a computer over USB-C (UVC).
Feature overview:
- Up to 8 layers in PGM: PIP, logos, DSK and keying in one output
- Chroma key and luma key for a virtual studio and creative compositions
- More than 30 transitions, T-Bar, AUTO and instant CUT
- Built-in media: videos, images, logos and custom backgrounds
- H.264 recording to SD card or USB with playback
- Control of up to four PTZ cameras via VISCA IP with the joystick
- Interface for landscape and 9:16 portrait broadcasting
- Web control from a computer, phone or tablet
- Single-operator production: physical buttons, T-Bar, joystick and rotary knobs speed up live work
- Two PIP windows: free cropping, resizing and positioning
- PGM and clean previews: AUX shows the multiview or a selected source
PACKAGE CONTENT
- CineTreak Cinelive C2
- 12 V / 2 A power adapter
- USB 3.0 cable (A–A)
- User manual (download)
SPECIFICATIONS
- Display: 5.5″ LCD
- Video inputs: 2× HDMI 2.0 + 2× HDMI
- Video outputs: HDMI PGM, HDMI AUX, USB 3.1 (USB-C, UVC), LAN
- Audio inputs: 2× 3.5 mm stereo (microphone/line)
- Audio output: 1× 3.5 mm stereo
- Network: LAN – streaming, PTZ control and software control
- USB: USB-A: recording storage, camera, tally, logos, firmware updates
- SD card: video recording storage
- Transitions: T-Bar, AUTO, CUT; more than 30 transitions, duration 0.1–5 s
- Effects: WIPE (multiple patterns), MIX, DIP, transition preview, BKGD, STILL (freeze), MUTE, FTB
- Live mode: landscape and portrait
- Keying: upstream: luma key ×1, chroma key ×1, PIP ×2, POP; downstream: DSK ×1, LOGO ×2
- Layers: PGM up to 8 layers
- Audio: 4× HDMI, multimedia and 2 microphone/analogue inputs
- PTZ control: VISCA IP protocol
- Media library: preset backgrounds, logos and videos, import from USB and SD card
- Encoding: H.264, separate recording and streaming bit rates
- Recording: MP4, TS or FLV; 24/25/30/50/60 fps; 5–30 Mb/s
- Streaming: RTMP/RTMPS to 2 destinations at once, 1–20 Mb/s; network stream input
- File systems: FAT32, NTFS, exFAT (FAT32 max. 4 GB per file)
- Logo: 2 logos, PNG with alpha channel, max. 960 × 540 px
- IP control: web server (phone, PC, iPad)
- HDMI input formats: 2160p 60/59.94/50/30/29.97/25/24/23.98 (HDMI 2.0), 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60
- PGM output format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60
- Colour space: RGB/YUV
- UVC output: USB 3.1 (USB-C), max. YUV2 1080p60
- Power supply: 7–24 V DC (DC 12 V input)
- Power consumption: < 15 W
- Dimensions: 244 × 133 × 50 mm
- Weight: 890 g
WE RECOMMEND
The CineTreak Cinelive C2 switches four HDMI sources, records to an SD card or USB drive and streams to two RTMP destinations. These products go well with it.
Recording and licence – An SD card for programme recording and a licence key for optional NDI.
Cables – Cables for the inputs and outputs, a network cable for streaming and PTZ control.
Parameters
| Manufacturer: | CineTreak |
| Category: | Video switchers |
Main parameters
| Encoder video input | 4× HDMI |
| Number of inputs | 4 |
| Switcher inputs | HDMI |
| Streaming services | YouTube Live · Facebook Live · RTMP · Twitch |
| Switcher inputs | USB · HDMI 2.0 · NDI optional |
| Switcher outputs | HDMI · USB · NDI optional |
| Internal recording | Yes |
| Resolution | HD · 4K 60p |
| Features | Virtual studio · Streaming · Recording · Subtitler · DSK · AUX · Chroma Key · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing · Media player · Multiviewer |
| Control panel | Yes |
