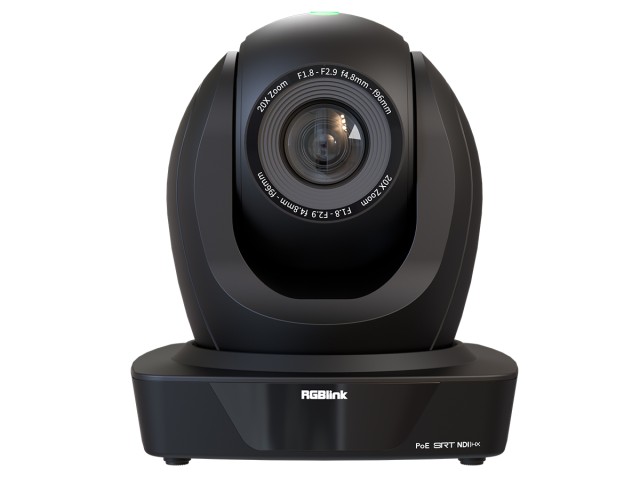

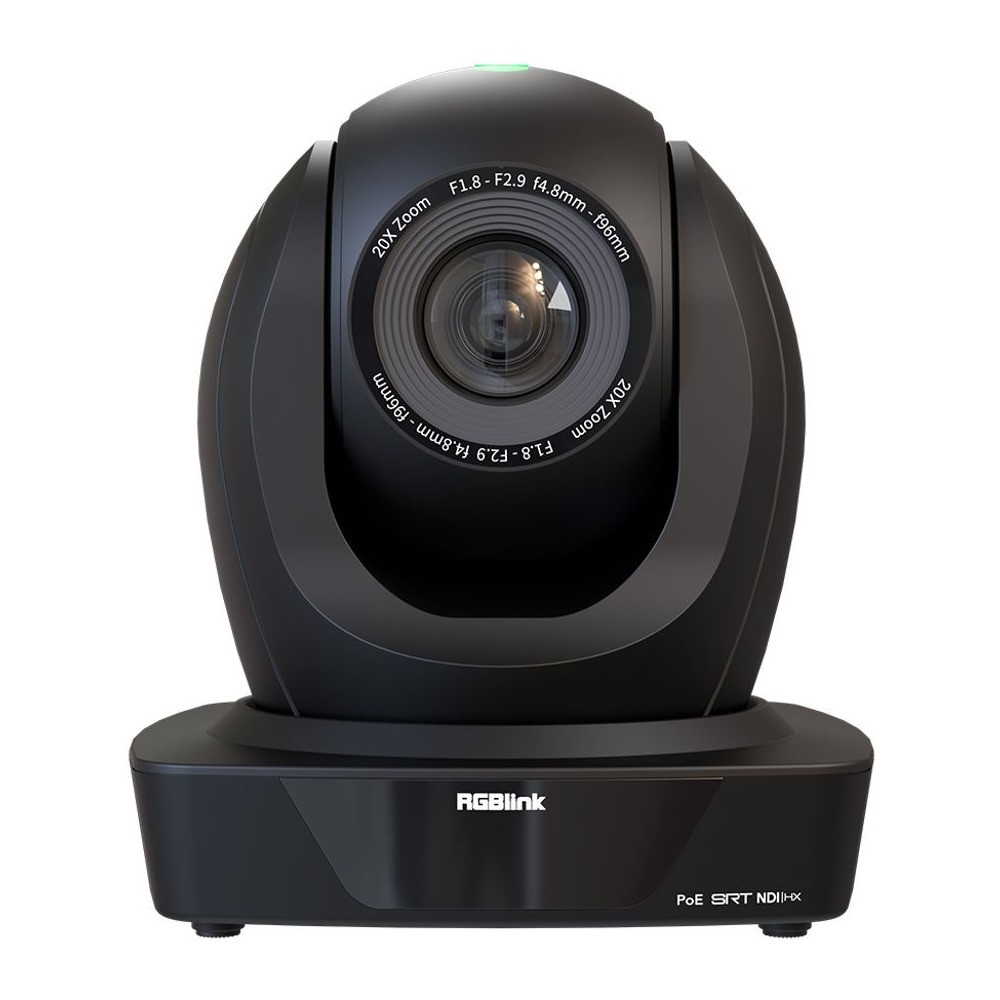

RGBlink vue PTZ 2K 20X NDI Camera with TALLY (Support PoE)
SKU: 981-0011-28-0
Featuring an advanced ISP image processor and a 2-megapixel sensor, vue cameras are available in a range of models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI. This model has 20× optical zoom, NDI output, a TALLY crown visible through 360° and power over PoE.
1 319 € with VAT
1 090.08 € without VAT
Personal pickup within 90 minutes
Shipment day: 26. 10.
Shipment day: 26. 10.
In stock 3 pcs
Praha 3 pcs
Praha 3 pcs
RGBlink vue 2k 30X PTZ Camera with TALLY (Support PoE)
In stock 2 pcs1 319 €without VAT 1 090.08 €
RGBlink vue PTZ 2K 30X NDI Camera with TALLY (Support PoE)
In stock 2 pcs1 635.58 €without VAT 1 351.72 €
RGBlink RGB12X-POE-TLY
989 €without VAT 817.36 €
RGBlink RGB12X-PNDI-TLY
1 319 €without VAT 1 090.08 €Top accessories for RGBlink vue PTZ 2K 20X NDI Camera with TALLY (Support PoE)
RGBlink Universal wall mount bracket for PTZ
The universal RGBlink wall bracket holds a PTZ camera on the wall: the vertical part
15 €
In stock > 5 pcs
RGBlink PTZ & NDI camera suction top flip bracket
The black RGBlink ceiling bracket hangs a PTZ or NDI camera from the ceiling, upside
15 €
In stock > 5 pcs
RGBlink mini-edge SDI
The RGBlink mini-edge SDI combines ten input connectors in a single desk – four HDMI
1 099 €
In stock 5 pcs
RGBlink mini-max
The RGBlink mini-max is a compact 4K all-in-one video switcher and streaming solution
1 869 €
In stock 3 pcs
RGBlink RGBCTL-PNDI-OL
Touch Conference Keyboard is a newly designed next-generation network touch keyboard
1 319 €
In stock 2 pcs
RGBlink RGBCTL-PTZ-BK PTZ Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet
779 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Featuring an advanced ISP image processor and a 2-megapixel sensor, vue cameras are available in a range of models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI. This model has 20× optical zoom, NDI output, a TALLY crown visible through 360° and power over PoE.
Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

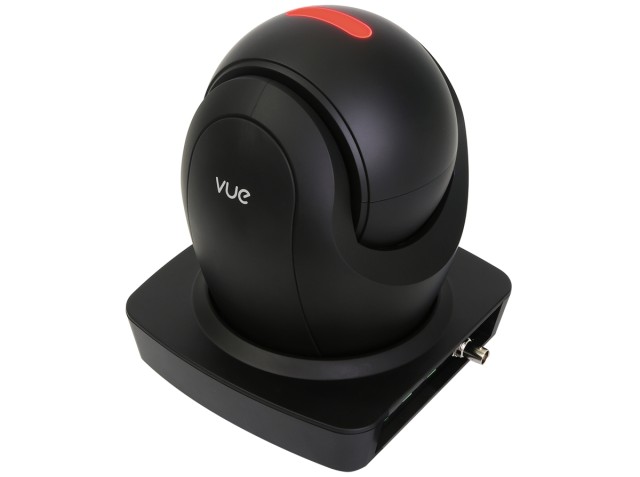

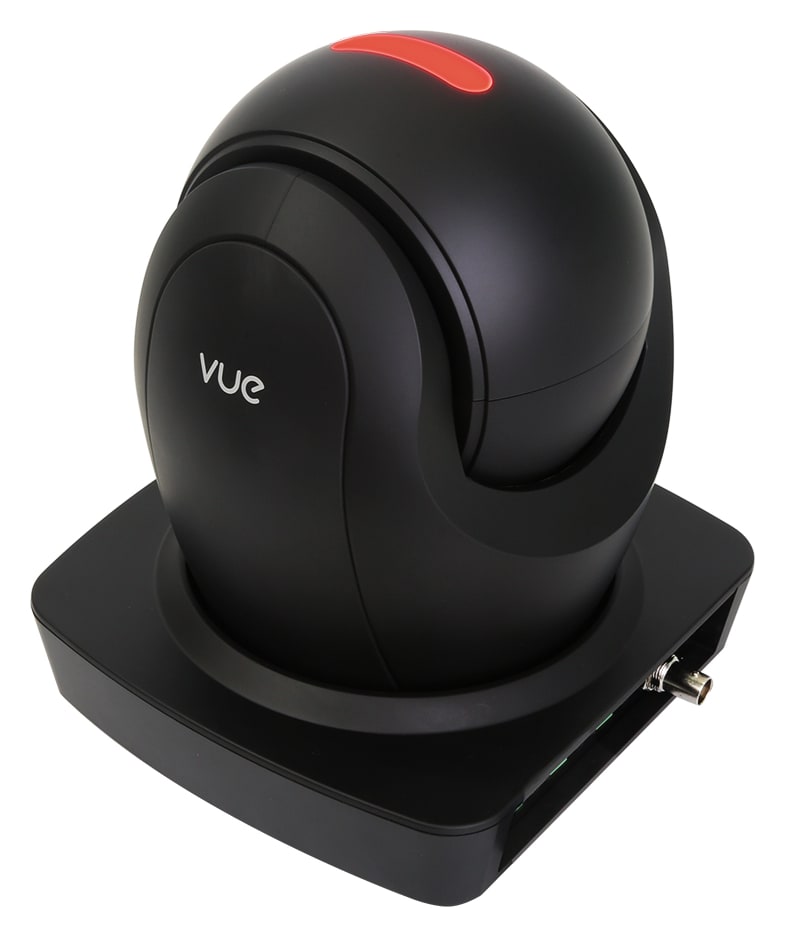

TALLY crown visible through 360°
All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.
20×
optical zoom
1080p60
Full HD
360°
TALLY indicator
255
presets
NDI
network video

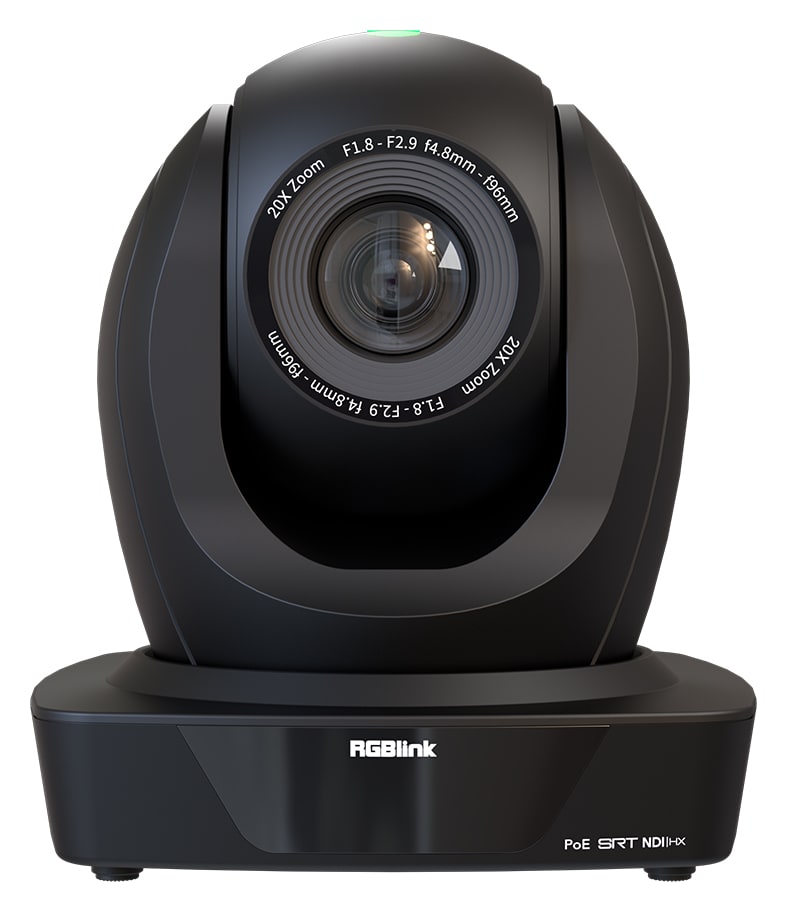

Pan, tilt and zoom
Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps.
More information
- High speed optical zoom
- RTSP/RTMP/SRT encoding output
- High performance in low light scenarios with Wide Dynamic Range
- H.265/H.264 dual stream output adapted to different network environments
- Full 1920×1080p HD resolutions up to 60 frames per second
- Pan and Tilt Control
- 12X/20X/30X optical zoom
- Low-power sleep function
- Applicable to meeting, live streaming, church, classroom and more
- Support TALLY
- Support PoE
PACKAGE CONTENT
- RGBlink RGB20X-PNDI-TLY PTZ camera – 1×
SPECIFICATIONS

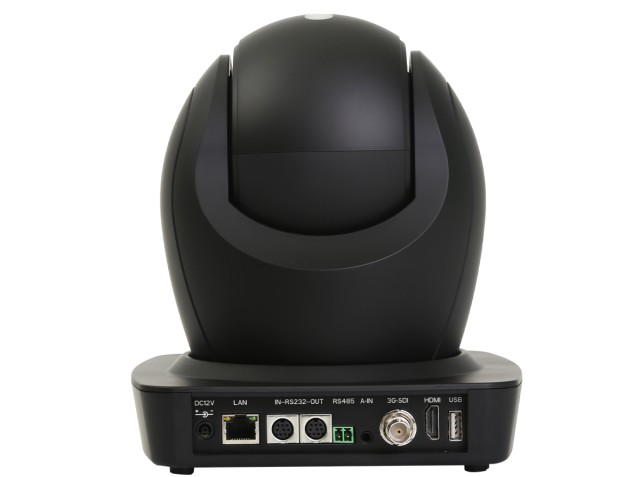

- Output: 3G SDI 1xBNC
- HDMI: 1xHDMI-A
- USB: 1xUSB-A
- LAN: 1xRJ45
- Audio: IN 1x3.5mm Stereo Jack
- Control: RS232 IN/OUT 2xDIN8
- RS485: 1x4pin Terminal
- Power: 1xDC12V Jack
- Optical Zoom: f=4.8–96mm
- View Angle: 3.45°–60.04°
- AV: F1.8–F2.9
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D & 3D DNR
- White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus: Auto/Manual
- Aperture/Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- WDR: OFF/Dynamic Level Adjustment
- Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
- SNR: >55dB
- Effective Pixels: 2.07 MP, 16:9
- Pan-and-Tilt Parameter: Pan/Tilt Movement -170°–+170° / -30°–+90°
- Pan/Tilt Control Speed: 0.1–60°/S; 0.1–30°/S
- Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
- 360° TALLY: full 360° view of TALLY
- Audio Compression Format: AAC | MP3 | G.711A
- Video Compression Format: H.264 | H.265 | Dual Streaming Output
- Output Resolutions: 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
- Control Protocol: VISCA | Pelco-D | Pelco-P | ONVIF
- Baud Rate(bps): 115200 | 9600 | 4800 | 2400bps
- Network Protocol: RTSP | RTMP | SRT | ONVIF
- Supported Standards: SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
- Input Voltage: DC12V/1.5A
- Max Power: 12W
- Temperature: -10℃–50℃
- Humidity: 20%–80%
- Weight: Net 1.7kg
- Dimension: Net 180mm(front)×188mm(side)×198mm(height)
WE RECOMMEND
The RGBlink vue PTZ 2K 20X NDI is a professional camera with extensive connectivity options, including HDMI, SDI, and NDI, enabling a wide range of integrations into both broadcast and streaming workflows. To maximize its potential, we recommend accessories for fixed mounting, advanced control panels, and systems for wireless transmission or video recording.
Mounts and Mounting Accessories - Original mounts ensuring secure installation of the PTZ camera on a wall or ceiling.
Control rooms and control consoles - Devices for switching sources and remotely controlling the movement and parameters of PTZ cameras.
Monitors and Recorders - External monitors that allow you to preview and directly record signals from a camera's HDMI or SDI output.
Wireless video transmission - Systems for wireless transmission of HDMI signals from a camera to a control room or monitor without the need for cabling.
- RGBLink ASK nano 4K (1TX+2RX)
- RGBLink ASK Ultra p2p
- RGBLink ASK nano 4K (1T1R)
- RGBLink ASK nano (1TX+1RX)
- RGBLink ASK Ultra 2R
Converters and Streaming - Tools for signal conversion and easy streaming of content to online platforms.
Parameters
| Manufacturer: | RGBlink |
| Category: | PTZ |
Main parameters
| Zoom | 20x |
| Type of bayonet | integrated lens |
| Output | HDMI · SDI · NDI · 3G SDI · USB · HD-SDI |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · SDI · USB · Ethernet / IP |
| Network protocols | NDI · SRT · RTMP / RTMPS · RTSP / RTP · ONVIF |
Other parameters
| Weight | 1.7kg |
| Dimensions | 180x188x198mm |
| Digital zoom | 10× |
| Number of preset positions | 255 |
| Version | PTZ |
| FPS | Full HD 60fps |
| Lens lens aperture | 1.8f |
| Min. focal length | 4.8mm |
| Max. focal length | 96mm |
| Other features | Streaming · Tally · PoE · NDI / NDI HX |
| Control protocol | Pelco-P · Pelco-D · VISCA |
