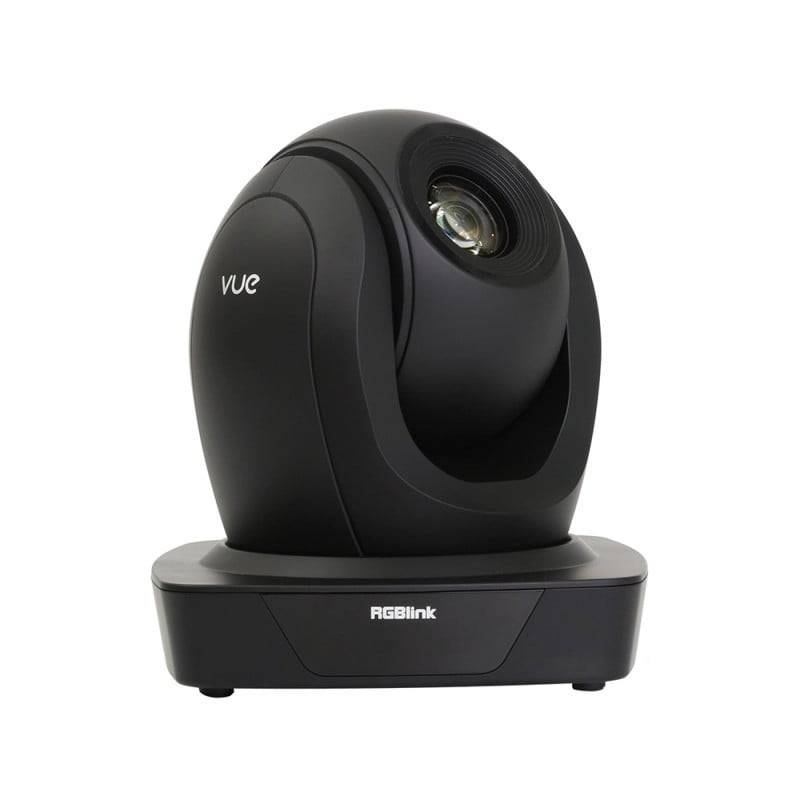

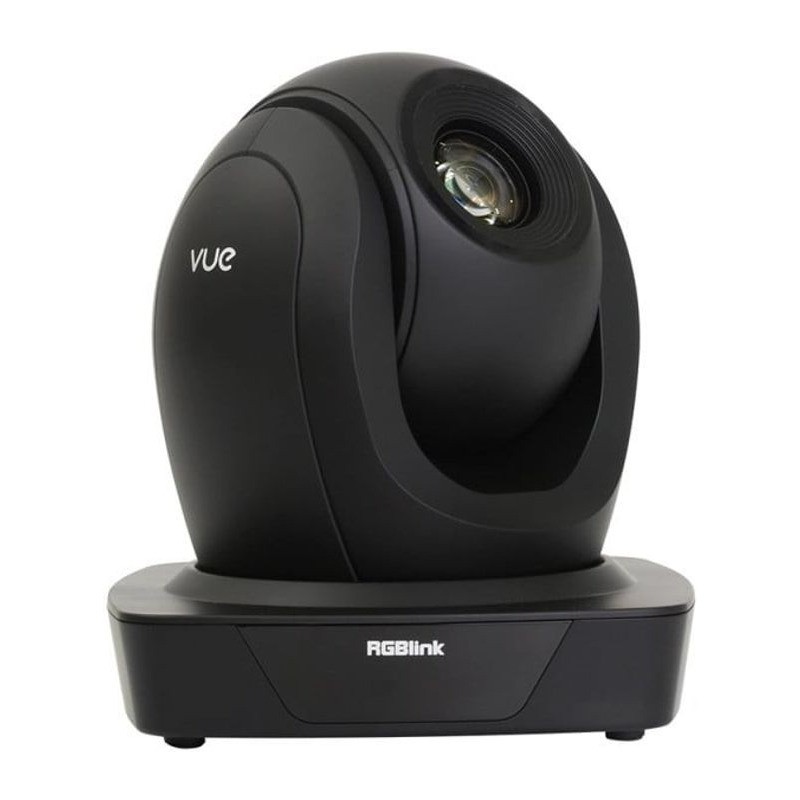

RGBlink RGB12X-POE-TLY

Name: RGBlink RGB12X-POE-TLY
Brand: RGBlink
SKU: 981-0011-31-0
Price: 989 EUR
Availability: OutOfStock

SKU: 981-0011-31-0

Full HD (up to 60 fps) PTZ camera with PoE power supply, 12x optical zoom (10x digital) and HDMI/3G-SDI/LAN interfaces. It is equipped with an advanced ISP image processor and a 2.07 Mpixel image sensor. Manual or autofocus. RGB12X-POE-TLY is equipped with the exclusive Tally light indicator, integrated directly into the housing for a 360° view.

More information

989 € with VAT 817.36 € without VAT

Price history

Availability

on request

SKU:
981-0011-31-0

Price history

Top accessories for RGBlink RGB12X-POE-TLY

RGBlink Universal wall mount bracket for PTZ

The universal RGBlink wall bracket holds a PTZ camera on the wall: the vertical part

15 €

In stock > 5 pcs

RGBlink PTZ & NDI camera suction top flip bracket

The black RGBlink ceiling bracket hangs a PTZ or NDI camera from the ceiling, upside

15 €

In stock > 5 pcs

RGBlink mini-edge SDI

Free transport

The RGBlink mini-edge SDI combines ten input connectors in a single desk – four HDMI

1 099 €

In stock 5 pcs

RGBlink mini-max

Free transport

The RGBlink mini-max is a compact 4K all-in-one video switcher and streaming solution

1 869 €

In stock 3 pcs

RGBlink RGBCTL-PNDI-OL

Free transport

Touch Conference Keyboard is a newly designed next-generation network touch keyboard

1 319 €

In stock 2 pcs

RGBlink RGBCTL-PTZ-BK PTZ Controller

LAST PIECE

The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet

779 €

In stock 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

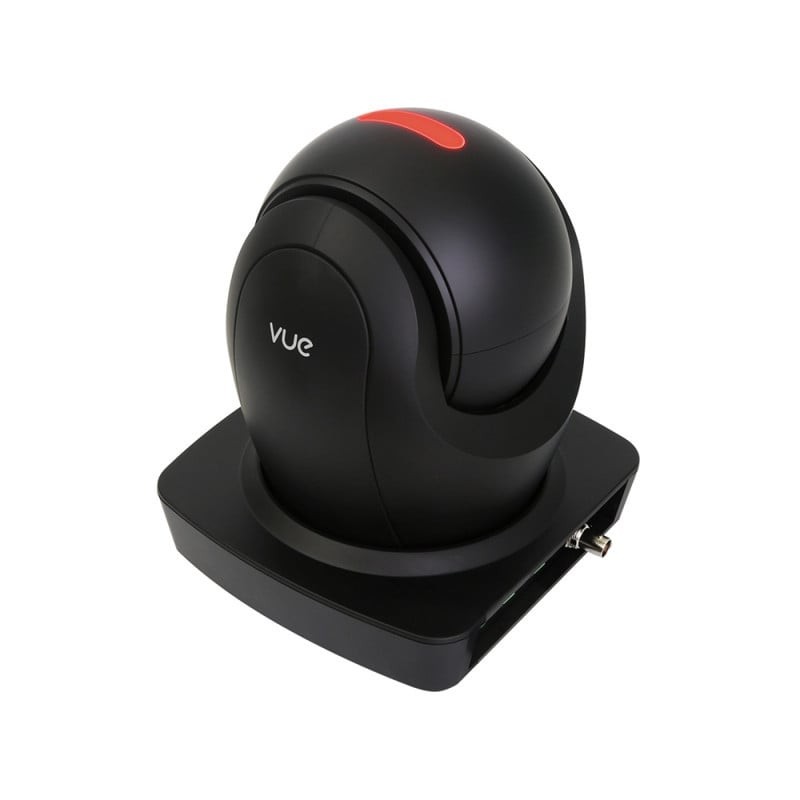

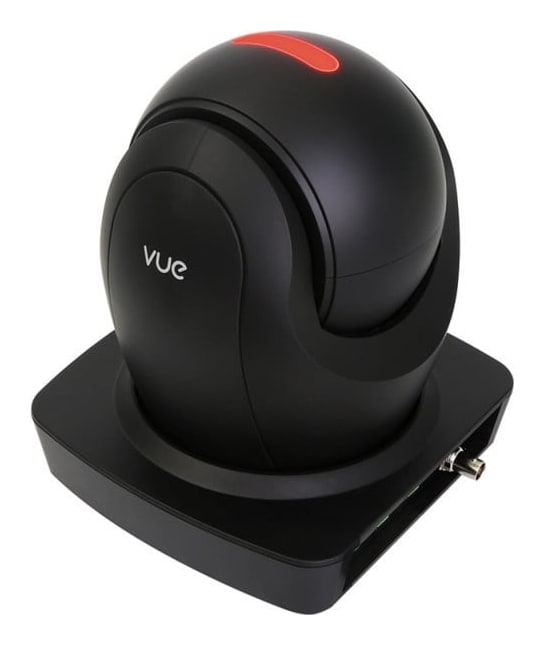

TALLY crown visible through 360°

The TALLY indicator is built right into the camera housing and is visible through a full 360°, so from anywhere in the room you can tell which camera is on air. It is controlled with VISCA, Pelco-D and Pelco-P over RS232 and RS485 and stores up to 255 presets, 10 of which can be recalled with the remote control.

12×

optical zoom

1080p60

Full HD

360°

TALLY indicator

255

presets

PoE

power over Ethernet

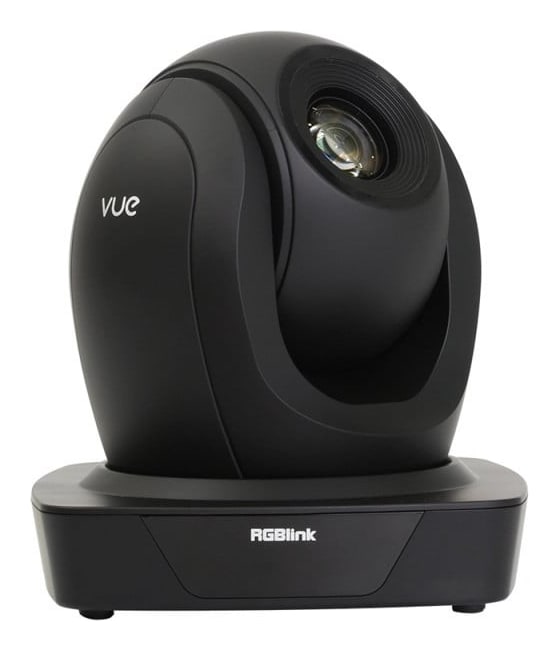

Outputs and power

The 2.07 MP sensor delivers Full HD up to 1080p60, and the 12× optical zoom is backed by 10× digital zoom. Video goes out over 3G-SDI, HDMI, USB (UVC) and the network as two H.264/H.265 streams, and the camera is powered over PoE or from the DC 12 V socket.

More information

Dynamic level adjustment (WDR) and dynamic noise reduction 2D / 3D (DNR) up to 60 fps are present.

High speed optical zoom
High performance in low light scenarios with Wide Dynamic Range
Full 1920×1080p HD resolutions up to 60 frames per second
H.265/H.264 dual stream output adapted to different network environments
Pan and Tilt Control
Optional interface
12X optical zoom
Wide application
Low-power sleep function
LAN support POE

PACKAGE CONTENT

RGBlink RGB12X-POE-TLY PTZ camera – 1×

SPECIFICATIONS

Output: 3G SDI 1xBNC
Output: HDMI 1 x HDMI-A
Output: LAN 1xRJ45
Output: USB USB2-A (UVC)
Audio: 1x3.5 mm Stereo Jack
Control: RS232 IN/OUT 2xDIN8
Control: RS485 1x4pin Terminal
Power: 1xDC12 V Jack 1.5A
Optical Zoom: f=4.1–49.2mm
View Angle: 6.57°–70.28°
AV: F1.8–F2.68
Digital Zoom: X10
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
DNR: 2D & 3D DNR
White Balance: Auto/Manual/One Push/3000 K/3500 K/4000 K/4500 K/5000 K/5500 K/6000 K/6500 K/7000 K
Focus: Auto/Manual
Aperture/Electronic Shutter: Auto/Manual
BLC: ON/OFF
WDR: OFF/Dynamic Level Adjustment
Video: Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
SNR: >55dB
Effective Pixels: 2.07 MP, 16:9
Pan/Tilt Movement: -170°–+170° / -30°–+90°
Pan/Tilt Control Speed: 0.1–60°/S; 0.1–30°/S
Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
360° TALLY: full 360° view of TALLY
Audio Compression Format: AAC | MP3 | G.711A
Video Compression Format: H.264 | H.265 | Dual Streaming Output
Output Resolutions: 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
Control Protocol: VISCA | Pelco-D | Pelco-P
Baud Rate (bps): 115200 | 9600 | 4800 | 2400bps
Network Protocol: RTSP | RTMP | ONVIF | GB/T28181 | VISCA | PoE
Temperature: -10℃–50℃
Humidity: 20%–80%
Weight: Net:1.7Kg
Dimension: Net: 180mm(front)×188mm(side)×198mm(height)

WE RECOMMEND

The RGBlink RGB12X-POE-TLY is a professional PTZ camera with Full HD resolution that offers extensive connectivity via HDMI, 3G-SDI, and LAN with PoE support. To maximize its potential, it is recommended to pair it with genuine mounting accessories, control panels, and systems for wireless video transmission or streaming.

Brackets and Mounting Accessories - Accessories for safe and flexible installation of PTZ cameras on walls or ceilings.

Control rooms and control consoles - Equipment for professional video signal switching and remote control of PTZ camera movement via VISCA and ONVIF protocols.

Monitors and Recorders - External monitors and recorders compatible with the camera's HDMI and SDI outputs for preview and recording.

Wireless Signal Transmission and Distribution - Systems for wireless HDMI signal transmission and converters for streaming to a PC.

Parameters

Manufacturer:	RGBlink
Category:	PTZ

Main parameters

Resolution	Full HD
Zoom	12x
Type of bayonet	integrated lens
Output	HDMI · 3G SDI · USB
Maximum video resolution	Full HD
Optical zoom	12×
Video outputs	HDMI · SDI · USB · Ethernet / IP
Network protocols	RTMP / RTMPS · RTSP / RTP · ONVIF

Other parameters

Weight	1.7kg
Dimensions	180x188x198mm
Digital zoom	10×
Number of preset positions	255
Version	PTZ
FPS	Full HD 60fps
Lens lens aperture	1.8f
Min. focal length	4.1mm
Max. focal length	49.2mm
Other features	Streaming · Tally · PoE
Control protocol	Pelco-P · Pelco-D · VISCA · ONVIF
