RGBlink RGBCTL-PNDI-OL

Touch Conference Keyboard is a newly designed next-generation network touch keyboard running Android. Besides previewing cameras on its 7-inch touch screen, it controls PTZ cameras with a four-way joystick, decodes H.265/H.264 video up to 4K@60 and manages devices via ONVIF – up to 2048 devices on one network.

A network control desk for video over IP: its touch screen shows the picture from cameras and recorders, the joystick steers PTZ cameras and the HDMI output sends a split screen to a large monitor. It runs Android 11 and talks to the cameras via ONVIF.

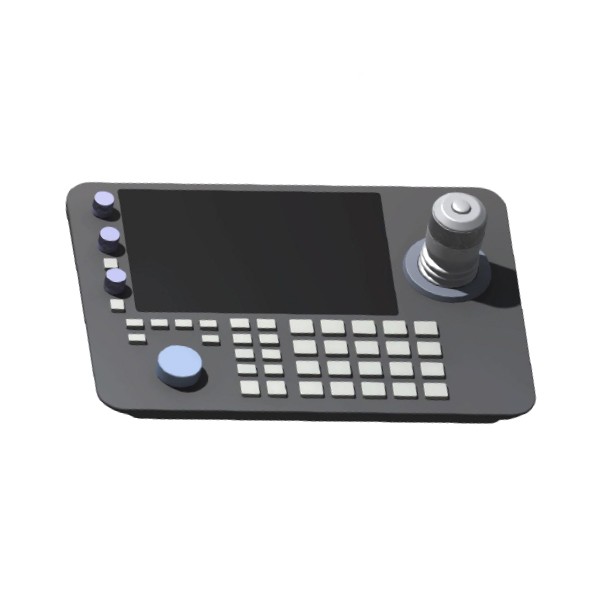

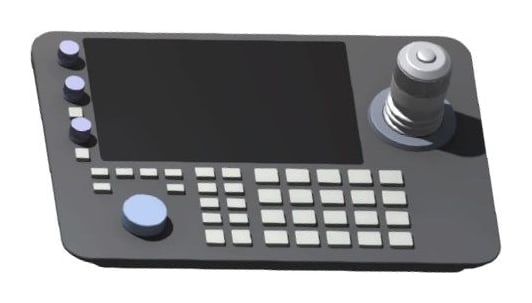

7" touch screen and joystick

The 7-inch capacitive touch screen shows a live camera preview and the control menus, while the four-way joystick and the buttons below it pan and tilt PTZ cameras and handle focus, zoom, exposure and preset recall. The keyboard can also capture photos and record video.

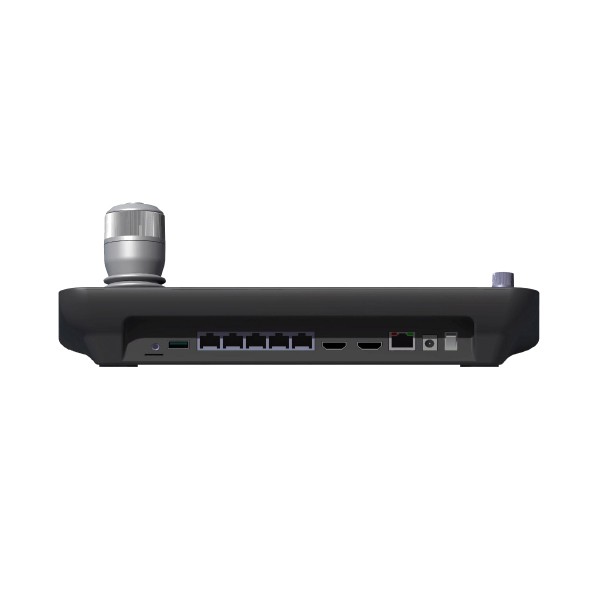

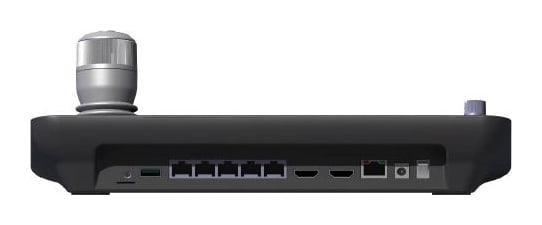

HDMI output and control ports

The keyboard sends its picture via the HDMI output to an external monitor or video wall, split into up to 9 screens. The preview can show a UVC or HDMI input. RS422/RS485 ports are available for serial camera control, and the firmware is updated via USB, a connected mouse or a TF card.

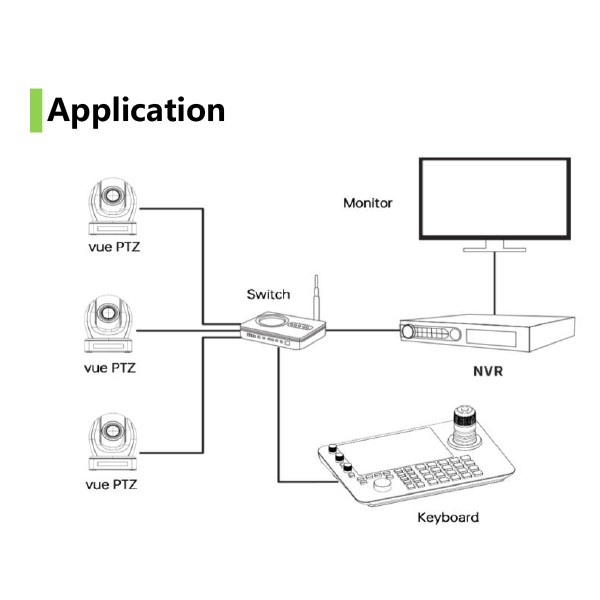

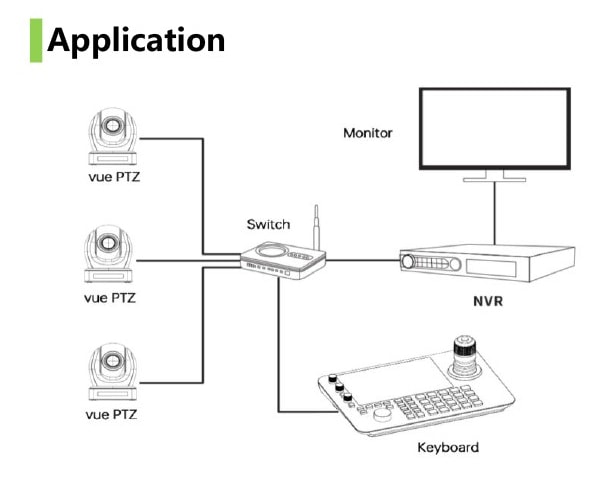

Cameras, NVR and monitor on one network

The keyboard joins the same network as the PTZ cameras and the network video recorder (NVR). It controls a multi-channel NVR via a single IP address, manages devices via ONVIF, and the system scales up to 2048 devices. It decodes H.265/H.264 at 4K@60 for one channel, 1080P@30 for four and 720P@30 for sixteen channels.

More information

It offers a 7-inch capacitive touch screen with a simple, user-friendly interface. The keyboard touch screen allows a real-time preview, and the picture can be sent to an external screen via the HDMI output.

It supports H.265/H.264 decoding at 4K@60fps for one channel, four channels at 1080P@30fps and 16 channels at 720P@30fps. A four-way joystick makes PTZ camera control easy for quickly targeting the subject.

Key features:

• 7-inch capacitive touch screen with Android 11
• Android 11 operating system support
• Advanced H.265/H.264 decoding (9-screen split supported)
• Video wall output via HDMI
• UVC/HDMI input preview
• Full PTZ camera control including presets, focus, zoom and exposure
• Photo capture and video recording
• Multi-channel NVR control via a single IP address
• ONVIF protocol compatibility for device management
• Scalable system supporting up to 2048 devices
• Multiple upgrade options: via USB, external mouse or TF card
• RS422/RS485 control ports for extended connectivity
