PTZOptics PT-WM-3-BK 4K 30X Zoom Wall Mount

PTZOptics PT-WM-3 wall mount (black) in heavy-gauge steel for Move 4K 30X and Link 4K 30X cameras. A 1/4"-20 screw holds the camera, it fits walls and electrical boxes, and cables run hidden under the mount or through the wall.

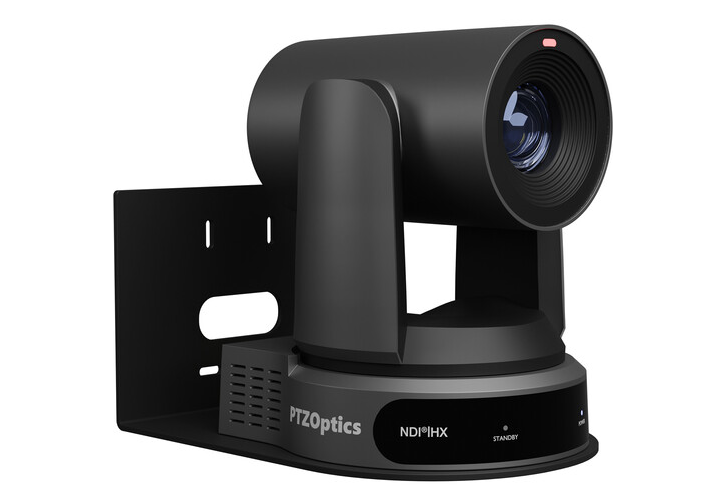

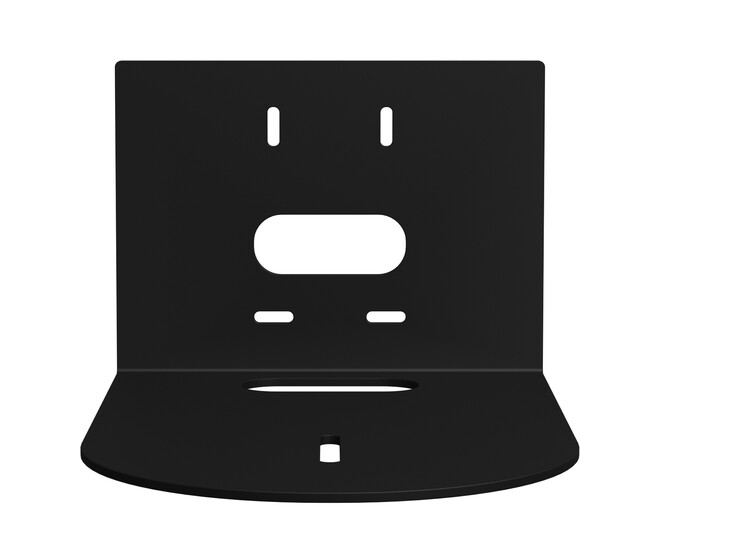

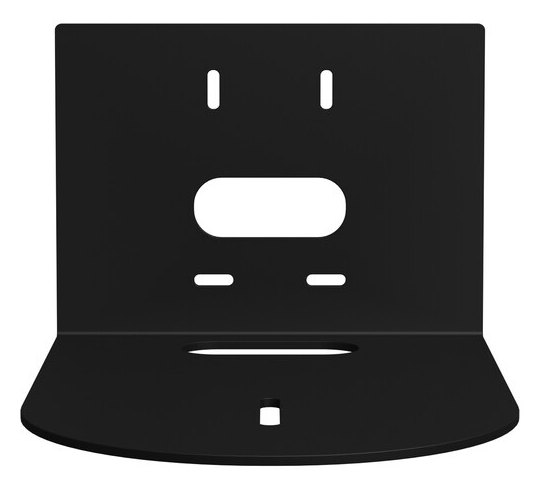

The PTZOptics PT-WM-3 is a large, rounded-nose wall mount designed for bigger PTZ cameras, above all the Move 4K 30X and Link 4K 30X. It is made of heavy-gauge steel with a black powder coat and holds the camera with a standard 1/4"-20 screw. Screw it directly to the wall or to a U.S. double-gang electrical box, and hide the cables under the mount or inside the wall.

Your camera, solid on the wall

Steel mount for the Move 4K 30X and Link 4K 30X with a 1/4"-20 attachment and hidden cable routing.

Heavy-gauge steel1/4"-20 screwFor Move/Link 4K 30XFor larger camerasHidden cablingMade in USA

Built for larger cameras

Its size and tray are made for the larger Move 4K 30X and Link 4K 30X cameras. It also suits many other PTZ cameras with a 1/4"-20 thread, for example from Sony, Panasonic, Canon or BirdDog.

On the wall or on a box

Four mounting holes match a U.S. double-gang electrical box, but you can also screw the mount straight into masonry or drywall. Slotted holes make levelling easy, and all hardware is included.

Cables out of sight

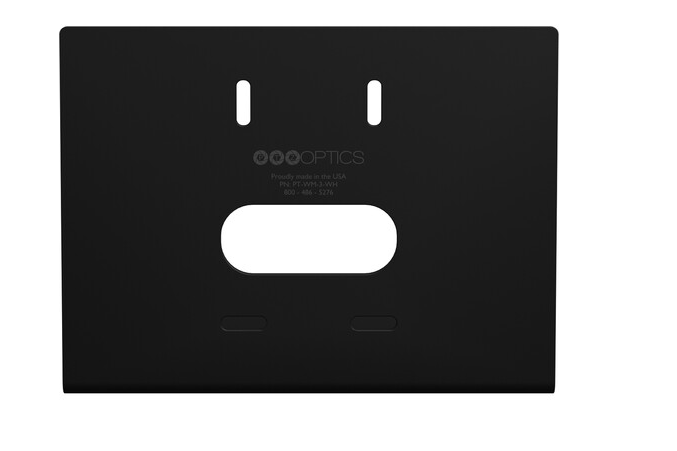

Openings in the tray and the back plate route cables either under the mount or straight into the wall. The result is a clean installation with no loose cabling.

A solid base for permanent installs

Thick, powder-coated steel holds the camera steady and level, so shots and saved presets stay consistent. The mount is made in the USA.

Standard attachment

The camera fixes with the 1/4"-20 screw supplied in the box.

Size and weight

241 × 178 × 129 mm, weight 1.31 kg.

Colour to match

Black powder coat; the mount comes in both white and black.

For meeting rooms and studios

Suited to classrooms, meeting rooms, houses of worship and production studios.
