RGBlink ASK Ultra p2p

The ASK Ultra p2p 4K60 Wireless HDMI Transmitter and Receiver system integrates the most advanced codec DSP technology alongside a proprietary low-latency communication protocol, ensuring a wireless streaming experience that rivals traditional wired HDMI connections in both quality and reliability.

ASK Ultra replaces the HDMI cable between a source and a display: the transmitter connects to a camera, computer or player, the receiver to a projector or monitor, and a 4K60 picture travels wirelessly with 16 ms latency. It is designed for film and television production and for installations where running a cable is not an option.

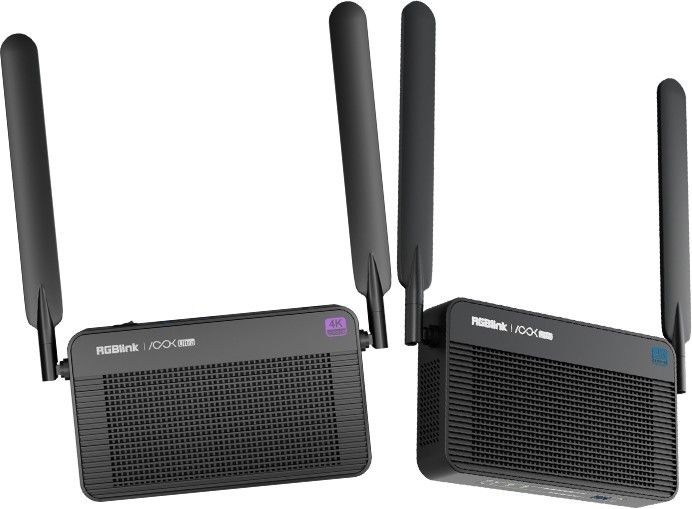

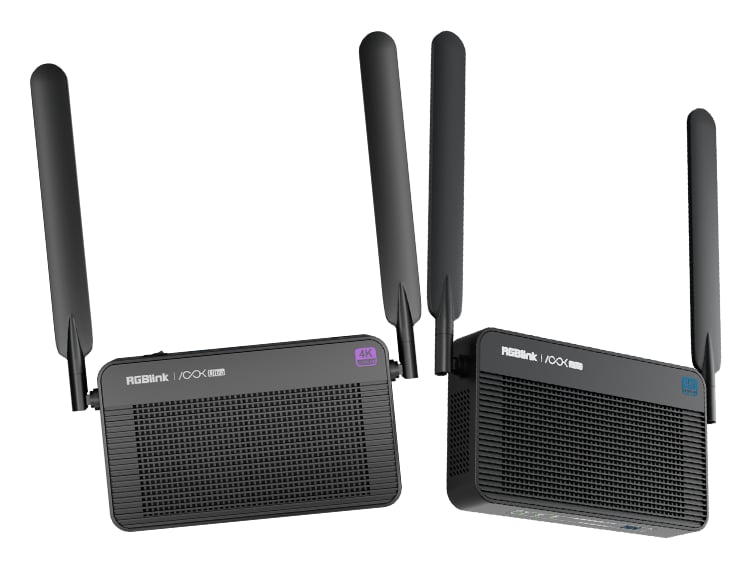

4K60 transmitter and receiver with twin antennas

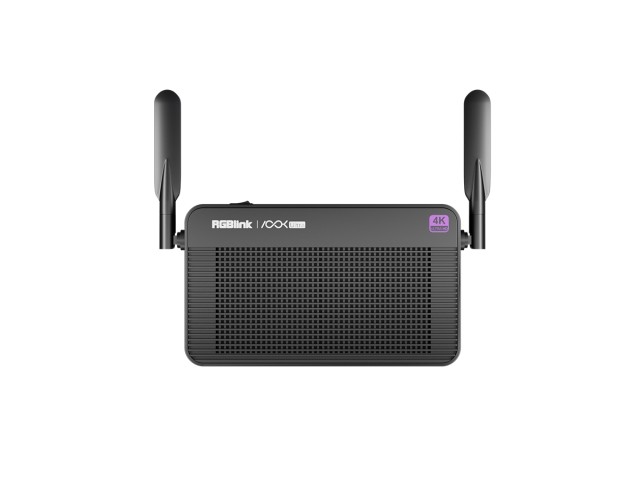

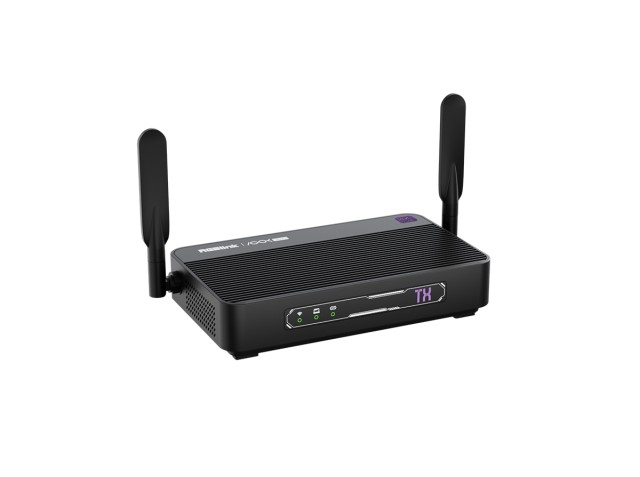

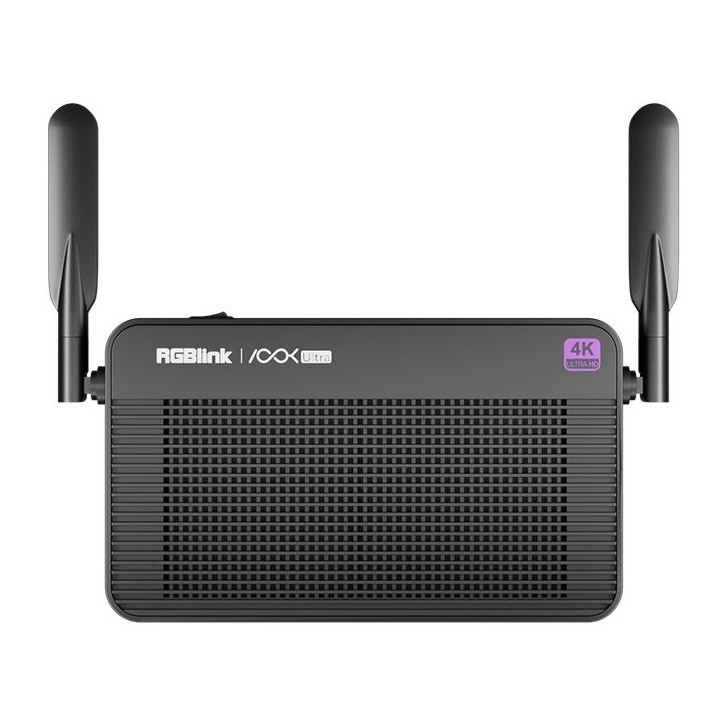

The transmitter (TX) and the receiver (RX) share the same 160 × 94 × 34 mm housing, a pair of antennas and a DC power connector. The transmitter connects to the HDMI output of the source, the receiver to a projector, monitor or TV. The link needs no drivers or app and carries video up to 4096 × 2160 at 60 Hz.

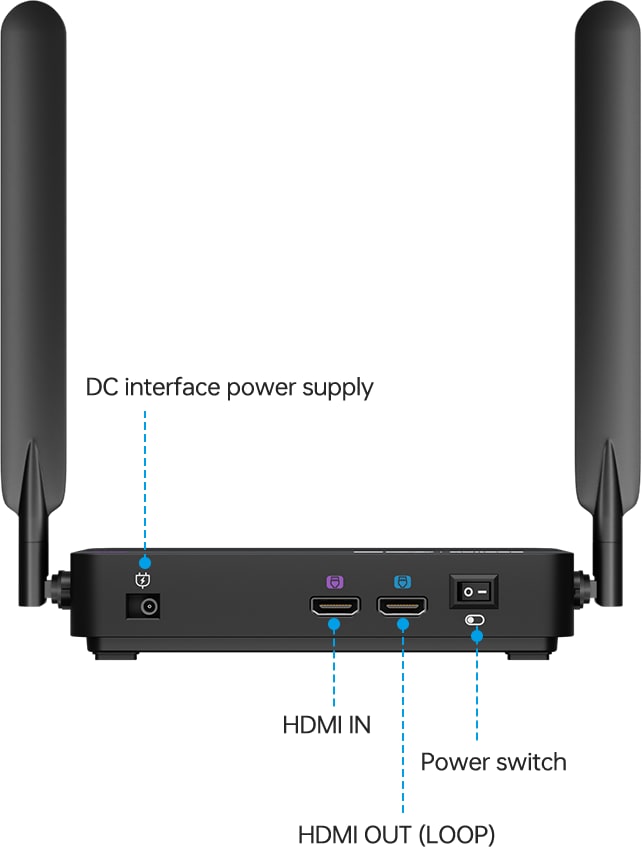

HDMI OUT (LOOP) pass-through output

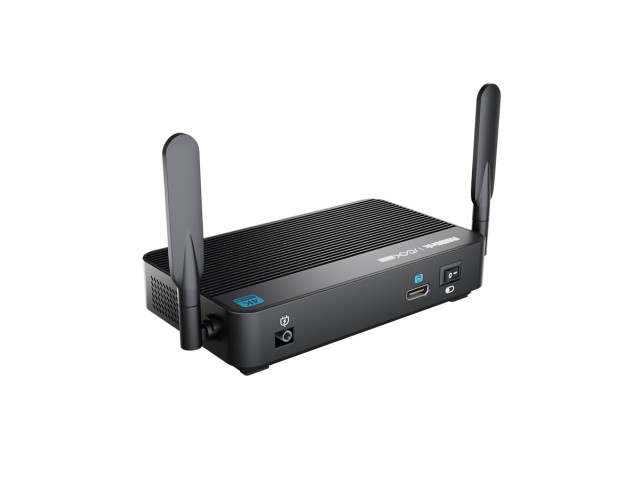

The rear panel of the transmitter has an HDMI IN input, an HDMI OUT (LOOP) pass-through output, a DC power connector and a power switch. The loop output passes the source signal on to a local monitor while the receiver shows it on a remote screen at the same time – one source serves two displays without a splitter.

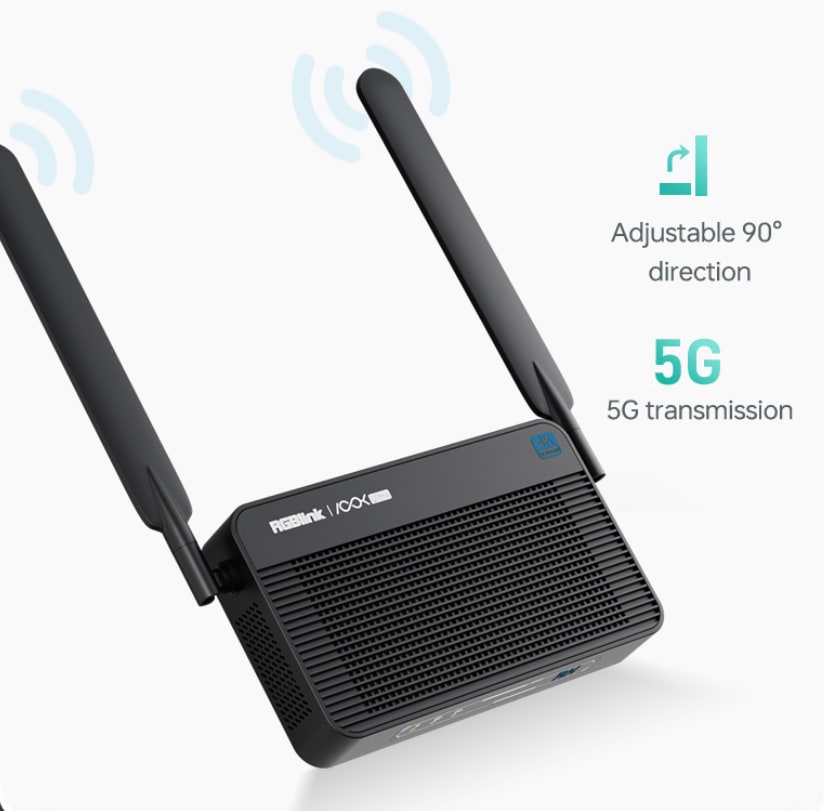

Antennas tilting 90° and 5 GHz transmission

Both antennas tilt through 90°, so they can be aimed to suit where the units are placed. The built-in 802.11ac 2T2R MIMO Wi-Fi module transmits in the 5 GHz band at up to 866 Mbps and selects the channel automatically. The link is protected by AES 128 encryption together with the manufacturer’s proprietary coding protocol and transmission algorithms.

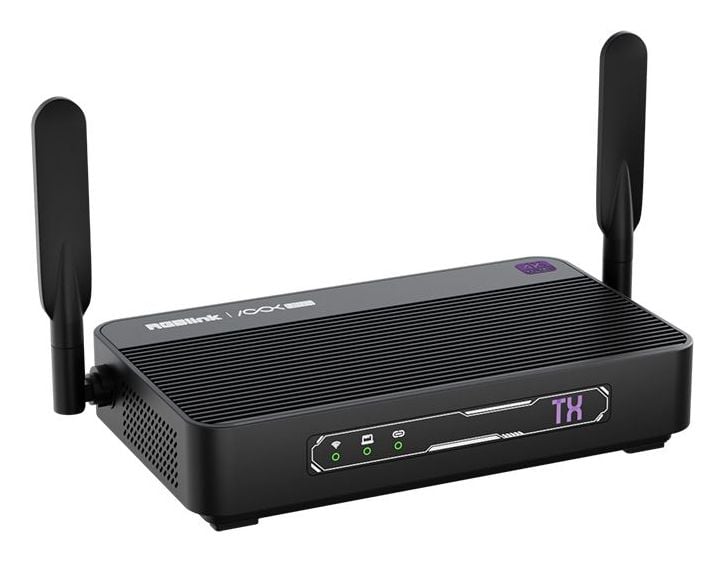

4K60 HDR video and 7.1 audio

The link handles up to 4096 × 2160 at 60 Hz, 10-bit HDR and YUV 4:4:4 colour sampling with no visible loss of quality. The 16 ms latency equals roughly one frame at 60 fps, so the picture stays in sync even in live production. Audio embedded in HDMI is carried in up to 7.1 channels.

More information

• 4K60 wireless HDMI transmitter and receiver set
• Support 4K@60 high resolution
• 16ms ultra-low latency
• Support HDR 10bit
• Auto WiFi channel selection
• High picture quality with vision lossless YUV 4:4:4 wireless transmission
• Built-in fast 802.11ac 2T2R WiFi MIMO module with rate up to 866Mbps
• AES128 encryption and proprietary coding protocol and transmission algorithms to ensure high data security
• Support audio 7.1 channels
• Support Dolby Atmos/DTS bypass

This cutting-edge solution supports 4K60 HDR resolution, providing lossless visual quality with an Ultra-low latency of just 16ms from end to end. It represents the pinnacle of Wi-Fi-based HD transmission technology, offering unparalleled stability and efficiency.

This system is ideally suited for use in professional settings, including business environments, healthcare facilities, and the gaming industry, where high performance and reliability are paramount.
