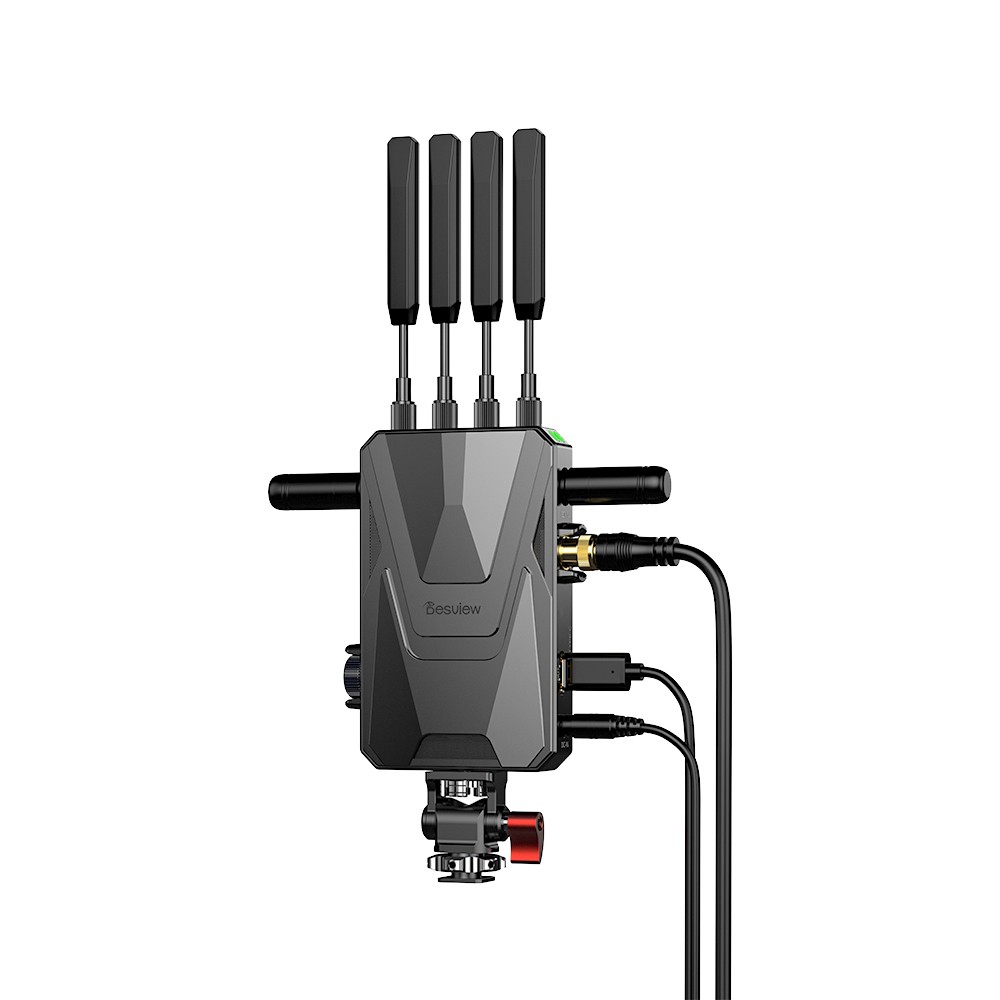

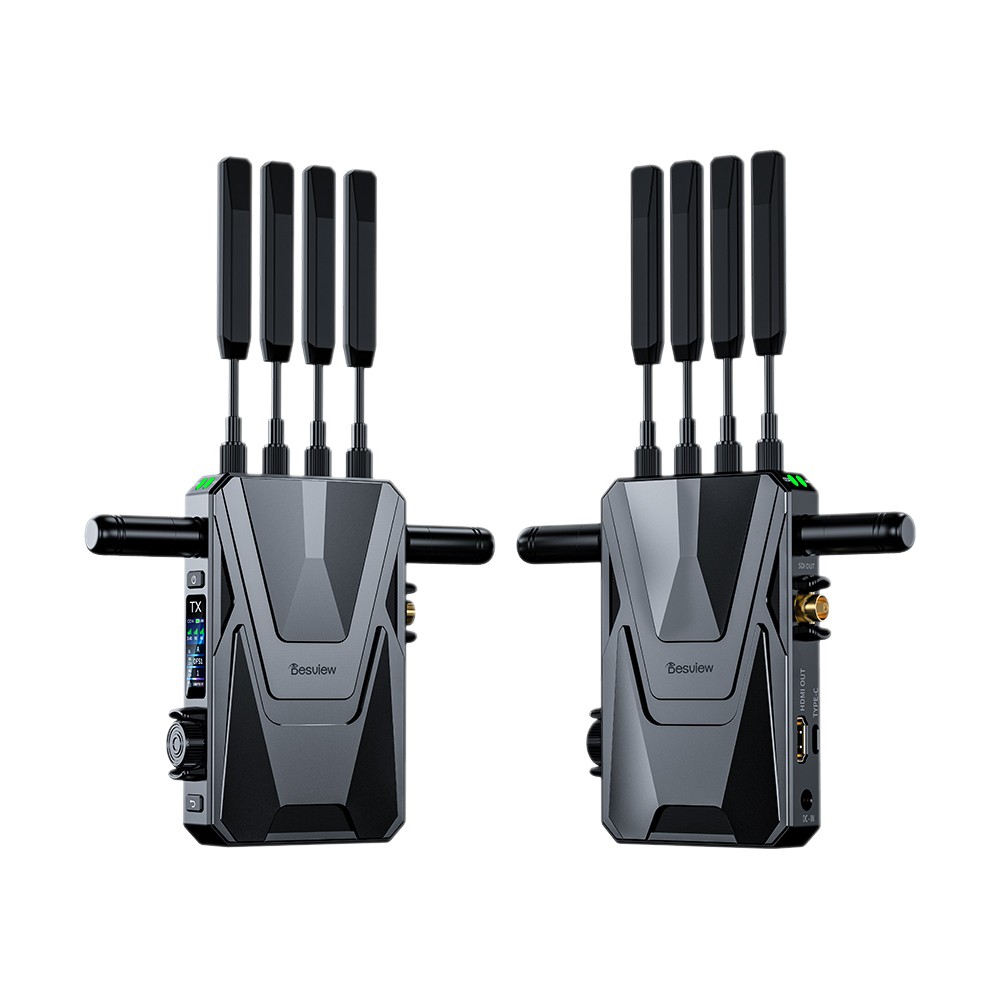

Desview Atlas X 4K TX/RX

Key features

• True Ultra-HD 4K, native 4Kp60 HDR and 24 Mbps high bitrate
• Automatic frequency hopping, anti-interference across the band
• Utilizes the latest generation H.265 video encoding and decoding

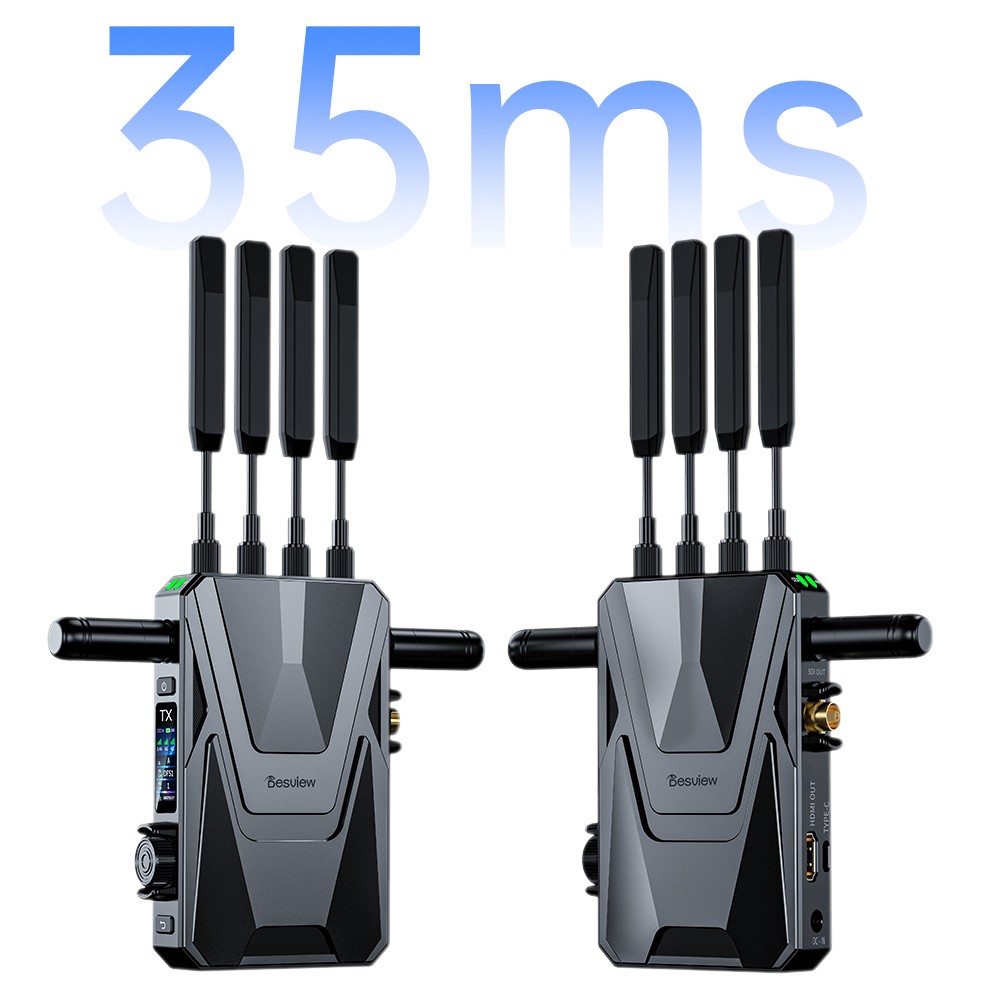

• Ultra-low latency of 35 ms
• Ultra-long transmission distance of kilometers – up to 3 km
• Supports UVC streaming, perfect for live-streaming
• Full HDMI & SDI support

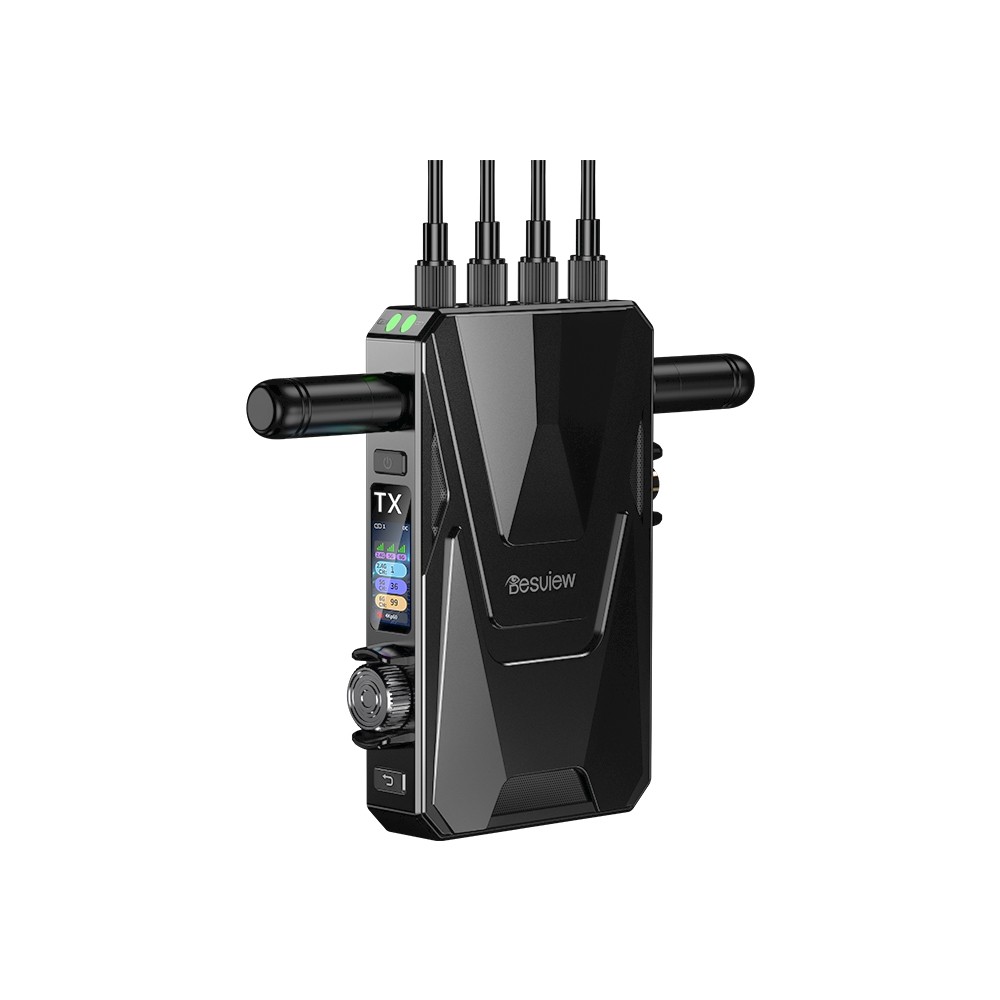

• 1.05-inch full-color LCD display

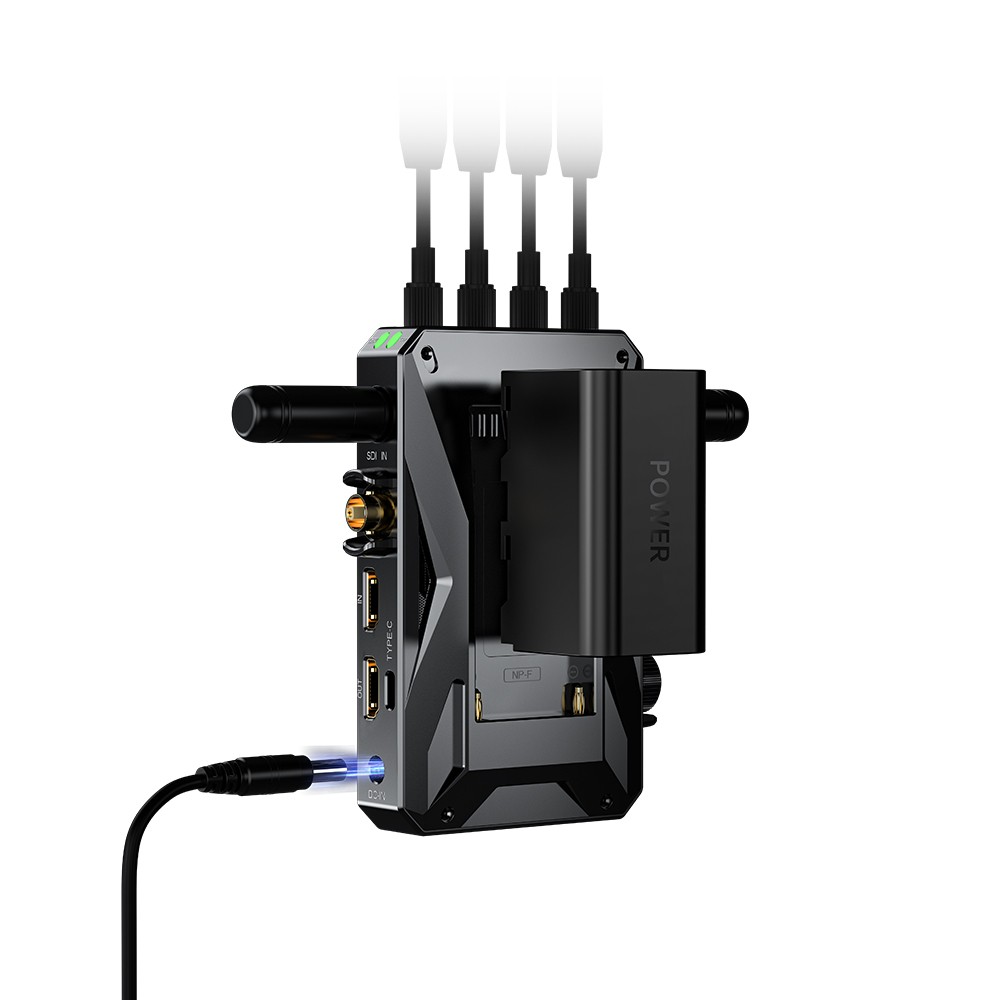

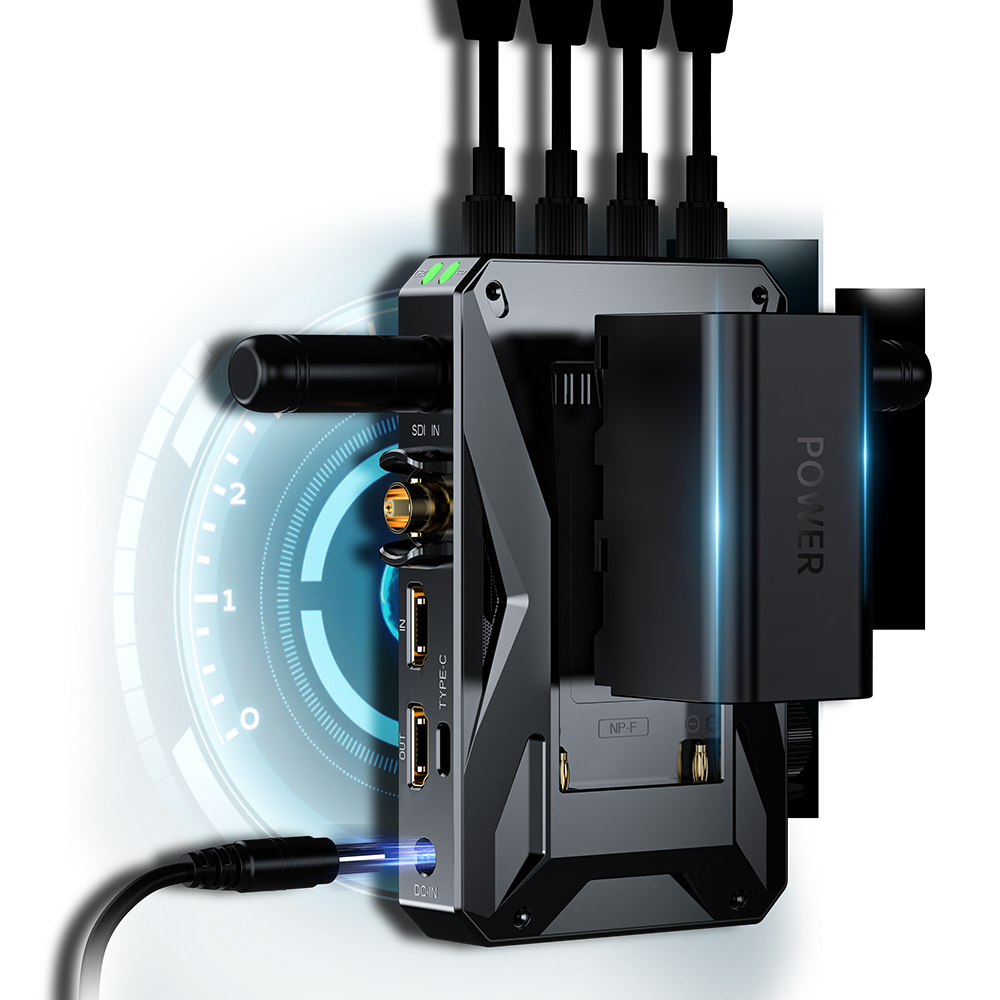

• Dual power supply: NP-F battery and a DC adapter

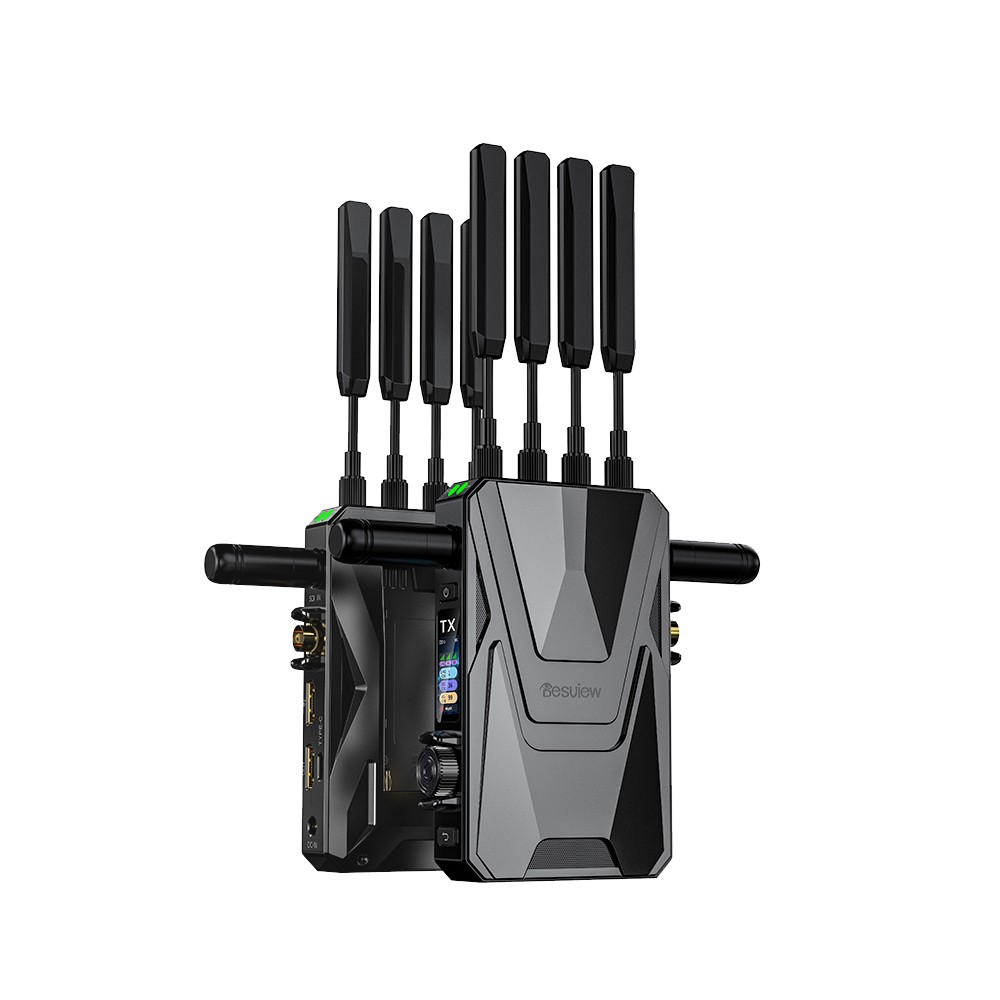

• Aerospace aluminum material

Robust construction, easy to use, and reliable performance. Enhance your production with this top-of-the-line wireless solution.

Ultra-HD 4K and 24 Mbps High Bitrate

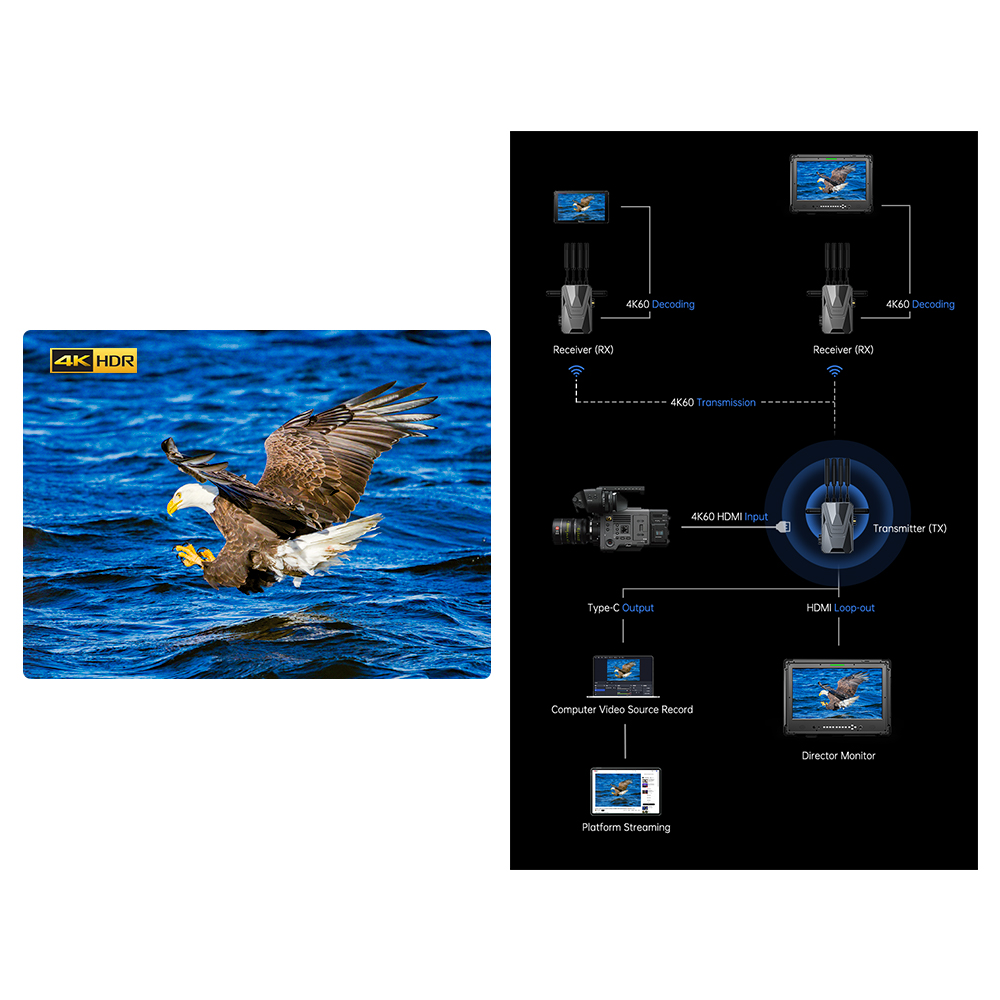

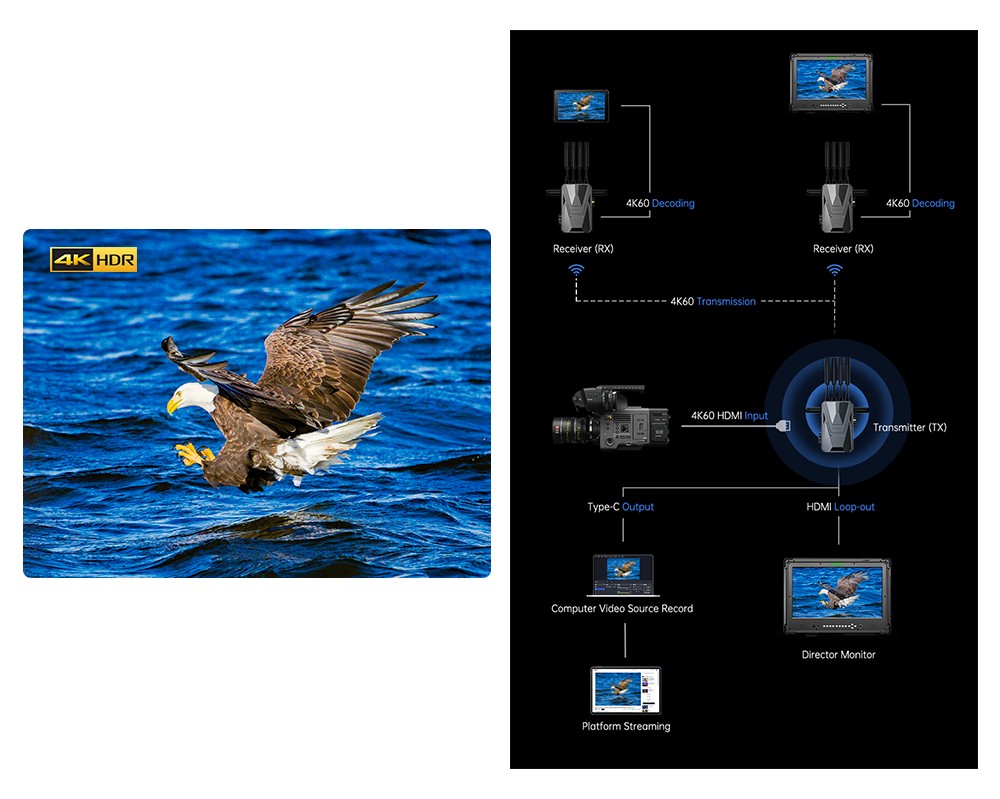

Atlas X video transmission supports Ultra-HD 4K and 24 Mbps high bitrate, meeting the 4K monitoring demand fully. For shooting crews like short films, TVCs and ads, who demand high image quality, Atlas X keeps monitoring and collaboration smooth. The diagram shows a typical setup: the camera feeds the transmitter's HDMI input, two receivers decode 4K60, the HDMI loop-out drives a director monitor and the Type-C output records video on a computer and streams to platforms.

Multi-Band Simultaneous Transmission and Anti-Interference Across the Band

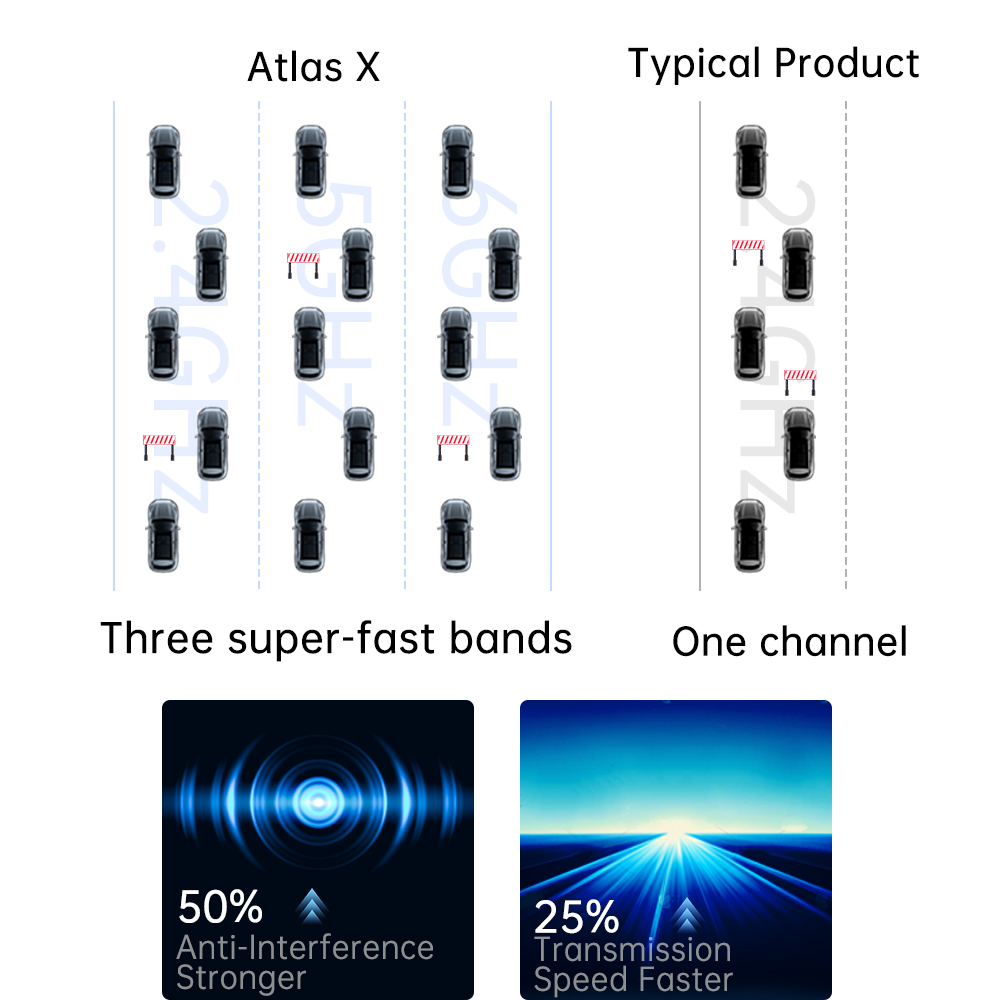

Atlas X uses Desview's self-developed multi-band simultaneous transmission technology (2.4 GHz + 5 GHz + 6 GHz + DFS channels), intelligently routing data across 23 channels, for achieving multi-band data-streaming simultaneous transmission. DFS channels deliver extra regulation-compliant, interference-free channels for the extreme stability demanded on professional sets. Besides, Atlas X switches channels without blackouts for even smoother transmission. The comparison in the image: three super-fast bands versus one channel of a typical product mean 50% stronger anti-interference and 25% faster transmission.

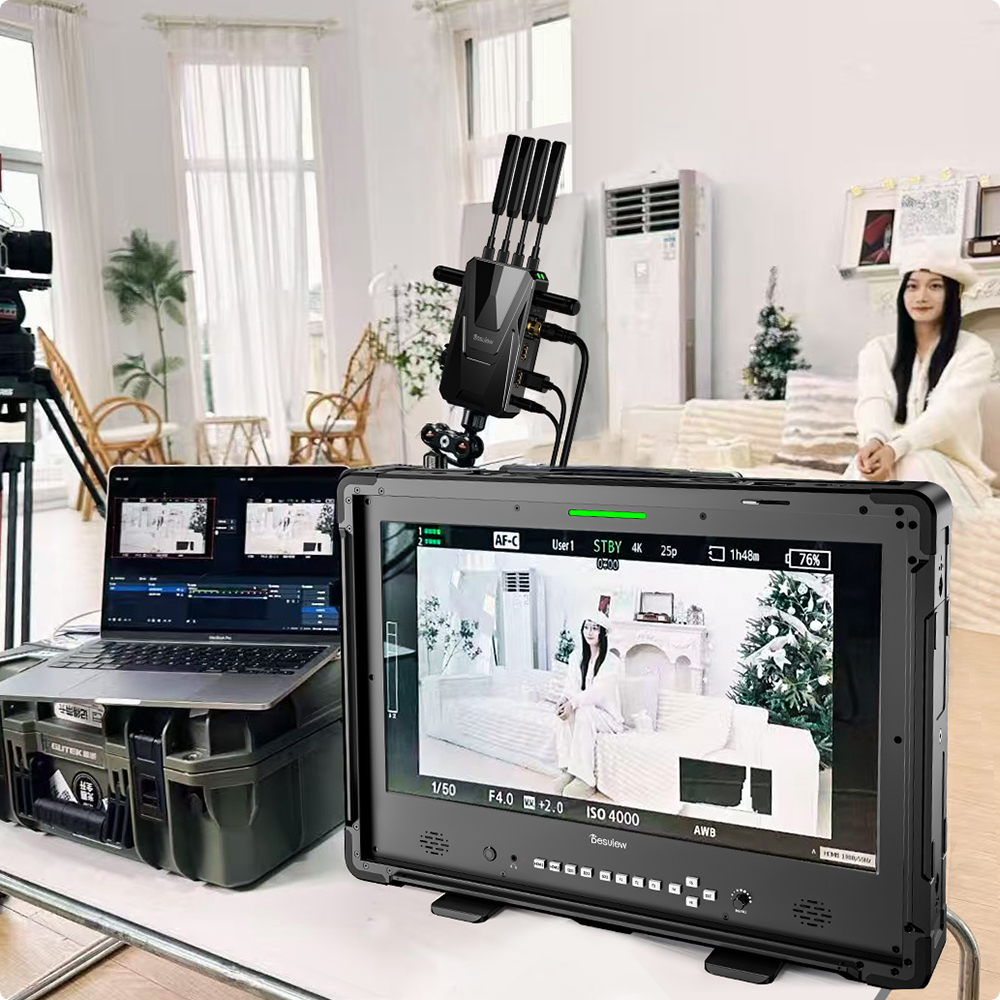

Support UVC Streaming, Perfect for Live-Streaming

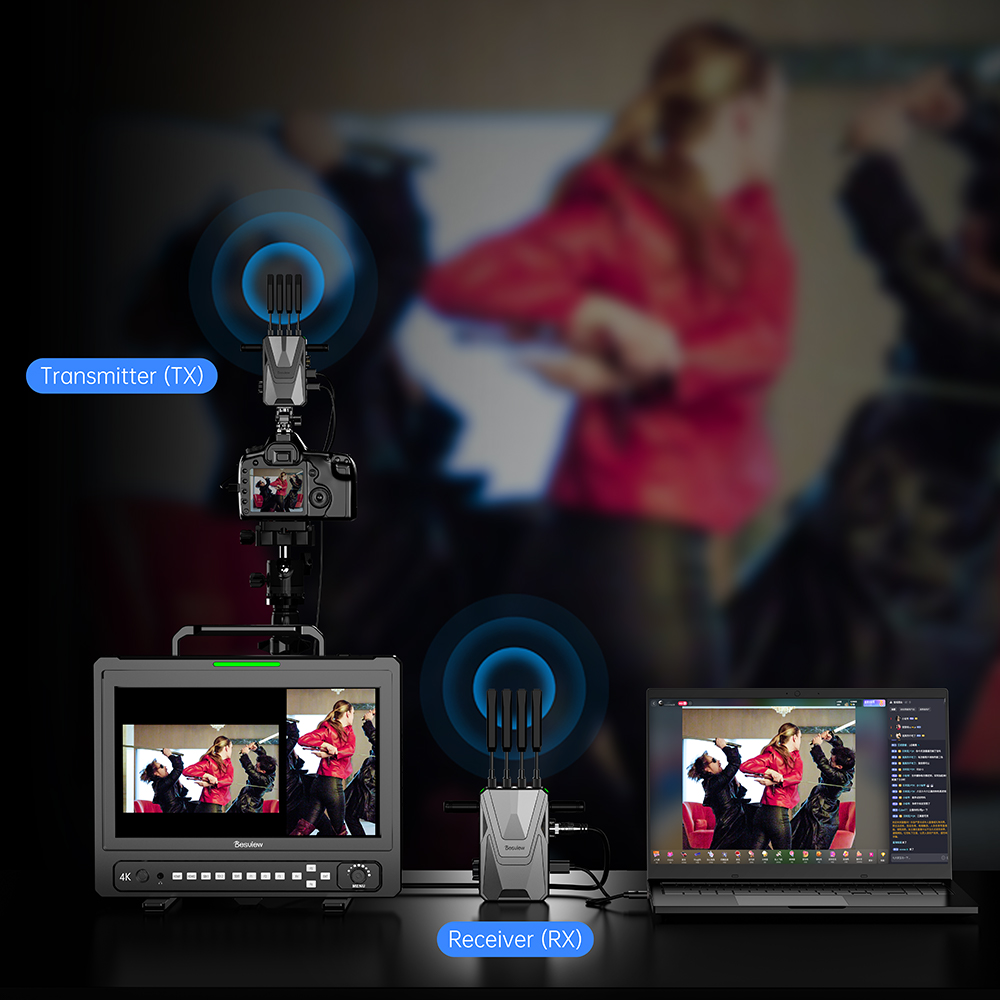

Both transmitter and receiver support UVC protocol, so you can set up your live-streaming camera wherever you want – fast, flexible, hassle-free, with no drivers needed for OBS and TikTok Live Studio.

Full HDMI & SDI Support – Create Anywhere and Anytime

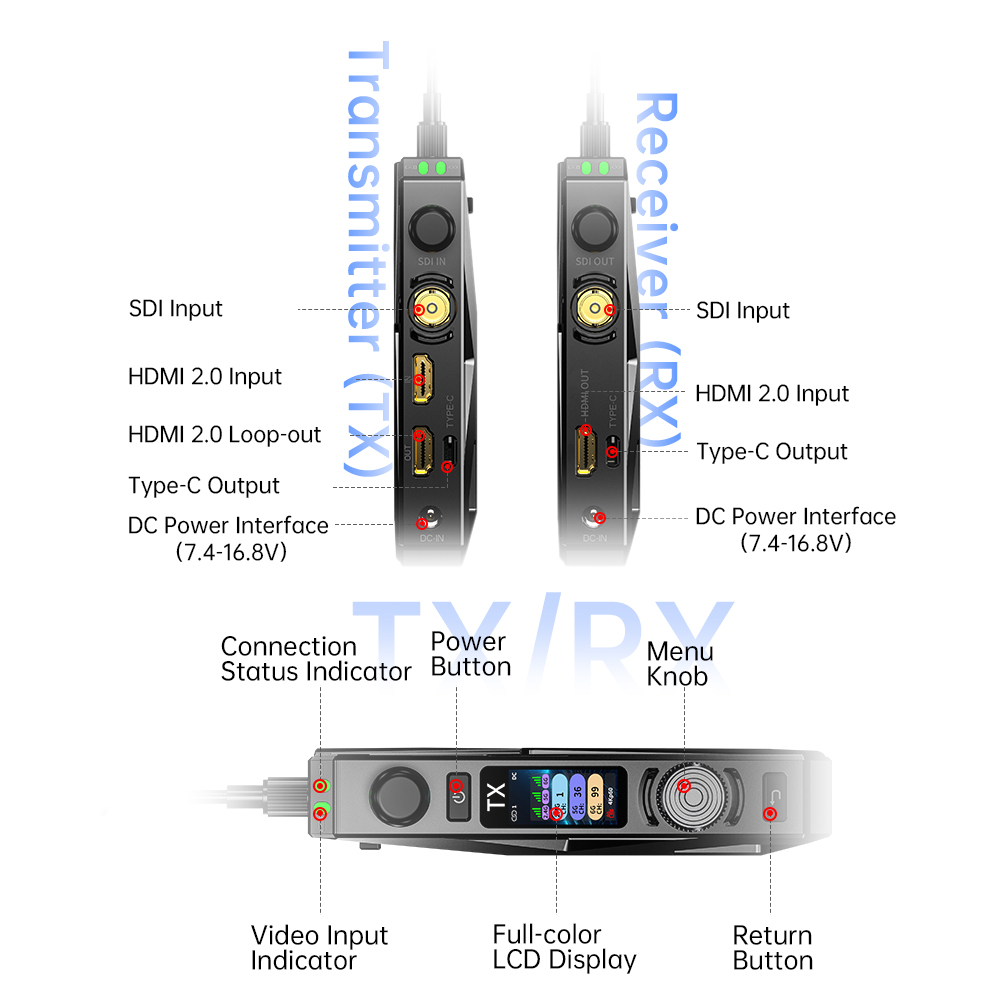

Transmitter supports simultaneous HDMI input and SDI input, and HDMI loop-out for real-time monitoring. Receiver supports simultaneous HDMI output and SDI output, so director monitoring, DIT backup, and streaming encoding can all run at once, cutting setup costs to a minimum. The transmitter has an SDI input, HDMI 2.0 input, HDMI 2.0 loop-out, Type-C output and DC power input; the receiver has an SDI output, HDMI 2.0 output, Type-C output and DC power input. The top panel carries the power button, menu knob, return button, full-color LCD display and the connection status and video input indicators.

1.05-inch Full-Color LCD Display

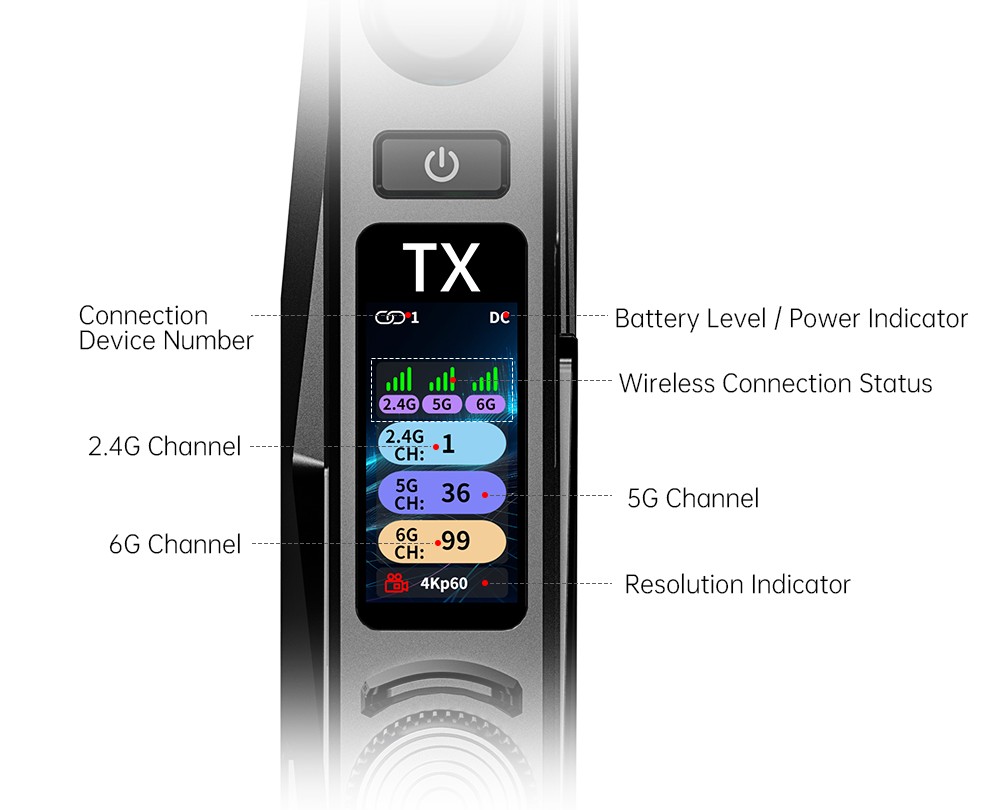

Shows signal status, channel band and battery level in real time, all data visualized on screen for faster settings. The display shows the number of connected devices, battery level and power, wireless connection status, the 2.4, 5 and 6 GHz channels and the signal resolution.
