ATOM 600 KV KIT

-36 %
Black Friday

SKU: VA20-600KV-TR01

The Vaxis ATOM 600 KV kit for RED KOMODO sends 1080p60 with under 80 ms latency up to 600 ft. Transmitter mounts on the camera battery plate with V-Mount power, receiver has SDI and HDMI outputs, monitoring on three iOS devices.

Promotion: -36% ends in: 29d: 18h: 48m

1 098.9 € 698.47 € with VAT 577.25 € without VAT

Price history

Personal pickup: 09. 11. from 09:00
Shipment day: 09. 11.

In stock 3 pcs
Praha 3 pcs

SKU:
VA20-600KV-TR01

Price history

Top accessories for ATOM 600 KV KIT

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi

17 €

on request

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

ATOM 600 KV is a wireless video system designed for the RED KOMODO. The transmitter mounts on the camera battery plate horizontally or vertically, carries a V-Mount battery and passes power through to the camera. It takes the image over SDI and loops it out on SDI and HDMI; the receiver outputs it on SDI and HDMI. Via Wi-Fi and the Vaxis Vision app, the image can be viewed on up to three iOS devices.

Wireless image from RED KOMODO

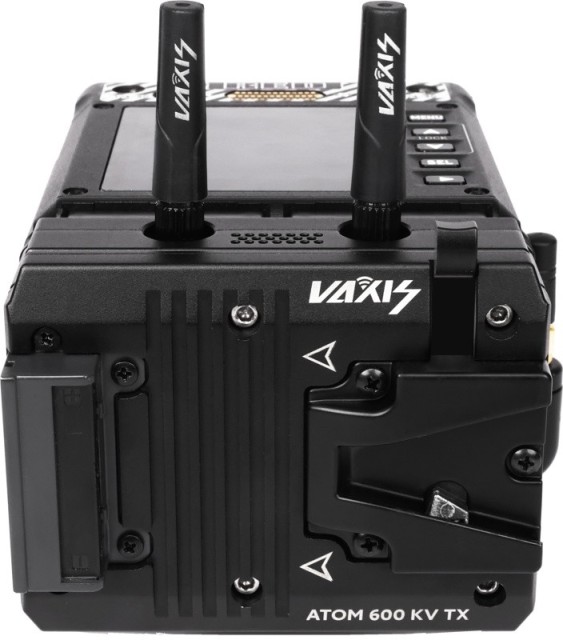

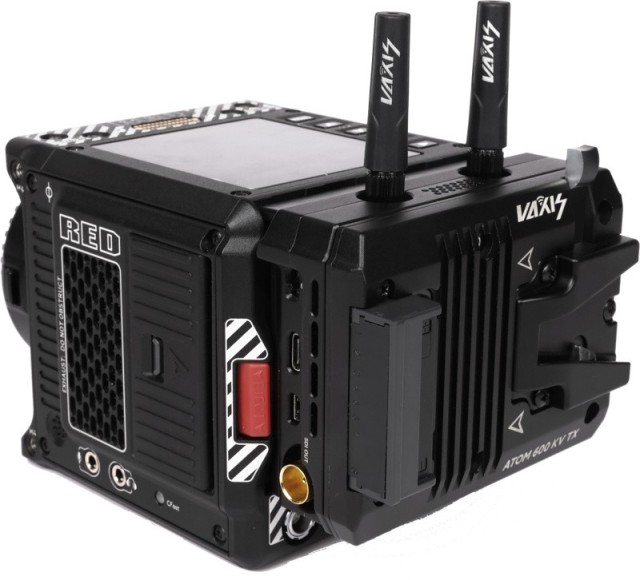

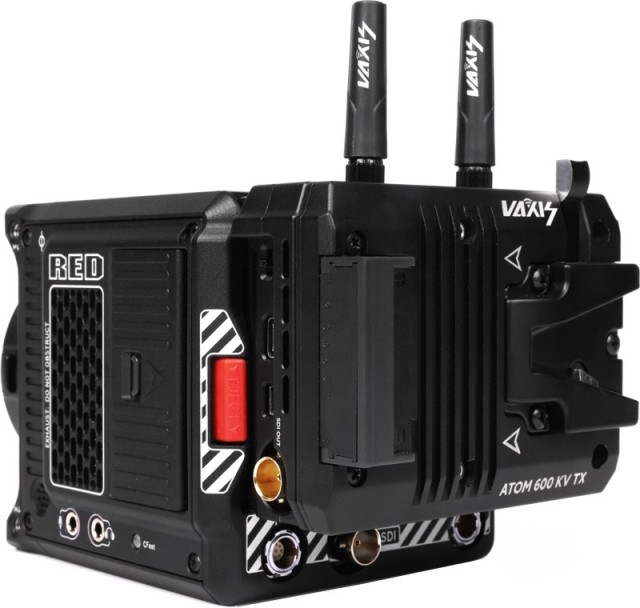

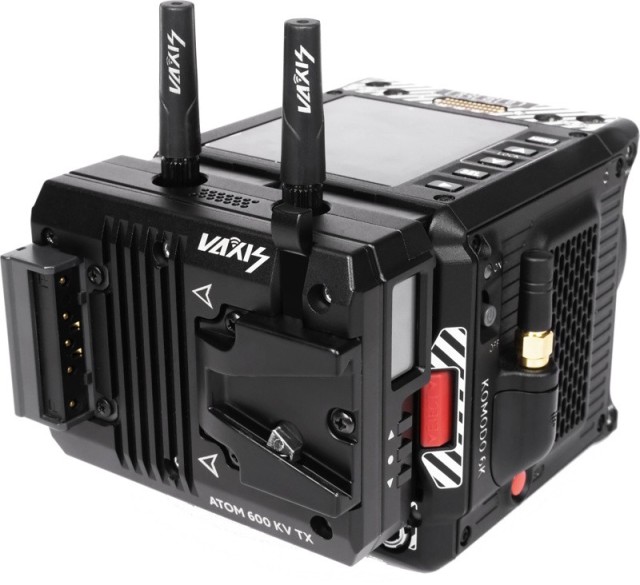

ATOM 600 KV transmitter and receiver that mount on the RED KOMODO battery plate.

For RED KOMODOUp to 600 ft rangeUnder 80 ms latency1080p60V-Mount power

One battery for camera and transmitter

The transmitter carries a V-Mount battery and passes power to the camera. It mounts on the KOMODO battery plate horizontally or vertically.

Receiver for the monitor

The receiver outputs the image on SDI and HDMI and is powered via USB-C or an L-series battery.

Preview on a phone too

Wi-Fi multicast sends the image to up to three iOS devices with the Vaxis Vision app. Director, client or assistant can watch the shot without another receiver.

OLED display

Bright status display on every unit.

Quiet fan

Cooling can be switched on or off as needed.

13 channels

4.9–5.8 GHz band, 17 dBm output.

RP-SMA antennas

Two connectors for swappable antennas.

PACKAGE CONTENT

ATOM 600 KV transmitter and receiver ×1 set
Antenna ×2

SPECIFICATIONS

Brand: Vaxis
Model: ATOM 600 KV Kit, VA20-600KV-TR01
Compatibility: RED KOMODO camera
Resolution: up to 1080p60
Range: up to 600 ft / 180 m (line of sight)
Latency: under 80 ms
Transmitter video: 1× SDI in, 1× SDI loop, 1× HDMI loop
Receiver video: 1× SDI out, 1× HDMI out
Band: 4.9–5.8 GHz, 13 channels, 17 dBm
Antennas: 2× RP-SMA
Transmitter power: V-Mount battery with pass-through to camera
Receiver power: USB-C or L-series battery
Mobile monitoring: Wi-Fi, up to 3 iOS devices (Vaxis Vision)
Other: OLED display, switchable fan

WE RECOMMEND

The Vaxis ATOM 600 KV is a professional wireless video transmission kit specifically designed for seamless integration with the RED KOMODO camera. To maximize the potential of this setup, we recommend supplementing your equipment with high-quality optical filters for a cinematic look and sturdy mounting hardware for secure attachment of accessories.

Optical Filters (4x5.65") - Professional standard-size filters for use in matte boxes, ideal for RED KOMODO cameras.

Optical Filters (95mm) - 95mm circular filters compatible with modern film lenses and filter holders.

Accessories and Power Supply - Accessories for component installation and powering peripheral devices.

Parameters

Manufacturer:	Vaxis
Category:	Wireless video transmission
