1.2800 Nits ultra-brightness
2.The screen displays sharper image
3.Full-touch screen
4.Enhanced contrast of light and shadow
5.Enhanced professional color display
6.Smoother color transitions
Highlights List, Excellent Performance |
![]() |
![]() |

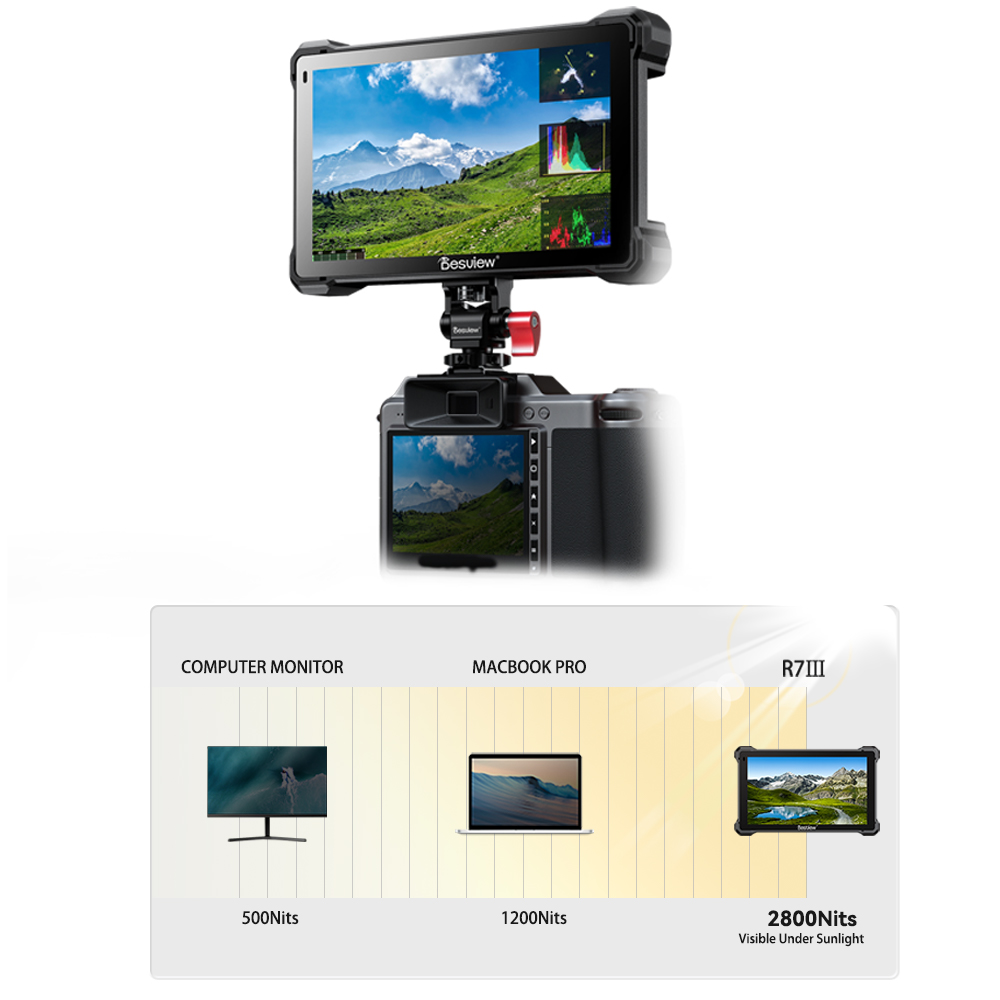

2800 Nits Ultra-Brightness Fearless In Sunlight
2800Nits
1000 : 1 High Contrast |
Fully 4K 60fps Upgrade
Delivers Smoother Experience
60fps |
![]() |
![]() |

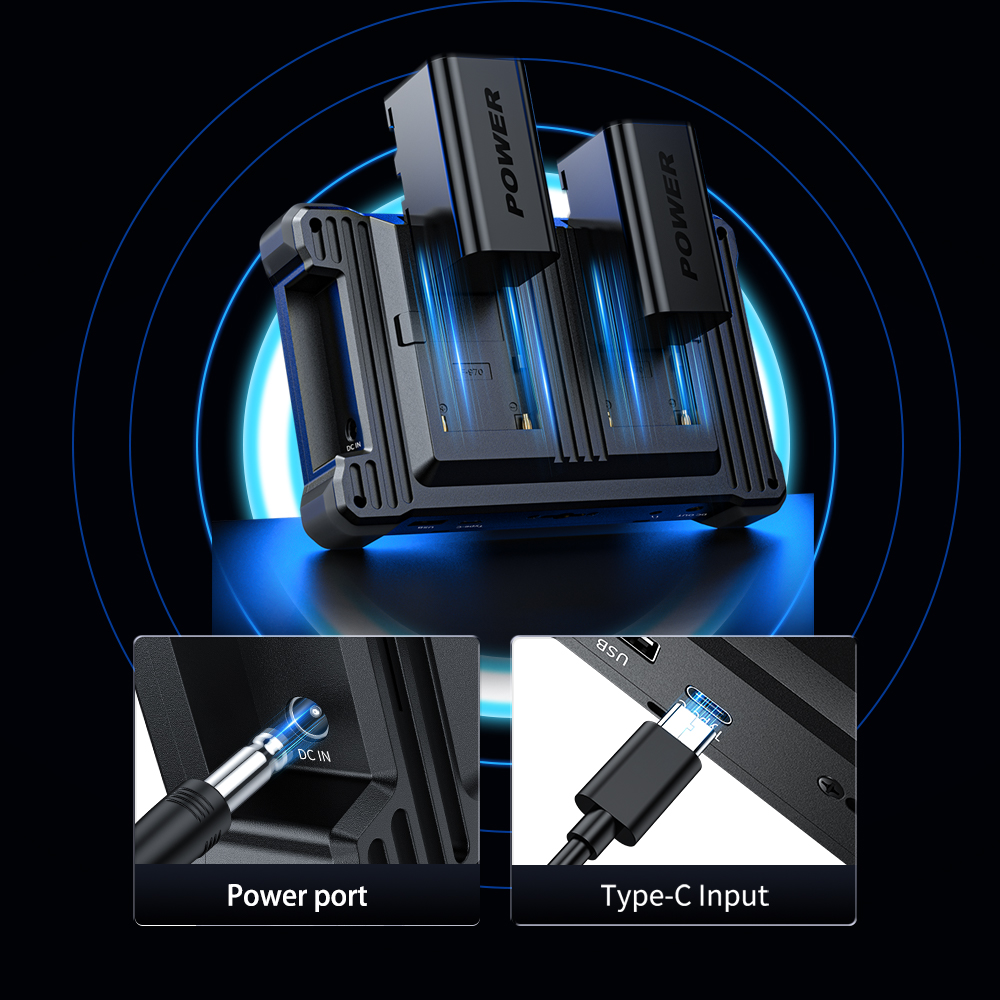

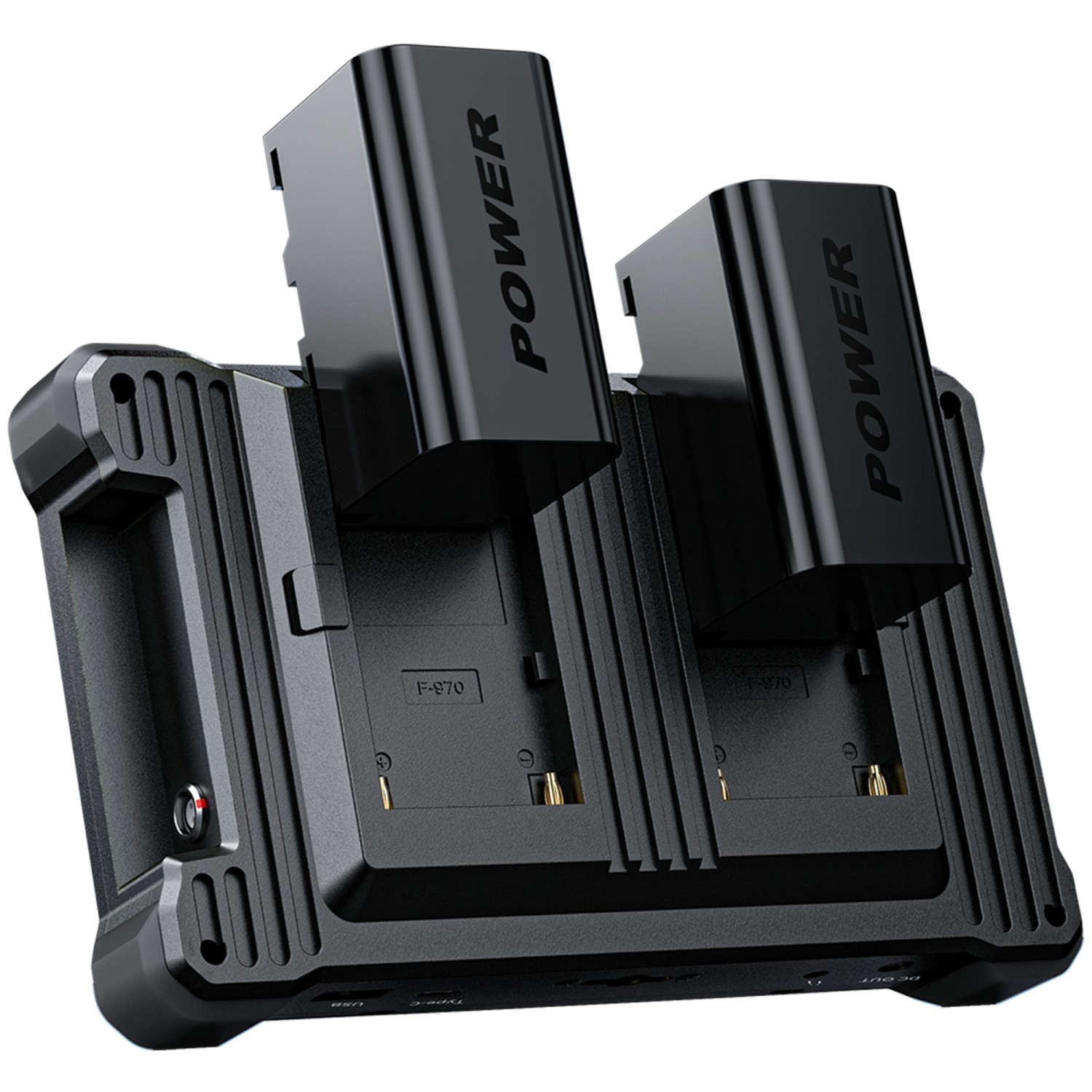

New Dual Battery Setup For Continuous Shooting Supports dual NP-F970 batteries, DC input, and Type-C power supply. With diverse power options, it adapts to various shooting scenarios and requirements |

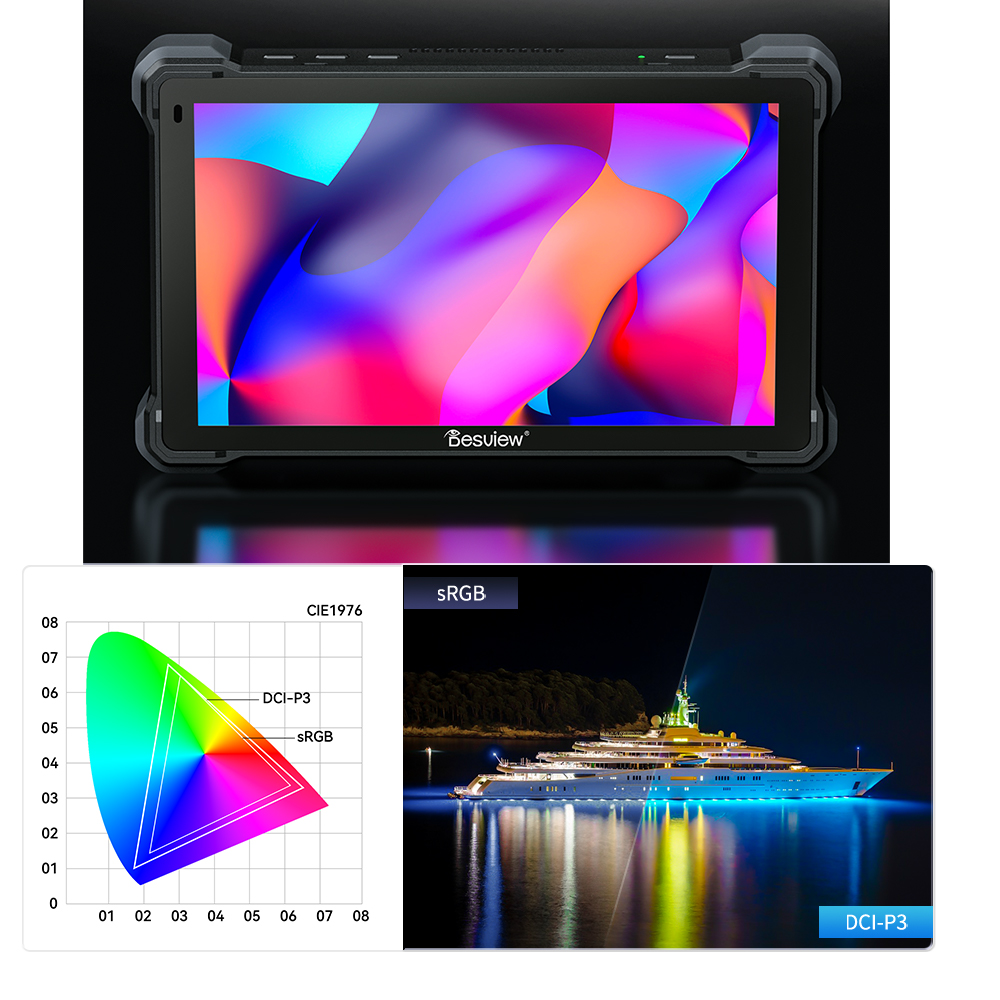

Film-Grade Professional Color Accuracy
E Value ≤2
DCI-P3 Film-grade Color Gamut
*In sRGB mode, E value ≤2 |
![]() |
![]() |

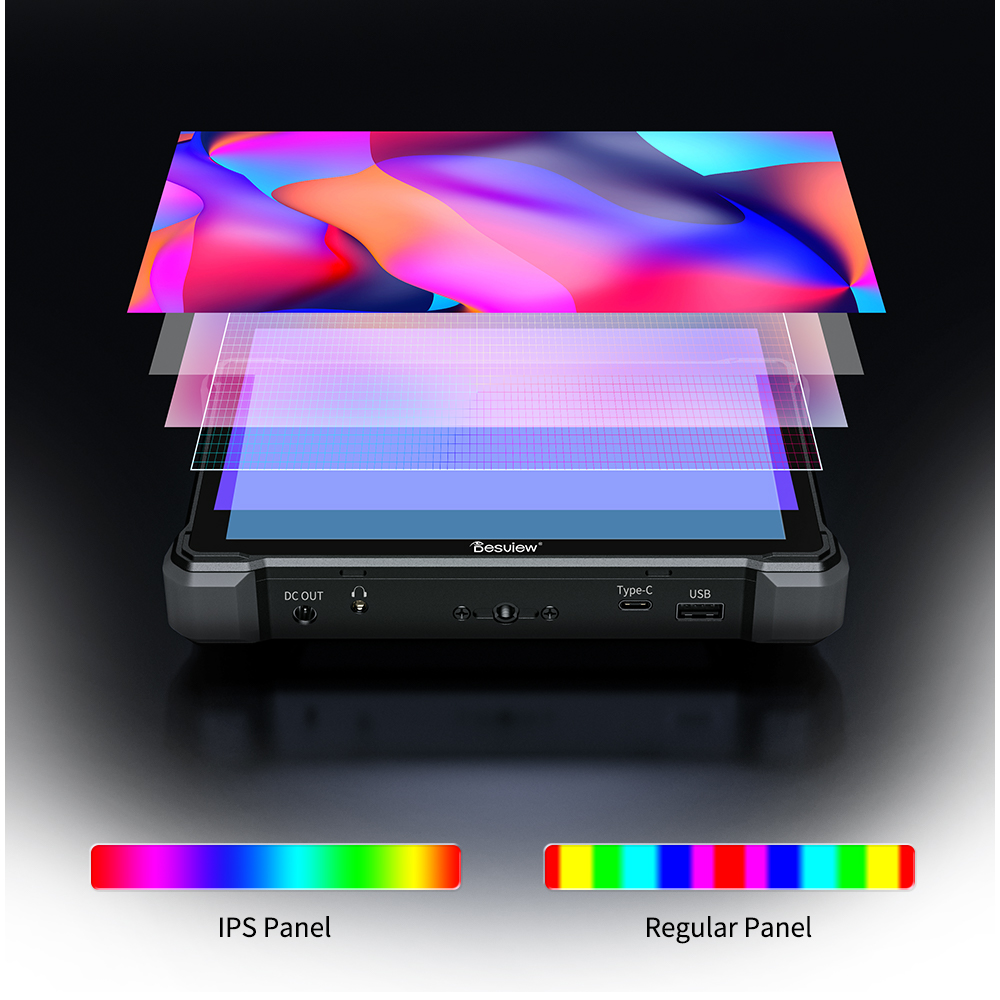

High-Quality IPS Panel
7"
160° Viewing Angle |
Dynamic HDR Monitoring
HDR Image Resolution Technology
10Bit (8Bit+2FRC) Smoother Color Transitions |
![]() |
![]() |

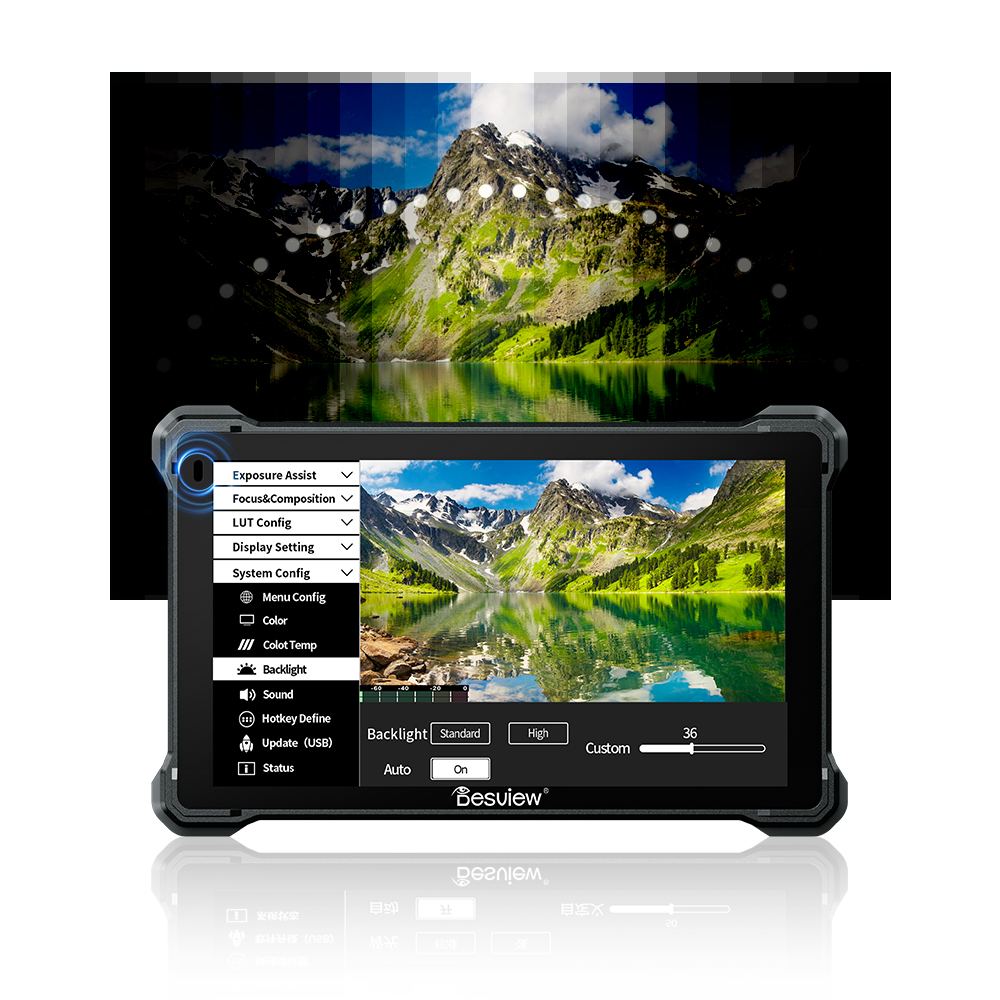

Eco-Friendly Adaptive Lighting System Built-in light sensor that adjusts brightness according to changes in the environment |

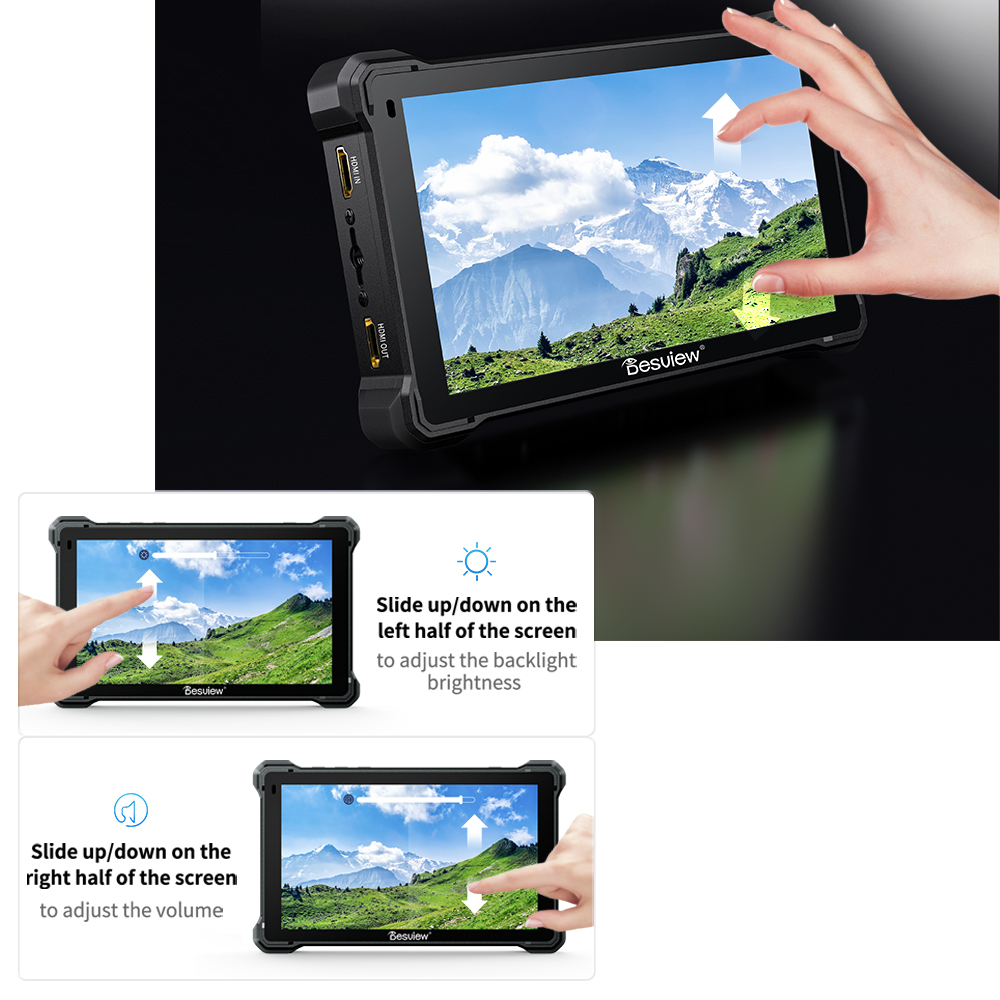

Intelligent Quick And Smooth Operation Equipped with a premium chip, which allows for easy and convenient gesture interaction with just two fingers |
![]() |
![]() |

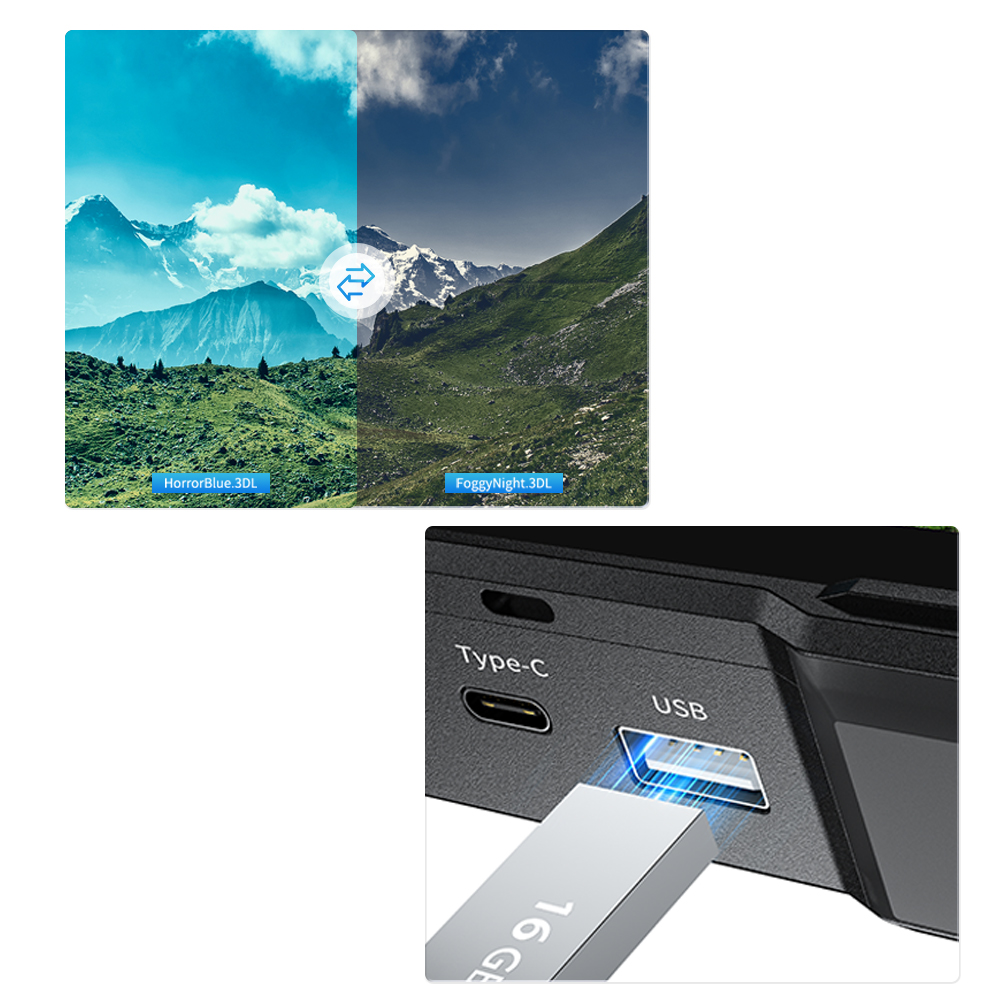

Customize 3D LUT To Define
Import Via USB |

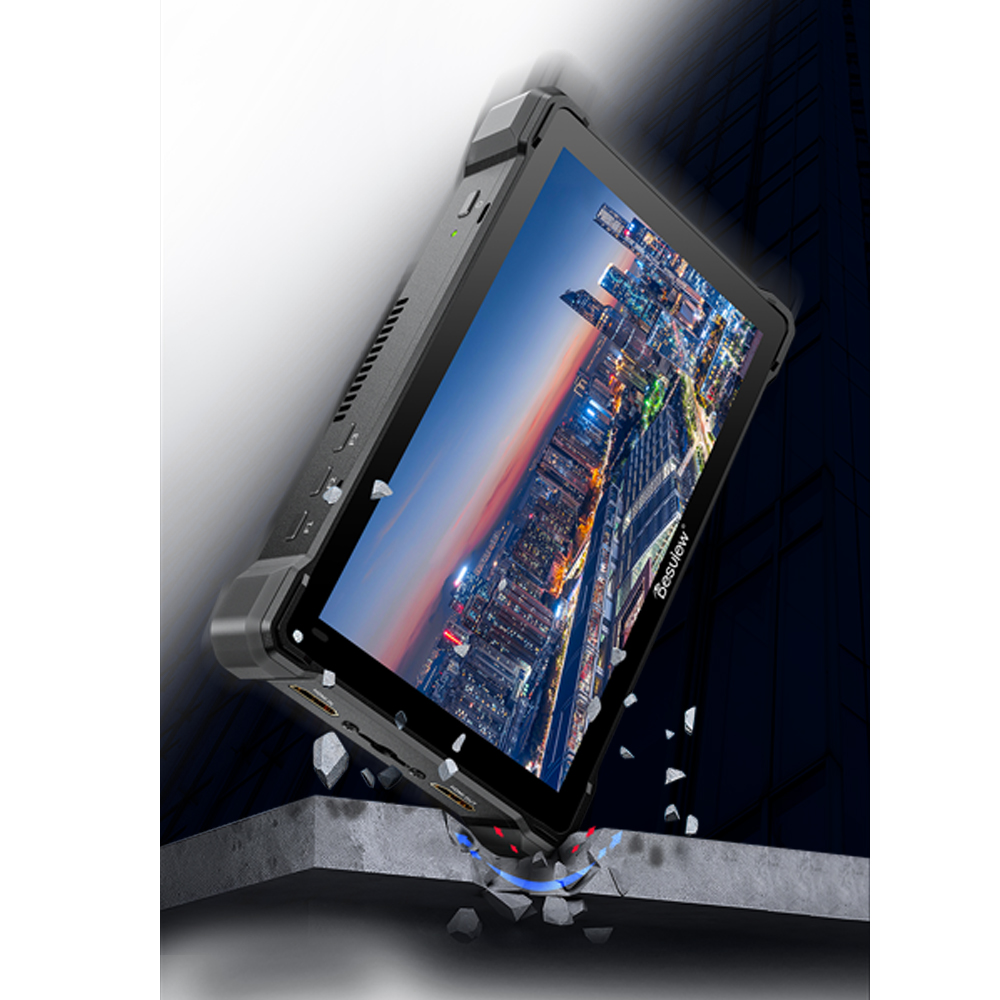

Shock-Proof Rubber Corners Featuring new rubber corner design for improved shock absorption and collision prevention |
![]() |
![]() |

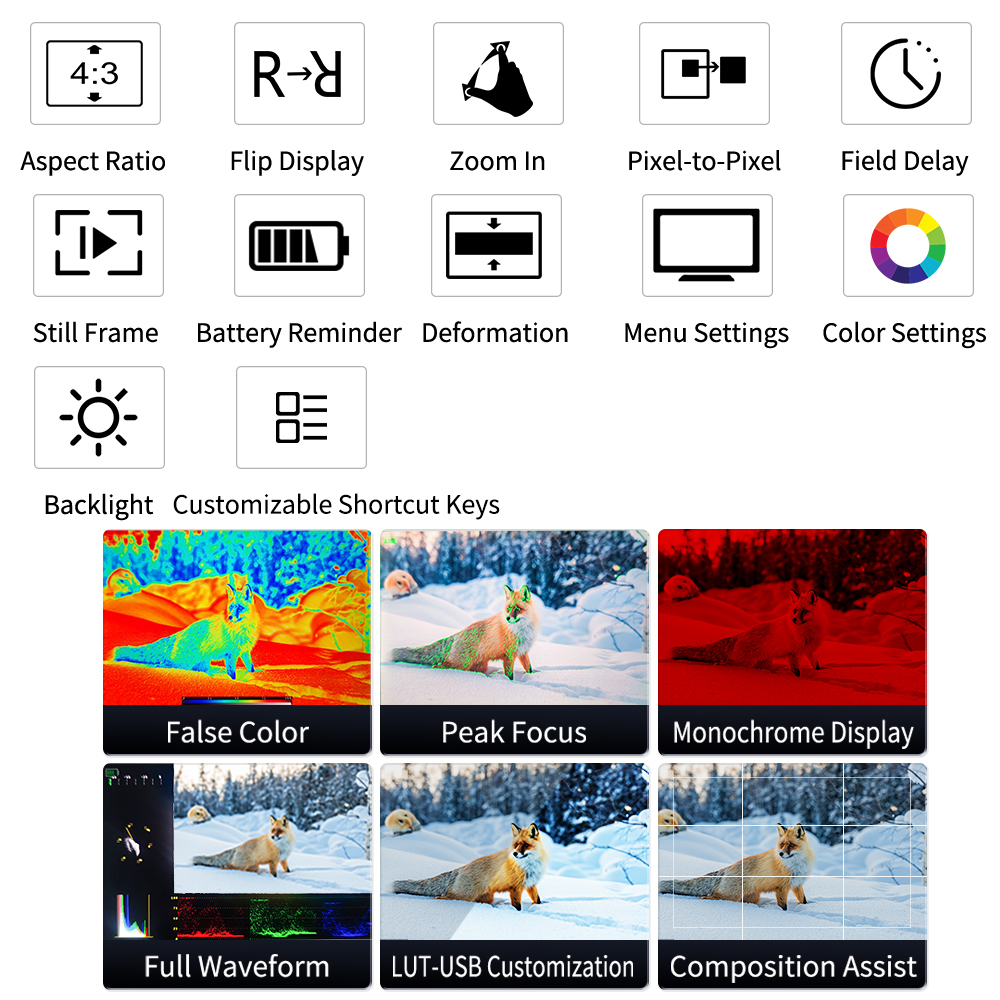

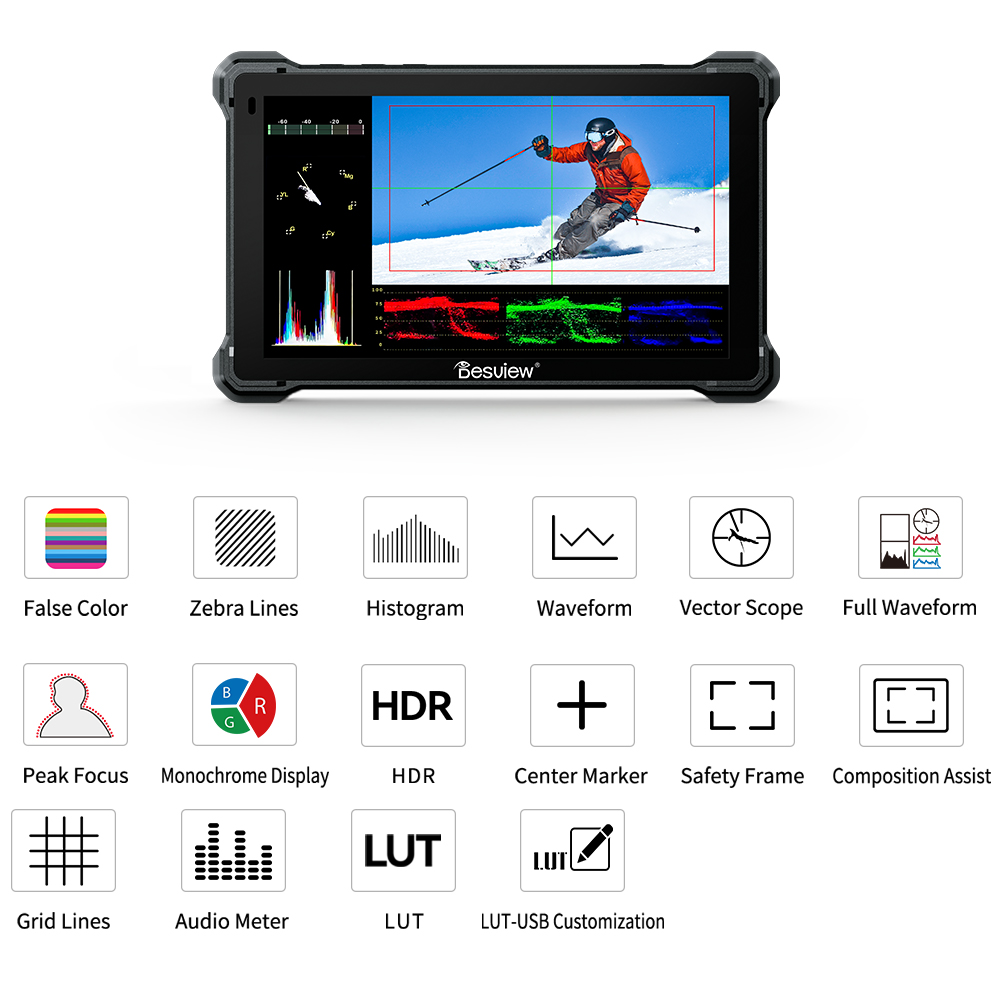

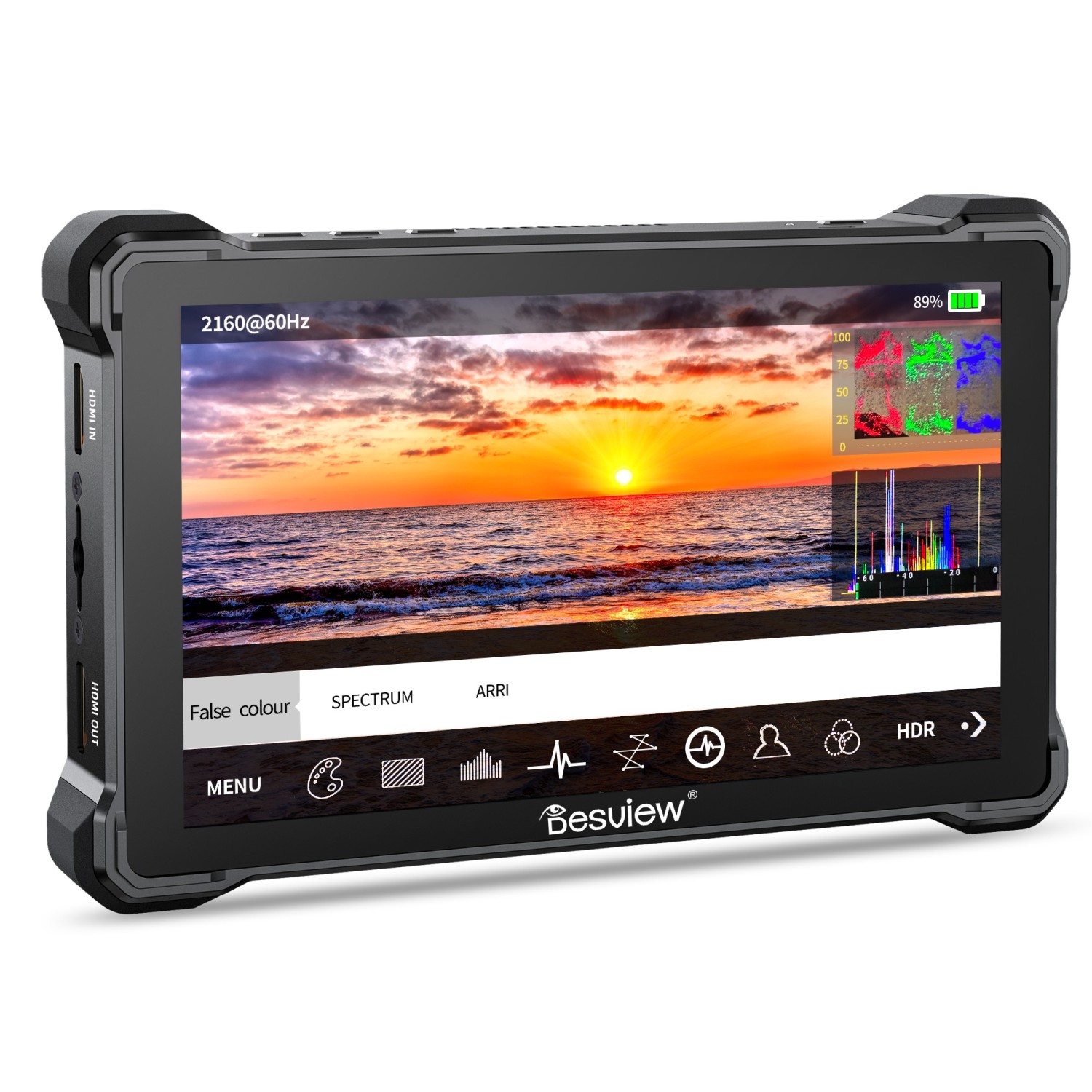

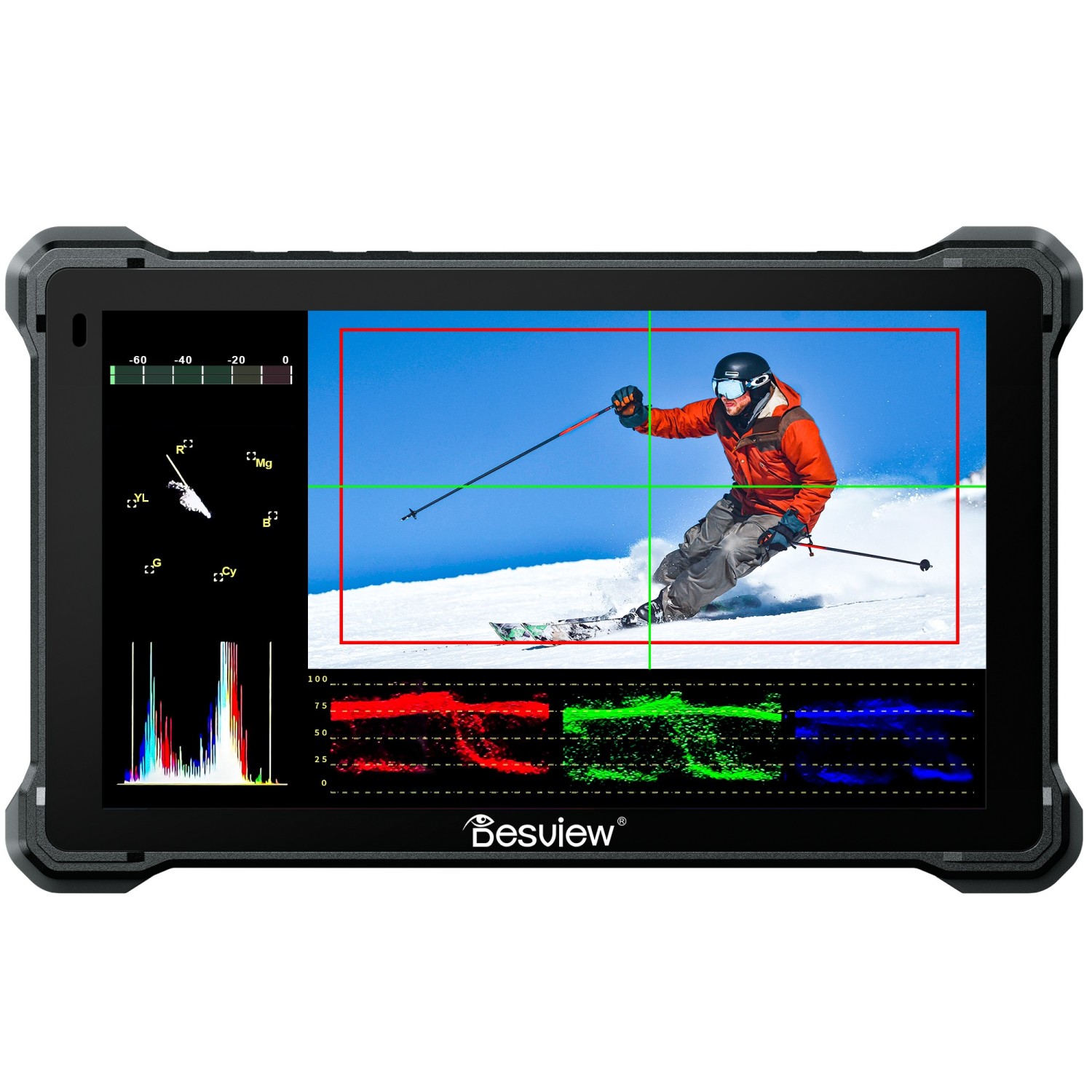

Full Range Of Auxiliary Functions Comes with a range of auxiliary shooting features, such as full waveform, color temperature, peak focusing, false color, deformation function, zebra lines, and still frame, etc. |
Product Specification
Technical Parameter | Interface | Other | Packing List | |||
Size | 7 inch display screen | Signal Input | HDMI2.0 | Touch Method | Capacitive Touch |
Monitor x 1 A-AHDMI Cable x 1 Micro HDMI Cable x 1 D-Tap Cablex1 Monitor Mount x 1 U Disk x 1 Dust Cloth x 1 User Manual x 1 |
Brightness | 2800Nits | Signal Output | HDMI2.0 | Net Weight | 490g | |
Resolution | Full HD1920*1080 | Audio Output | 3.5mmStereo | Material of Case | ABS Plastic | |
Color Gamut | 99.9%DCI-P3 | Data Interface | USB2.0 | Work Temperature | 0℃~50℃ | |
Contrast | 1000:1 | Power Supply |

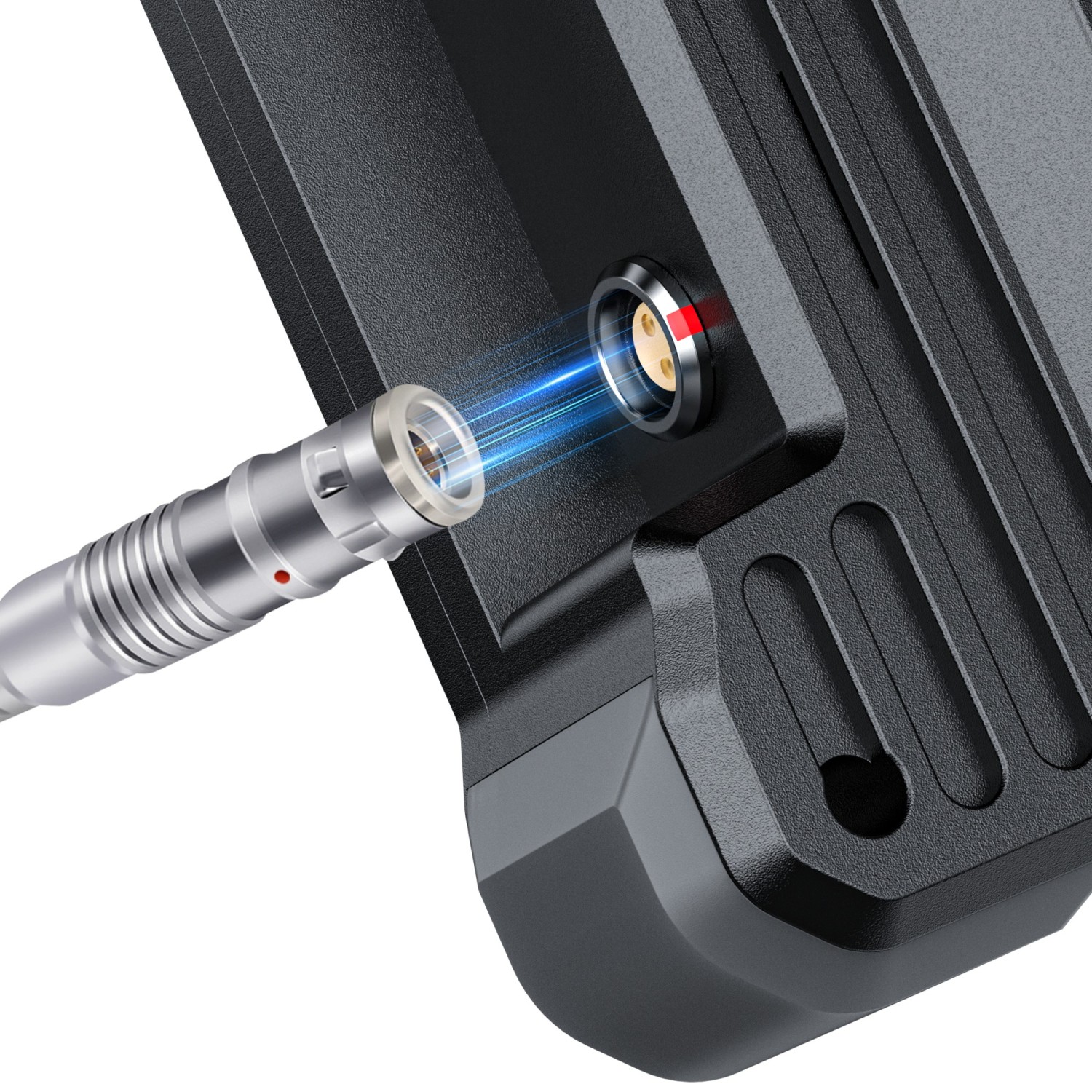

DC IN 7~30V / DC OUT 8V USB Type-C NP-F Series Battery Slot*2 |
Storage Temperature | -20℃~60℃ | |

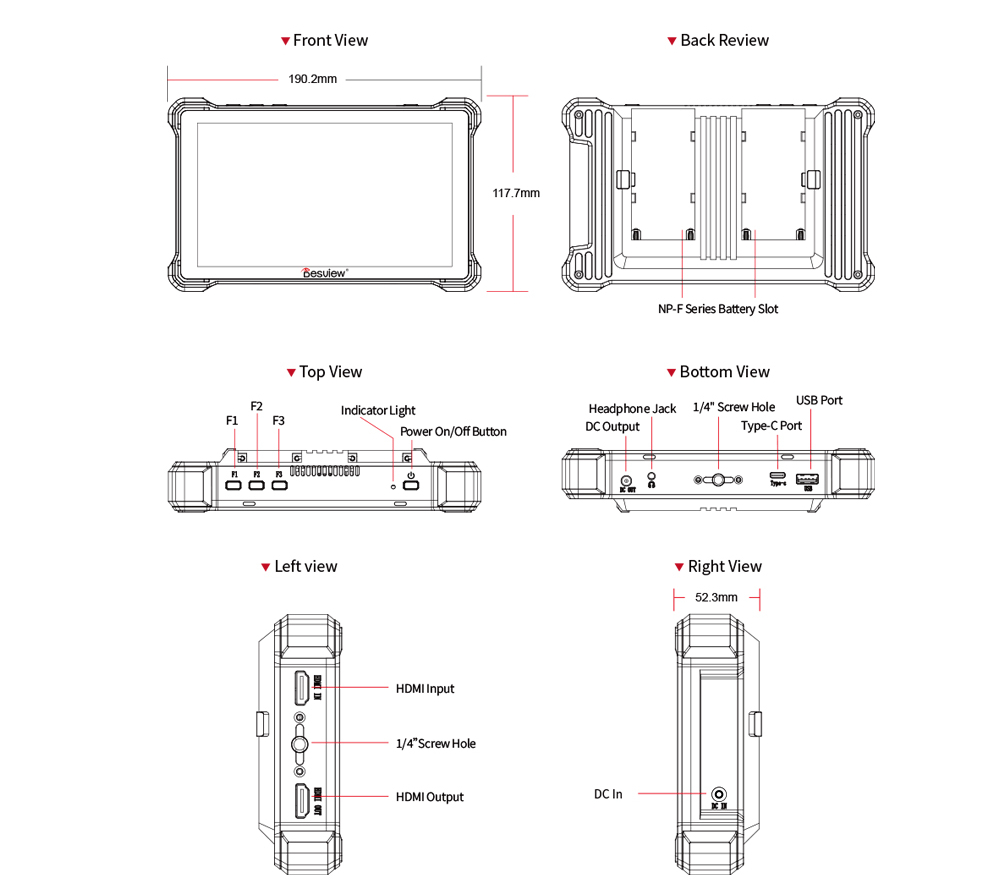

Display Color | 10Bit (8Bit+2FRC) | Monitor Size | 190.2*117.7*52.3mm | |||
View Angle | 160°(H/V) | |||||
Display Ratio | 16:9 | |||||
Color calibration | Delta E<2 | |||||
Backlight | LED |
