Desview S17-HDR 17,3" Desktop Broadcast Monitor

The Desview S17-HDR is a 17.3-inch desktop broadcast monitor with 4K UHD 3840 × 2160 resolution, HDR support and a Quad Split multiview mode that shows up to four sources at once. It accepts signals from four HDMI inputs and two 3G-SDI inputs and passes the picture on through HDMI and 3G-SDI outputs. It runs on mains power, via 4-pin XLR or from a V-mount battery on the back.

Main features

• 3840 × 2160 UHD resolution – The monitor adopts 4K UHD 3840 × 2160 resolution, which presents every detail accurately and delivers an impressive picture.
• HDR monitoring support – Provides more dynamic range and image detail, so it better reflects how the scene looks in the real environment.
• Built-in color spaces – EBU / SMPTE-C / Rec.709 / DCI-P3.
• Supports four HDMI inputs and one HDMI output.
• Supports two 3G-SDI inputs and one 3G-SDI output.
• Multiview mode – The monitor offers selectable 1P / 2P_LR / 2P_TB / 2P_PIP / 4P display modes.
• Professional monitoring features – monochrome, safety border, aspect ratio markers, false color, color temperature and more.

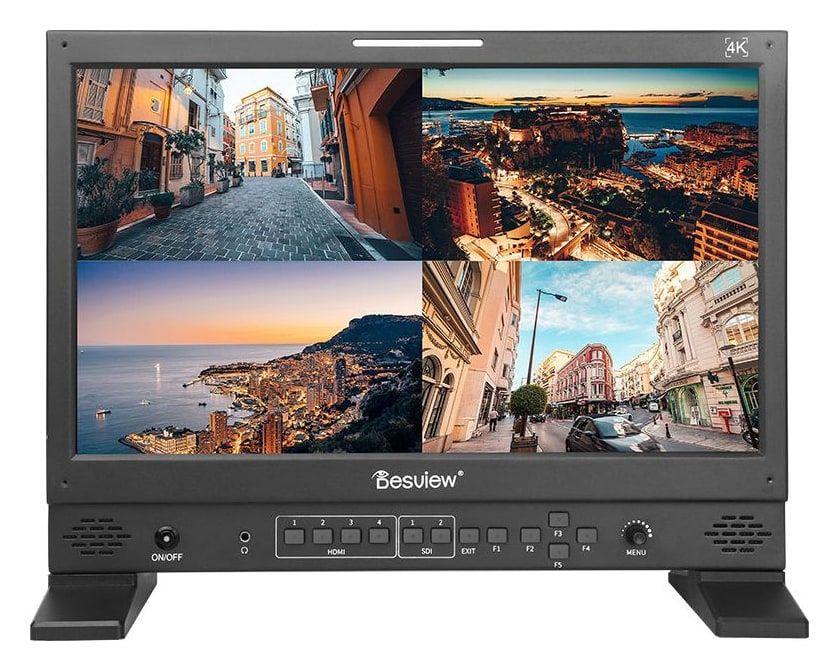

Up to four sources on one screen

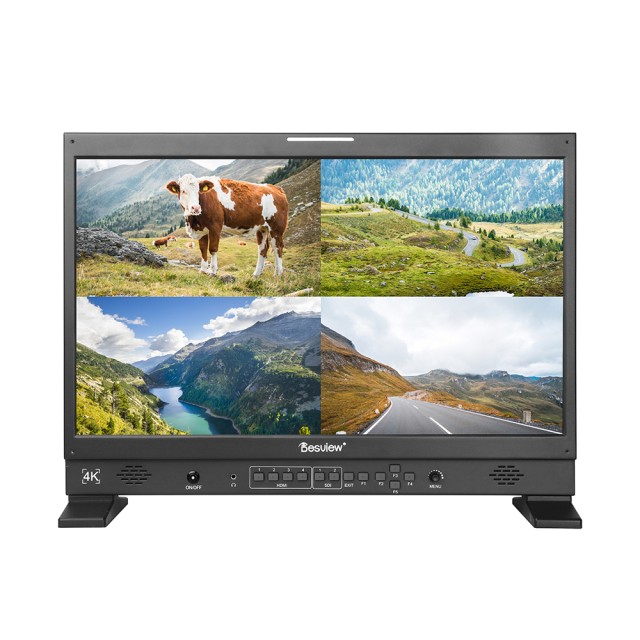

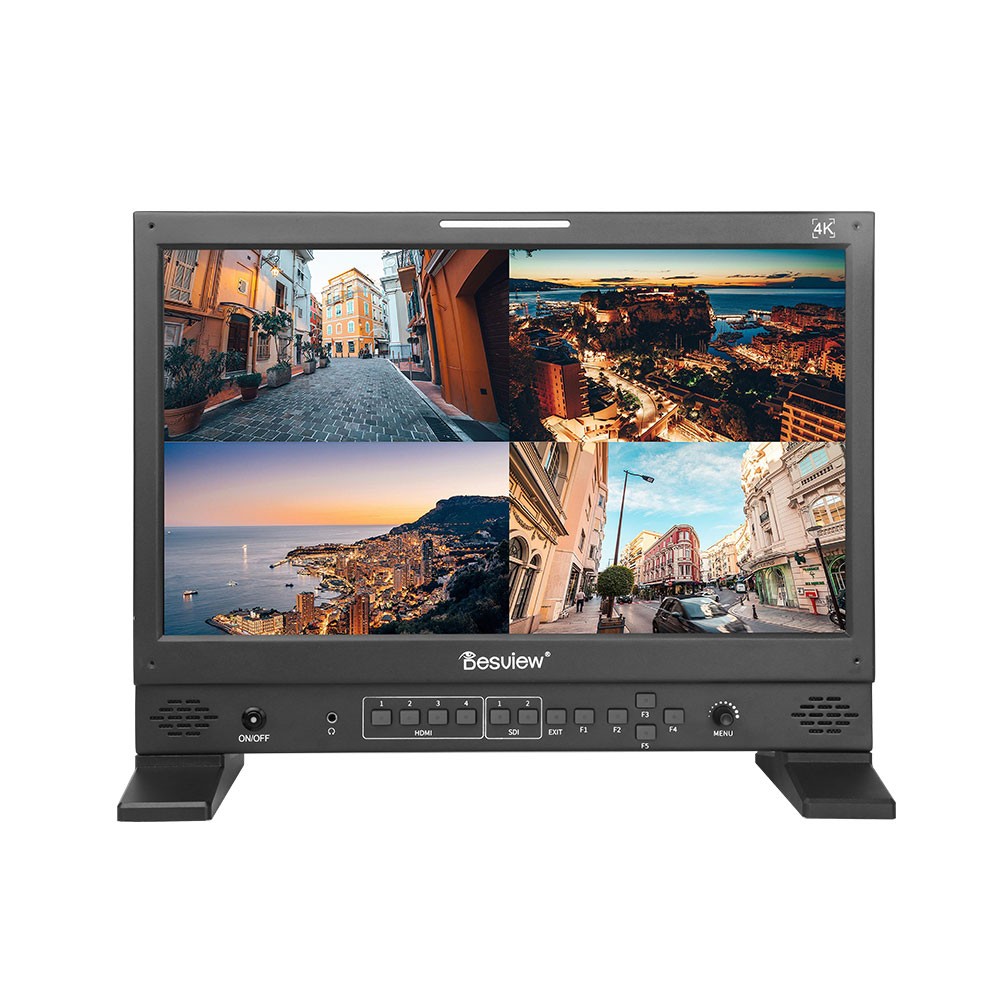

In multiview mode the monitor shows one source full screen, two side by side or stacked, picture-in-picture (PIP) or four sources at once (Quad Split). On the 17.3-inch 3840 × 2160 screen the operator can watch several cameras at the same time without extra monitors.

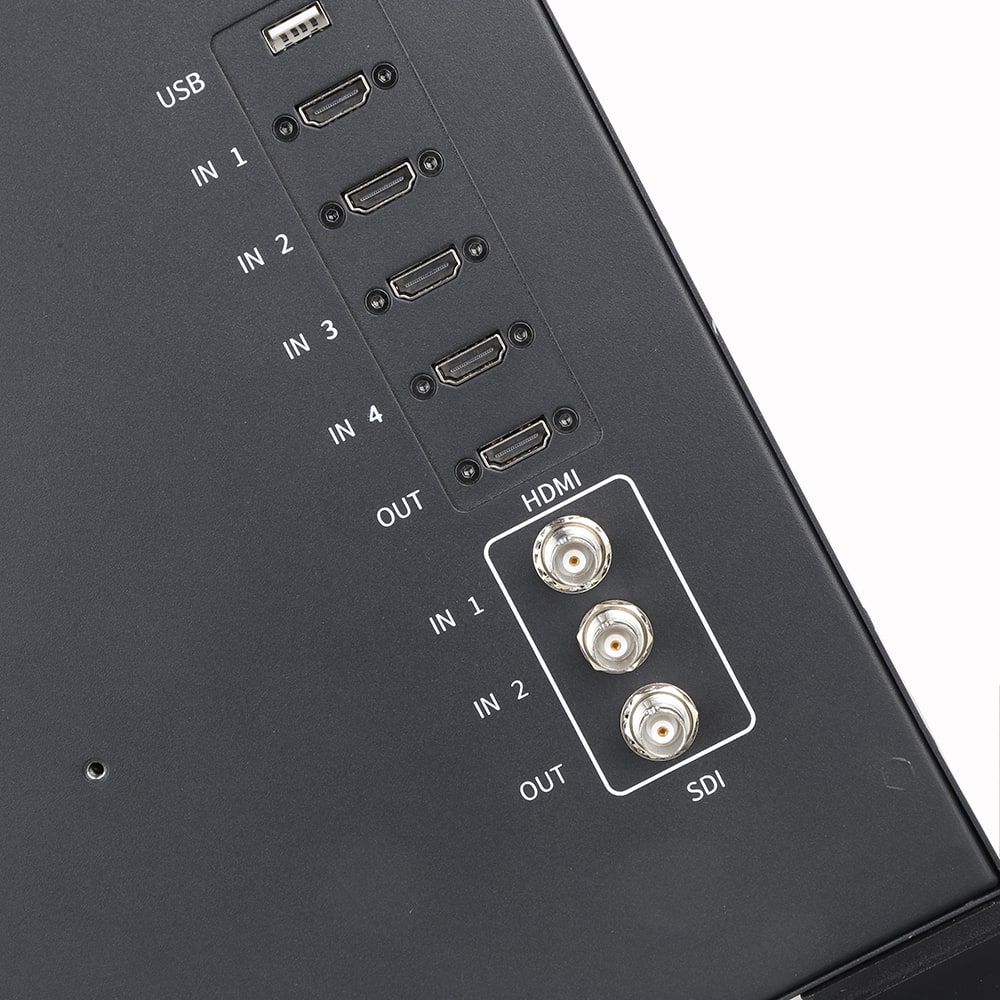

Four HDMI, two 3G-SDI

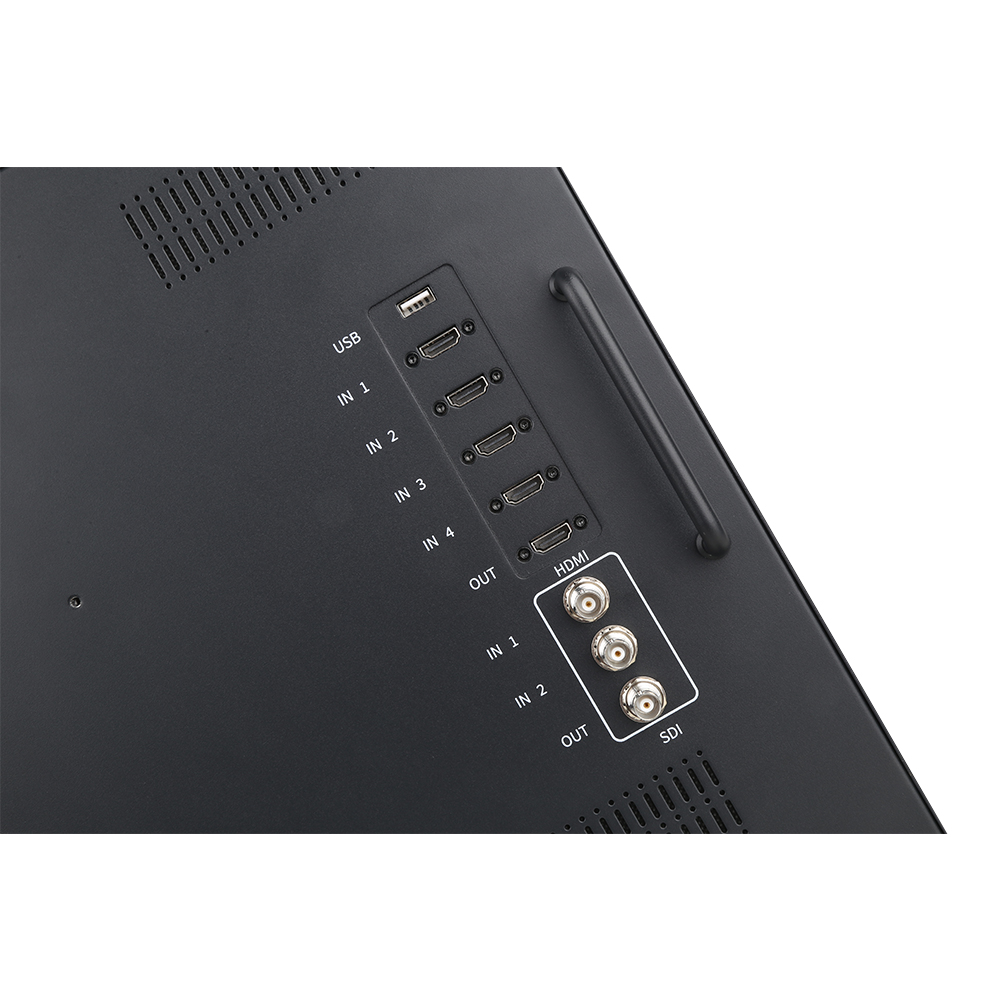

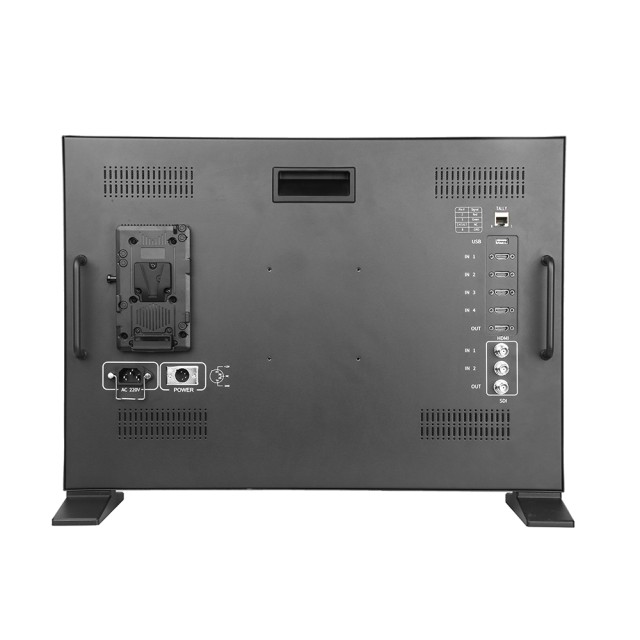

The back panel carries four HDMI inputs and an HDMI output, two 3G-SDI inputs on BNC connectors and a 3G-SDI output. Each input has its own button on the front panel. A USB port and a tally connector complete the connection to the control room.

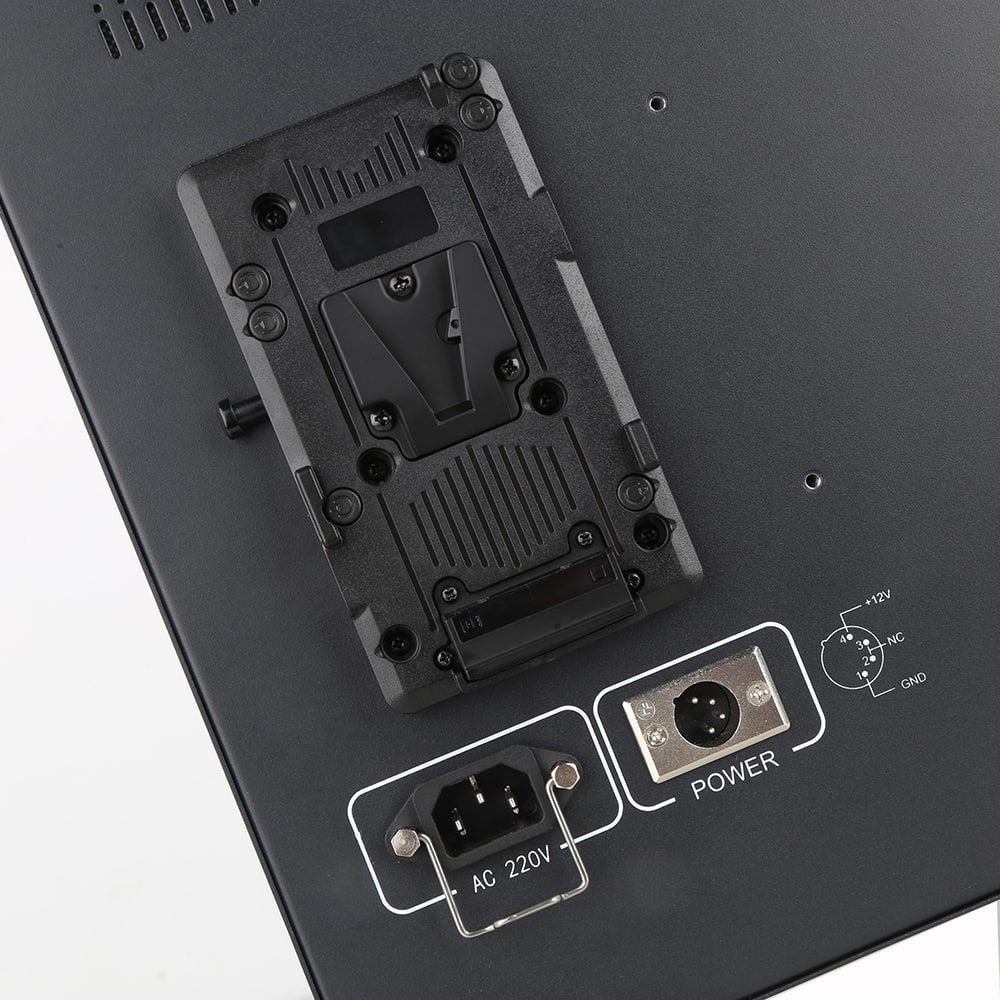

Mains and battery power

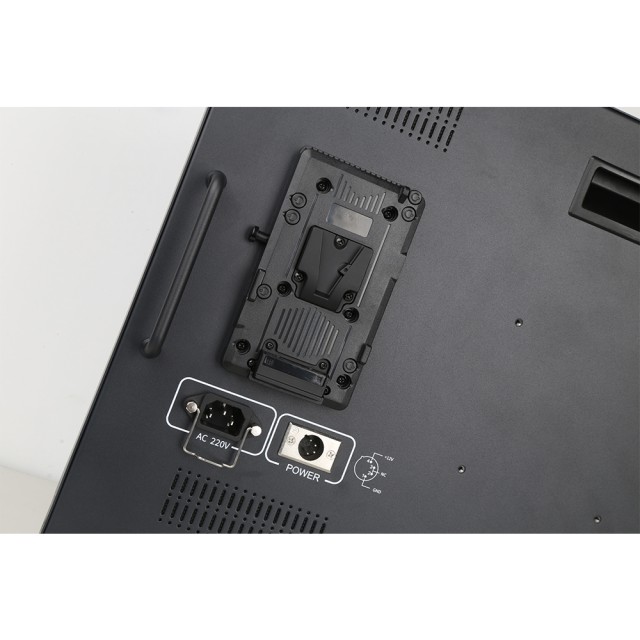

The monitor has an AC 110–240 V mains input, a 12–24 V DC input on a 4-pin XLR connector and a V-mount plate for battery power. Power consumption is at most 21.6 W. Thanks to the V-mount plate the monitor can be used where there is no power outlet.

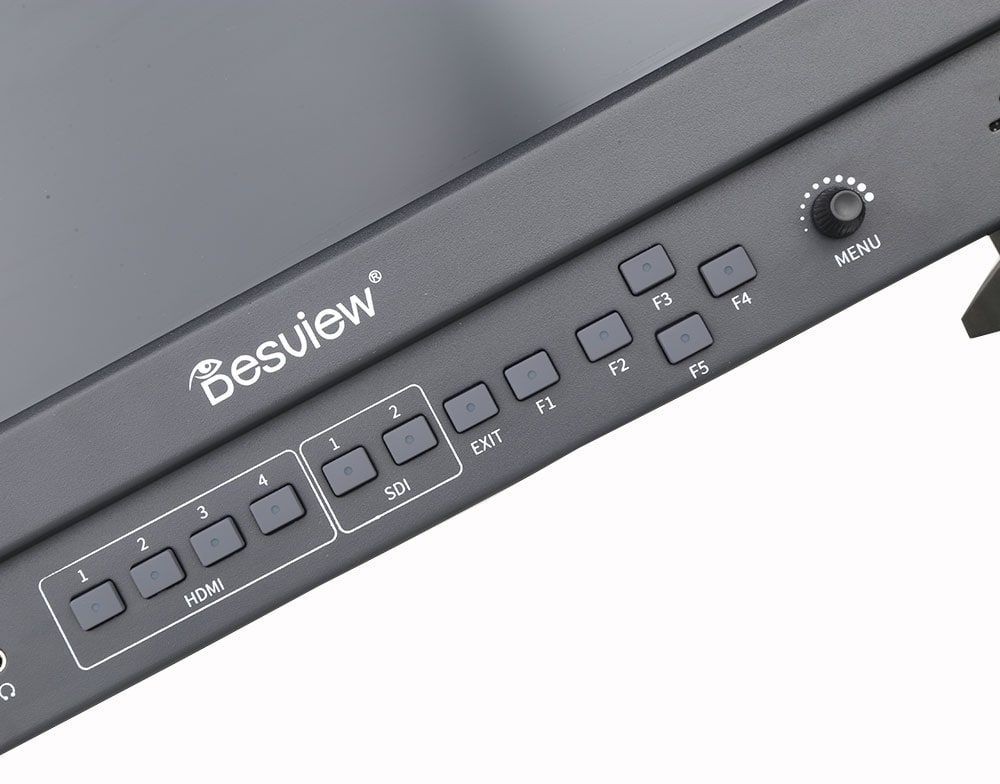

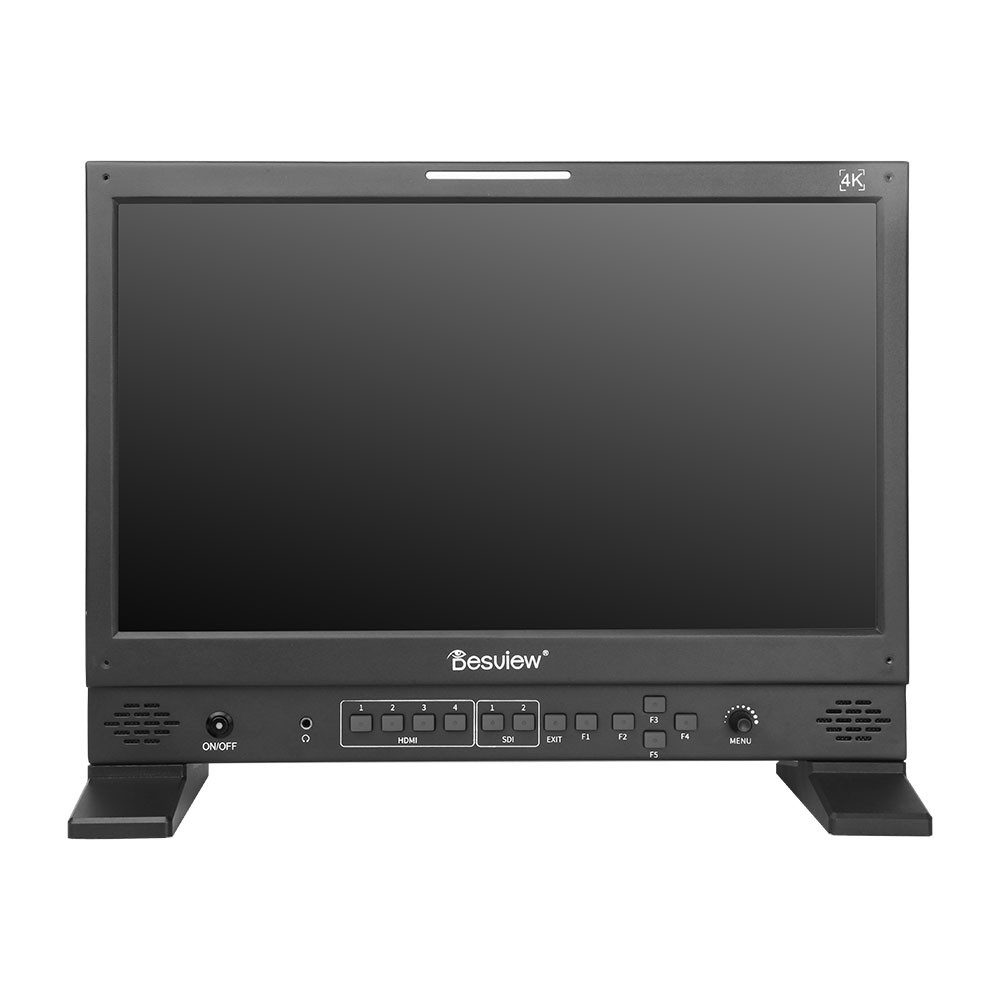

Front-panel control

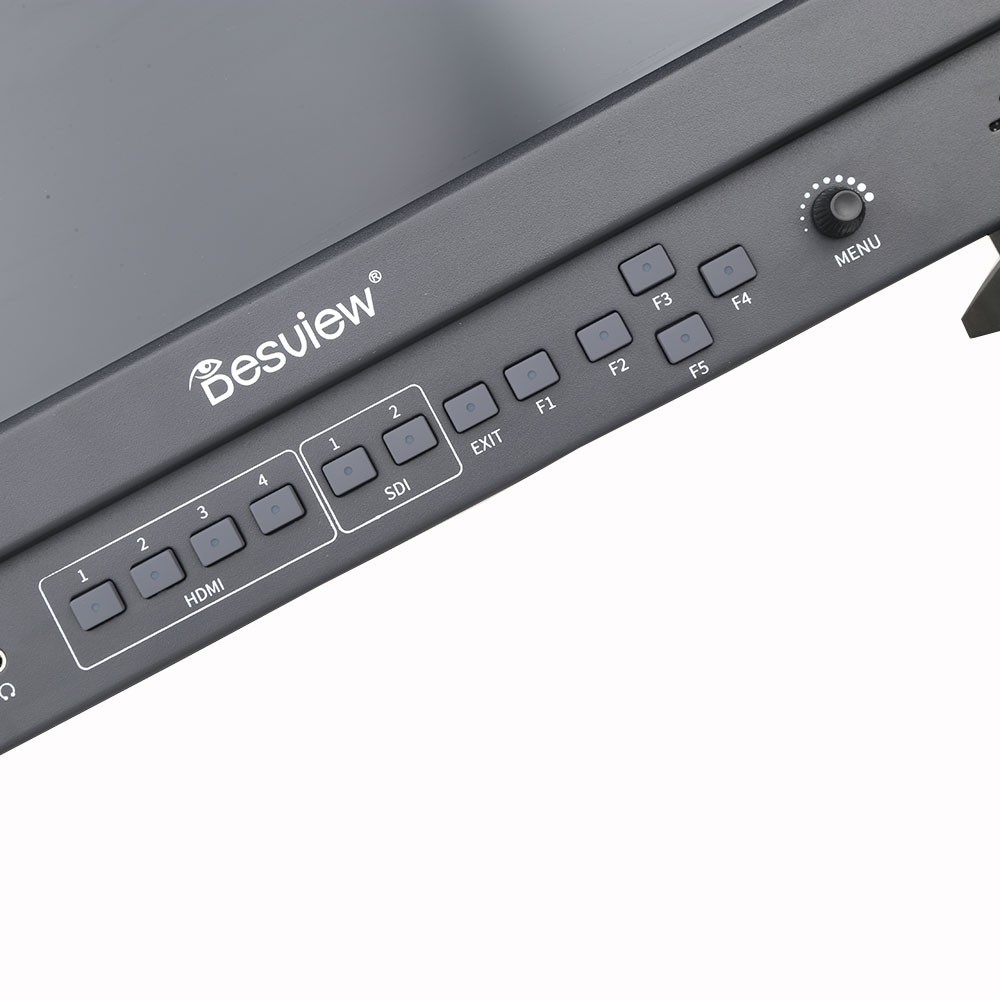

Below the screen are direct selection buttons for inputs HDMI 1–4 and SDI 1–2, five function buttons F1–F5, an EXIT button and a MENU knob. A headphone output sits next to the power switch. The monitor stands on two feet and has two handles and a carrying grip on the back.
