Lilliput BM230-12G

The Lilliput BM230-12G is a professional 23.8-inch 4K field monitor designed for broadcast, studio, directing, live production, and video editing. Featuring a native 3840 × 2160 IPS display, 12G-SDI, HDMI 2.0, multiple HDMI inputs, DVI connectivity, and flexible multi-view monitoring, it delivers accurate image monitoring for demanding production environments. Supplied with a durable flight case, power supply, and desktop feet, it is ideal for both studio installations and mobile productions.

The Lilliput BM230-12G is a professional-grade 23.8-inch field monitor engineered for broadcast, film production, studio environments, live events, directing, and post-production. Featuring a native Ultra HD 4K resolution of 3840 × 2160 pixels, the monitor delivers exceptional image detail and clarity for accurate monitoring and evaluation of high-resolution video content.

Its premium IPS panel with 8-bit + FRC technology provides consistent color reproduction, wide viewing angles, and stable image quality, making it ideal for professional production workflows. With a large viewing area of over 60 cm (23.8"), the BM230-12G offers significantly greater monitoring space than traditional compact field monitors, improving efficiency during multi-camera productions and editing.

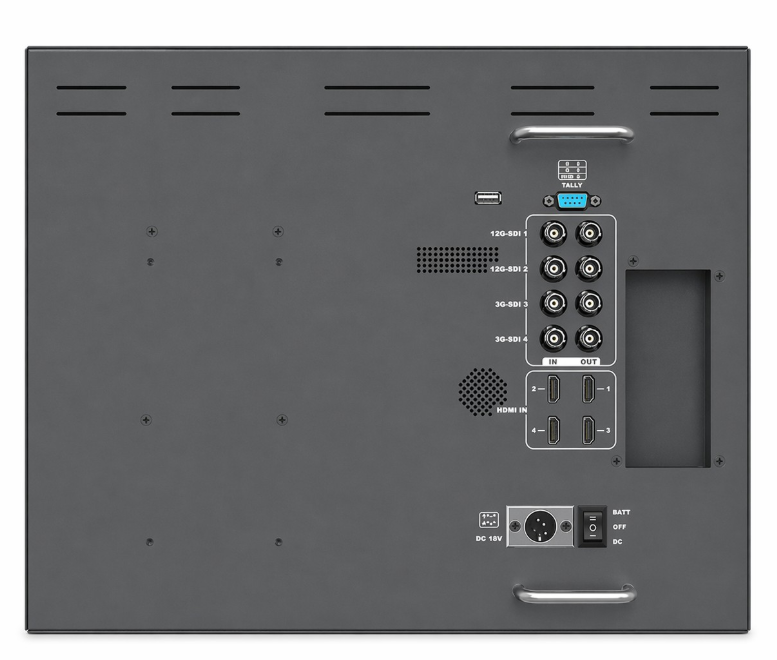

The monitor is equipped with professional connectivity including 12G-SDI, DVI, and four HDMI inputs. HDMI 2.0 supports 4K video up to 60 Hz, while HDMI 1.4 inputs accommodate additional 4K sources. The 12G-SDI interface enables Full HD and 4K signal monitoring at up to 60 fps, with SDI loop-through output for seamless integration into professional broadcast workflows.

Advanced monitoring functions include full-screen display, side-by-side viewing, top-and-bottom split, picture-in-picture, and Quad View for monitoring up to four video sources simultaneously. Additional features such as adjustable aspect ratios, RGB calibration, tally input, headphone monitoring, and VESA mounting provide the flexibility required for professional production environments.

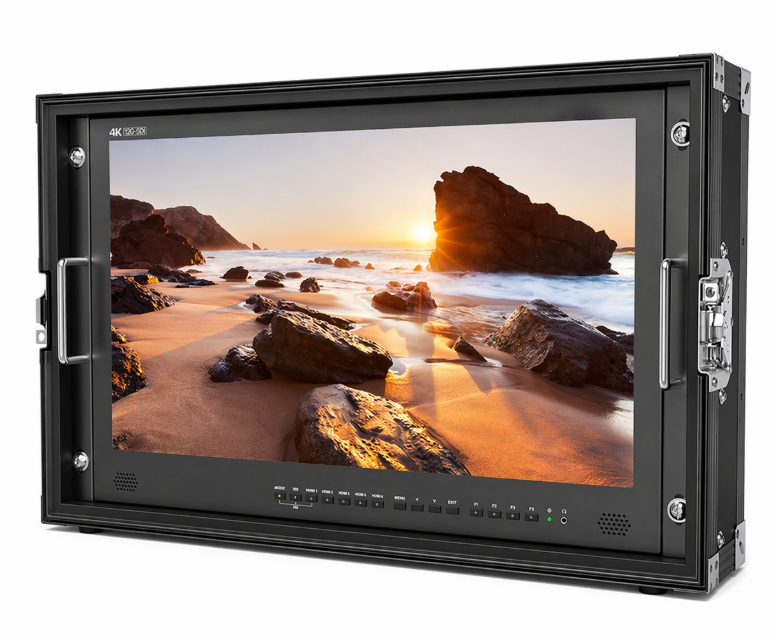

Designed for both fixed installations and mobile productions, the BM230-12G can be powered via the included AC power supply or compatible Sony V-Mount batteries. A rugged flight case with removable front and rear covers is included to ensure safe transportation and reliable protection on location

Key Features

• Professional 23.8-inch field monitor for broadcast and production
• Native 4K UHD resolution (3840 × 2160)
• High-quality IPS panel with 8-bit + FRC technology
• 300 cd/m² screen brightness
• 12G-SDI input supporting Full HD and 4K up to 60 Hz
• SDI loop-through (Loop Out/Passthrough)
• Four HDMI inputs with HDMI 2.0 and HDMI 1.4 support
• DVI input for additional compatibility
• Multi-view display modes including Quad View and Picture-in-Picture
• Adjustable aspect ratio for anamorphic productions
• RGB calibration support
• 3.5 mm headphone output
• Tally input via 9-pin Sub-D connector
• VESA 100 × 100 mounting compatibility
• Operates via AC power supply or Sony V-Mount battery
• Includes rugged flight case for transport and protection
