Desview S14-HDR

The Desview S14-HDR is a 14-inch broadcast monitor with 4K UHD 3840 × 2160 resolution, 400 cd/m² brightness and HDR support. It accepts four HDMI and two 3G-SDI sources, shows up to four pictures at once and has an RJ45-controlled tally light on the front panel. Built-in LUTs cover the EBU, SMPTE-C, Rec.709 and DCI-P3 color spaces. It runs on mains power,…

More information

879 € with VAT 726.45 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Desview S14-HDR is a 14-inch broadcast monitor with 4K UHD 3840 × 2160 resolution, 400 cd/m² brightness and HDR support. It accepts four HDMI and two 3G-SDI sources, shows up to four pictures at once and has an RJ45-controlled tally light on the front panel. Built-in LUTs cover the EBU, SMPTE-C, Rec.709 and DCI-P3 color spaces. It runs on mains power, via an XLR adapter or from a V-mount battery.

The compact 14-inch monitor with a carry handle suits a control-room desk, an OB van or field shoots. On a small screen it offers 4K resolution and all the interfaces of a larger studio monitor.

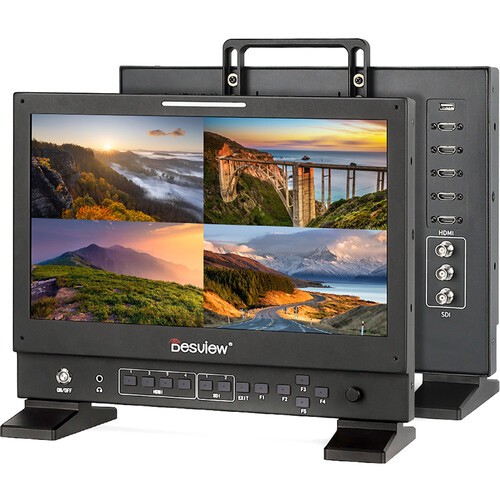

Four sources on one screen

In 4P mode the monitor shows four sources at once; it also offers one picture full screen, two side by side or stacked and picture-in-picture. In 2P the pictures can be swapped with a button without re-plugging cables.

Four sources on one screen

Light body with a handle

The monitor stands on two feet and has a carry handle on top. Below the screen are direct selection buttons for the HDMI and SDI inputs, function buttons and a menu knob, with a headphone output next to the power switch.

Light body with a handle

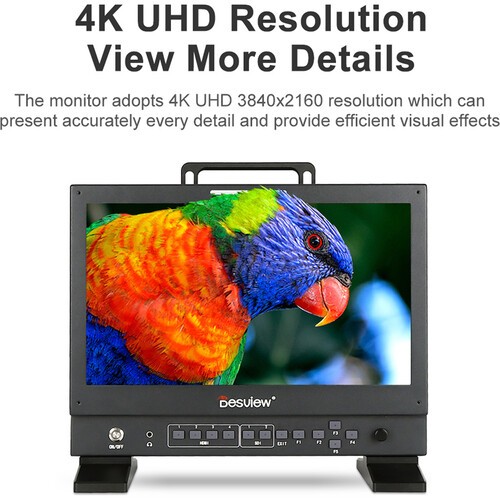

4K UHD resolution, HDR and built-in LUTs

The 3840 × 2160 panel with 400 cd/m² brightness displays HDR and offers the EBU, SMPTE-C, Rec.709 and DCI-P3 color spaces.

4K UHD resolution, HDR and built-in LUTs

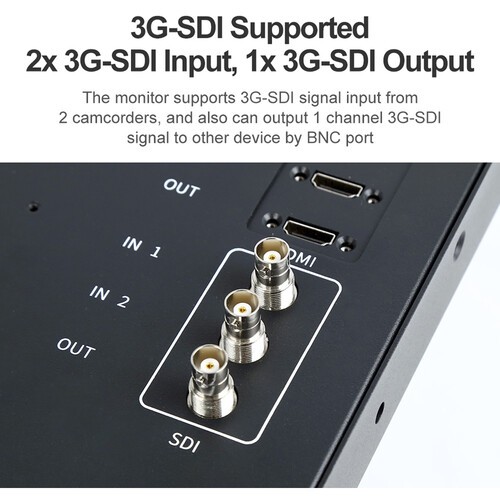

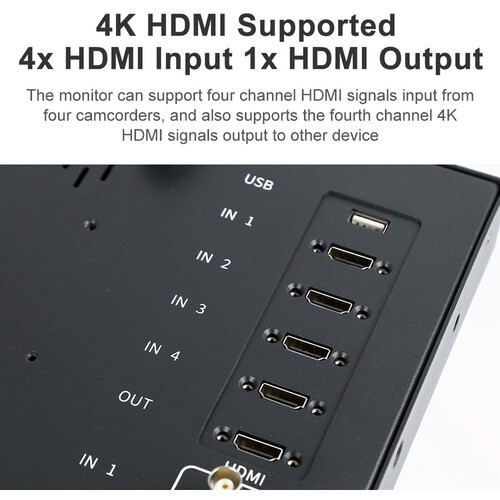

Four HDMI, two 3G-SDI and a tally light

The monitor accepts four HDMI and two 3G-SDI sources and passes a signal on from each interface. The tally light on the front panel is controlled via the RJ45 connector.

Four HDMI, two 3G-SDI and a tally light

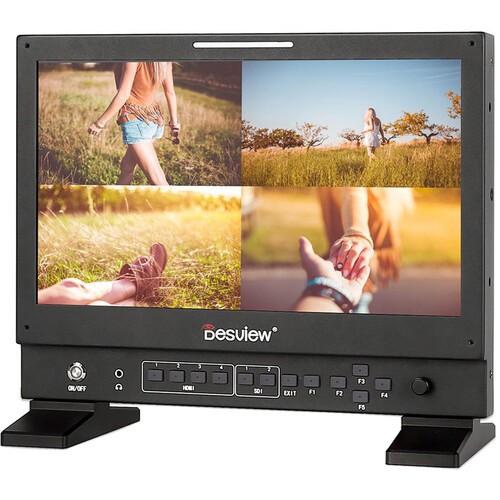

Multiview mode

One monitor replaces several: it shows one source, two side by side or stacked, picture-in-picture or four sources at once.

Multiview mode

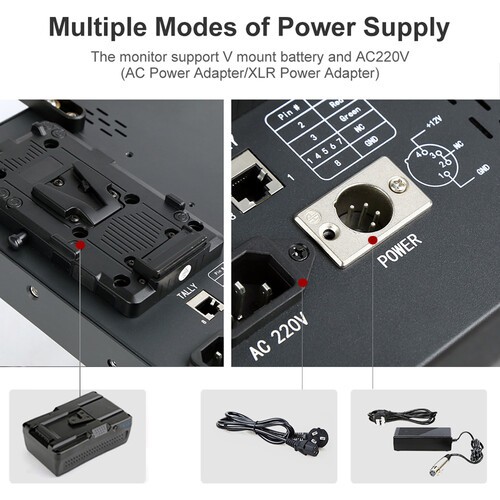

Power

The monitor runs on a V-mount battery or mains power via the AC power cable or the XLR power adapter.

Power

More information

The Desview S14-HDR brings multiview monitoring to ENG, live broadcast and mobile production. Its 3840 × 2160 panel with 400 cd/m² brightness and 1000:1 contrast delivers a clean, faithful picture, and the 178° viewing angle keeps colors intact from the side. HDMI inputs 1 and 2 accept 4K up to 60 Hz, plus 1080p, 1080i, 720p and SD. Imaging tools include gamma selection, false color, monochrome, pixel to pixel, safety borders, aspect ratio markers and PIP/PBP multiview; the tally light is controlled via the RJ45 connector. Stereo speakers and a 3.5 mm headphone output cover audio monitoring.

  • Display: 14" LCD, 3840×2160 (4K UHD), 16:9, 400 cd/m² brightness, 1000:1 contrast, 178° viewing angle, HDR, non-touch
  • I/O: 4× HDMI in, 1× HDMI out, 2× 3G-SDI in, 1× 3G-SDI out, 3.5 mm audio out, stereo speakers, USB-A (firmware/LUT), RJ45 tally
  • Mounting: VESA 100×100 mm, tabletop compatible
  • Environment: operating –20–60 °C, storage –30–70 °C, 10–90% humidity

PACKAGE CONTENT

  • Desview S14-HDR monitor with sun hood
  • AC power cable
  • HDMI cable (A/A)
  • Cleaning cloth
  • User manual
  • Warranty card and certificate of quality

SPECIFICATIONS

  • Model: S14-HDR
  • Screen size: 14"
  • Resolution: 3840 × 2160 (4K UHD)
  • Brightness: 400 cd/m²
  • Contrast ratio: 1000:1
  • Viewing angle: 178° (H/V)
  • HDR: HDR monitoring support
  • Color spaces (LUT): EBU, SMPTE-C, Rec.709, DCI-P3 (3D LUT)
  • Gamma: 2.2 / 2.4 / 2.6
  • Multiview: 1P, 2P side by side, 2P top/bottom, 2P PIP, 4P
  • Monitoring features: false color, monochrome, R/G/B channel view, safety border and center mark, aspect ratio markers, pixel to pixel, overscan, color temperature, image rotation, freeze, picture exchange in 2P, picture border color, battery status
  • Inputs: 4× HDMI, 2× 3G-SDI (BNC), USB, Tally
  • Outputs: 1× HDMI, 1× 3G-SDI (BNC)
  • Tally: RJ45 connector, tally light on the front panel
  • Audio output: 3.5 mm stereo headphone output
  • Speakers: 2× (2 Ω, 8 W)
  • Power: mains (AC power cable), XLR power adapter, V-mount plate
  • Power consumption: max. 26 W
  • Voltage: AC 110–240 V / DC 12–24 V
  • HDMI formats: 4096×2160p 23.98/24/25/29.97/30 Hz and 50/59.94/60 Hz (HDMI 1/2); 3840×2160p 24/25/30 Hz and 50/60 Hz (HDMI 1/2); 1920×1080p 23.98/24/25/29.97/30/50/59.94/60 Hz; 1920×1080psf 24/25/29.97/30 Hz; 1920×1080i 50/59.94/60 Hz; 1280×720p 50/59.94/60 Hz; 720×576i/p 50 Hz; 720×480i/p 59.94/60 Hz
  • 3G-SDI formats: 1920×1080p 23.98/24/25/29.97/30/50/59.94/60 Hz; 1920×1080psf 24/25/29.97/30 Hz; 1920×1080i 50/59.94/60 Hz; 1280×720p 50/59.94/60 Hz; 720×480i 59.94/60 Hz; 720×576i 50 Hz
Parameters

Parameters

Manufacturer: Desview
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 4K DCI/UHD up to 60p · 720p up to 60p
Size14"
Monitor inputs3G-SDI · HDMI
Luminosity400cd/m2
Panel resolution3840x2160
Monitor power supply12V XLR · AC 100-240V · DC 12–24 V · V-Mount

Other parameters

TallyYes
Other features3D LUT correction · HDR · Multiview · Tally
High BrightnessNo
