Desview S21 21.5" Broadcast Monitor

The Desview S21 is a 21.5-inch Full HD 1920 × 1080 broadcast monitor with HDR support, built-in LUTs and a multiview mode for up to four sources. It has four HDMI inputs and two 3G-SDI inputs, HDMI and 3G-SDI outputs, two speakers and a headphone output. This version is built into an aluminium case with a sun hood. It runs on mains power, via an XLR adapter…

More information

989 € with VAT 817.36 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Desview S21 is a 21.5-inch Full HD 1920 × 1080 broadcast monitor with HDR support, built-in LUTs and a multiview mode for up to four sources. It has four HDMI inputs and two 3G-SDI inputs, HDMI and 3G-SDI outputs, two speakers and a headphone output. This version is built into an aluminium case with a sun hood. It runs on mains power, via an XLR adapter or from a V-mount battery.

A large 21.5-inch screen in a rugged case: a monitor for directing, broadcasts and multi-camera production that travels closed and only needs its lid opened on site.

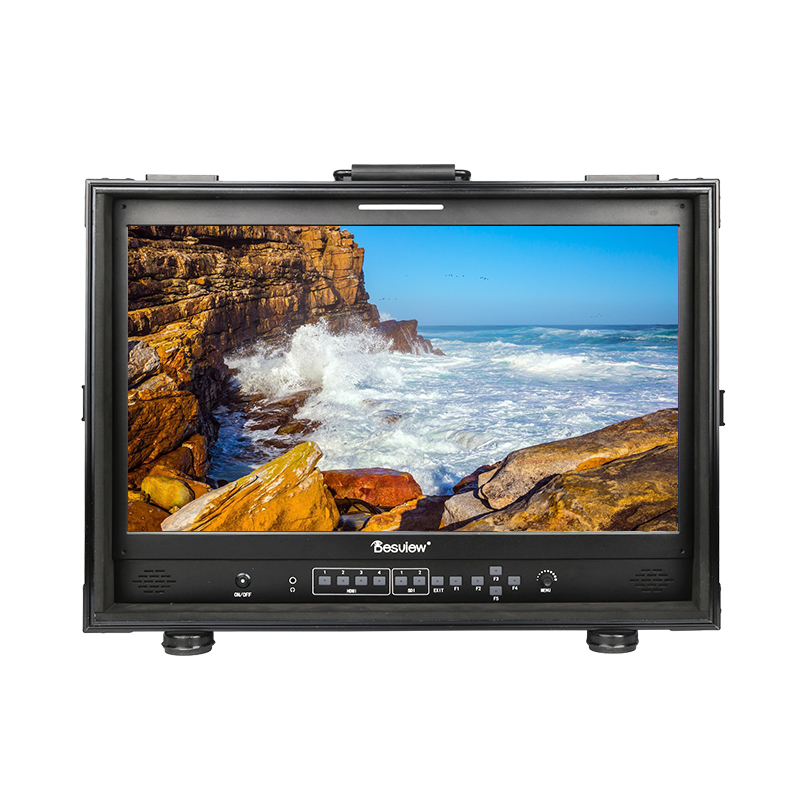

Monitor built into an aluminium case

The Desview S21 in the aluminium case version protects the screen in transit and simply opens up on set. The case has handles, metal corners and two threaded mounting plates on top for further accessories.

Monitor built into an aluminium case

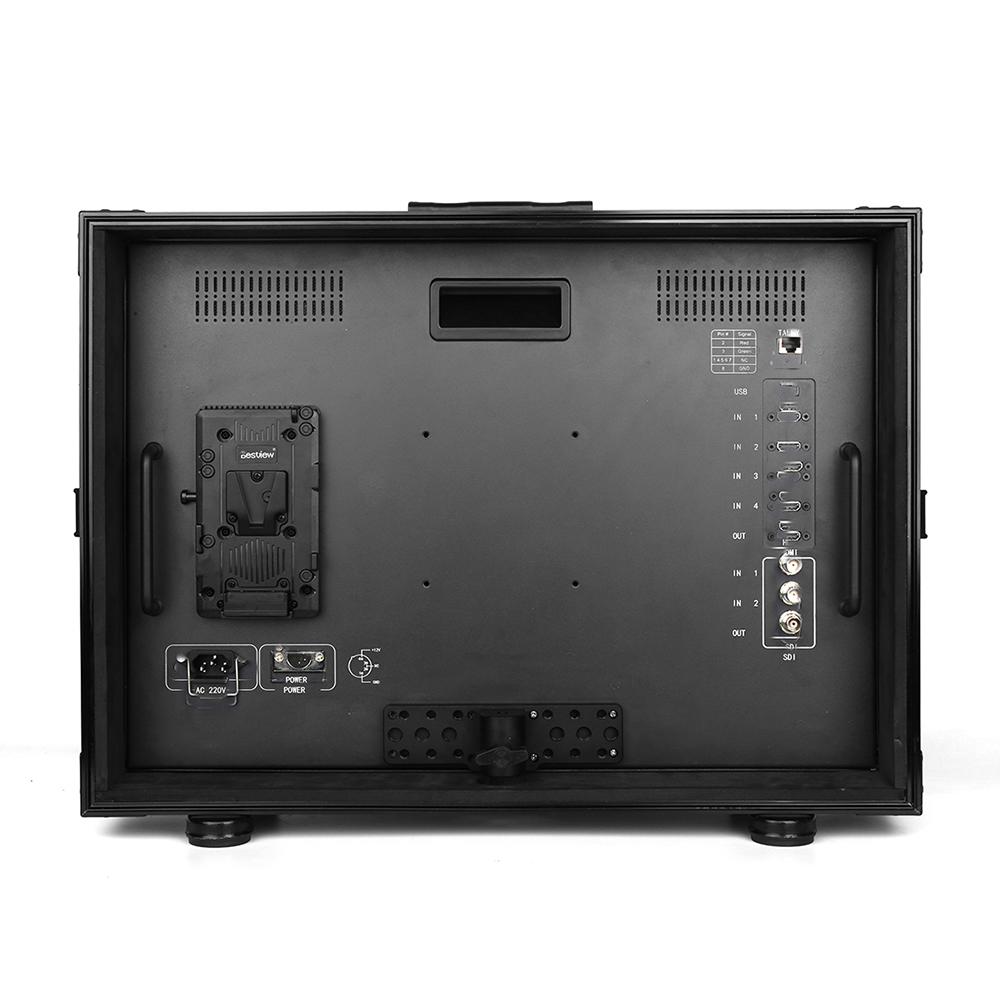

Back panel

The back carries a V-mount battery plate, an AC mains socket and a 4-pin XLR power connector. Next to them are four HDMI inputs, an HDMI output, a USB port and BNC connectors for two 3G-SDI inputs and one output.

Back panel

Full HD, HDR and built-in LUTs

The 1920 × 1080 panel with 400 cd/m² brightness displays HDR and offers the EBU, SMPTE-C, Rec.709 and DCI-P3 color spaces.

Full HD, HDR and built-in LUTs

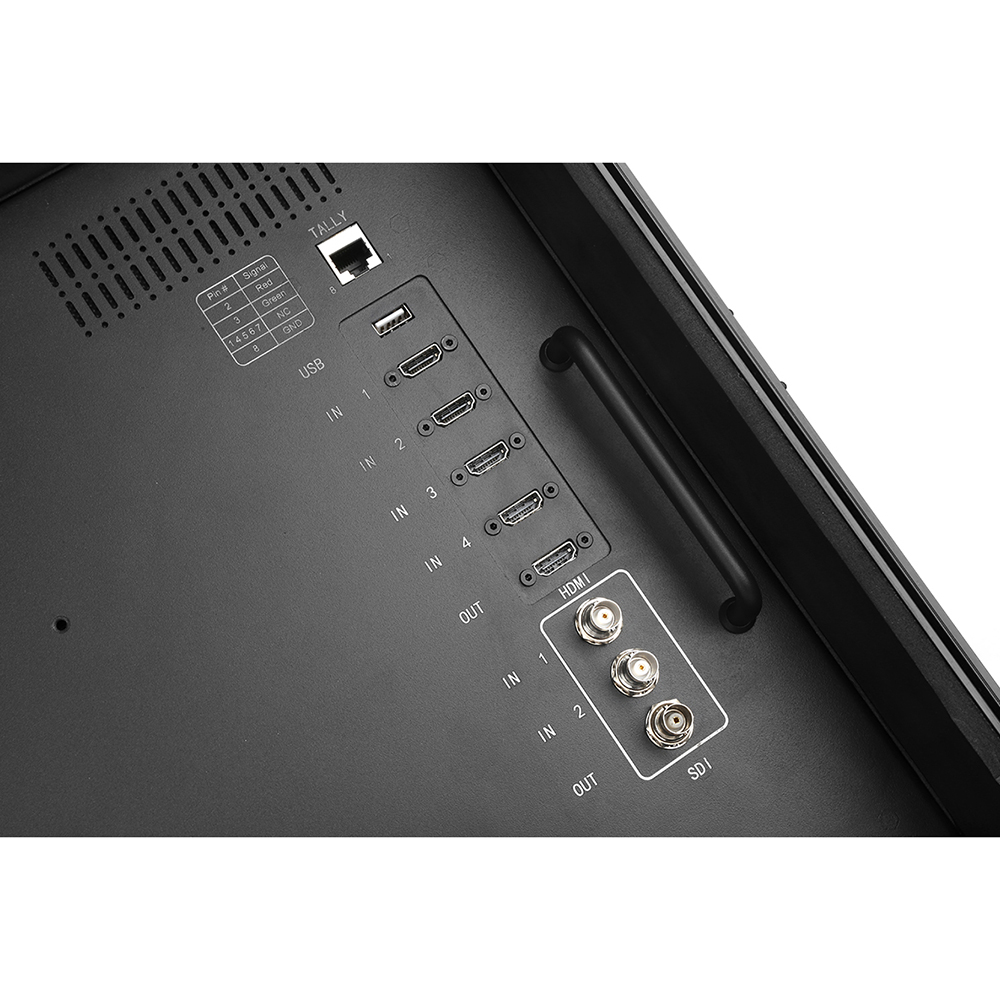

Four HDMI, two 3G-SDI and multiview

The monitor accepts four HDMI and two 3G-SDI sources, passes a signal on from each interface and shows them in 1P, 2P, PIP and 4P modes.

Four HDMI, two 3G-SDI and multiview

False color and picture border

The false color function shows how brightness is distributed in the picture. In multi-picture modes the color of the picture border can be set.

False color and picture border

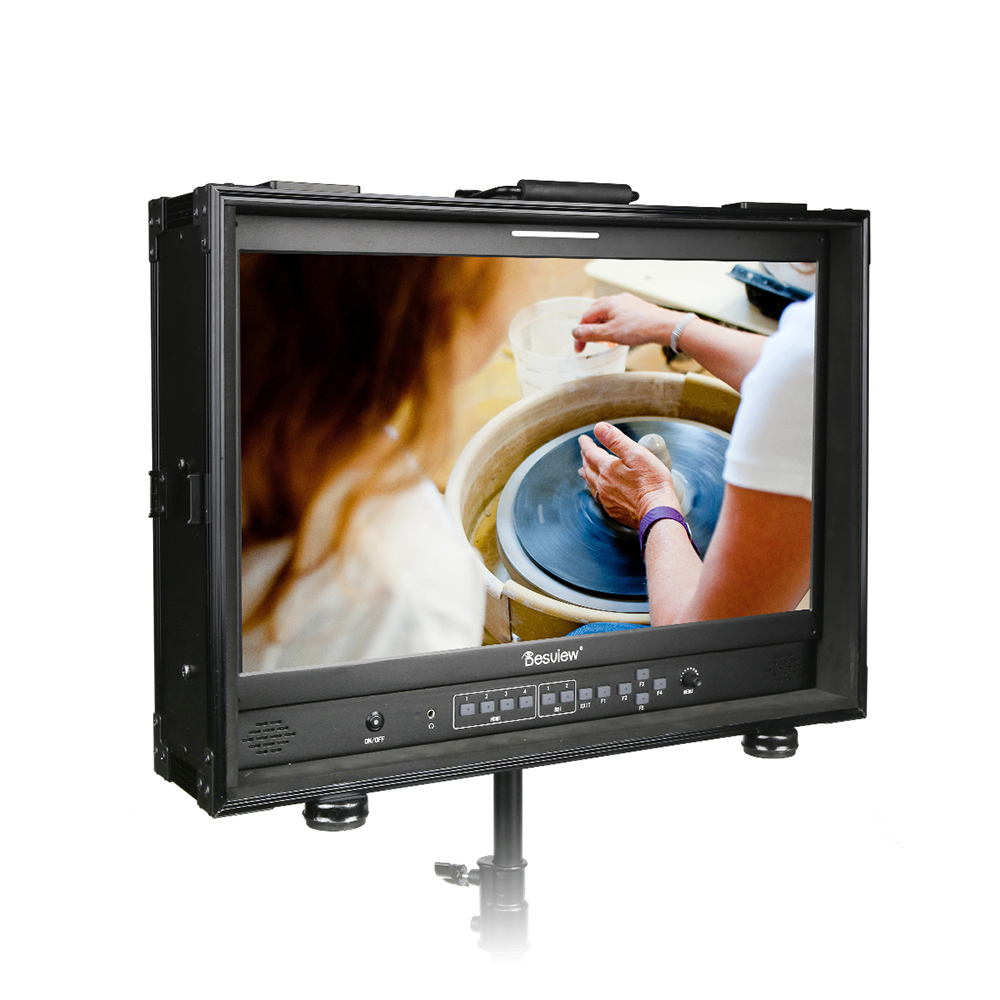

Stand mounting

A quick release plate on the bottom of the case lets you mount the whole monitor on a stand or tripod.

Stand mounting

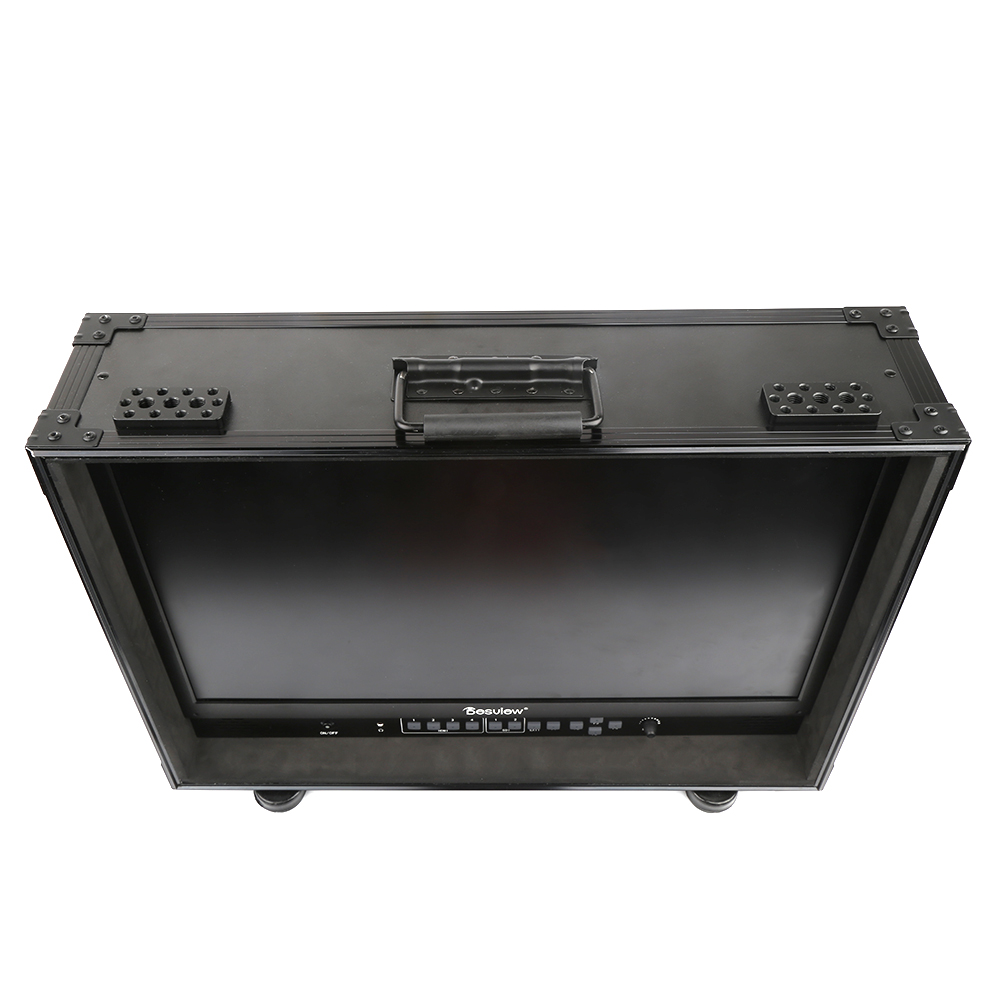

Mounting plates, power and two versions

Two metal mounting plates with threads for further accessories sit on top of the aluminium case. The monitor runs on a V-mount battery or mains power and is made with a T stand or in an aluminium case.

Mounting plates, power and two versions

More information

The Desview S21 is a 21.5-inch Full HD 1920 × 1080 director monitor in an aluminium case with HDR for broadcast, designed for video production, post-production and broadcasting. It delivers a sharp, accurate picture, and its 1000:1 contrast ratio ensures faithful color reproduction and image clarity. The monitor supports 3D LUTs and offers accurate color and advanced monitoring tools, making it a good choice for professional video work.

  • 21.5" screen, 16:9 aspect ratio, 1920 × 1080 Full HD resolution
  • 1000:1 contrast, 400 cd/m² brightness, 178° (H/V) viewing angle
  • Inputs: 4× HDMI, 2× 3G-SDI, USB; outputs: 1× HDMI, 1× 3G-SDI
  • Built-in LUTs (3D LUT), 3.5 mm headphone output
  • Power: AC, V-mount plate, XLR power adapter

The S21 supports 3D LUTs and other advanced monitoring tools, making it ideal for color grading and on-set monitoring.

PACKAGE CONTENT

  • Desview S21 monitor in aluminium case with sun hood
  • AC power cable
  • HDMI cable (A/A)
  • Cleaning cloth
  • User manual
  • Warranty card and certificate of quality

SPECIFICATIONS

  • Model: S21
  • Screen size: 21.5"
  • Resolution: 1920 × 1080 (Full HD)
  • Brightness: 400 cd/m²
  • Contrast ratio: 1000:1
  • Viewing angle: 178° (H/V)
  • HDR: HDR monitoring support
  • Color spaces (LUT): EBU, SMPTE-C, Rec.709, DCI-P3
  • Gamma: 2.2 / 2.4 / 2.6
  • Multiview: 1P, 2P side by side, 2P top/bottom, 2P PIP, 4P
  • Monitoring features: false color, monochrome, R/G/B channel view, safety border and center mark, aspect ratio markers, pixel to pixel, overscan, color temperature, image rotation, freeze, picture exchange in 2P, picture border color, battery status
  • Inputs: 4× HDMI, 2× 3G-SDI (BNC), USB
  • Outputs: 1× HDMI, 1× 3G-SDI (BNC)
  • Audio output: 3.5 mm stereo headphone output
  • Speakers: 2× (2 Ω, 8 W)
  • Power: mains (AC power cable), XLR power adapter, V-mount plate
  • Power consumption: max. 26 W
  • Voltage: AC 110–240 V / DC 12–24 V
  • HDMI formats: 720×480i/p 59.94/60 Hz; 720×576i/p 50 Hz; 1280×720p 50/59.94/60 Hz; 1920×1080i 50/59.94/60 Hz; 1920×1080psf 24/25/29.97/30 Hz; 1920×1080p 23.98/24/25/29.97/30/50/59.94/60 Hz; 3840×2160p 24/25/30 Hz (HDMI 1/2); 4096×2160p 23.98/24/25/29.97/30 Hz (HDMI 1/2)
  • 3G-SDI formats: 720×480i 59.94/60 Hz; 720×576i 50 Hz; 1280×720p 50/59.94/60 Hz; 1920×1080i 50/59.94/60 Hz; 1920×1080psf 24/25/29.97/30 Hz; 1920×1080p 23.98/24/25/29.97/30 Hz
Parameters

Parameters

Manufacturer: Desview
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 4K DCI/UHD up to 30p · 720p up to 60p
Size21.5"
Monitor inputs3G-SDI · HDMI
Luminosity400cd/m2
Panel resolution1920x1080
Monitor power supply12V XLR · AC 100-240V · DC 12–24 V · V-Mount

Other parameters

Other featuresHDR · Multiview · Quad split
