Roland VC-1-HS

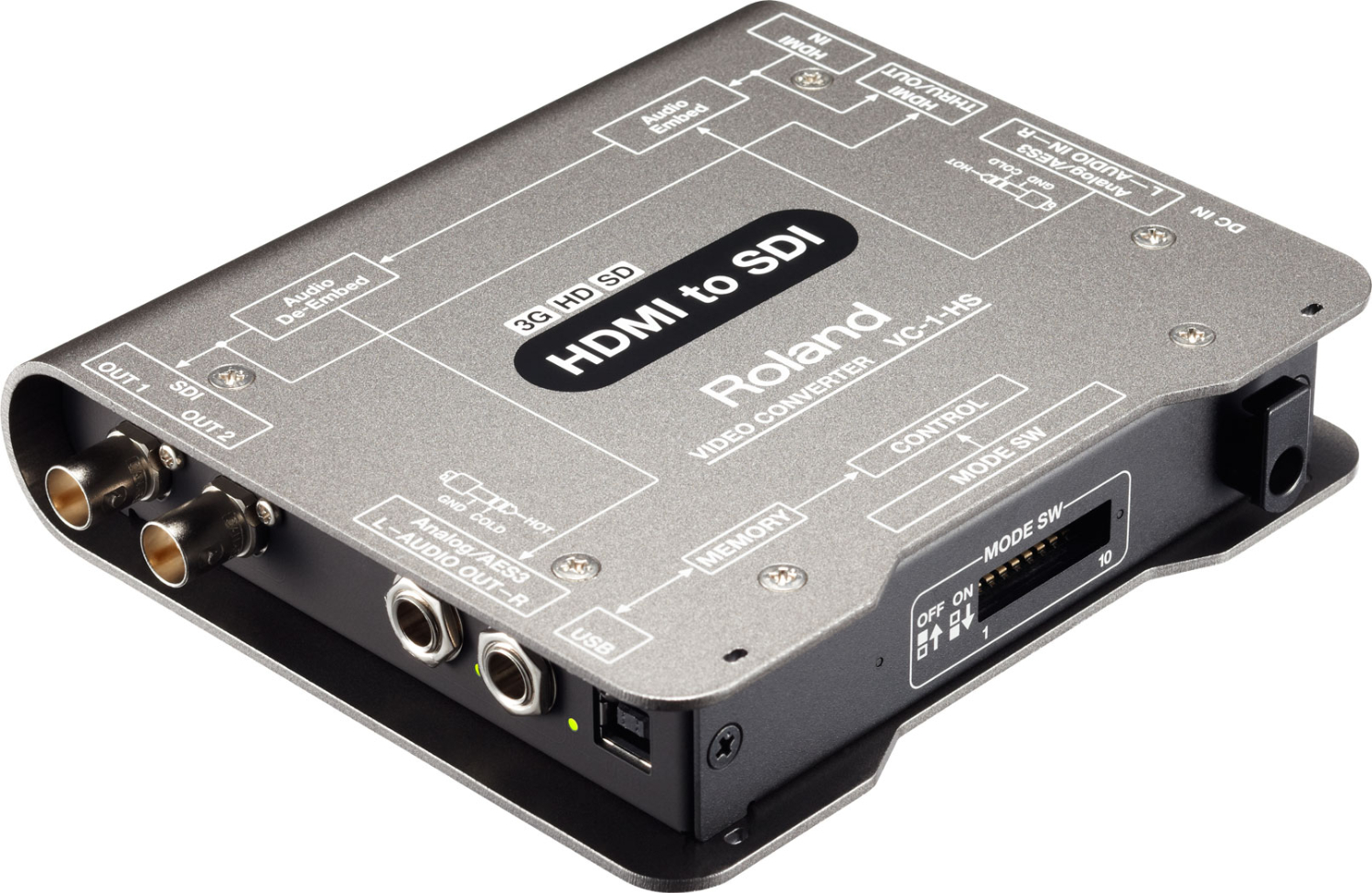

The Roland VC-1-HS losslessly converts HDMI to level A and B 3G/HD/SD-SDI with two SDI outputs and an HDMI thru. It embeds analogue or AES3 audio into SDI, supports HDCP and can be controlled with the VC-1 RCS app for PC and Mac.

More information

659 € with VAT 544.63 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Roland VC-1-HS losslessly converts HDMI to level A and B 3G/HD/SD-SDI with two SDI outputs and an HDMI thru. It embeds analogue or AES3 audio into SDI, supports HDCP and can be controlled with the VC-1 RCS app for PC and Mac.

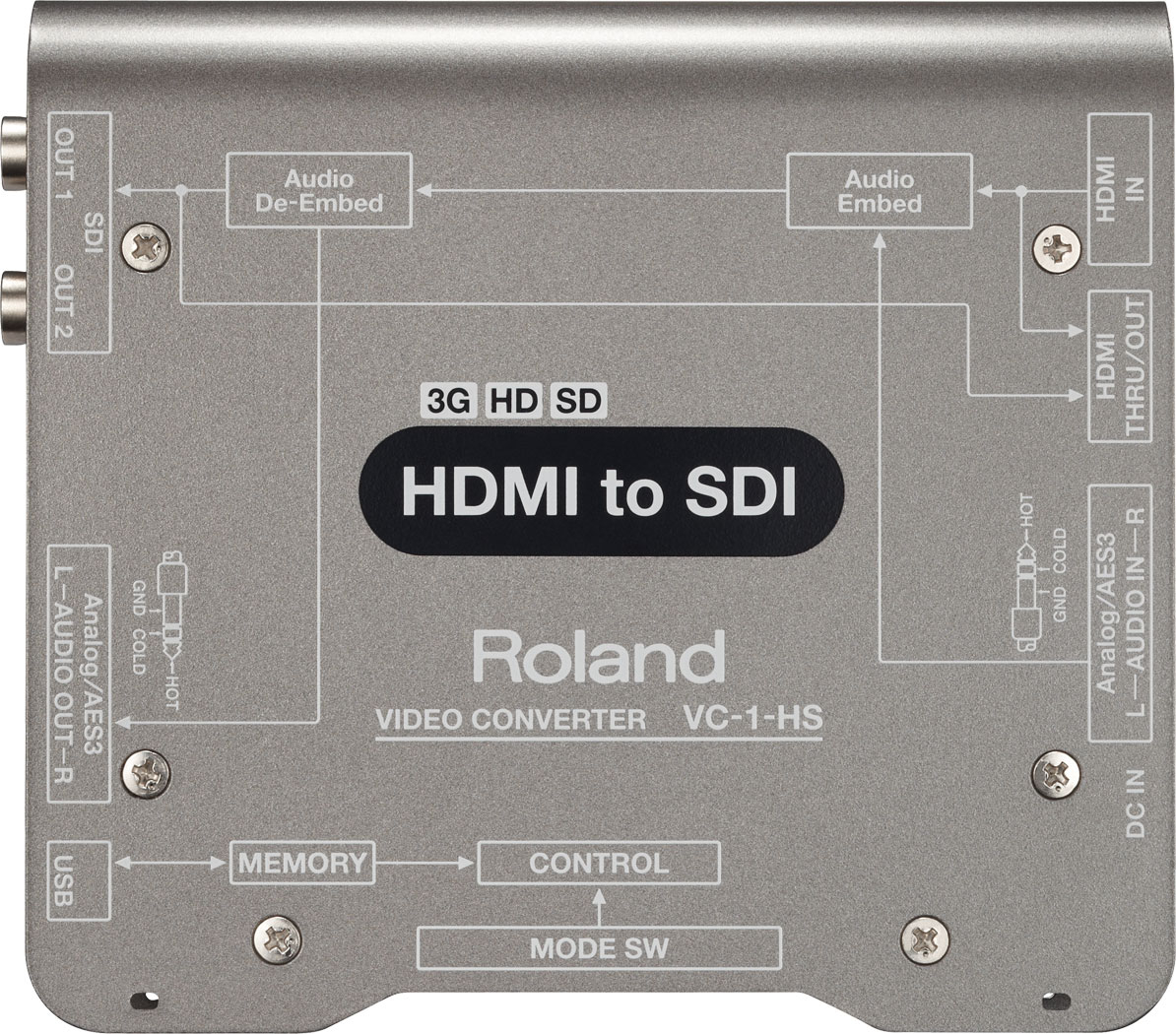

The VC-1-HS converts video and audio from HDMI to SDI. Connect a camera or other HDMI source to an SDI production system over long distances, with optional embedding of analogue or AES3 digital audio into the SDI signal.

HDMI cameras into an SDI world

Lossless HDMI to 3G-SDI conversion with two SDI outputs, HDMI thru and audio embedding in a compact metal housing.

HDMI → 3G/HD/SD-SDI2× SDI outHDMI THRUAudio embeddingHDCPVC-1 RCS

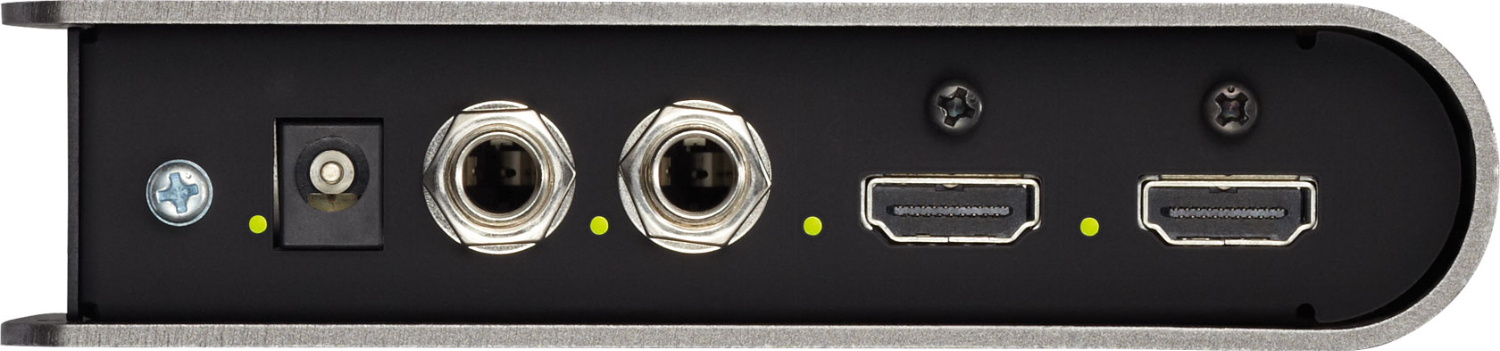

HDMI input with thru output

The source connects to the HDMI input and the same signal continues through the HDMI THRU/OUT connector, for example to a preview monitor.

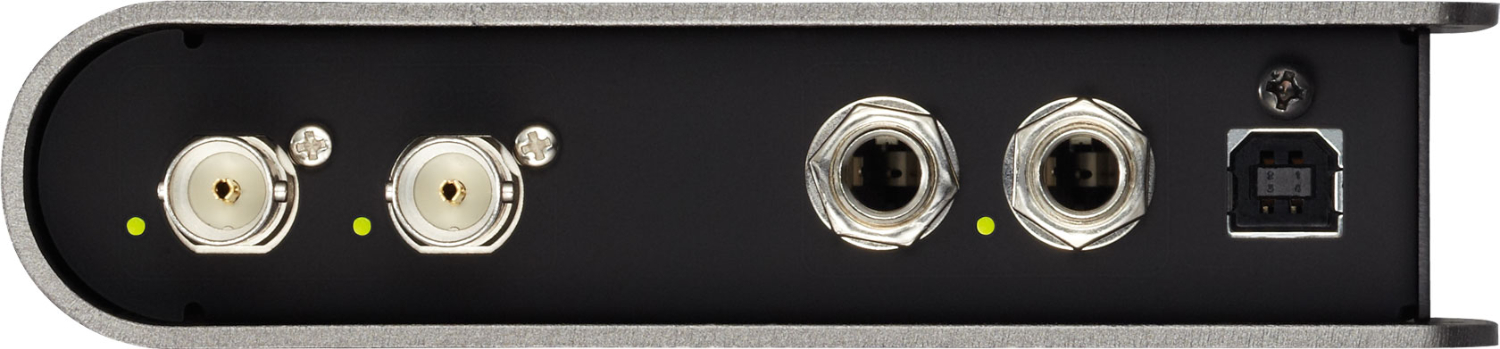

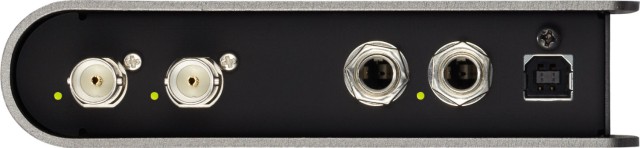

Two SDI outputs

The converted signal leaves two BNC connectors at once. Analogue audio on balanced 1/4" TRS jacks or AES3 digital audio can be embedded into the SDI.

Set up by switches or computer

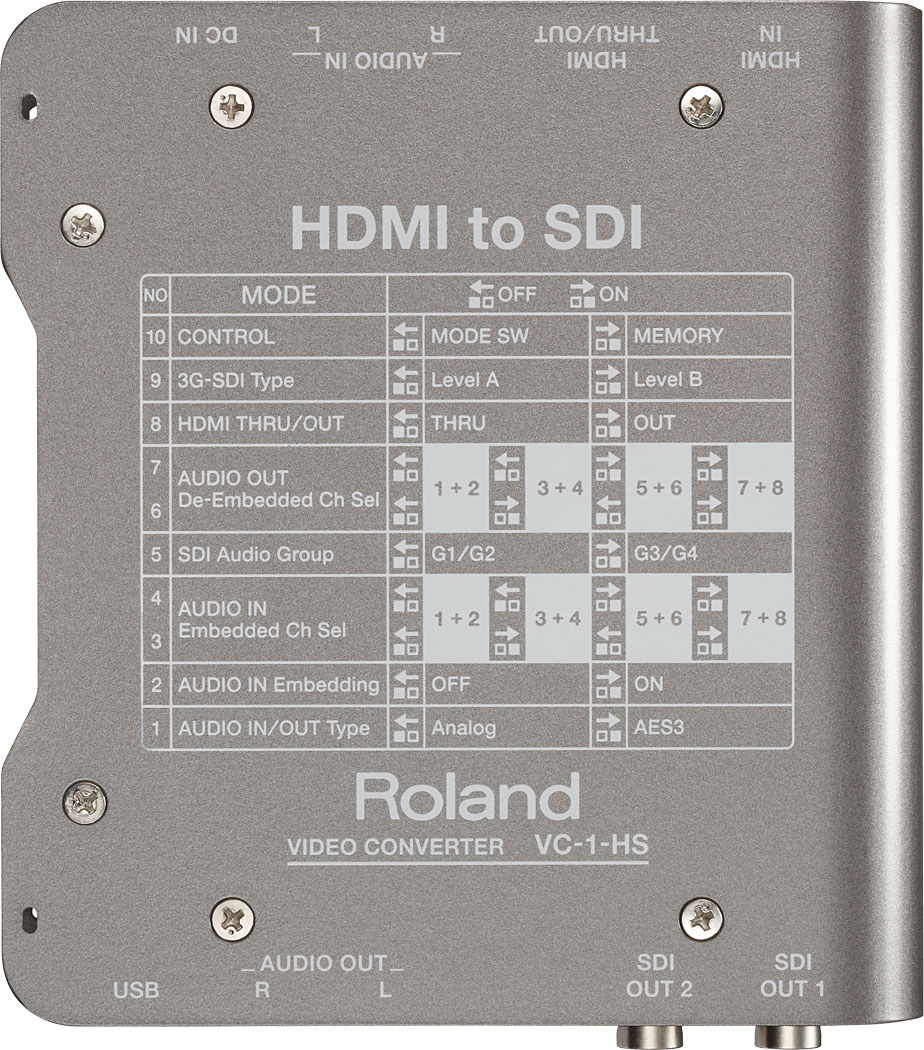

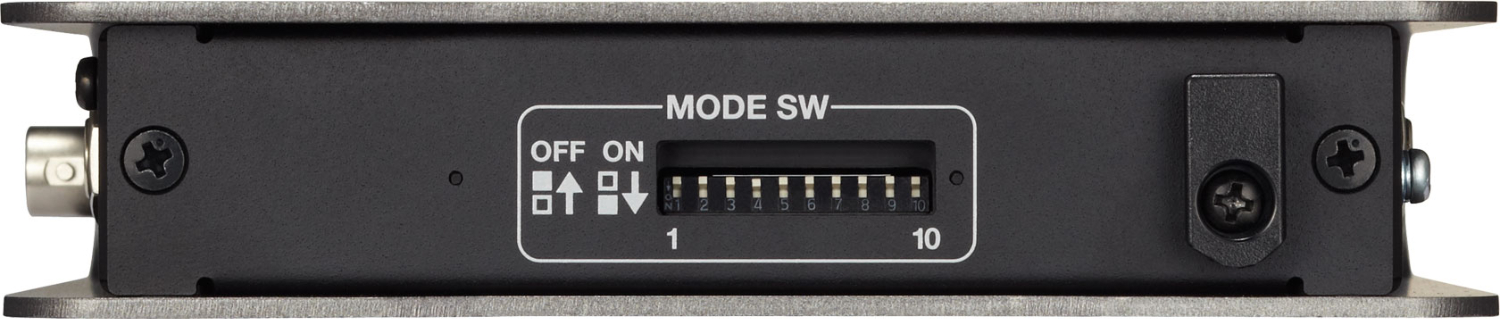

3G-SDI type, embedded audio channels and other options are set with DIP switches on the unit or over USB in the VC-1 RCS app for PC and Mac.

HDMI cameras into an SDI mixer

More and more live productions use cameras with HDMI outputs. The VC-1-HS converts, extends and embeds audio into their signal so the cameras can feed the SDI inputs of Roland video mixers such as the V-1600HD or V-800HD.

Uncompromising picture

Conversion keeps the character of the original signal with rich blacks and clean whites, free of interlacing artefacts.

3G-SDI level A and B

Outputs to SMPTE 424M, 292M and 259M-C for 3G, HD and SD SDI.

Audio as you need it

Selectable channels for embedding analogue or AES3 audio into 16-channel SDI.

STAR Award

The VC-1 series won TV Technology’s STAR Award at NAB 2013.

Roland's new video converter address the demand for high-quality, lossless video and audio converter for live/post production as well as installed systems.

  • HDMI to SDI Conversion
  • Lossless Image Conversion
  • 3G (Level A&B) /HD/ SD SDI
  • HDCP Support
  • VC-1 RCS, PC/MAC Control Application
  • Selectable Channel for Embedded/De-Embedded Audio

PACKAGE CONTENT

  • VC-1-HS converter ×1
  • AC adaptor ×1
  • Power cord ×1
  • Rubber feet ×4
  • Owner's Manual ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: VC-1-HS
  • Type: HDMI to SDI converter
  • Inputs: HDMI type A ×1, analogue audio 1/4" TRS (balanced) L/R, AES3 digital audio (shared with R channel)
  • Outputs: SDI (BNC) ×2, HDMI type A ×1 (THRU/OUT), analogue audio 1/4" TRS L/R, AES3
  • SDI standards: SMPTE 424M (425M-AB), 292M, 259M-C
  • Video formats: 1080p (23.98–60 Hz), 1080i, 720p, 480i, 576i
  • SDI audio: linear PCM, 24-bit, 48 kHz, 16 ch
  • HDMI audio: linear PCM, 24-bit, 48 kHz, 8 ch
  • Analogue audio: input +4 dBu (max. +24 dBu), output +4 dBu
  • Processing: audio embedding and de-embedding, HDCP
  • Control: DIP switches, USB type B (VC-1 RCS app for PC and Mac)
  • Power: DC 9 V (AC adaptor), 8 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 150 × 130 × 30 mm (W × D × H)
  • Weight: 500 g

ARTICLES

Parameters

Parameters

Manufacturer: Roland
Category: Signal converters
